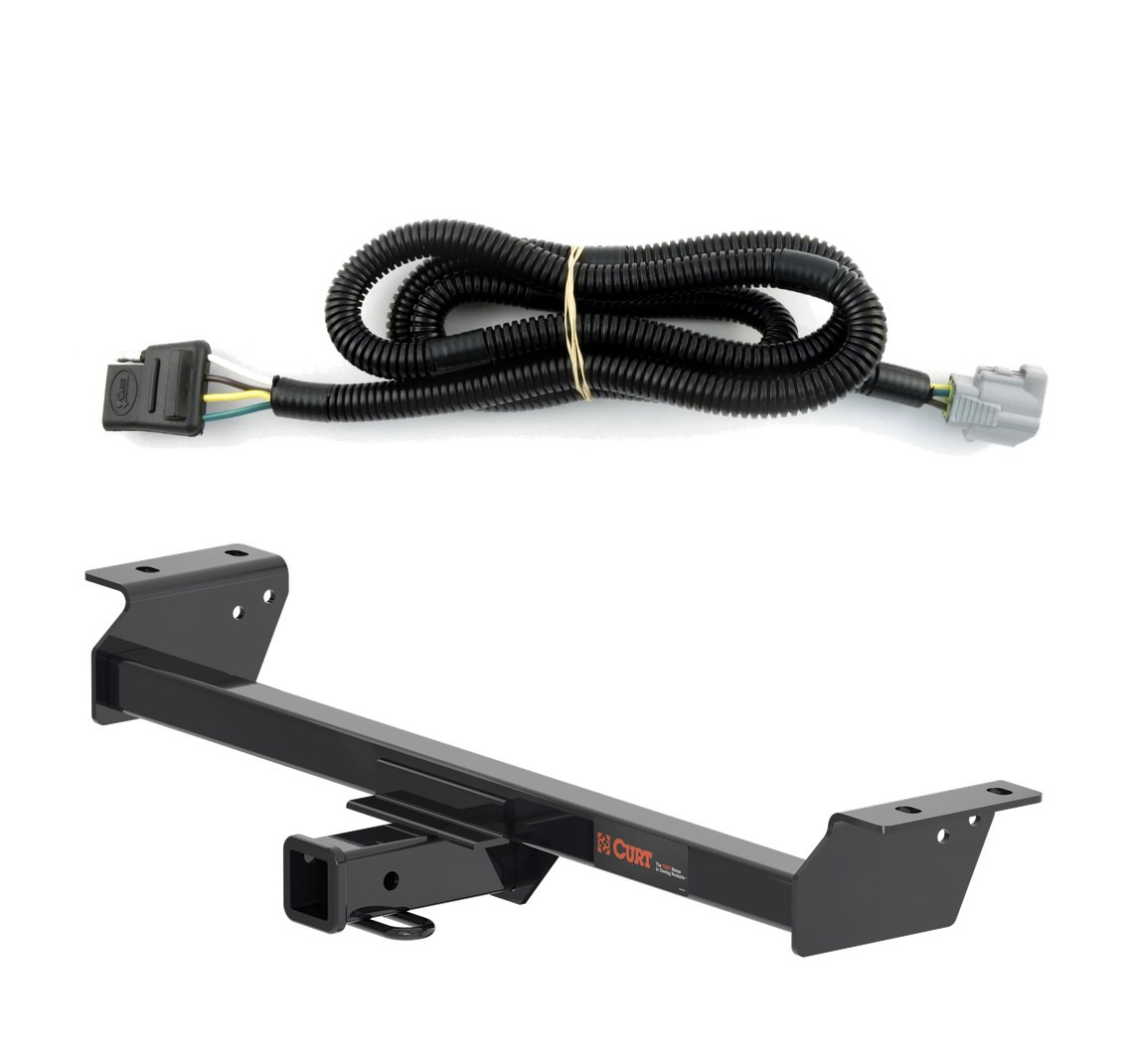

Complete CURT Class 3 2" trailer hitch and 4-flat custom wiring kit engineered for the 2016 - 2020 Lexus RX450h Excluding F Sport. Vehicle-specific fit, plug-and-play installation, all hardware and instructions included.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Lexus RX450h (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 4,000 lbs. GTW and 600 lbs. TW. It is also compatible with a weight distribution hitch for level towing and a rating of 5,000 lbs. WD and 600 lbs. WDTW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.
CURT custom wiring connectors are the easiest way to outfit your vehicle with a CURT trailer wiring connection. They are built with some of the most advanced technology in the industry, and each one is custom-fitted to work with a specific make and model. Some automotive manufacturers install a special socket on the vehicle to be used for vehicle-to-trailer wiring. Although this special socket is not equipped on every vehicle, a CURT custom wiring connector -- also called a T-connector -- utilizes the socket for simple, stress-free installation. Rather than requiring you to cut, splice and solder into your vehicle's wiring system, the custom wiring connector uses a single OEM-compatible plug and instantly provides a standard, universal vehicle-to-trailer wiring connection, typically in the form a 4-way flat. All CURT custom wiring connectors are made vehicle-specific for the easiest possible installation and the best fit. This particular plug-in connector provides a 4-way flat socket and is designed to be a custom wiring option for certain years of the Lexus RX350 and RX450h (factory tow package required; to verify your vehicle compatibility, see application info). It comes with all necessary hardware to establish a solid connection. It also comes with a dust cover to keep the connector socket clean when not in use. To ensure long-lasting reliability, all CURT custom wiring connectors are thoroughly tested for optimal functionality. Stress is the last thing you should feel when towing a trailer -- whether you're hauling your RV to that favorite camping destination, your ATVs up to the hunting grounds or your fishing boat to the new hidden hotspot. At CURT, we think your towing equipment should add to the enjoyment of your experience, not detract from it.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2016 - 2020 | Lexus RX450h | Excluding F Sport |
The 16 - 20 Lexus RX450h Excluding F Sport Curt 2", Class 3 Trailer Tow Hitch + 4-flat Wiring Kit 13282 (Part #CHW-2168) fits 2016-2020 Lexus RX450h models. The 2020 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 16 - 20 Lexus RX450h Excluding F Sport Curt 2", Class 3 Trailer Tow Hitch + 4-flat Wiring Kit 13282 (Part #CHW-2168) is designed to fit the 2016-2020 Lexus RX450h.
The 16 - 20 Lexus RX450h Excluding F Sport Curt 2", Class 3 Trailer Tow Hitch + 4-flat Wiring Kit 13282 (Part #CHW-2168) fits the following vehicles: 2016-2020 Lexus RX450h. Always verify your specific year, make, and model before ordering.
The 16 - 20 Lexus RX450h Excluding F Sport Curt 2", Class 3 Trailer Tow Hitch + 4-flat Wiring Kit 13282 (Part #CHW-2168) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, CURT part number 13282 is designed for 2016-present Lexus RX450h SUVs. Verify your vehicle matches this year range and model before purchase.
The CURT 13282 supports two towing configurations: as a weight-carrying hitch, 4,000 lbs trailer weight and 600 lbs tongue weight; as a weight-distribution hitch, 5,000 lbs trailer weight and 600 lbs tongue weight. However, you must never exceed your vehicle manufacturer's recommended towing capacity, which may be lower than these ratings.
The hitch weight is 30 lbs.
Required tools are: ratchet, torque wrench, 9-inch socket extension, 10mm/17mm/19mm sockets, screwdriver, aviation shears, masking tape, tape measure, and safety glasses. Proper tools will improve installation quality and reduce installation time.
Yes. All 12mm fasteners must be torqued to 86 ft-lbs, which requires a torque wrench.
The hitch includes 6 HHCS M12x1.25 40CL10.9 YZ bolts (part number 10-10277) and 6 washers S-CON 1/2 YZ (part number 30-00149). These fasteners secure the hitch to the existing frame weldnuts.
No. The manual states 'no drilling required.' The hitch aligns with existing weldnuts in the frame.
Two people may be required to ease installation. The manual recommends reading all instructions thoroughly before beginning and notes that using proper tools will improve installation quality and reduce time required.
Professional installation time is approximately 60 minutes. Novice (DIY) installation time is approximately 39 minutes for the core steps, though total time including fascia trimming may be longer. Actual time depends on your experience level and familiarity with the vehicle.
The first step is to temporarily remove the lower fascia by removing 13 fasteners. This provides access to the frame rails and tow loops.
Using a 17mm socket, remove the tow loops from both the driver and passenger side frame rails. Also remove the existing hole plugs from the frame rails. Return the fasteners and plugs to the vehicle owner.
Raise the hitch into position by aligning it with the existing weldnuts in the frame. Secure the hitch with 12mm bolts and 1/2-inch conical toothed washers into the existing weldnuts. If the tow loop is being reinstalled, the hitch will be clamped between the tow loop and frame rail.
All 12mm fasteners must be torqued to 86 ft-lbs.
The lower fascia must be trimmed as needed to fit around the installed hitch. The manual provides a trim diagram showing reference measurements of 6.00 inches and 4.50 inches. Use aviation shears for trimming, and reinstall the fascia after trimming is complete.
Yes. The manual indicates that trimming of the lower fascia is required and shows specific trim measurements (6.00 inches and 4.50 inches). This is a permanent modification to the vehicle's fascia.
The installation notes mention 'weldnut cleaning' as part of the installation process. The manual does not specify the exact cleaning method or materials required. Contact CURT Technical Support at 877-287-8634 for detailed guidance on this step.
Safety glasses must be worn at all times while installing this product. Before beginning installation, read all instructions thoroughly. If you are hesitant to undertake this task on your own, contact an authorized CURT installer for additional assistance.
Never exceed your vehicle manufacturer's recommended towing capacity. While the CURT 13282 supports up to 4,000 lbs trailer weight and 600 lbs tongue weight as a weight-carrying hitch (or 5,000 lbs trailer weight and 600 lbs tongue weight as a weight-distribution hitch), your Lexus RX450h may have a lower manufacturer-recommended limit that must be observed.
Periodically check the receiver hitch to ensure all fasteners are tight and all structural components are sound. This ongoing inspection helps maintain the safety and integrity of the installation.
CURT Manufacturing warrants this product to be free of defects in material and workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective, CURT may repair or replace it at their option when returned prepaid with proof of purchase. Alteration, misuse, or improper installation voids the warranty. CURT's liability is limited to repair or replacement of defective products and excludes liability for incidental or consequential loss or damage.
The CURT 13282 complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5 and SAE J684.
The Curt 56083 custom wiring connector is designed for Lexus RX 350 models equipped with a tow package. If your RX 350 has the tow package, the connector will fit. If you are unsure whether your vehicle has the tow package, check your vehicle owner's manual or contact the vehicle manufacturer.
Yes, the Curt 56083 custom wiring connector is compatible with the Lexus RX 450h.
Some RX 350 models may need to be programmed to accept the custom wiring connector. This programming must be done by a Lexus dealer. Check with your dealer to determine whether your specific vehicle requires programming.

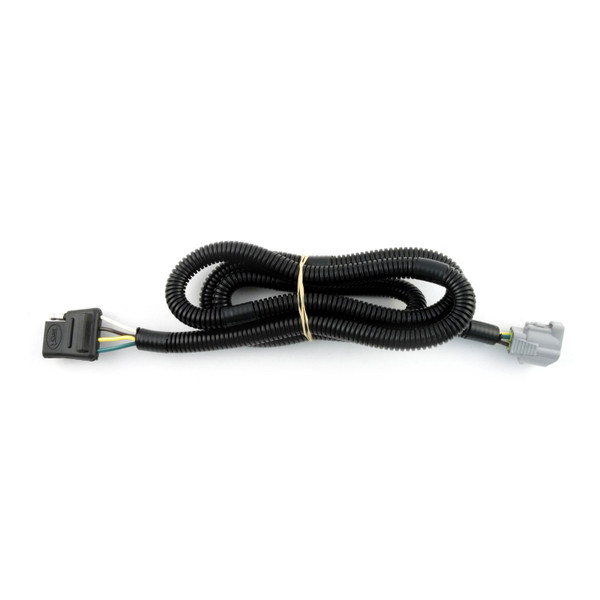

The Curt 56083 includes the custom wiring connector, a protective cap for the vehicle plug, cable ties for securing loose wires, and a 4-flat dust cover to help prevent corrosion.
1. Locate the vehicle taillight wiring connector and remove the protective cap. 2. Insert the custom wiring connector end into the vehicle connector, ensuring the connectors are fully inserted with locking tabs in place. 3. Route the 4-flat connector to the center of the vehicle and out of the trunk when in use; roll up and store inside the trunk when not in use. Secure loose wires with the provided cable ties. 4. Some models may require dealer programming. 5. Reinstall all removed items and install the provided 4-flat dust cover.
The vehicle taillight wiring connector is located behind the driver side rear bumper. The manual refers to this location as 'S5' and shows a representative vehicle diagram, but for specific location details on your model, check your vehicle owner's manual or contact the vehicle manufacturer.
When not in use, roll up the 4-flat connector and store it in a convenient, out-of-the-way location inside the trunk. When in use, route the 4-flat to the center of the vehicle and out of the trunk. Secure any loose wires with the provided cable ties.
Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower. Exceeding the product rating can cause loss of warranty, overheating and potential fire. For the specific product rating, refer to the product documentation or contact Curt Manufacturing.
Test for proper function by using a test light or connecting a properly wired trailer. All steps must be followed to ensure the wiring connector will function properly.
The provided 4-flat dust cover helps prevent corrosion of the connector. Install it after completing the wiring connector installation.
Yes, the Curt 56083 is designed for Lexus RX 350 with tow package and RX 450h. Some models may require dealer programming.
The manual lists no tools as needed for installation. The connector plugs directly into the vehicle taillight wiring connector.
The manual does not specify whether bumper removal is required. The connector is located behind the driver side rear bumper. Check your vehicle owner's manual or contact the vehicle manufacturer for access instructions.
Do not exceed the product rating or tow vehicle lamp load rating, whichever is lower. Exceeding the rating can cause loss of warranty, overheating and potential fire. Refer to product documentation for the specific rating.
Test for proper function using a test light or by connecting a properly wired trailer.
