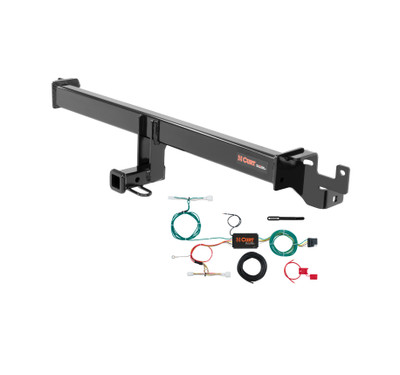

Complete CURT Class 1 1-1/4" trailer hitch and 4-flat custom wiring kit engineered for the 2016 - 2021 Mazda CX-3. Vehicle-specific fit, plug-and-play installation, all hardware and instructions included.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!
However you define adventure -- whether it's climbing onto the back of a mountain bike, hunting from the top of a tree stand or camping with the family a long way from nowhere -- CURT class 1 hitches provide a light-duty towing receiver to help you Bring It. Each is made to fit a specific vehicle, providing easier installation, a better fit and optimal towing capacity. Custom class 1 trailer hitches are available for a variety of smaller vehicle types, including the compact car, crossover, minivan and small SUV. This particular class 1 hitch is designed to be a custom hitch for certain years of the Mazda CX-3 (to verify vehicle compatibility, see the CURT application guide at curtmfg.com). Tested in accordance with SAE J684, it offers a weight carrying capacity of 2,000 lbs. GTW and 200 lbs. TW. It is equipped with 1-1/4" receiver tube opening to accept a ball mount shank or other hitch mount. This class 1 hitch also comes with all necessary mounting hardware. With its lightweight design and smaller receiver tube size, a class 1 hitch is especially useful for adding cargo space with a hitch-mounted bike rack or cargo carrier. They can also typically be used to tow small trailers such as a utility trailer, kayak trailer or teardrop camper (never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). Though CURT class 1 trailer hitches are only intended for light-duty towing, we apply the same principles of quality as we do to the rest of our rear mount hitches. Each class 1 hitch is made with hands-on engineering, high-strength steel and precise welding. We use a co-cured finish of liquid A-coat, inside and out, and durable black powder coat to provide a lasting defense against rust, chips and UV rays.
If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution. A custom wiring harness -- also called a T-connector -- is a simple, plug-and-play electrical device that plugs into your automotive electric system and provides a standard, universal trailer wiring connection. This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation. Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing. This particular plug-in harness provides a 4-way flat connector socket and is designed to be a custom wiring harness to fit certain years of the Mazda CX3 and MX-5 Miata (to verify your vehicle compatibility, see application info). It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use. You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite. However, turning that picture into a reality takes more than just daydreaming. It takes a solid connection and the right amount of power. CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing hitch setup.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2016 - 2021 | Mazda CX-3 | — |

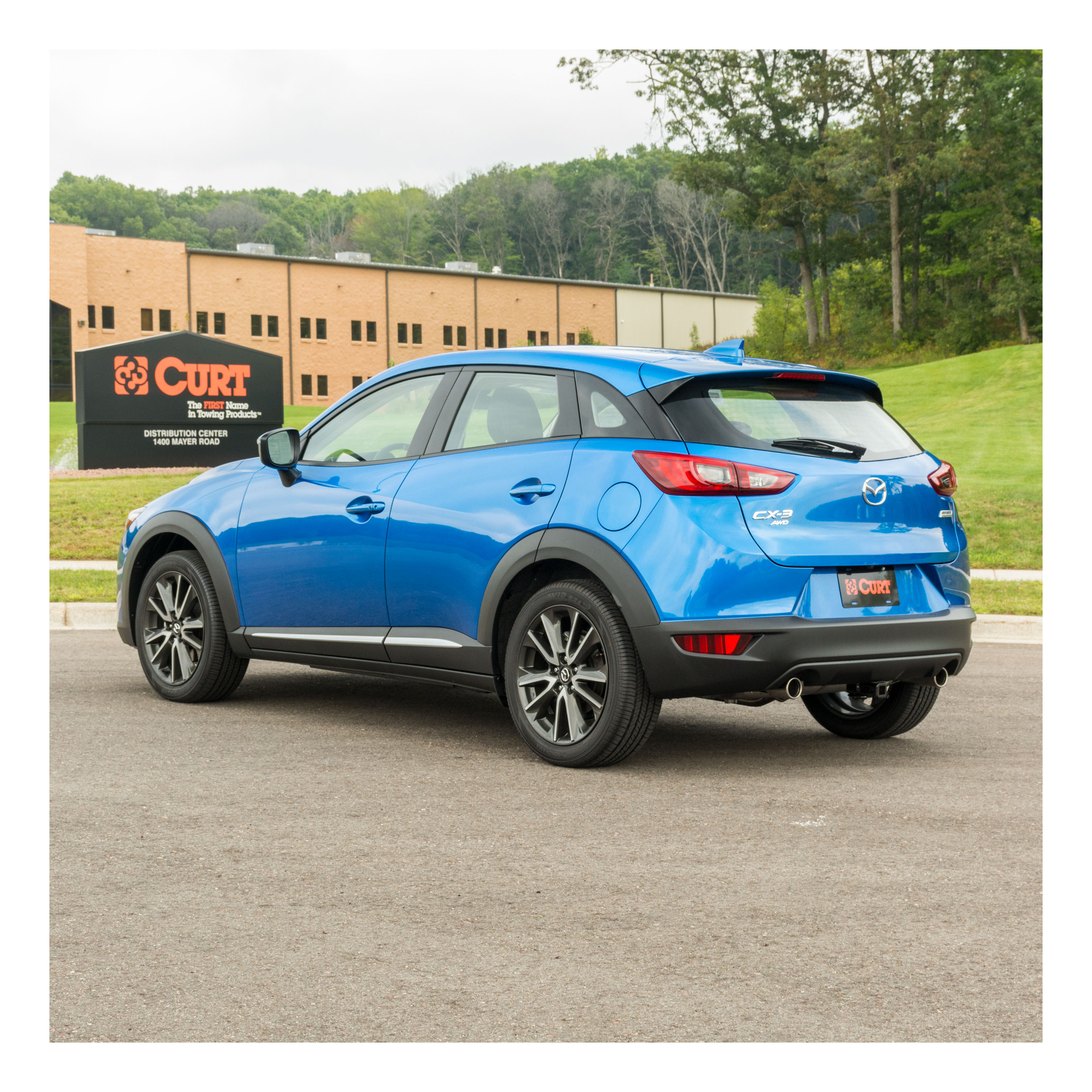

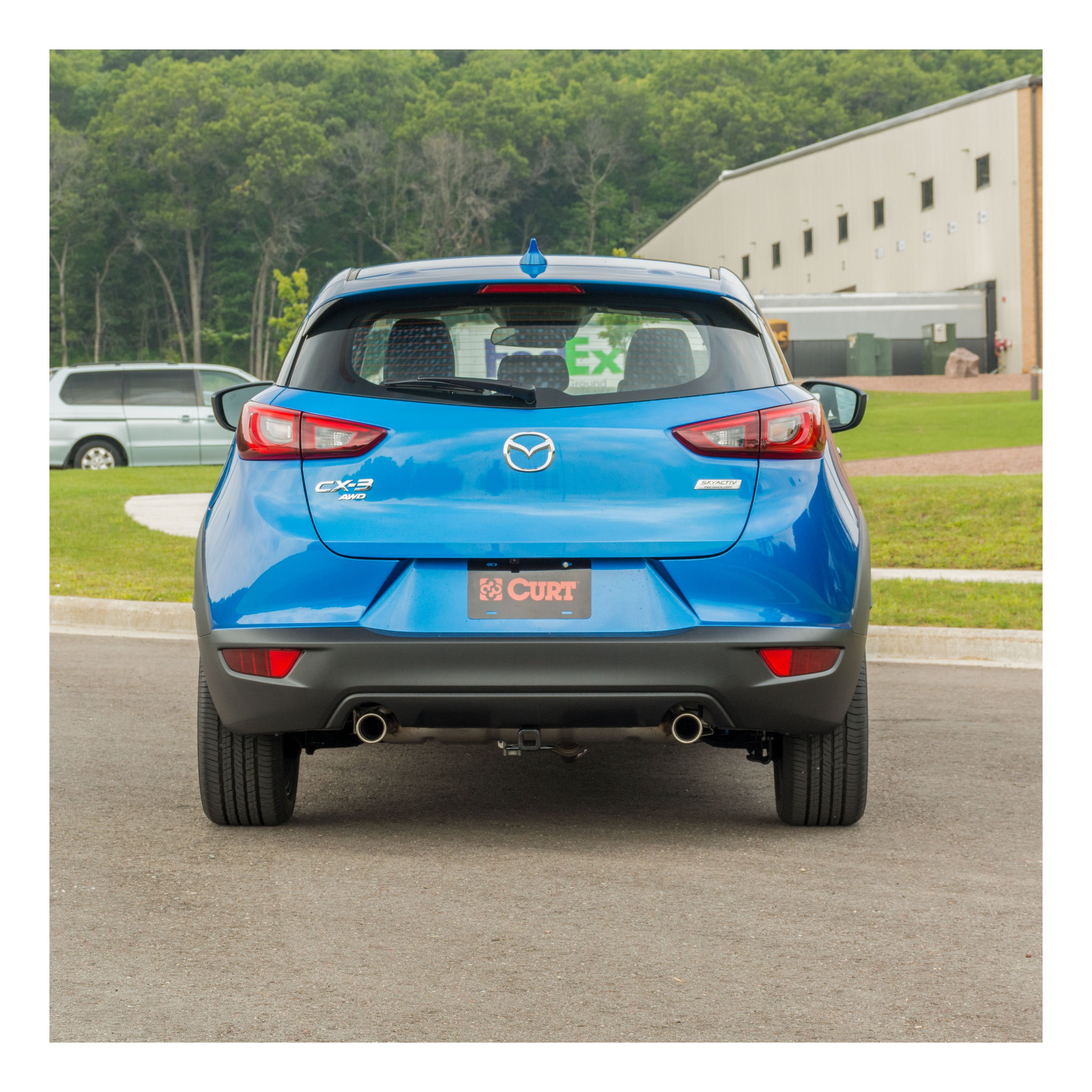

Yes, the 16 - 21 Mazda CX-3 Curt 1-1/4", Class 1 Trailer Tow Hitch + 4-flat Wiring Kit 11418 (Part #CHW-2268) is designed to fit the 2016-2021 Mazda CX-3.
The 16 - 21 Mazda CX-3 Curt 1-1/4", Class 1 Trailer Tow Hitch + 4-flat Wiring Kit 11418 (Part #CHW-2268) fits 2016-2021 Mazda CX-3 models. The 2021 model year is the last year covered by this part number. For newer models, check for an updated version.
The 16 - 21 Mazda CX-3 Curt 1-1/4", Class 1 Trailer Tow Hitch + 4-flat Wiring Kit 11418 (Part #CHW-2268) fits the following vehicles: 2016-2021 Mazda CX-3. Always verify your specific year, make, and model before ordering.
The 16 - 21 Mazda CX-3 Curt 1-1/4", Class 1 Trailer Tow Hitch + 4-flat Wiring Kit 11418 (Part #CHW-2268) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, CURT hitch 11418 is designed for Mazda CX-3 models from 2016 to present. It is a Class II weight-carrying hitch with a gross load capacity of 2,000 lbs trailer weight and 200 lbs tongue weight.
CURT hitch 11418 is designed for use with ballmount #45521. A euro mount option is also available: #45571 (1 7/8" ball) and #45572 (2" ball).
When used as a weight-carrying hitch, CURT 11418 has a gross load capacity of 2,000 lbs trailer weight and 200 lbs tongue weight. You must not exceed your vehicle manufacturer's recommended towing capacity.
Required tools are: 17mm socket, 3/4" socket, ratchet, torque wrench, and screwdriver. Safety glasses should be worn at all times during installation.
The hitch includes: one 1/2"-13 UNC carriage bolt, 1-3/4" long, Grade 8, zinc-plated (part 10-10272); one 0.188" x 1.50" x 2.00" round hole spacer (part CM-SP32); and one 1/2"-13 UNC serrated flange nut, Grade 8, zinc-plated (part 20-00062). The installation also reuses existing M10 nuts and studs from the vehicle bumper beam and recovery loop.
No, drilling is not required. The hitch uses existing vehicle studs and hardware on both sides, and the spacer is secured to the vehicle recovery loop using the included carriage bolt and flange nut.
Yes, the exhaust must be lowered by removing four isolators before installation. The exhaust is then raised and the isolators reinstalled after the hitch is secured.
Two people are recommended to ease installation. However, the manual does not specify whether installation is possible with one person.
1. Lower the exhaust by removing four isolators. Remove the outer two push fasteners from the bumper cover and save them. 2. Remove the two bottom M10 nuts from the bumper beam and save them. 3. Raise the hitch into position and loosely secure it with the M10 nuts removed in step 2. Install the spacer between the hitch and vehicle recovery loop, and secure with the 1/2" carriage bolt and 1/2" flange nut. 4. Tighten the M10 bolts to 45 ft-lbs and tighten the 1/2" bolt to 90 ft-lbs. Reinstall the two push fasteners removed in step 1, then raise the exhaust and reinstall the rubber isolators.
The M10 bolts must be tightened to 45 ft-lbs.
The 1/2" carriage bolt must be tightened to 90 ft-lbs.
All non-trailer loads (wheel-less loads) applied to this hitch must be supported by CURT 18050 stabilizing straps. Failure to properly support non-trailer loads will void the product warranty. CURT recommends the use of 18050 stabilizing straps for all non-trailer loads.
You must never exceed your vehicle manufacturer's recommended towing capacity. While CURT hitch 11418 has a gross load capacity of 2,000 lbs trailer weight and 200 lbs tongue weight, your Mazda CX-3 may have a lower manufacturer-recommended capacity that must be observed.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound. This should be done regularly to maintain the integrity of the installation.
Yes, CURT hitch 11418 complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5 and SAE J684.
CURT Manufacturing LLC. warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective, CURT may repair or replace the product at their option when the product is returned, prepaid, with proof of purchase. Alteration to, misuse of, or improper installation of this product voids the warranty. CURT's liability is limited to repair or replacement of products found to be defective, and specifically excludes liability for incidental or consequential loss or damage.
Yes, CURT hitch 11418 is designed for Mazda CX-3 models 2016-present with a 2,000 lbs trailer weight and 200 lbs tongue weight capacity.
No, no drilling is required. The hitch uses existing vehicle studs and hardware.
Yes, the exhaust must be lowered by removing four isolators before installation, then raised and reinstalled after the hitch is secured.
M10 bolts: 45 ft-lbs. 1/2" carriage bolt: 90 ft-lbs.
All non-trailer (wheel-less) loads must be supported by CURT 18050 stabilizing straps. Failure to do so voids the warranty.
17mm socket, 3/4" socket, ratchet, torque wrench, screwdriver, and safety glasses.
Yes, the Curt 56300 is designed for Mazda CX-3, Mazda 6, and Mazda MX-5 models. Installation procedures vary slightly by model: CX-3 and Mazda 6 require removal of floor coverings and cargo hold-downs from the trunk, while MX-5 requires removal of floor coverings and rear trunk panel. Consult the model-specific steps in the installation manual for your vehicle.

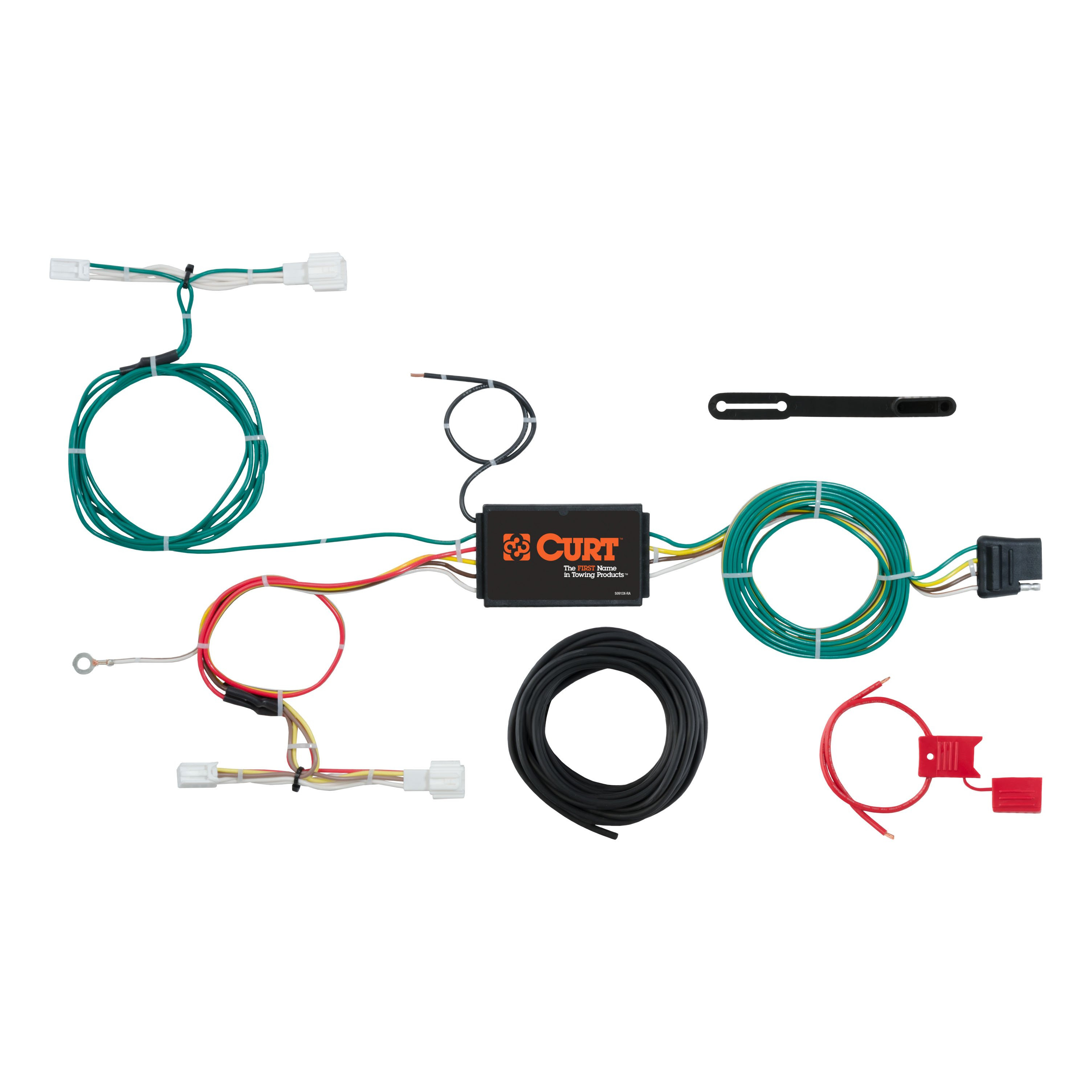

The Curt 56300 is a trailer wiring harness with a powered converter module. It connects your vehicle's taillight wiring to a 4-flat trailer connector, allowing you to tow a trailer with integrated lighting. The converter processes your vehicle's turn signal, brake, and taillight circuits to power the trailer lights.
Yes. The converter system is designed only for 12-volt negative ground systems. If your vehicle uses a different electrical system configuration, this product is not compatible.
Required tools are: ratchet, panel trim removal tool, 10mm socket, cutting tool, socket extension, wire crimper, flathead screwdriver, and wire stripper. Proper tools will improve installation quality and reduce installation time.
Yes. You must locate the vehicle's battery in the engine compartment on the driver side and disconnect the negative battery terminal before beginning installation. Fasten this wire down and away from the battery while completing the installation process. Reconnect it only after all other installation steps are complete.
Drilling may be required for the ground wire connection. You must locate a suitable grounding point near the taillight connector, such as an existing screw with nut in the vehicle frame. If no existing screw is available, you will need to drill a 3/32" pilot hole for the provided ground screw. The area must be free of rust, dirt, and paint before securing the white ground wire with the ring terminal.
Drill a 3/32" pilot hole if an existing screw with nut is not available at the grounding point. The area must be free of rust, dirt, and paint before installing the provided screw with the white ground wire ring terminal.
The battery connection must be fuse-protected with a 10-amp maximum fuse. Exceeding this rating can cause loss of warranty, overheating, and potential fire. The fuse holder should be installed after all other installation steps are complete.
Signal circuits (turn signals): 3.0 amps per side. Tail/running circuits: 6.0 amps total. Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower. For additional information, check your vehicle owner's manual or contact the vehicle manufacturer.
Use 12 GA (12-gauge) wire or larger for the power wire routing from the vehicle battery to the converter. Route the wire carefully to avoid pinch points and hot or rotating components. When passing the power wire through sheet metal, use an existing grommet, add a grommet, or use silicone to protect the wire from sharp edges.
The harness wire colors are: Green (right turn signal), Red (brake), Yellow (left turn signal), and Brown (taillight). The custom wiring harness has a yellow wire end for the driver side and a green wire end for the passenger side. The black power wire connects to the vehicle battery positive terminal, and the white ground wire connects to the vehicle body.
Mount the black converter box using the provided double-sided tape on a flat spot inside the vehicle near the taillight. The converter should be positioned after the custom wiring harness is inserted between the separated taillight connectors.
When not in use, roll up the 4-flat connector and store it in a convenient, out-of-the-way location. When in use, route the 4-flat to the center of the vehicle. Secure any loose wires with the provided cable ties.
After connecting the 12-volt power wire to the harness, verify that the harness is functioning by attaching the battery and testing with a test light, 4-flat tester, or a functioning trailer. This confirms all circuits are working properly before regular use.
Perform periodic inspection of all wires and connections to ensure there is no visible damage or loose connections. Install the provided 4-flat dust cover to help prevent corrosion of the connector.
Before drilling to create the ground wire pilot hole, check for miscellaneous items that may be hidden behind or under any surface to avoid damage and personal injury. The area where you drill must be free of rust, dirt, and paint.
1. Disconnect negative battery terminal. 2. Open trunk and remove floor coverings to expose spare tire. 3. Remove push fasteners from rear scuff panel (2 on CX-3, 4 on Mazda 6) and remove the panel. 4. Remove push fasteners from sidewall covering and cargo hold-downs (CX-3 uses 10mm socket). 5. Pull back felt liner to locate taillight wiring harness connectors. 6. Separate connectors and insert custom harness with yellow wire between them. 7. Mount converter box with double-sided tape. 8. Secure white ground wire to frame with ring terminal and provided screw (drill 3/32" hole if needed). 9. Repeat steps 4-6 on passenger side with green wire harness end. 10. Route black power wire to battery, secure with cable ties, install fuse, reconnect battery, and reinstall removed items.
1. Disconnect negative battery terminal. 2. Open trunk and use panel trim removal tool to remove four push fasteners securing floor coverings, exposing the floorboard. 3. Use panel trim removal tool to remove four push fasteners securing rear trunk panel; remove panel toward front of vehicle and straight up. 4. Remove push fastener from sidewall covering on driver side. 5. Pull back felt liner to locate taillight wiring harness connectors. 6. Separate connectors and insert custom harness with yellow wire between them. 7. Mount converter box with double-sided tape. 8. Secure white ground wire to frame with ring terminal and provided screw (drill 3/32" hole if needed). 9. Repeat steps 4-6 on passenger side with green wire harness end. 10. Route black power wire to battery, secure with cable ties, install fuse, reconnect battery, and reinstall removed items.
Pull back the felt liner to locate the vehicle's taillight wiring harness connectors. Separate the connectors from the taillight housing, taking care not to damage the locking tabs. Insert the custom wiring harness end with the yellow wire (driver side) between the separated connectors. Make sure the connectors are fully inserted with locking tabs in place. Repeat on the passenger side using the harness end with the green wire.
Route the black power wire from the vehicle battery as shown on the provided Powered Converter Lead Instruction Sheet. The wire must be 12 GA or larger. Route it carefully to avoid pinch points and hot or rotating components. Secure the power wire to the vehicle chassis using the provided cable ties. When passing through sheet metal, use an existing grommet, add a grommet, or use silicone to protect the wire from sharp edges. Connect the ring terminal to the vehicle battery positive terminal. Install the fuse holder with a 10-amp maximum fuse after all other steps are complete.
The Curt 56300 is designed for Mazda CX-3, Mazda 6, and Mazda MX-5 only. Installation steps vary by model.
You need: ratchet, panel trim removal tool, 10mm socket, cutting tool, socket extension, wire crimper, flathead screwdriver, and wire stripper.
Yes, disconnect the negative battery terminal before starting installation and reconnect it only after all other steps are complete.
The battery connection must use a 10-amp maximum fuse. Exceeding this can cause overheating and fire.
Use 12 GA (12-gauge) wire or larger for the power wire from the battery to the converter.
After connecting the 12-volt power wire, verify the harness is functioning by testing with a test light, 4-flat tester, or a functioning trailer.
Periodically inspect all wires and connections for visible damage or loose connections. Install the provided 4-flat dust cover to prevent corrosion.
