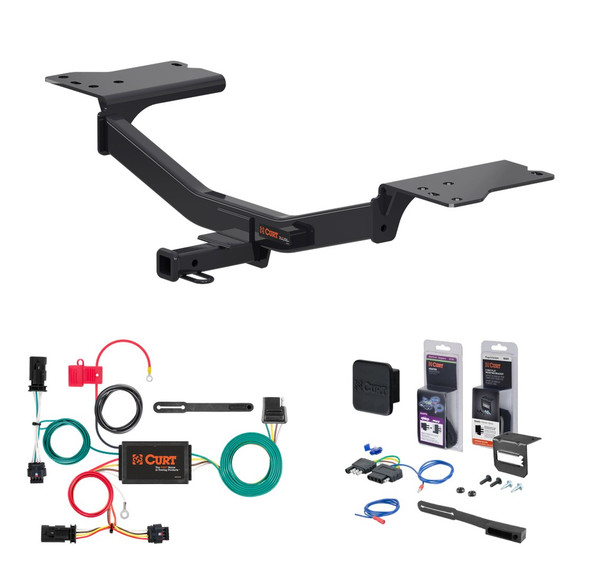

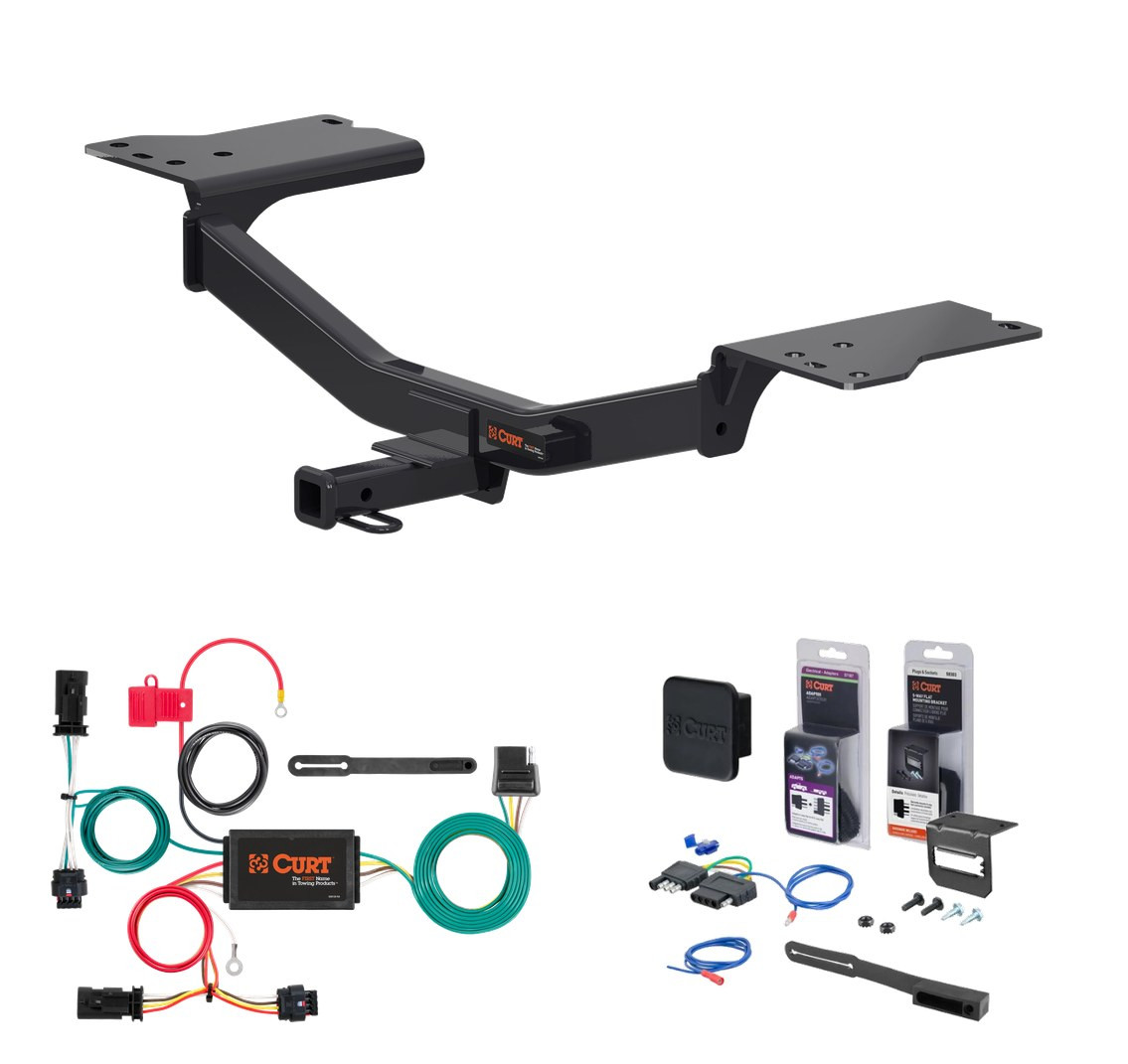

Complete CURT Class 1 1-1/4" trailer hitch and 5-flat wiring kit (with 4-way to 5-way adapter for surge brakes) engineered for the 2017 - 2019 Chevrolet Cruze Hatchback, excluding diesel. Vehicle-specific fit, plug-and-play installation, all hardware and instructions included.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!
However you define adventure -- whether it's climbing onto the back of a mountain bike, hunting from the top of a tree stand or camping with the family a long way from nowhere -- CURT class 1 hitches provide a light-duty towing receiver to help you Bring It. Each is made to fit a specific vehicle, providing easier installation, a better fit and optimal towing capacity. Custom class 1 trailer hitches are available for a variety of smaller vehicle types, including the compact car, crossover, minivan and small SUV. This particular class 1 hitch is designed to be a custom hitch for certain years of the Chevy Cruze (to verify vehicle compatibility, see the CURT application guide at curtmfg.com). Tested in accordance with SAE J684, it offers a weight carrying capacity of 2,000 lbs. GTW and 200 lbs. TW. It is equipped with 1-1/4" receiver tube opening to accept a ball mount shank or other hitch mount. This class 1 hitch also comes with all necessary mounting hardware. With its lightweight design and smaller receiver tube size, a class 1 hitch is especially useful for adding cargo space with a hitch-mounted bike rack or cargo carrier. They can also typically be used to tow small trailers such as a utility trailer, kayak trailer or teardrop camper (never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). Though CURT class 1 trailer hitches are only intended for light-duty towing, we apply the same principles of quality as we do to the rest of our rear mount hitches. Each class 1 hitch is made with hands-on engineering, high-strength steel and precise welding. We use a co-cured finish of liquid A-coat, inside and out, and durable black powder coat to provide a lasting defense against rust, chips and UV rays.
If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution. A custom wiring harness -- also called a T-connector -- is a simple, plug-and-play electrical device that plugs into your automotive electric system and provides a standard, universal trailer wiring connection. This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation. Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing. This particular plug-in harness provides a 4-way flat connector socket and is designed to be a custom wiring harness to fit certain years of the Chevy Cruze (to verify your vehicle compatibility, see application info). It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use. You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite. However, turning that picture into a reality takes more than just daydreaming. It takes a solid connection and the right amount of power. CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing hitch setup.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2017 - 2019 | Chevrolet Cruze | Hatchback, excluding diesel |
Yes, the 17 - 19 Chevrolet Cruze Hatchback, excluding diesel Curt 1-1/4" Class 1 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 11458 (Part #5W-CHW-364) is designed to fit the 2017-2019 Chevrolet Cruze.
The 17 - 19 Chevrolet Cruze Hatchback, excluding diesel Curt 1-1/4" Class 1 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 11458 (Part #5W-CHW-364) fits the following vehicles: 2017-2019 Chevrolet Cruze. Always verify your specific year, make, and model before ordering.
The 17 - 19 Chevrolet Cruze Hatchback, excluding diesel Curt 1-1/4" Class 1 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 11458 (Part #5W-CHW-364) fits 2017-2019 Chevrolet Cruze models. The 2019 model year is the last year covered by this part number. For newer models, check for an updated version.
The 17 - 19 Chevrolet Cruze Hatchback, excluding diesel Curt 1-1/4" Class 1 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 11458 (Part #5W-CHW-364) Refer to the included instructions for installation details. Basic hand tools are typically all you need.

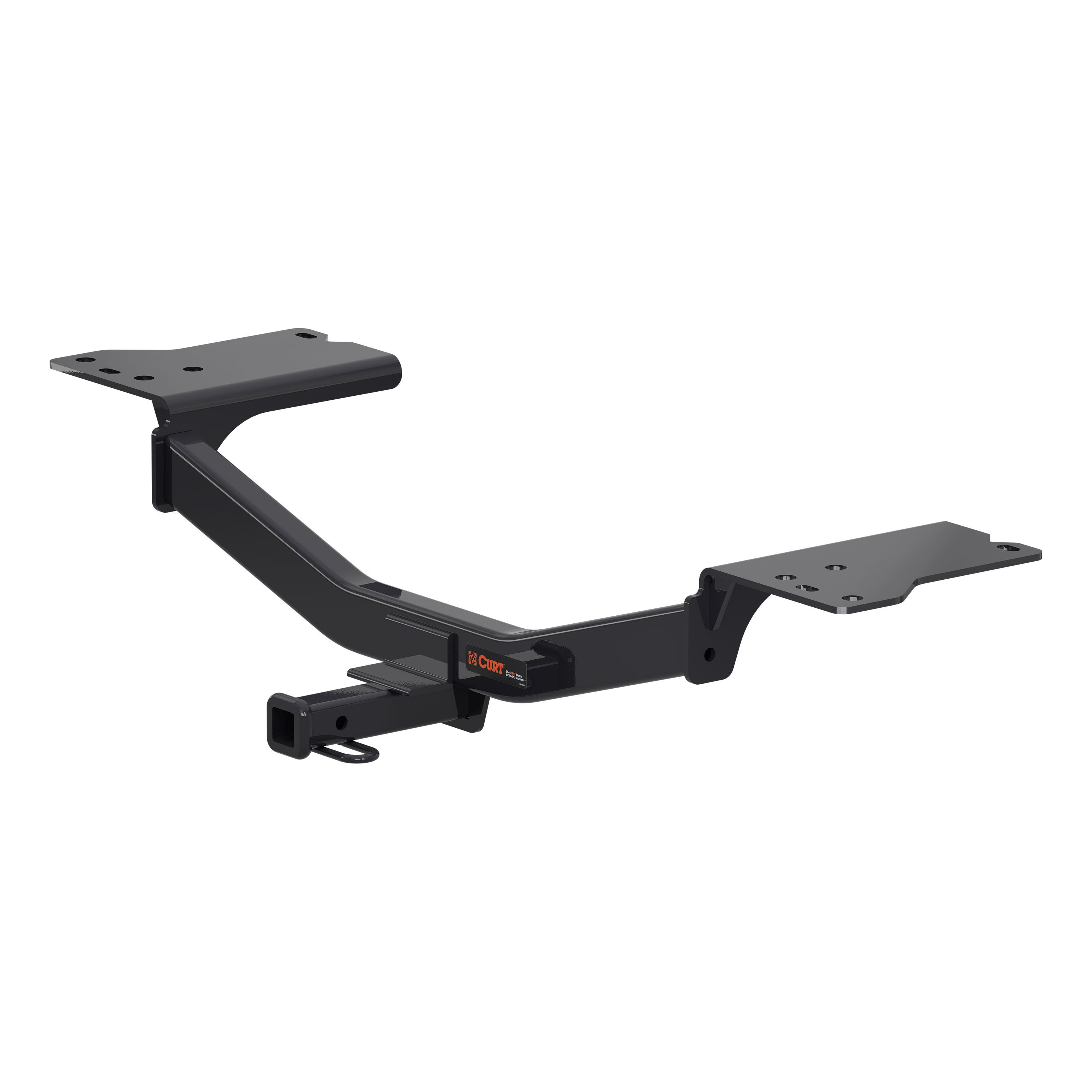

Yes, CURT part number 11458 is designed for 2017-present Chevrolet Cruze Hatchback models.
The CURT 11458 is rated for a maximum trailer weight of 2,000 lbs and a tongue weight of 200 lbs when used as a weight-carrying hitch. However, you must never exceed your vehicle manufacturer's recommended towing capacity, which may be lower.
The CURT 11458 is designed for use with ballmount #45521. Euro mount options are available: #45571 (1 7/8" ball) or #45572 (2" ball).
Non-trailer (wheel-less) loads can be applied to this hitch only if they are supported by CURT 18050 stabilizing straps. Failure to properly support non-trailer loads will void the product warranty. For further information, see the CURT catalog or visit www.curtmfg.com.
Required tools: ratchet, 6" socket extension, 13mm socket, 11/16" socket, needle nose pliers, aviation shears, torque wrench, and safety glasses. Two people may be required to ease installation.
The kit includes: (4) 7/16-14 UNC 1-1/2" grade 8 bolts (part 10-10282), (4) 0.250 x 0.88 x 2.25" square hole spacers (CM-SP2), (4) 7/16-14 UNC serrated flange nuts grade 8 (part 20-00103), and (4) 7/16" fishwire.
No, the CURT 11458 requires no drilling. It uses existing holes in the frame rails.
Before installation, read all instructions thoroughly. Wear safety glasses at all times. The exhaust must be temporarily lowered, and the heat shield must be temporarily removed and trimmed. If you are hesitant to undertake this task, contact an authorized CURT installer for assistance. Technical support is available at 877-287-8634.
A 3" x 3" square must be removed from the heat shield following the contours shown in the trim diagram. The trim diagram is provided in the installation instructions as a reference.
Use aviation shears to trim the heat shield. The manual specifies aviation shears as a required tool for this task.
1. Lower the exhaust by removing (2) nuts from each exhaust hanger using a 13mm socket; push the plastic clip out of the way first. 2. Temporarily remove the heat shield by removing (6) retention nuts with needle nose pliers, then trim a 3" x 3" square following the trim diagram. 3. Fishwire (2) 7/16" bolts and spacers into the holes in each frame rail, then reinstall the heat shield using only the center retention nuts. 4. Raise the hitch into position and secure with 7/16" flange nuts; torque the 7/16" bolts to 59 ft-lbs. 5. Reinstall the exhaust using the nuts removed in step 1.
Using a 13mm socket, remove (2) nuts from each exhaust hanger. There is a plastic clip on the exhaust hanger that must be pushed out of the way to allow the exhaust to be lowered.
Fishwire refers to threading the bolts and spacers through the existing holes in the frame rails. The kit includes (4) 7/16" fishwire for this purpose. This allows you to position the bolts before raising the hitch into place.
Two 7/16" bolts and two 0.250 x 0.88 x 2.25" square hole spacers go into each frame rail (one set per side). The installation walkthrough shows the positioning on the driver side and passenger side frame rails.
Torque the 7/16" bolts to 59 ft-lbs.
An 11/16" socket is required to tighten the 7/16-14 UNC bolts. The manual lists 11/16" socket as a required tool.
A 13mm socket is required to remove the (2) nuts from each exhaust hanger.
There are (6) retention nuts on the heat shield. All (6) must be removed to temporarily remove the heat shield for trimming. After trimming, only the center retention nuts are reinstalled.
After trimming the heat shield, reinstall only the center retention nuts. The outer retention nuts are not reinstalled.
Wear safety glasses at all times while installing this product. If you are hesitant to undertake this task on your own, contact an authorized CURT installer for additional assistance. Technical support is available at 877-287-8634.
Never exceed your vehicle manufacturer's recommended towing capacity. While the CURT 11458 is rated for 2,000 lbs trailer weight and 200 lbs tongue weight, your vehicle's manufacturer may specify a lower limit. Always follow the vehicle manufacturer's recommendation.
Periodically check the receiver hitch to ensure all fasteners are tight and all structural components are sound. This ongoing maintenance is important for safe operation.
The manual states to periodically check the receiver hitch to ensure all fasteners are tight and all structural components are sound, but does not specify an exact interval. Regular inspection before towing is recommended.
CURT Manufacturing warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective, CURT may repair or replace it at their option when returned prepaid with proof of purchase. Alteration to, misuse of, or improper installation voids the warranty.
The CURT 11458 complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5 and SAE J684.
Yes, the Curt 56354 Custom Wiring Harness is designed for the Chevrolet Cruze hatchback. The harness includes connectors for both driver and passenger side taillights and is routed through the trunk area.
The Curt 56354 is a custom wiring harness that connects to your vehicle's taillight circuits to provide power for trailer lighting. It includes signal circuits rated at 3.0 amps per side and tail/running circuits rated at 6.0 amps total.
You will need: a ratchet, 10mm socket, flat blade screwdriver, panel trim removal tool, T-20 Torx bit, and a cutting tool. A plastic trim panel removal tool is also helpful for removing the taillight housing.
Yes. The first step of installation is to locate the vehicle battery on the driver side under the hood and disconnect the negative battery terminal. This must be done before any other work.
You must remove all trunk floor coverings, storage trays, and the spare tire. You will also need to remove the center panel on the rear scuff panel and loosen the top side of the scuff panel to allow the green wire to pass through to the passenger side.
Remove the taillight cover using a small flat screwdriver. Remove the two T-15 torx fasteners from the taillight. Gently pull rearward on the taillight or use a plastic trim panel removal tool to aid removal. Locate the vehicle taillight wiring harness connectors and separate them from the taillight housing, taking care not to damage the locking tabs.
Locate and remove the grommet behind the taillight that the vehicle wiring passes through. Using a cutting tool, cut a small slit in the removed grommet large enough to route the harness wires through. After routing the harness, reseat the grommet and use the provided sealant to seal the cut and around all wires.
Route the harness end with the yellow wire out the trunk through the grommet opening and through the slit in the grommet. Insert the harness end with the yellow wire between the separated connectors. Make sure the connectors are fully inserted with locking tabs in place.
Drilling may be required. You must locate a suitable grounding point near the taillight connector, such as an existing screw with nut in the vehicle frame. If no suitable existing point is available, you will need to drill a 3/32" pilot hole for the provided screw. The area should be free of rust, dirt and paint before securing the white ground wire.
If an existing screw with nut is not available, drill a 3/32" pilot hole for the provided ground screw. The area should be free of rust, dirt and paint before installation.
The battery connection must be fuse-protected with a 10-amp maximum. Exceeding this rating can cause loss of warranty, overheating and potential fire. Do not exceed the product rating or tow vehicle lamp load rating, whichever is lower.
Signal circuits are rated at 3.0 amps per side. Tail and running circuits are rated at 6.0 amps total. Do not exceed these product ratings or the tow vehicle lamp load rating, whichever is lower.
Before drilling to create a ground point, check for miscellaneous items that may be hidden behind or under any surface to avoid damage and personal injury.
Locate a flat spot inside the vehicle near the taillight and adhere the black converter box using the provided double-sided tape.
Route the wiring harness end with the green wire to the passenger side behind the rear scuff panels. Repeat steps 4-10 on the passenger side using the harness end with the green wire, following the same process as the driver side installation.
When not in use, roll up the 4-flat connector and store it in a convenient, out of the way location. When in use, route the 4-flat to the center of the vehicle. Secure any loose wires with the provided cable ties.
Reinstall all items removed during installation and reconnect the negative battery terminal. Install the provided 4-flat dust cover to help prevent corrosion. Test for proper function by using a test light or connecting a properly wired trailer.
Test for proper function by using a test light or connecting a properly wired trailer. All steps must be followed to ensure the wiring harness will function properly.
Yes, the Curt 56354 Custom Wiring Harness is designed specifically for the Chevrolet Cruze hatchback.
You need a ratchet, 10mm socket, flat blade screwdriver, panel trim removal tool, T-20 Torx bit, and a cutting tool.
Yes, disconnect the negative battery terminal before starting installation.
Drilling may be required if no existing screw with nut is available in the vehicle frame. If drilling is needed, a 3/32" pilot hole is required.
The battery connection must be fuse-protected with a 10-amp maximum. Exceeding this rating can cause loss of warranty, overheating and potential fire.
