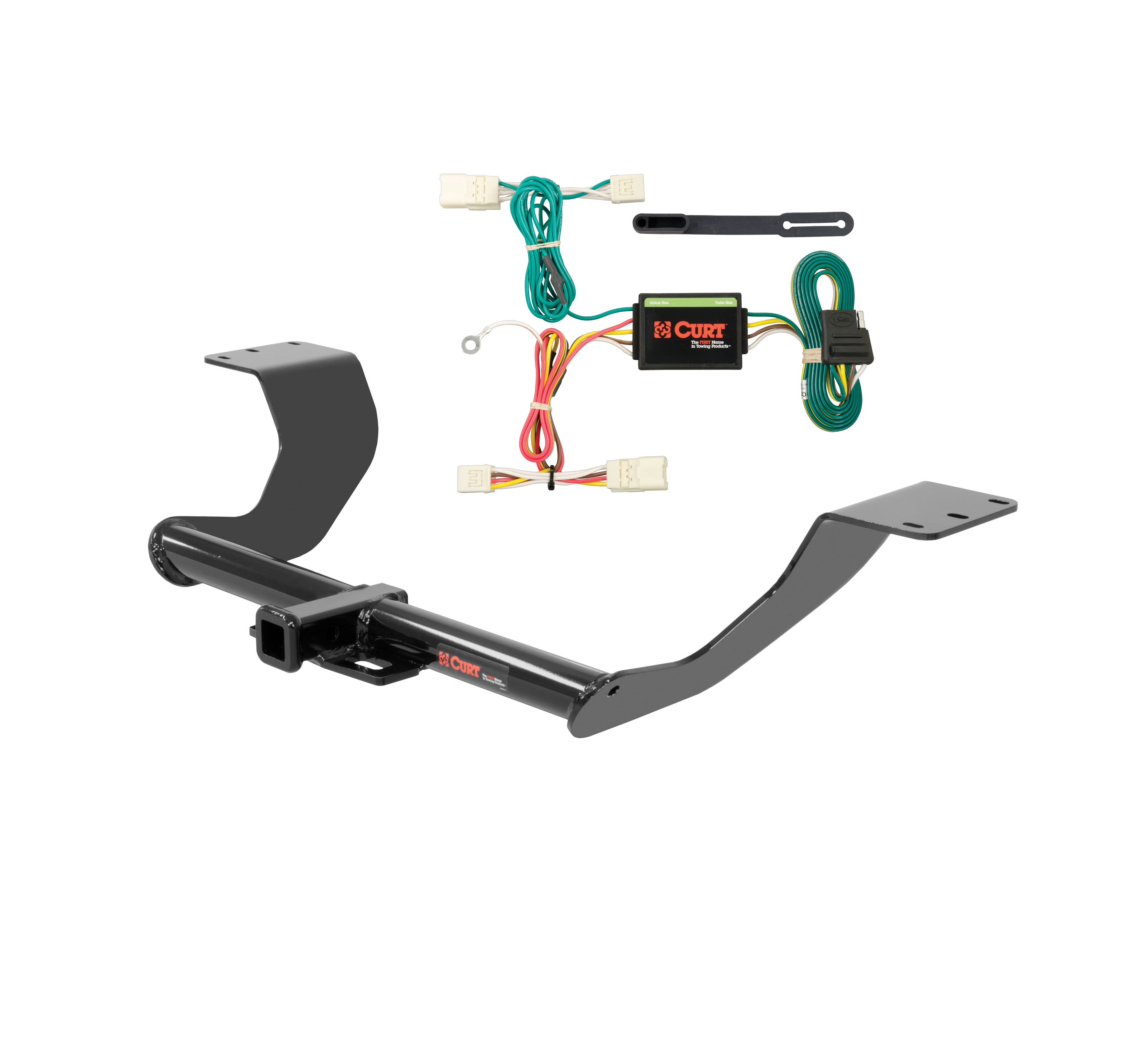

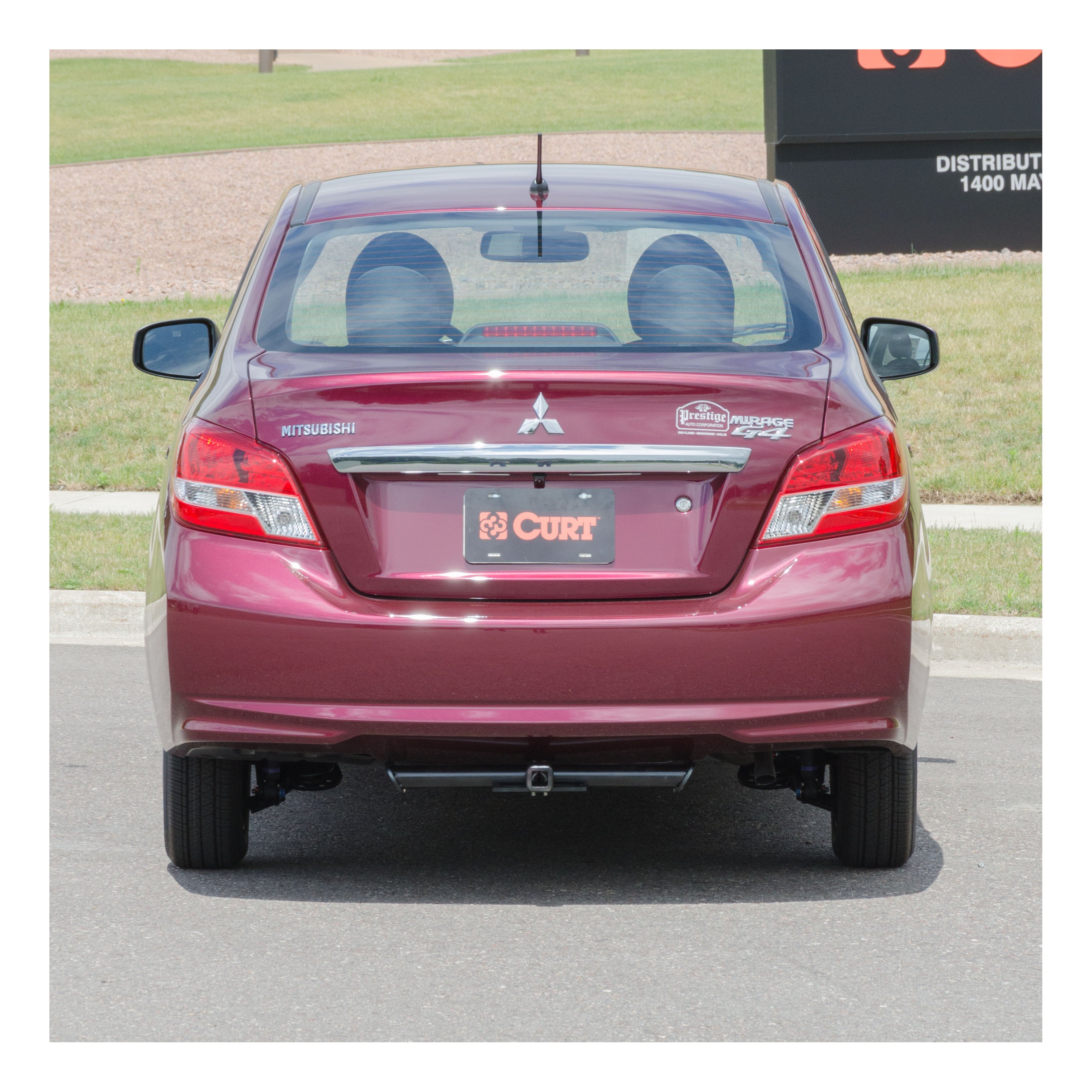

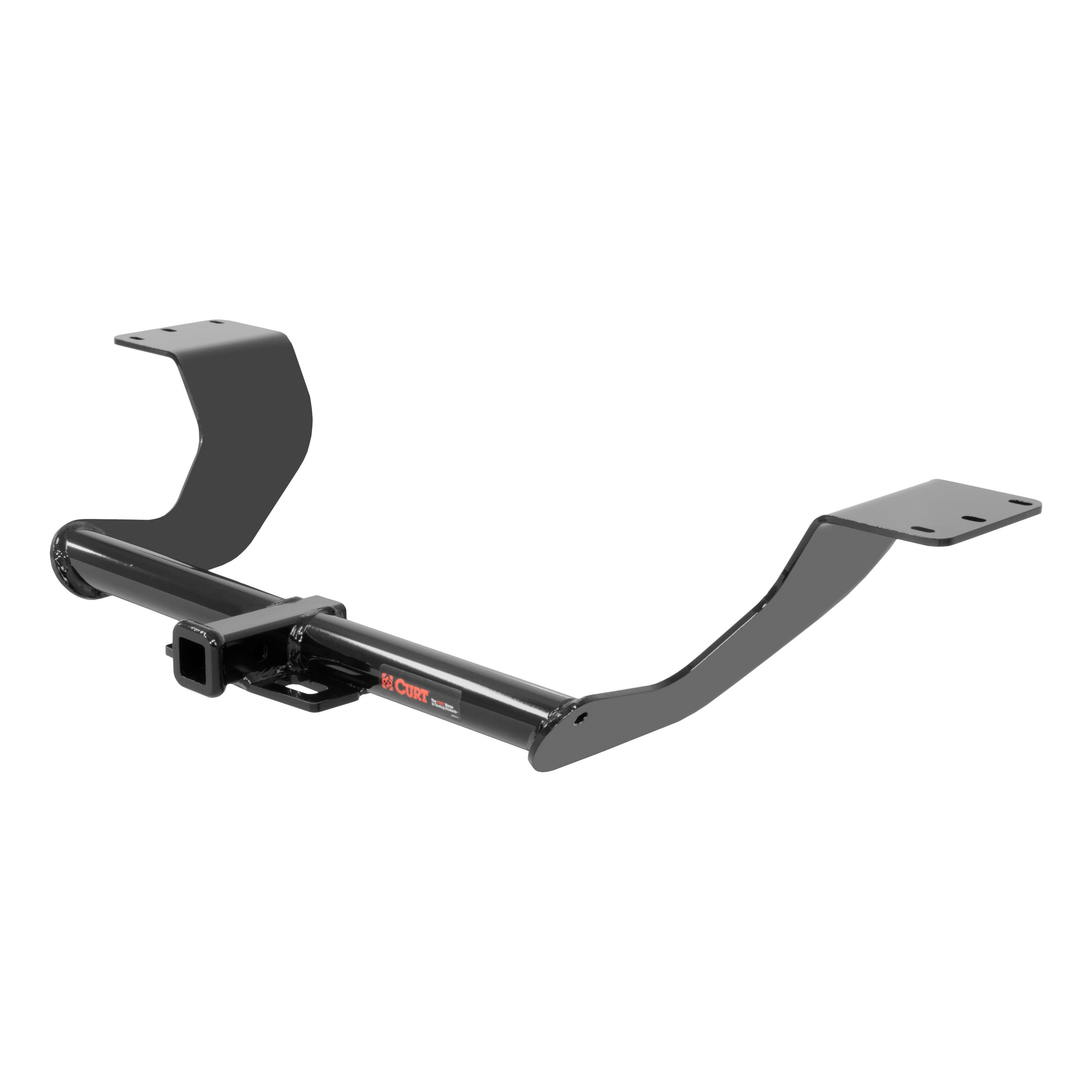

Complete CURT Class 1 1-1/4" trailer hitch and 4-flat custom wiring kit engineered for the 2017 - 2024 Mitsubishi Mirage G4. Vehicle-specific fit, plug-and-play installation, all hardware and instructions included.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!
However you define adventure -- whether it's climbing onto the back of a mountain bike, hunting from the top of a tree stand or camping with the family a long way from nowhere -- CURT class 1 hitches provide a light-duty towing receiver to help you Bring It. Each is made to fit a specific vehicle, providing easier installation, a better fit and optimal towing capacity. Custom class 1 trailer hitches are available for a variety of smaller vehicle types, including the compact car, crossover, minivan and small SUV. This particular class 1 hitch is designed to be a custom hitch for certain years of the Mitsubishi Mirage G4 (to verify vehicle compatibility, see the CURT application guide at curtmfg.com). Tested in accordance with SAE J684, it offers a weight carrying capacity of 1,500 lbs. GTW and 150 lbs. TW. It is equipped with 1-1/4" receiver tube opening to accept a ball mount shank or other hitch mount. This class 1 hitch also comes with all necessary mounting hardware. With its lightweight design and smaller receiver tube size, a class 1 hitch is especially useful for adding cargo space with a hitch-mounted bike rack or cargo carrier. They can also typically be used to tow small trailers such as a utility trailer, kayak trailer or teardrop camper (never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). Though CURT class 1 trailer hitches are only intended for light-duty towing, we apply the same principles of quality as we do to the rest of our rear mount hitches. Each class 1 hitch is made with hands-on engineering, high-strength steel and precise welding. We use a co-cured finish of liquid A-coat, inside and out, and durable black powder coat to provide a lasting defense against rust, chips and UV rays.
If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution. A custom wiring harness -- also called a T-connector -- is a simple, plug-and-play electrical device that plugs into your automotive electric system and provides a standard, universal trailer wiring connection. This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation. Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing. This particular plug-in harness provides a 4-way flat connector socket and is designed to be a custom wiring harness to fit certain years of the Mitsubishi Mirage and Mirage G4 (to verify your vehicle compatibility, see application info). It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use. You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite. However, turning that picture into a reality takes more than just daydreaming. It takes a solid connection and the right amount of power. CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing hitch setup.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2017 - 2024 | Mitsubishi Mirage G4 | — |
Yes, the 17 - 20 Mitsubishi Mirage G4 Curt 1-1/4", Class 1 Trailer Tow Hitch + 4-flat Wiring Kit 11449 (Part #CHW-2463) is designed to fit the 2017-2020 Mitsubishi Mirage G4.
The 17 - 20 Mitsubishi Mirage G4 Curt 1-1/4", Class 1 Trailer Tow Hitch + 4-flat Wiring Kit 11449 (Part #CHW-2463) fits 2017-2020 Mitsubishi Mirage G4 models. The 2020 model year is the last year covered by this part number. For newer models, check for an updated version.
The 17 - 20 Mitsubishi Mirage G4 Curt 1-1/4", Class 1 Trailer Tow Hitch + 4-flat Wiring Kit 11449 (Part #CHW-2463) fits the following vehicles: 2017-2020 Mitsubishi Mirage G4. Always verify your specific year, make, and model before ordering.
The 17 - 20 Mitsubishi Mirage G4 Curt 1-1/4", Class 1 Trailer Tow Hitch + 4-flat Wiring Kit 11449 (Part #CHW-2463) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, CURT 11449 is designed for 2017-Present Mitsubishi Mirage G4 Sedan models. Verify your vehicle matches this specification before purchasing.
CURT 11449 is rated for a maximum of 1,500 lbs trailer weight and 150 lbs tongue weight when used as a weight-carrying hitch. You must never exceed your vehicle manufacturer's recommended towing capacity.
CURT 11449 is designed for use with ballmount #45521. Euro mount options are available: #45571 (1 7/8" ball) or #45572 (2" ball).
Required tools: ratchet, 10mm socket, 12mm socket, 13mm socket, 9/16" socket, 6" extension, screwdriver, torque wrench, die grinder, and safety glasses. A torque wrench is essential for proper fastener tightening.
The kit includes: 2× M8×1.25×30 hex head cap screws (10-10440), 2× 3/8" S-con washers (30-00148), 2× 3/8"-16 UNC 1-1/2" carriage bolts (10-10321), 1× U-bolt (10-10566), 4× 3/8"-16 UNC serrated flange nuts (20-00102), 2× 3/8" fishwire, and 2× spacers (11449-SP).
Two people may be required to ease installation. If you are hesitant to undertake this task on your own, contact an authorized CURT installer for additional assistance. Call CURT Technical Support at 877-287-8634 for help.
Yes. Safety glasses must be worn at all times while installing this product.
No drilling is required. However, hole enlargement using a die grinder is required on the forward-most passenger side frame rail hole. Underbody panel trimming is optional.
The forward-most hole on the passenger side frame rail must be enlarged using a die grinder. The enlarged hole accommodates the 3/8" carriage bolt and spacer that are fishwired through the large access hole in the passenger side frame rail.
Underbody panel trimming is optional. If you choose to trim, use the contours of the hitch as a guide and refer to the trim diagram provided in the installation instructions.
The 3/8" carriage bolts must be tightened to 37 ft-lbs.
The M8 bolts must be tightened to 23 ft-lbs.
1. Remove the plastic panel from the driver side by removing 2 M6 screws and 2 plastic clips. Lower the canister by removing 4 M8 screws and 1 M6 screw. Remove 2 M10 screws to expose the frame rail. 2. Enlarge the forward-most passenger side frame rail hole. Fishwire the 3/8" carriage bolts and spacers through the access hole. 3. Place the U-bolt in the vehicle recovery loop. Raise the hitch into position and loosely secure with M8 bolts and washers on the driver side, then secure remaining fasteners with 3/8" flange nuts. 4. Tighten 3/8" bolts to 37 ft-lbs and M8 bolts to 23 ft-lbs. Reinstall all removed components in reverse order.
Remove 2 M6 screws using a 10mm socket and 2 plastic clips from the plastic panel. Then remove 4 M8 screws using a 12mm socket and 1 M6 screw using a 10mm socket to lower the canister. Save all fasteners for reinstallation.
Save all fasteners removed during step 1 (2 M6 screws, 2 plastic clips, 4 M8 screws, 1 M6 screw) and step 2 (2 M10 screws). These must be reinstalled in reverse order after the hitch is secured.
Fishwiring is a technique to route fasteners through tight spaces. For CURT 11449, you fishwire the 3/8" carriage bolt and spacer through the large access hole in the passenger side frame rail and out the enlarged hole. You then reverse fishwire the remaining 3/8" carriage bolt and spacer back into the access hole.
No. The M8 bolts should be loosely secured initially to allow the hitch to be positioned correctly. All fasteners are tightened in the final step: 3/8" bolts to 37 ft-lbs and M8 bolts to 23 ft-lbs.
Periodically check that all fasteners are tight and all structural components are sound. This ongoing maintenance is essential for safe operation.
All non-trailer (wheel-less) loads applied to this product must be supported by CURT 18050 stabilizing straps. Failure to properly support non-trailer loads will void the product warranty. See the CURT catalog or visit www.curtmfg.com for further information.
Never exceed your vehicle manufacturer's recommended towing capacity. CURT 11449 is rated for 1,500 lbs trailer weight and 150 lbs tongue weight, but you must follow your vehicle's specifications, which may be lower.
Periodically check the receiver hitch to ensure all fasteners are tight and all structural components are sound. The manual does not specify an exact interval, but regular inspection is recommended for safe operation.
CURT 11449 fits 2017-Present Mitsubishi Mirage G4 Sedan only.
Ratchet, 10mm/12mm/13mm/9/16" sockets, 6" extension, screwdriver, torque wrench, die grinder, and safety glasses.
No drilling required. Hole enlargement with a die grinder is required on the passenger side frame rail. Underbody panel trimming is optional.
Tighten 3/8" bolts to 37 ft-lbs and M8 bolts to 23 ft-lbs.
Yes. All non-trailer loads must be supported by CURT 18050 stabilizing straps. Failure to do so voids the warranty.

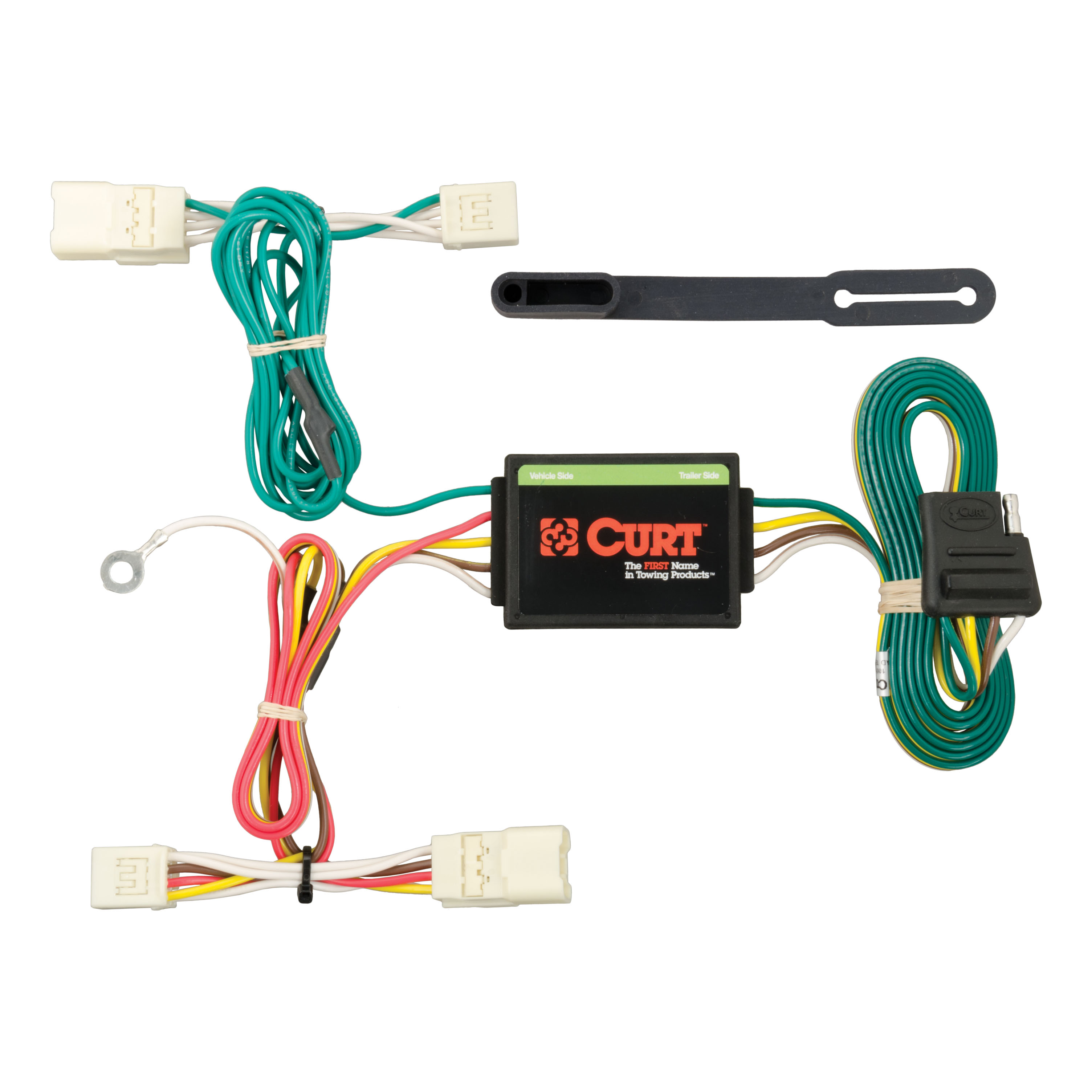

Yes, the Curt 56223 Custom Wiring Harness is designed for Mitsubishi Mirage passenger cars. The harness connects to the vehicle's taillight wiring in the trunk behind the driver and passenger side taillight housings.
Mitsubishi Mirage (passenger cars only).
The harness has two circuit ratings: Signal Circuits are rated at 3.0 amps per side, and Tail/Running Circuits are rated at 6.0 amps total. Do not exceed these ratings or the tow vehicle lamp load rating, whichever is lower, as exceeding the rating can cause loss of warranty, overheating and potential fire.
Signal Circuits: 3.0 amps per side. Tail/Running Circuits: 6.0 amps total. Do not exceed these or the vehicle's lamp load rating, whichever is lower.
A panel trim removal tool is required. Depending on the grounding location, you may also need a drill with a 3/32" bit if a suitable existing screw with nut is not available on the vehicle frame.
Panel trim removal tool. Drill with 3/32" bit may be needed for grounding point if no existing screw is available.
Yes. Step 2 of the installation instructions requires you to locate the vehicle battery on the driver side under the hood and disconnect the negative battery terminal before proceeding with the installation.
Yes, disconnect the negative battery terminal before starting installation.
The vehicle wiring harness connectors are located in the trunk behind the taillight housings. Position P3 is behind the driver side taillight housing, and position P4 is behind the passenger side taillight housing, both inside the trunk.
1. Access vehicle wiring connectors in trunk at positions P3 and P4. 2. Disconnect negative battery terminal. 3. Remove trunk floor coverings. 4. Remove scuff panel. 5. Remove push fasteners from driver side trim panel. 6. Locate and separate taillight connectors carefully. 7. Insert T-connector with yellow wire between separated connectors on driver side. 8. Secure white ground wire to vehicle frame using provided screw. 9. Route T-connector with green wire to passenger side and repeat steps 5-7. 10. Adhere converter box inside vehicle near taillight using double-sided tape. 11. Route 4-flat connector to vehicle center when in use; store when not in use. 12. Reinstall removed items and reconnect battery. Install 4-flat dust cover.
Locate the vehicle taillight wiring harness connectors behind the side trim panel. Carefully separate the connectors from the taillight housing, taking care not to damage the locking tabs. Insert the T-connector end (yellow wire for driver side, green wire for passenger side) between the separated connectors. Ensure the connectors are fully inserted with locking tabs in place.
The T-connector with the yellow wire is installed on the driver side (position P3) behind the driver side taillight housing. The T-connector with the green wire is routed to and installed on the passenger side (position P4) behind the passenger side taillight housing. The colour coding helps identify which connector goes to each side of the vehicle.
Drilling may be required for the grounding point. Step 8 instructs you to locate a suitable grounding point near the connector, such as an existing screw with nut in the vehicle frame. If no existing screw is available, you must drill a 3/32" pilot hole for the provided screw. The area should be free of rust, dirt and paint before securing the white ground wire.
Only if no existing screw with nut is available for the ground wire. If drilling is needed, use a 3/32" pilot hole.
Drill a 3/32" pilot hole for the provided grounding screw. Before drilling, check for miscellaneous items that may be hidden behind or under any surface to avoid damage and personal injury. The grounding area should be free of rust, dirt and paint.
Locate a suitable grounding point near the connector, such as an existing screw with nut in the vehicle frame, or drill a 3/32" pilot hole for the provided screw if no existing screw is available. Ensure the area is free of rust, dirt and paint. Secure the white ground wire using the ring terminal and provided screw.
Locate a flat spot inside the vehicle near the taillight and adhere the black converter box using the provided double-sided tape. When the harness is in use, route the 4-flat connector to the center of the vehicle. When not in use, roll up and store in a convenient, out-of-the-way location. Secure any loose wires with the provided cable ties.
When not in use, roll up the 4-flat connector and store it in a convenient, out-of-the-way location inside the vehicle. Install the provided 4-flat dust cover to help prevent corrosion.
Do not exceed the product rating (Signal Circuits 3.0 amps per side, Tail/Running Circuits 6.0 amps total) or the tow vehicle lamp load rating, whichever is lower. Exceeding the product rating can cause loss of warranty, overheating and potential fire.
Loss of warranty, overheating and potential fire. Do not exceed 3.0 amps per side (Signal) or 6.0 amps total (Tail/Running), or the vehicle's lamp load rating, whichever is lower.
Before drilling, check for miscellaneous items that may be hidden behind or under any surface to avoid damage and personal injury. This is especially important when locating the grounding point for the white ground wire.
All steps must be followed to ensure the wiring harness functions properly. Once installed, test for proper function by using a test light or connecting a properly wired trailer. This confirms that the connections are correct and the harness is operating as intended.
Use a test light or connect a properly wired trailer to verify proper function.
Remove the trunk floor coverings, the scuff panel (by pulling out on the bottom, then up), and the push fasteners from the side trim panel on both the driver and passenger sides to access the taillight wiring harness connectors.
Pull out on the bottom of the scuff panel, then pull up to remove it. This provides access to the side trim panel and taillight wiring connectors.
The harness includes T-connectors with yellow and green wires, a white ground wire with ring terminal, a black converter box, a 4-flat connector with dust cover, a grounding screw, double-sided tape for mounting the converter box, and cable ties for securing loose wires.
Use the provided cable ties to secure any loose wires. This applies when routing the T-connector to the passenger side and when managing the 4-flat connector and other wiring inside the vehicle.
Reinstall all items removed during installation (trunk floor coverings, scuff panel, side trim panels) and ensure all connections are secure before reconnecting the negative battery terminal. Install the provided 4-flat dust cover to help prevent corrosion.
