16-16 Mazda CX-5 Excluding diesel CURT 4-flat Plug and Play Trailer WiringCURT$100.35In Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
CURT
Verify Fitment
Select your vehicle to confirm this part fits.
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
| Battery-Powered | Yes |
| Converter Type | Circuit Protected and Powered |
| Electrical System Type | 3W |
| Finish | N/A |
| Material | Blank |
| Mount Type Description | Blank |
| Output Type | 4-Way Flat |
| Side Application Type Description | Blank |
| T-Connector Location | S3,S4 |
| Tail Light Circuits | 6.0 Amps |
| Turn and Brake Circuits | 3.0 Amps |
| Warranty | One-Year Limited Warranty |
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2017 - 2021 | Mazda CX-5 | Excluding diesel |
Yes, the 17-21 Mazda CX-5 Excluding diesel CURT 4-flat Plug and Play Trailer Wiring (Part #CTW1798) is designed to fit the 2017-2021 Mazda CX-5.
The 17-21 Mazda CX-5 Excluding diesel CURT 4-flat Plug and Play Trailer Wiring (Part #CTW1798) fits the following vehicles: 2017-2021 Mazda CX-5. Always verify your specific year, make, and model before ordering.
The 17-21 Mazda CX-5 Excluding diesel CURT 4-flat Plug and Play Trailer Wiring (Part #CTW1798) fits 2017-2021 Mazda CX-5 models. The 2021 model year is the last year covered by this part number. For newer models, check for an updated version.
The 17-21 Mazda CX-5 Excluding diesel CURT 4-flat Plug and Play Trailer Wiring (Part #CTW1798) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the Curt 56377 is designed for Mazda CX-5 SUVs. It is compatible with the vehicle's taillight wiring system and interior trim configuration shown in the installation guide.
The harness has two circuit ratings: Signal Circuits are rated at 3.0 amps per side, and Tail/Running Circuits are rated at 6.0 amps total. Do not exceed these ratings or the tow vehicle lamp load rating, whichever is lower, as exceeding the rating can cause loss of warranty, overheating and potential fire.
The battery connection must be fuse-protected with a maximum 10-amp fuse. Do not exceed this rating, as it can cause loss of warranty, overheating and potential fire.
Required tools are: ratchet, ratchet extension, 10mm socket, Phillips screwdriver, flat blade screwdriver, wire stripper, wire crimper, and cutting tool. A panel trim removal tool is also needed to remove the interior side trim panel without damage.
The manual does not specify whether the battery must be disconnected before installation. Contact the vehicle manufacturer or Curt Manufacturing for this safety requirement.
Open the rear hatch and remove all floor coverings and storage trays. Remove the rear scuff panel by removing its fasteners, then pulling out at the bottom and up. On each side, remove the interior side trim panel by first removing: the push fastener and cargo tie down at the rear, the fastener from the rear seat release handle, the Phillips screw at the front upper side, and the cargo tie down at the front lower end. Use a panel trim removal tool to remove the trim panel itself.
Locate the vehicle taillight wiring harness connectors behind the side trim panel. Separate the connectors from the taillight housing, taking care not to damage the locking tabs. Insert the custom wiring harness end with the yellow wire between the separated connectors. Make sure the connectors are fully inserted with locking tabs in place. Repeat this process on the passenger side using the harness end with the green wire.
Locate a suitable grounding point near the taillight connector, such as an existing screw with nut in the vehicle frame. If no suitable point exists, drill a 3/32" pilot hole for the provided screw. Clean the area of rust, dirt and paint. Secure the white ground wire using the ring terminal and provided screw.
Drilling may be required. If a suitable existing screw with nut is not available as a grounding point near the taillight connector, you must drill a 3/32" pilot hole for the provided ground screw. Before drilling, check for miscellaneous items that may be hidden behind or under any surface to avoid damage and personal injury.
Locate a flat spot inside the vehicle near the taillight and adhere the black converter box using the provided double-sided tape.
Route the black power wire from the vehicle battery as shown on the included CME-PCL-INS sheet. Refer to that sheet for specific routing instructions.
When not in use, roll up the 4-flat connector and store it in a convenient, out-of-the-way location inside the trunk. When in use, route it to the center of the vehicle and out of the trunk. Secure any loose wires with the provided cable ties.
All steps must be followed to ensure the wiring harness functions properly. Once installed, test for proper function by using a test light or connecting a properly wired trailer.

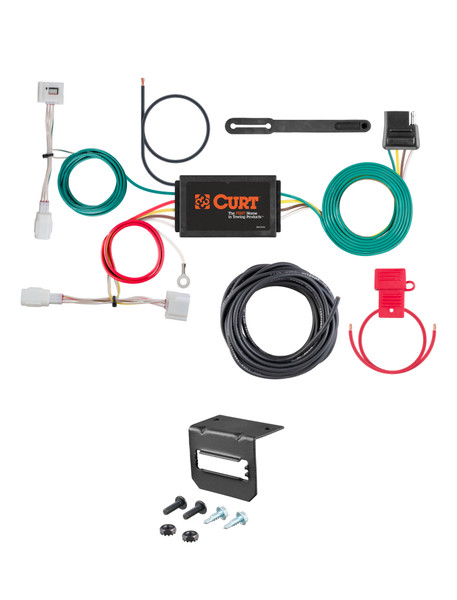

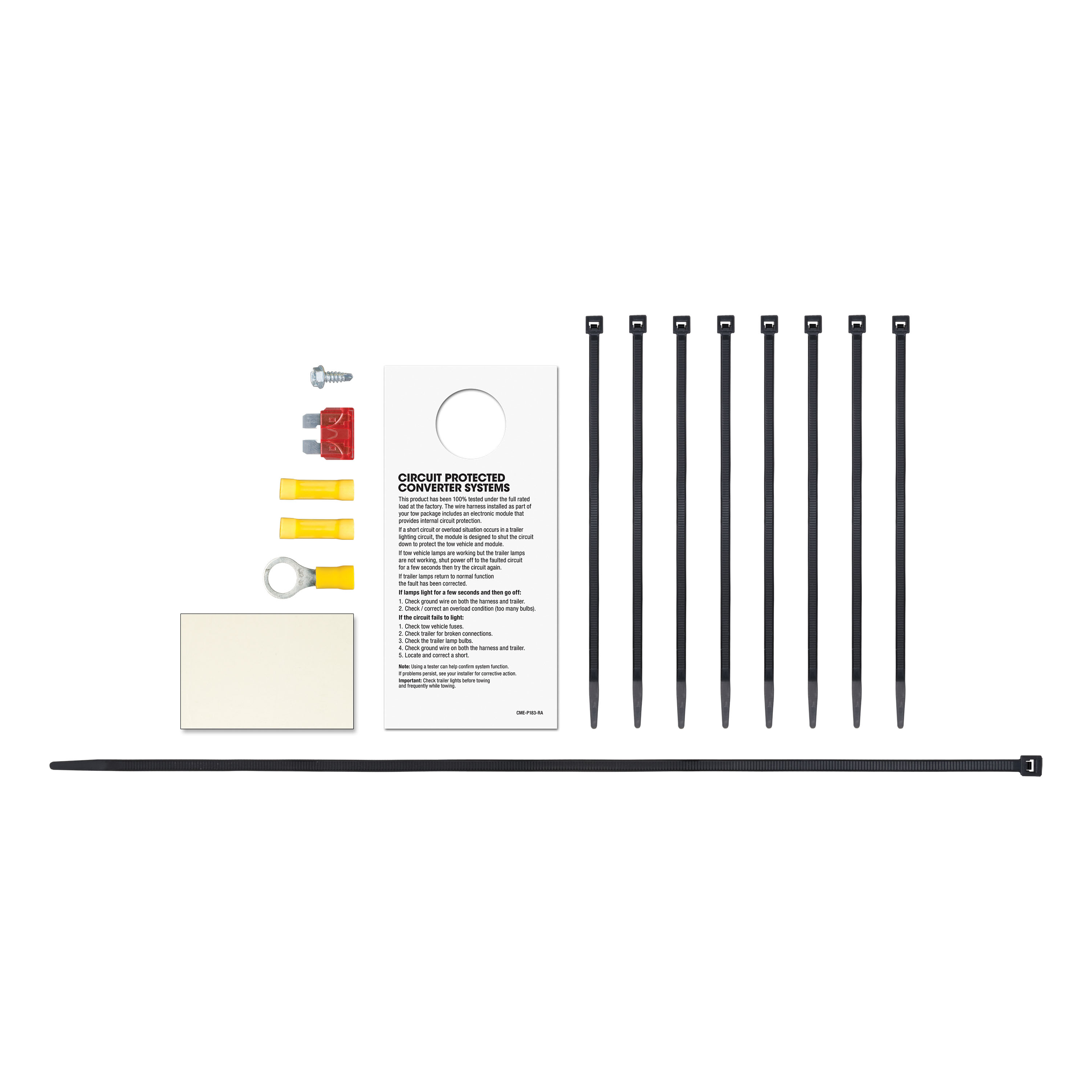

The harness includes: custom wiring harness ends with yellow and green wires, a white ground wire with ring terminal, a provided ground screw, a black converter box, double-sided tape for mounting the converter box, a 4-flat dust cover, cable ties for securing loose wires, and the CME-PCL-INS sheet for battery power wire routing instructions.
Reinstall all items removed during installation, including floor coverings, storage trays, rear scuff panel, and interior side trim panels. Install the provided 4-flat dust cover to help prevent corrosion. Test the harness for proper function using a test light or a properly wired trailer.
Yes, the Curt 56377 is designed for Mazda CX-5 SUVs and is compatible with the vehicle's taillight wiring system.
A 10-amp maximum fuse is required for the battery connection. Do not exceed this rating.
You need a ratchet, ratchet extension, 10mm socket, Phillips and flat blade screwdrivers, wire stripper, wire crimper, cutting tool, and a panel trim removal tool.
Signal Circuits are rated at 3.0 amps per side; Tail/Running Circuits are rated at 6.0 amps total. Do not exceed these ratings or the tow vehicle lamp load rating.
