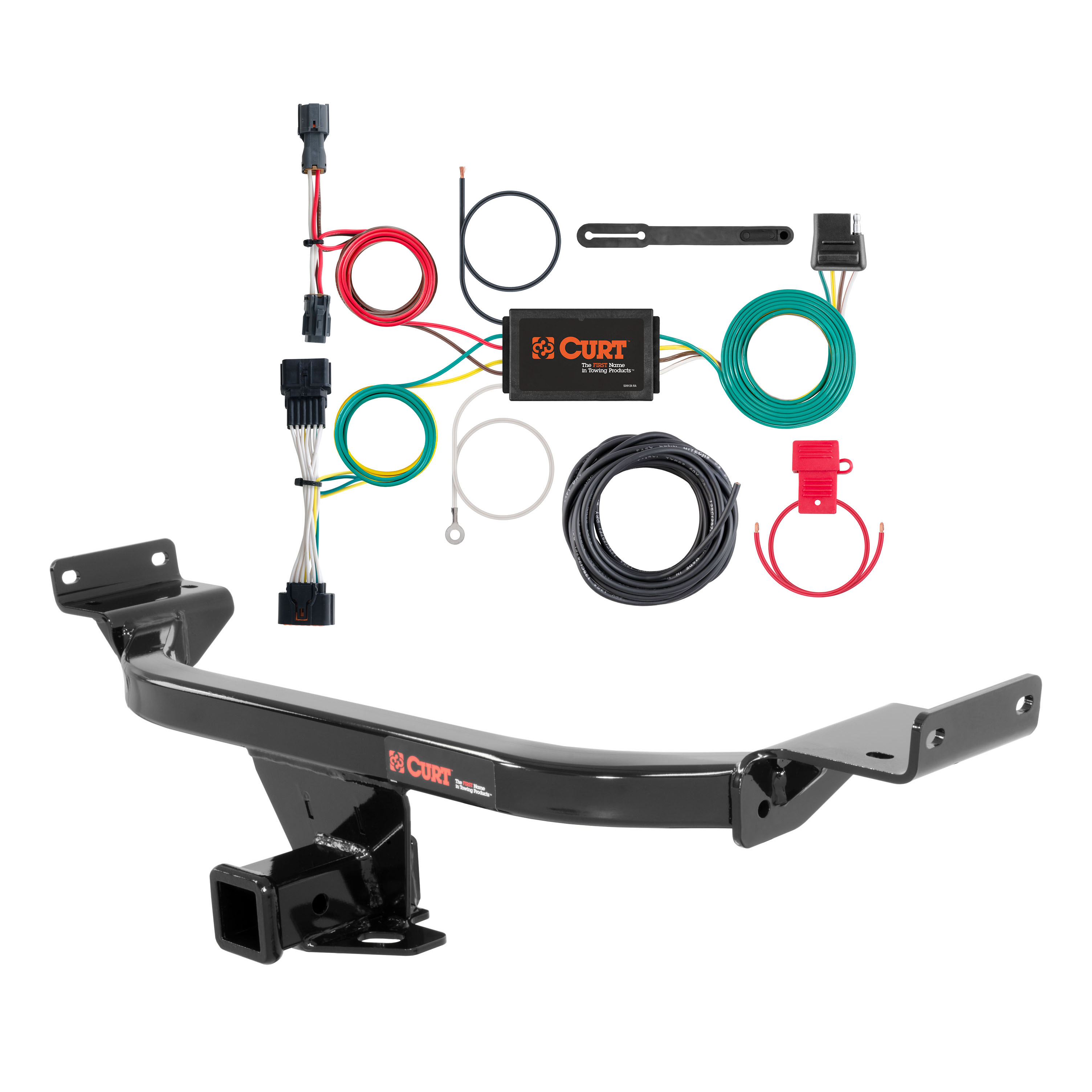

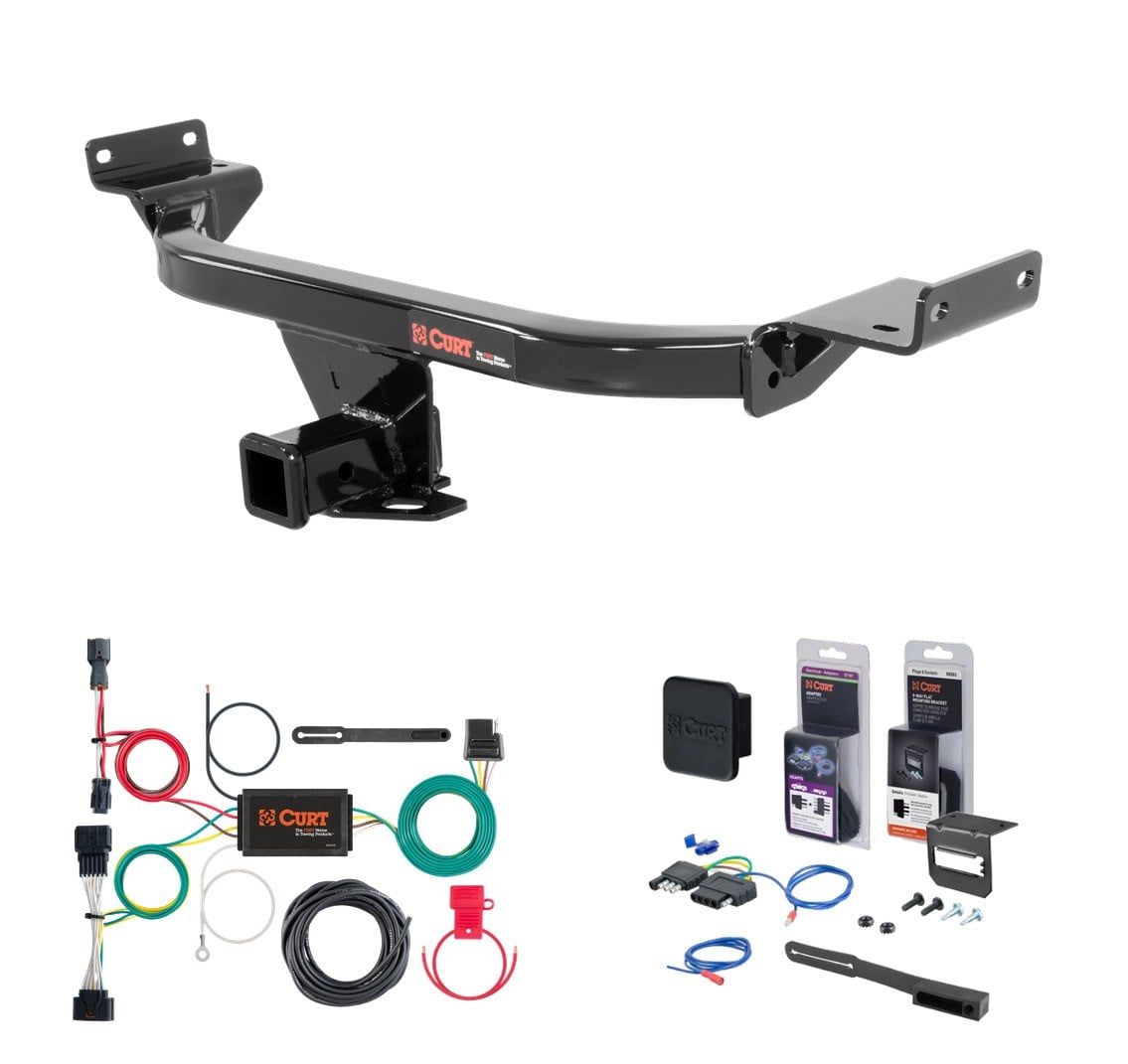

Complete CURT Class 3 2" trailer hitch and 4-flat custom wiring kit engineered for the 2017 - 2022 Kia Sportage. Vehicle-specific fit, plug-and-play installation, all hardware and instructions included.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Kia Sportage (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 3,500 lbs. GTW and 525 lbs. TW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.
If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution. A custom wiring harness -- also called a T-connector -- is a simple, plug-and-play electrical device that plugs into your automotive electric system and provides a standard, universal trailer wiring connection. This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation. Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing. This particular plug-in harness provides a 4-way flat connector socket and is designed to be a custom wiring harness to fit certain years of the Kia Sportage (to verify your vehicle compatibility, see application info). It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use. You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite. However, turning that picture into a reality takes more than just daydreaming. It takes a solid connection and the right amount of power. CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing hitch setup.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2017 - 2022 | Kia Sportage | — |
Yes, the 17 - 22 Kia Sportage Curt 2", Class 3 Trailer Tow Hitch + 4-flat Wiring Kit 13281 (Part #CHW-2080) is designed to fit the 2017-2022 Kia Sportage.
The 17 - 22 Kia Sportage Curt 2", Class 3 Trailer Tow Hitch + 4-flat Wiring Kit 13281 (Part #CHW-2080) fits 2017-2022 Kia Sportage models. The 2022 model year is the last year covered by this part number. For newer models, check for an updated version.
The 17 - 22 Kia Sportage Curt 2", Class 3 Trailer Tow Hitch + 4-flat Wiring Kit 13281 (Part #CHW-2080) fits the following vehicles: 2017-2022 Kia Sportage. Always verify your specific year, make, and model before ordering.
The 17 - 22 Kia Sportage Curt 2", Class 3 Trailer Tow Hitch + 4-flat Wiring Kit 13281 (Part #CHW-2080) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, CURT part number 13281 is designed for 2017-current Kia Sportage SUVs. Verify your vehicle matches this year range and model before purchasing.
You will need: ratchet, 17mm socket, torque wrench, 6-inch socket extension, flathead screwdriver, and safety glasses. No drilling is required.
Yes. You must temporarily remove underbody panels and lower the exhaust by detaching 2 exhaust isolators. The exhaust is raised back and reattached after hitch installation.
Torque all M10 hardware to 48 lb-ft.
Maximum trailer weight is 3,500 lbs and maximum tongue weight is 525 lbs. Never exceed your vehicle manufacturer's recommended towing capacity.
All non-trailer (wheel-less) loads must be supported by CURT 18050 stabilizing straps. Failure to properly support non-trailer loads will void the product warranty.
Periodically check the receiver hitch to ensure all fasteners are tight and all structural components are sound.
The kit includes 8 M10x1.25 hex cap screws (part 10-10271) and 8 conical toothed washers 7/16" (part 30-00163). The hitch itself mounts to existing weldnuts on both the driver and passenger side frame rails of your Kia Sportage.
No. CURT part number 13281 is designed only for 2017-current Kia Sportage models. It will not fit older model years.
Two people may be required to ease installation. If you are hesitant to undertake this task on your own, contact an authorized CURT installer for additional assistance. CURT technical support is available at 877-287-8634.
1. Remove 3 plastic clips and pull panel covers downward on driver and passenger sides; retain hardware and panels. Note: white fasteners may pull off covers—unthread them from studs and reinsert into panel covers. 2. Lower exhaust by detaching 2 exhaust isolators. 3. Raise hitch into position and secure using M10 hardware and 7/16" conical toothed washers. 4. Torque M10 hardware to 48 lb-ft. 5. Raise exhaust back and reattach isolators. 6. Reinstall underbody panels.
Yes. The white fasteners that attach the panel covers to studs on the vehicle may pull off the covers during removal. Unthread these fasteners from the studs and reinsert them into their position on the panel covers before reinstalling the panels.
The exhaust must be temporarily lowered by detaching 2 exhaust isolators to allow the hitch to be raised into position. After the hitch is secured and torqued, the exhaust is raised back into position and the 2 exhaust isolators are reattached.
No. The installation notes explicitly state that no drilling is required. The hitch mounts to existing weldnuts on the frame rails.
The bolts are M10x1.25, 30mm length, Class 10.9 (part number 10-10271). Eight bolts are included. They are torqued to 48 lb-ft and used with 7/16" conical toothed washers.
The washers are 7/16" conical toothed washers (part number 30-00163). Eight washers are included, one for each M10 bolt.
Safety glasses must be worn at all times while installing this product.
The maximum tongue weight is 525 lbs. This is the minimum tongue weight recommended for proper weight distribution when towing.
You must use CURT 18050 stabilizing straps to support all non-trailer (wheel-less) loads. See the CURT catalog or visit www.curtmfg.com for further information. Failure to properly support non-trailer loads will void the product warranty.
Periodically check the receiver hitch to ensure all fasteners are tight and all structural components are sound. The manual does not specify an exact interval, but regular inspection is recommended.
CURT Manufacturing warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If defective, CURT may repair or replace the product at their option when returned prepaid with proof of purchase. Alteration, misuse, or improper installation voids the warranty. CURT's liability is limited to repair or replacement and excludes incidental or consequential loss or damage.
This product complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5 and SAE J684.
Call CURT technical support at 877-287-8634. For more information, visit www.curtmfg.com. For helpful towing tips, visit www.hitchinfo.com.

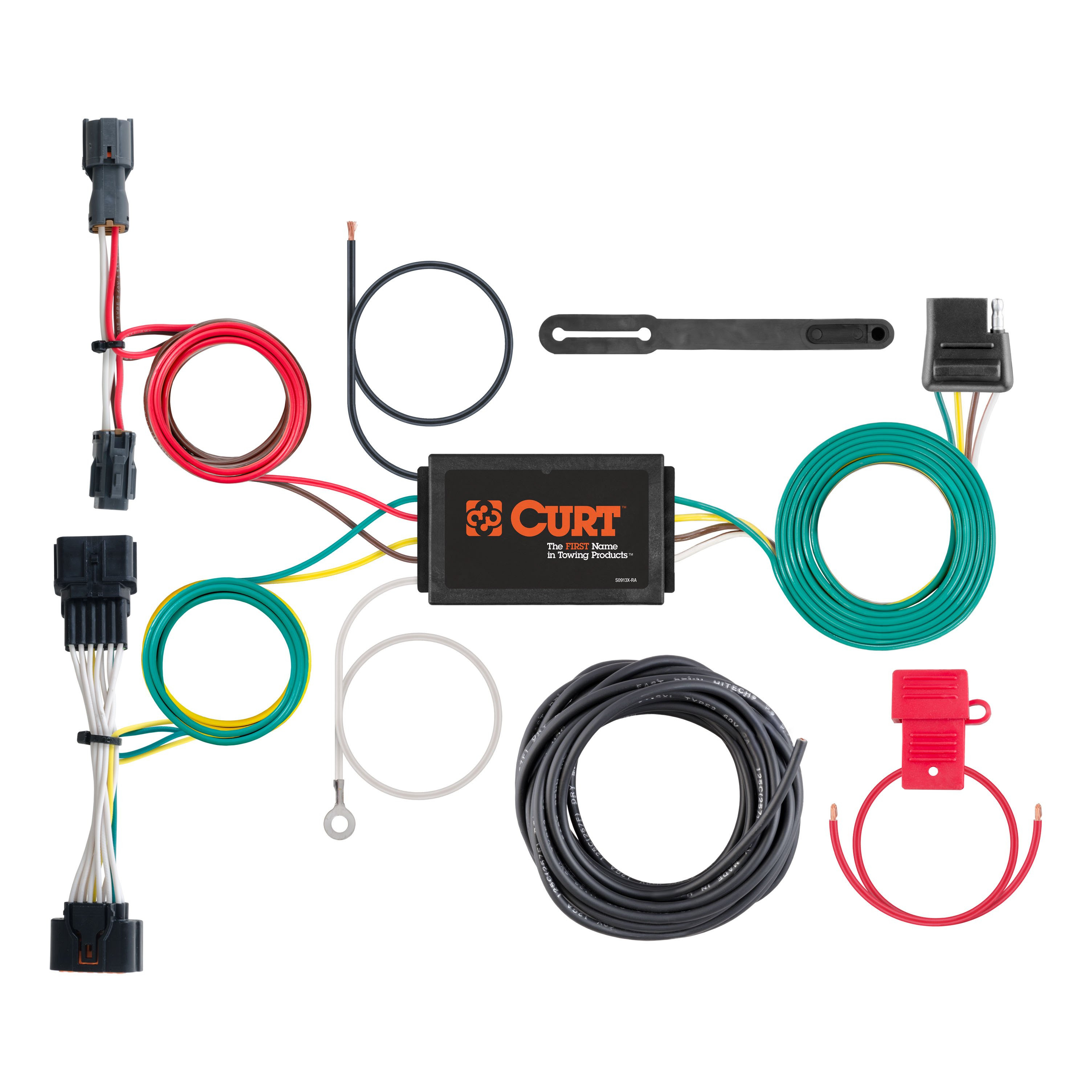

Yes, the Curt 56321 Custom Wiring Harness is designed for Kia Sportage SUVs, Mini & Full-Sized Vans (S). Verify your vehicle matches the application before purchasing.
The Curt 56321 is a Custom Wiring Harness with a Wiring Location Guide that integrates with your vehicle's taillight and battery systems to provide trailer lighting control. It includes a converter box and a 4-flat connector for trailer use.
You will need: ratchet, 10mm socket, Phillips screwdriver, flat blade screwdriver, panel trim removal tool, wire stripper, wire crimper, cutting tool, and sealant (not provided). A 3/32" drill bit is also needed if drilling a pilot hole for the ground wire.
The kit includes the custom wiring harness with 4-pin and 12-pin connectors, a black converter box, a 4-flat dust cover, double-sided tape for mounting the converter box, a ring terminal and screw for the ground wire, and cable ties for securing loose wires. Sealant is not provided and must be purchased separately.
Yes. Step 1 requires you to locate the vehicle battery on the driver side under the hood and disconnect the negative battery terminal before beginning any installation work.
The battery connection must be fuse-protected with a 10-amp maximum. Exceeding this rating can cause loss of warranty, overheating, and potential fire. Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower.
Signal circuits are rated at 7.5 amps per side. Tail and Running circuits are rated at 7.5 amps total. Do not exceed these ratings or the tow vehicle lamp load rating, whichever is lower.
The vehicle 12-pin connectors are located underneath the vehicle on the driver side, behind the rear tire. They will be similar in appearance to the connectors on the custom wiring harness. Separate them carefully to avoid damaging the locking tabs.
Open the tailgate and remove all trunk floor coverings. Remove the fasteners securing the rear scuff panel and pull it out at the bottom then up, taking care not to damage the alignment tabs. On the driver side, remove the fasteners and cargo tie down from the side trim panel and pull it back. Remove the two fasteners securing the taillight and gently pull it rearward to access the taillight wiring harness connectors.
Yes. You must cut slits in two grommets: one behind the taillight (Step 10) to route the custom wiring harness end with the 4-pin connector and red wire, and one in the floor pan (Step 13) to route the custom wiring harness end with the 12-pin connectors and yellow wire. The slits must be large enough to accommodate the wiring harness ends. After routing the wires, reseal the grommets with sealant.
You may need to drill. Locate a suitable grounding point near the connector, such as an existing screw with nut in the vehicle frame. If no suitable existing point is available, drill a 3/32" pilot hole. The area must be free of rust, dirt, and paint. Secure the white ground wire using the ring terminal and provided screw. Always check for hidden items before drilling to avoid damage and personal injury.
The harness includes: a red wire (routes through the taillight grommet with the 4-pin connector), a yellow wire (routes through the floor pan grommet with the 12-pin connectors), a black power wire (connects to the vehicle battery as shown on the included CME-PCL-INS sheet), and a white ground wire (connects to a grounding point near the connector using the provided ring terminal and screw).
Locate a flat spot inside the vehicle near the taillight and adhere the black converter box using the provided double-sided tape. When in use, route the 4-flat connector to the center of the vehicle. When not in use, roll it up and store in a convenient, out-of-the-way location.
Route the 4-flat connector to the center of the vehicle when in use. When not in use, roll it up and store in a convenient, out-of-the-way location. Secure any loose wires with the provided cable ties to prevent movement and potential damage.
Reinstall all items removed during installation and reconnect the negative battery terminal. Install the provided 4-flat dust cover to help prevent corrosion. Test the wiring harness for proper function by using a test light or connecting a properly wired trailer. All steps must be followed to ensure the wiring harness functions properly.
Disconnect the negative battery terminal before starting work. When drilling, check for hidden items behind or under any surface to avoid damage and personal injury. Take care not to damage the locking tabs on connectors or the alignment tabs on panels when separating or removing them. Do not exceed the product rating (10-amp fuse max) or the tow vehicle lamp load rating, whichever is lower, as exceeding these can cause overheating and potential fire.
The 4-flat connector is the trailer connection point. When in use, it should be routed to the center of the vehicle for connection to a trailer. When not in use, it should be rolled up and stored in a convenient, out-of-the-way location. A dust cover is provided to help prevent corrosion.
Yes, the Curt 56321 Custom Wiring Harness is designed for Kia Sportage SUVs, Mini & Full-Sized Vans (S).
Yes, disconnect the negative battery terminal before beginning installation.
10-amp maximum. Exceeding this can cause loss of warranty, overheating, and potential fire.
Yes, you must cut slits in the taillight grommet and floor pan grommet to route the wiring harness. After routing, reseal both grommets with sealant.
You may need to drill a 3/32" pilot hole if no suitable existing grounding point (screw with nut) is available in the vehicle frame. Always check for hidden items before drilling.
Do not exceed the product rating (10-amp fuse) or the tow vehicle lamp load rating, whichever is lower. Exceeding either can cause overheating and potential fire.
Test for proper function by using a test light or connecting a properly wired trailer. All installation steps must be followed to ensure proper operation.
