22-24 HONDA Accord Sedan CURT 4-flat Plug and Play Trailer WiringCURTOriginal price was $113.90. Current price is $100.76.In Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
CURT
Verify Fitment
Select your vehicle to confirm this part fits.
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
| Battery-Powered | Yes |
| Converter Type | Circuit Protected, Powered, Potted |
| Electrical System Type | 3W |
| Finish | N/A |
| Material | Blank |
| Mount Type Description | Blank |
| Output Type | 4-Way Flat |
| Side Application Type Description | Blank |
| T-Connector Location | P1,P2 |
| Tail Light Circuits | 6.0 Amps |
| Turn and Brake Circuits | 3.0 Amps |
| Warranty | One-Year Limited Warranty |
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2018 - 2022 | Honda Accord | Sedan, excluding hybrid |
The 18-22 HONDA Accord Sedan, excluding hybrid CURT 4-flat Plug and Play Trailer Wiring (Part #CTW1322) fits 2018-2022 Honda Accord models. The 2022 model year is the last year covered by this part number. For newer models, check for an updated version.
The 18-22 HONDA Accord Sedan, excluding hybrid CURT 4-flat Plug and Play Trailer Wiring (Part #CTW1322) fits the following vehicles: 2018-2022 Honda Accord. Always verify your specific year, make, and model before ordering.
Yes, the 18-22 HONDA Accord Sedan, excluding hybrid CURT 4-flat Plug and Play Trailer Wiring (Part #CTW1322) is designed to fit the 2018-2022 Honda Accord.
The 18-22 HONDA Accord Sedan, excluding hybrid CURT 4-flat Plug and Play Trailer Wiring (Part #CTW1322) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the Curt 56402 is designed for Honda Accord Sedan in passenger car configuration. The harness connects to the existing taillight connectors on both driver and passenger sides. Verify your vehicle matches the listed application before purchase.
The Curt 56402 is a custom wiring harness that integrates with your vehicle's existing taillight system to provide trailer lighting control. It includes a converter box, power wire, ground wire, and 4-flat connector for trailer connection.
You will need: ratchet, ratchet extension, 10mm socket, Phillips screwdriver, panel trim removal tool, wire stripper, wire crimper, cutting tool, and fish wire. A drill may be needed if a suitable existing grounding screw is not available.

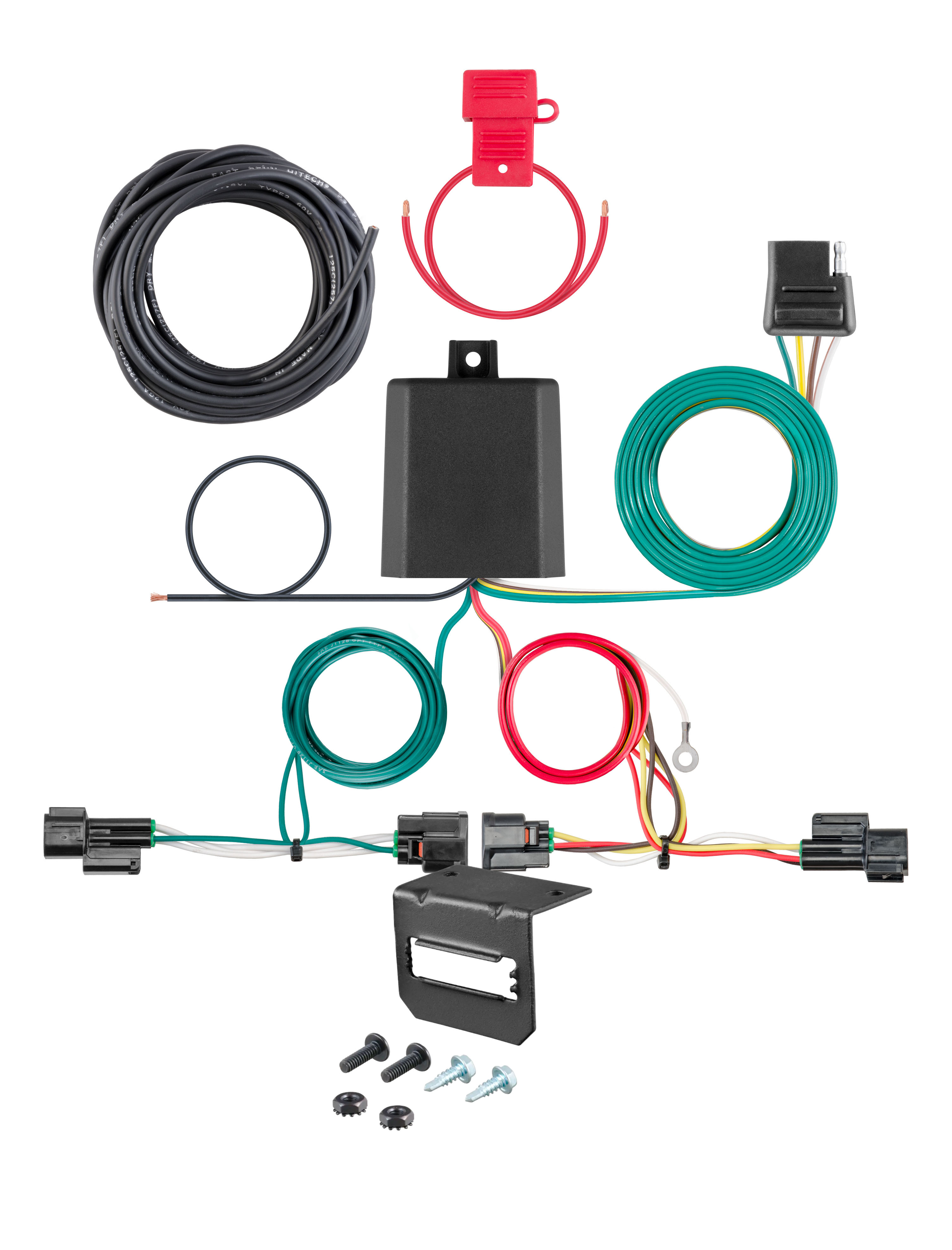

The harness includes: custom wiring harness with yellow and green wire ends, white ground wire with ring terminal, black converter box, provided screw for grounding, double-sided tape for converter box mounting, 4-flat connector, 4-flat dust cover, and cable ties for securing loose wires.
The yellow wire end connects at the driver side taillight, and the green wire end connects at the passenger side taillight. Each harness end inserts between the separated taillight connectors, with locking tabs fully seated.
1. Open the trunk and remove all floor coverings. 2. Locate and remove the taillight trim cover. 3. Remove the two fasteners securing the taillight. 4. Gently pull the taillight outward, taking care not to damage the alignment tabs on the back. 5. Separate the connectors from the taillight housing without damaging the locking tabs.
Route the custom wiring harness with the yellow wire from underneath the vehicle along the rear bumper and up behind the fender to the opening under the removed driver-side taillight. Route the green wire end to the passenger side along the rear bumper. Route the black power wire from the vehicle battery as shown on the included CME-PCL-INS sheet. Route the 4-flat connector to the center of the vehicle and out of the trunk when in use; roll up and store inside the trunk when not in use.
Drilling may be required for the ground wire. Locate a suitable grounding point near the taillight connector, such as an existing screw with a nut in the vehicle frame. If no suitable existing screw is available, drill a 3/32" pilot hole. The area must be free of rust, dirt and paint. Always check for hidden items behind or under surfaces before drilling to avoid damage and personal injury.
Signal circuits are rated at 3.0 amps per side. Tail and running circuits are rated at 6.0 amps total. Do not exceed these ratings or the tow vehicle lamp load rating, whichever is lower, as exceeding the product rating can cause loss of warranty, overheating and potential fire.
The battery connection must be fuse-protected with a maximum 10-amp fuse. Exceeding this rating can cause loss of warranty, overheating and potential fire.
Mount the black converter box on a flat clean surface that is out of the path of spray and debris from the rear wheels and road. Use the provided double-sided tape to adhere it securely.
Use the provided cable ties to secure any loose wires. This helps prevent damage and keeps the installation neat.
Test for proper function by using a test light or connecting a properly wired trailer. All steps must be followed to ensure the wiring harness functions properly.
Yes, install the provided 4-flat dust cover to help prevent corrosion of the connector.
Honda Accord Sedan (passenger car configuration).
10-amp maximum fuse protection on the battery connection.
Drilling may be required for the ground wire if no suitable existing screw is available; drill a 3/32" pilot hole if needed.
Ratchet, ratchet extension, 10mm socket, Phillips screwdriver, panel trim removal tool, wire stripper, wire crimper, cutting tool, and fish wire.
Signal circuits: 3.0 amps per side. Tail/running circuits: 6.0 amps total. Do not exceed these or the vehicle lamp load rating.
