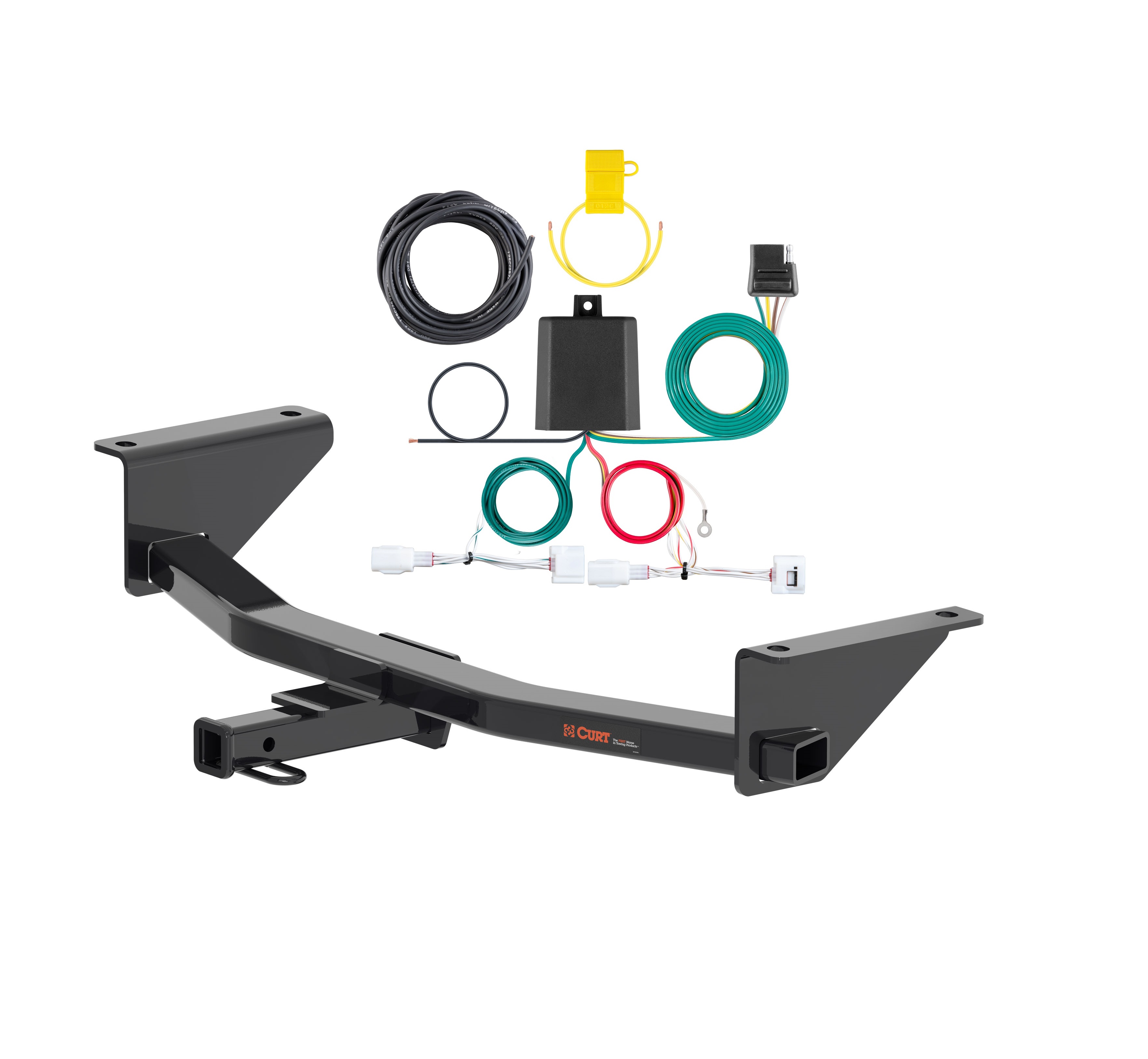

Complete CURT Class 1 1-1/4" trailer hitch and 4-flat custom wiring kit engineered for the 2019 - 2026 Mazda 3 Sedan. Vehicle-specific fit, plug-and-play installation, all hardware and instructions included.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!
However you define adventure -- whether it's climbing onto the back of a mountain bike, hunting from the top of a tree stand or camping with the family a long way from nowhere -- CURT class 1 hitches provide a light-duty towing receiver to help you Bring It. Each is made to fit a specific vehicle, providing easier installation, a better fit and optimal towing capacity. Custom class 1 trailer hitches are available for a variety of smaller vehicle types, including the compact car, crossover, minivan and small SUV. This particular class 1 hitch is designed to be a custom hitch for certain years of the Mazda 3 sedan (to verify vehicle compatibility, see the CURT application guide at curtmfg.com). Tested in accordance with SAE J684, it offers a weight carrying capacity of 2,000 lbs. GTW and 200 lbs. TW. It is equipped with 1-1/4" receiver tube opening to accept a ball mount shank or other hitch mount. This class 1 hitch also comes with all necessary mounting hardware. With its lightweight design and smaller receiver tube size, a class 1 hitch is especially useful for adding cargo space with a hitch-mounted bike rack or cargo carrier. They can also typically be used to tow small trailers such as a utility trailer, kayak trailer or teardrop camper (never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). Though CURT class 1 trailer hitches are only intended for light-duty towing, we apply the same principles of quality as we do to the rest of our rear mount hitches. Each class 1 hitch is made with hands-on engineering, high-strength steel and precise welding. We use a co-cured finish of liquid A-coat, inside and out, and durable black powder coat to provide a lasting defense against rust, chips and UV rays.
If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution. A custom wiring harness -- also called a T-connector -- is a simple, plug-and-play electrical device that plugs into your automotive electric system and provides a standard, universal trailer wiring connection. This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation. Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing. This particular plug-in harness provides a 4-way flat connector socket and is designed to be a custom wiring harness to fit certain years of the Mazda 3 (to verify your vehicle compatibility, see application info). It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use. You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite. However, turning that picture into a reality takes more than just daydreaming. It takes a solid connection and the right amount of power. CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing hitch setup.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2019 - 2026 | Mazda 3 | Sedan |
Yes, the 19 - 21 Mazda 3 Sedan Curt 1-1/4", Class 1 Trailer Tow Hitch + 4-flat Wiring Kit 11636 (Part #CHW-2221) is designed to fit the 2019-2021 Mazda 3.
The 19 - 21 Mazda 3 Sedan Curt 1-1/4", Class 1 Trailer Tow Hitch + 4-flat Wiring Kit 11636 (Part #CHW-2221) fits 2019-2021 Mazda 3 models. The 2021 model year is the last year covered by this part number. For newer models, check for an updated version.
The 19 - 21 Mazda 3 Sedan Curt 1-1/4", Class 1 Trailer Tow Hitch + 4-flat Wiring Kit 11636 (Part #CHW-2221) fits the following vehicles: 2019-2021 Mazda 3. Always verify your specific year, make, and model before ordering.
The 19 - 21 Mazda 3 Sedan Curt 1-1/4", Class 1 Trailer Tow Hitch + 4-flat Wiring Kit 11636 (Part #CHW-2221) Refer to the included instructions for installation details. Basic hand tools are typically all you need.

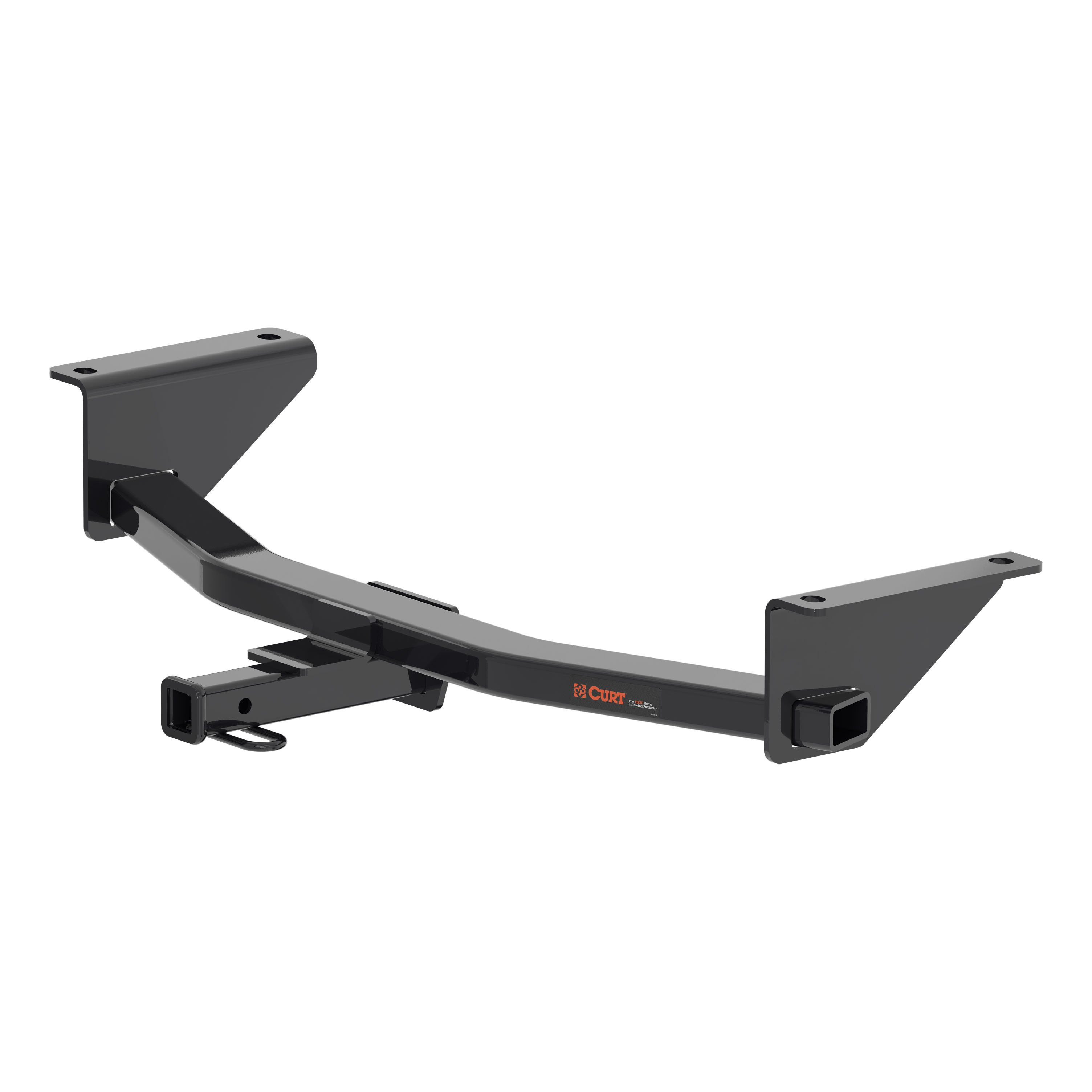

The CURT 11636 has a gross trailer weight (GTW) capacity of 2,000 lbs and a tongue weight (TW) capacity of 200 lbs. Never exceed your vehicle manufacturer's recommended towing capacity.
The manual does not specify which vehicle years, makes, models, cab styles or bed lengths the 11636 is designed for. Contact CURT product support at 877-287-8634 or visit curtmfg.com to confirm fitment for your specific vehicle.
You will need: ratchet, 10mm socket, socket extension (6 inch), flathead screwdriver, Phillips screwdriver, die grinder, torque wrench, and fishwire (4 qty included). For a tools reference guide, visit curtmfg.com/trailer-hitch-installation.
The kit includes: 4 carriage bolts (7/16"-14 x 1-3/4"), 4 serrated flange nuts (7/16"-14), 4 square hole spacers (0.25" x 0.88" x 2.25"), and 4 fishwire tools.
Yes. You must remove the bottom panel (7 screws and 2 pop rivets) and the bottom bracket attachment (2 bolts with 10mm socket). The bottom panel is removed using a Phillips screwdriver for the screws and a flathead screwdriver for the pop rivets. The bracket is removed by unbolting it and pressing it inward to release it from the plastic tab on the frame rails. Return these parts to the vehicle owner.
No drilling is required. However, the installation does require hole enlargement: use a die grinder to enlarge the access hole to 1 inch in diameter on each side of the vehicle.
The fishwire is a coiled wire tool that guides hardware through the vehicle frame. Insert the coiled end through the hitch mounting hole and out the access hole. Pass the coiled end through a square hole spacer and thread a carriage bolt into the coil. Kink the wire to keep the spacer separate from the bolt. Pull the fishwire, spacer, and bolt through the frame and out the mounting hole. This prevents loss of bolts or spacers inside the frame rail and guides the hitch during mounting.
1. Remove the bottom panel (7 screws, 2 pop rivets). 2. Remove the bottom bracket attachment (2 bolts). 3. Use a die grinder to enlarge access holes to 1 inch diameter on each side. 4. Use fishwire to insert square hole spacers and carriage bolts into the frame through the access hole on each frame rail, leaving fishwire attached. 5. Raise the hitch into position, align holes, remove fishwire, and secure with serrated flange nuts. 6. Torque all 7/16" hardware to 59 ft-lbs.
Torque all 7/16" hardware (carriage bolts and serrated flange nuts) to 59 ft-lbs using a torque wrench.
Safety glasses must be worn at all times during installation. Be careful not to push hardware into the frame during assembly. Never exceed your vehicle manufacturer's recommended towing capacity when using the hitch.
Periodic inspection of the trailer hitch should be performed to ensure all mounting hardware remains tight and structural components are secure.
The manual does not list specific vehicle applications. Contact CURT at 877-287-8634 or visit curtmfg.com to confirm fitment for your year, make, and model.
Ratchet, 10mm socket, 6-inch socket extension, Phillips and flathead screwdrivers, die grinder, torque wrench, and fishwire (included). See curtmfg.com/trailer-hitch-installation for a full tools reference guide.
Yes. Remove the bottom panel (7 screws and 2 pop rivets) and the bottom bracket attachment (2 bolts). Return these parts to the vehicle owner.
Torque all 7/16" hardware to 59 ft-lbs using a torque wrench.
Gross trailer weight capacity is 2,000 lbs; tongue weight capacity is 200 lbs. Never exceed your vehicle manufacturer's recommended towing capacity.
Yes. The 56435 is designed for both sedan and hatchback passenger cars with 12-volt negative ground electrical systems. Installation steps differ between body styles: hatchbacks follow steps 3A through 7A, and sedans follow steps 3B through 7B. Consult your vehicle owner's manual to confirm your vehicle has a 12-volt negative ground system before purchasing.
No. The converter system is designed only for 12-volt negative ground systems. Do not use on 24-volt systems or vehicles with positive ground electrical systems. Check your vehicle owner's manual to confirm the electrical system type before installation.
Signal circuits are rated at 5.0 amps per side. Tail and running circuits are rated at 7.5 amps total. Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower. Exceeding the product rating can cause loss of warranty, overheating, and potential fire.
Required tools are: ratchet, panel trim removal tool, 10 mm socket, socket extension, cutting tool, wire crimper, wire stripper, flathead screwdriver, and electrical tape. Proper tools will improve installation quality and reduce installation time.
Yes. Disconnect the negative battery terminal before beginning installation. Fasten this wire down and away from the battery during the installation process. Reconnect the negative battery terminal only after all other installation steps are complete and before testing the harness.
Open the vehicle trunk and remove the floor covering, rear cargo area cover, and both side covers. Remove the fasteners securing the rear scuff panel, then remove the scuff panel by pulling out on the bottom and then up. Take care not to damage the alignment tabs on the back.
The custom wiring end with the yellow wire connects between the separated driver-side taillight connectors. The custom wiring end with the green wire connects between the separated passenger-side taillight connectors. Both connectors must be fully inserted with locking tabs in place. Take care not to damage the locking tabs when separating the original connectors.
On the driver side, locate a flat spot behind the trunk liner. Adhere the black converter box using the provided double-sided tape. Ensure the surface is clean and dry before applying the tape for best adhesion.
12 gauge (12 GA) wire or larger is used for the power lead from the vehicle battery to the converter. Route this wire to the vehicle battery location, taking care to avoid pinch points and hot or rotating components.
A 15-amp maximum fuse is required. The battery connection must be fuse-protected with a 15-amp fuse holder. Install the fuse after all other installation steps are complete. Exceeding this fuse rating can cause loss of warranty, overheating, and potential fire.
Green = Right turn; Red = Brake; Yellow = Left turn; Brown = Taillight. These wires connect to the corresponding vehicle taillight circuits. If using the converter as a powered module for a two-wire system, the red brake wire must be grounded.
Attach the ring terminal of the white ground wire to the vehicle body using the screw provided. Drill a 3/32-inch hole if necessary. Ensure a clean, bare metal connection for proper grounding.
When not in use, roll up the 4-flat connector and store it in a convenient, out-of-the-way location inside the trunk. When in use, route the 4-flat to the center of the vehicle and out of the trunk. Install the provided 4-flat dust cover to help prevent corrosion.
When passing the power wire through sheet metal, use an existing grommet, add a new grommet, or use silicone to protect the power wire from sharp edges. This prevents the wire from being damaged and causing electrical shorts or fire.
Secure any loose wires with the provided cable ties. Route the black power wire to the vehicle battery location using cable ties to secure it to the vehicle chassis, keeping it away from pinch points and hot or rotating components.
Once the 12-volt power wire is connected to the harness, verify that the harness is functioning by attaching the battery and testing with a test light, 4-flat tester, or a functioning trailer. This confirms all circuits are working before final use.
Periodic inspection of all wires and connections should be performed to ensure there is no visible damage or loose connections. Check the 4-flat connector dust cover regularly to ensure it is in place and preventing corrosion.

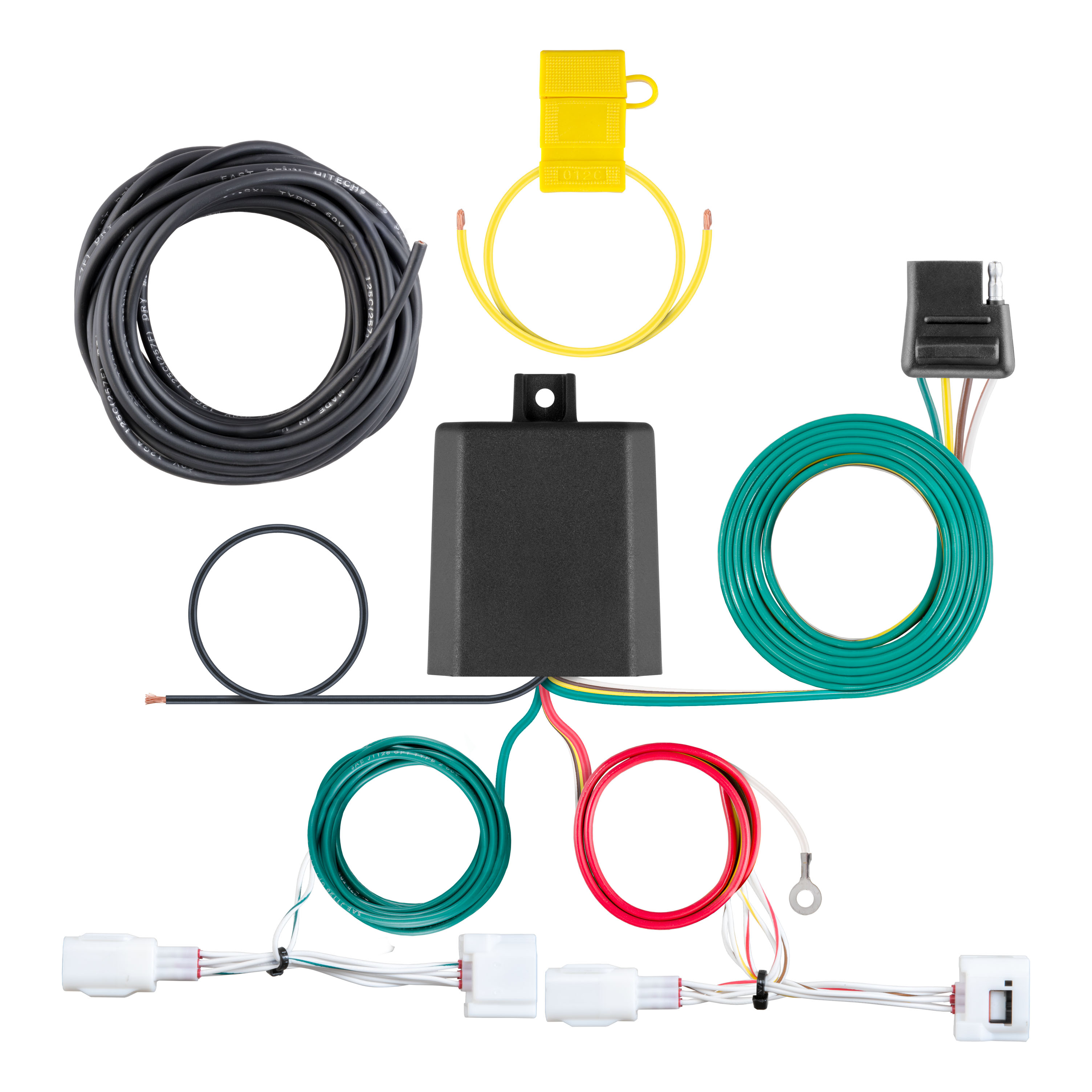

The kit includes the custom wiring harness with yellow, green, red, and brown signal wires; a black converter box; a white ground wire with ring terminal; a black power wire; a 4-flat connector with dust cover; double-sided tape for mounting the converter box; cable ties for securing wires; a fuse holder with 15-amp fuse; and a mounting screw for the ground wire.
The 56435 fits passenger cars (sedans and hatchbacks) with 12-volt negative ground electrical systems. Check your vehicle owner's manual to confirm your electrical system type. Different installation steps apply to sedans versus hatchbacks.
You will need: ratchet, panel trim removal tool, 10 mm socket, socket extension, cutting tool, wire crimper, wire stripper, flathead screwdriver, and electrical tape.
Yes, disconnect the negative battery terminal before starting installation. Reconnect it only after all other steps are complete and before testing.
A 15-amp maximum fuse is required for the battery connection. Install the fuse after all other steps are complete.
12 gauge (12 GA) wire or larger is used for the power connection from the vehicle battery to the converter.
First, verify that the 12-volt power wire is properly connected to the positive battery terminal through the 15-amp fuse holder, and that the white ground wire is securely attached to the vehicle body with good metal-to-metal contact. Confirm that the yellow wire is fully inserted with locking tabs in place at the driver-side taillight connector, and the green wire is fully inserted at the passenger-side taillight connector. Test using a test light, 4-flat tester, or functioning trailer. Check that the negative battery terminal is reconnected. Inspect all wires and connections for visible damage or loose connections.
The manual warns to take care not to damage the locking tabs when separating the original taillight connectors from the taillight housing. If tabs are damaged, the connectors may not stay fully inserted, causing intermittent or complete loss of function. Consult the vehicle manufacturer or a professional installer for repair or replacement of the damaged connector assembly, as the manual does not provide a repair procedure.
