Draw-tite
Verify Fitment
Select your vehicle to confirm this part fits.
1996 - 2004 Nissan Pathfinder
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
These durable custom hitches are manufactured for 1997-2003 Infiniti QX4, 1996-2004 Nissan Pathfinder and attach to your vehicle?s frame or bumper for a sleek, clean appearance. Each hitch also has a 2 inch square receiver tube opening ? the most common and versatile on the market - allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. The options are endless! DRAW-TITE Class 3 Custom Trailer Hitches come complete with all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. So, whether you are headed out to the campground, the lake, or the bike trails, or you are tackling a project at home and need to haul the materials home, choose DRAW-TITE and travel with confidence knowing your setup is connected with the security only DRAW-TITE can provide. DRAW-TITE: North America?s Favorite Hitch
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 1996 - 2004 | Nissan Pathfinder | — |
Yes, this T-connector harness is designed for Nissan Altima. The installation accesses the vehicle's wiring connectors behind the tail lamps via the trunk.
Yes, this harness is compatible with both Nissan Pathfinder and Infiniti QX4. Installation on these models accesses the wiring through the rear door and interior trim panel behind the tail lamps.
This unit is rated for 4 amps per circuit.
You will need a drill with a 3/32" bit to create the ground hole. A test light or trailer is required to test the installation after completion. A cable tie or screw (both provided) is needed to secure the black box to the vehicle.
Open the trunk, remove the plastic threshold plate, and pull back the trunk lining behind the tail lamps on both sides to expose the vehicle's wiring connectors. The vehicle's connectors will match the ends of the T-connector harness.
Open the rear door, remove the plastic threshold plate, and partially remove the rear interior trim panel on both sides of the vehicle behind the tail lamps. Look for a square access hole behind the tail lamps and locate the vehicle wiring connectors inside.
First, separate the driver's side connectors and insert the T-connector with the yellow wire between them. Then route the wire across to the passenger's side and repeat using the T-connector with the green wire.
Yes, you must drill a 3/32" hole on the driver's side near the connectors to secure the white wire ground. Do not drill into the vehicle floor or bed; locate a suitable grounding point on the vehicle body instead.
Drill the 3/32" hole on the driver's side near the connectors at a suitable grounding point on the vehicle body. Do not drill into the vehicle floor or bed.
The ground hole must be 3/32" in diameter.

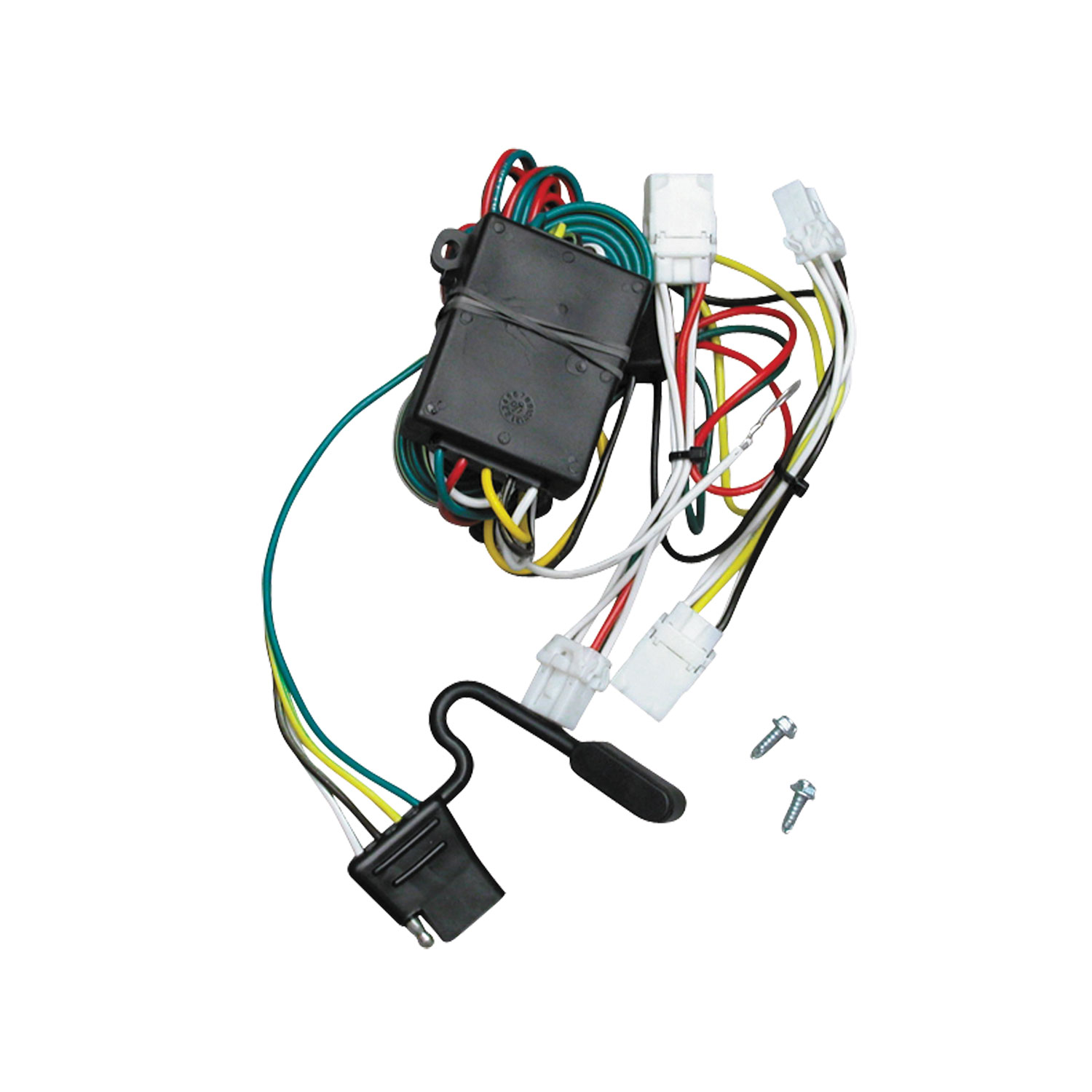

The harness includes a T-connector with a yellow wire for the driver's side and a T-connector with a green wire for the passenger's side. A white wire is used for the ground connection.
Secure the black box to the vehicle using either the cable tie or the screw provided with the harness.
Test the installation with a test light or trailer after all connections are complete and before reattaching the interior trim panels.
After testing, reattach all interior trim panels, the threshold plate, and the trunk lining (or rear interior trim on Pathfinder/QX4).
The 18361-037 T-connector harness fits Nissan Altima, Nissan Pathfinder, and Infiniti QX4.
Yes, you must drill a 3/32" hole for the ground wire on the driver's side near the connectors. Do not drill into the vehicle floor or bed.
The harness includes a screw for securing the white ground wire eyelet and a cable tie or screw for securing the black box to the vehicle.
This unit is rated for 4 amps per circuit.
Test the installation with a test light or trailer before reattaching the interior trim panels.
