These durable custom hitches are manufactured for 2013-2013 Infiniti JX35, 2014-2020 Infiniti QX60, 2013-2020 Nissan Pathfinder and attach to your vehicle?s frame or bumper for a sleek, clean appearance. Each hitch also has a 2 inch square receiver tube opening ? the most common and versatile on the market - allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. The options are endless! DRAW-TITE Class 4 Custom Trailer Hitches come complete with all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. So, whether you are headed out to the campground, the lake, or the bike trails, or you are tackling a project at home and need to haul the materials home, choose DRAW-TITE and travel with confidence knowing your setup is connected with the security only DRAW-TITE can provide. DRAW-TITE: North America?s Favorite Hitch
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2018 - 2020 | Nissan Pathfinder | — |

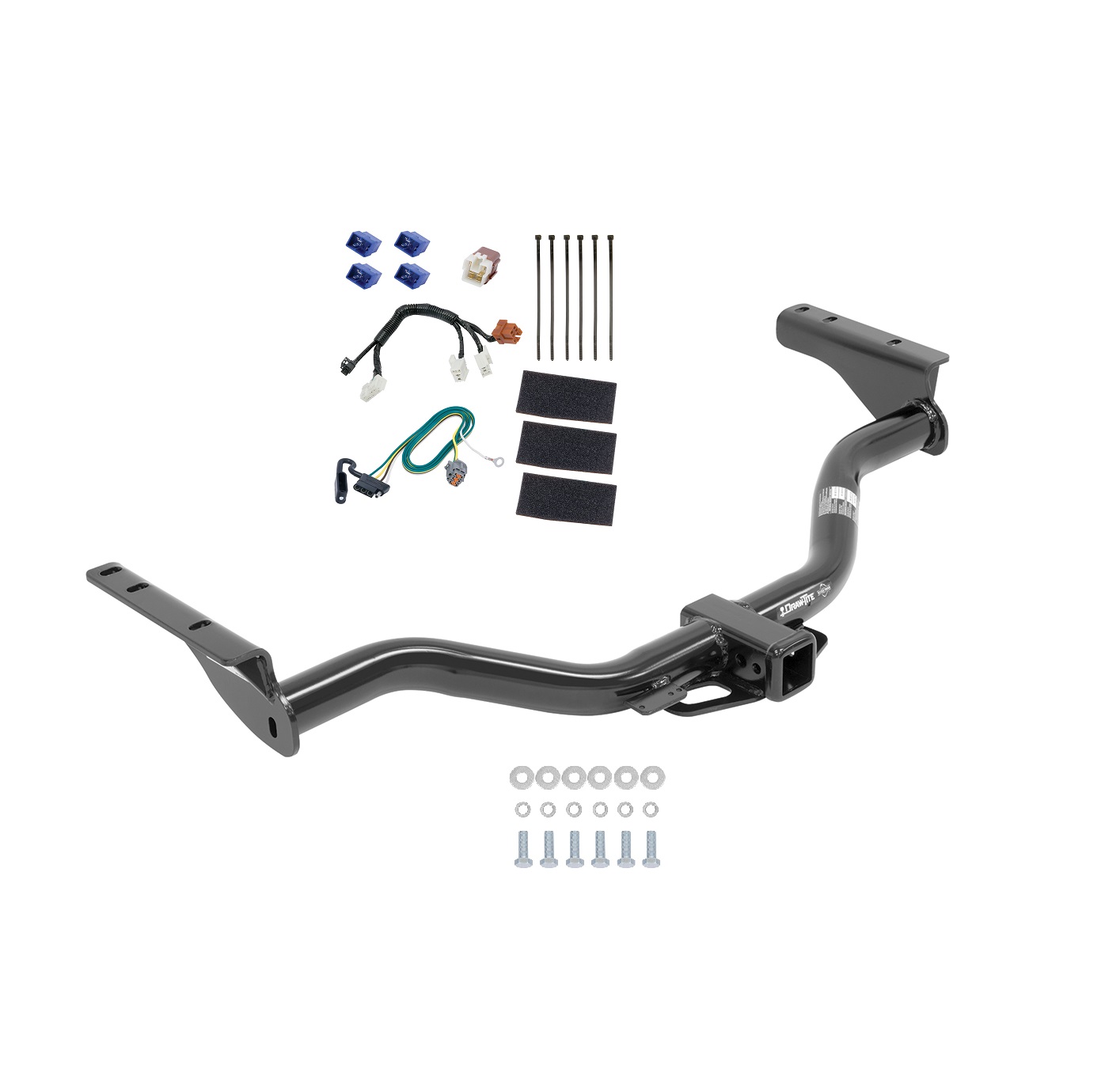

Yes, the 2018-2020 Nissan Pathfinder Draw-tite Class 4 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB76031-4-118670) is designed to fit the 2018-2020 Nissan Pathfinder.
The 2018-2020 Nissan Pathfinder Draw-tite Class 4 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB76031-4-118670) fits 2018-2020 Nissan Pathfinder models. The 2020 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2018-2020 Nissan Pathfinder Draw-tite Class 4 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB76031-4-118670) fits the following vehicles: 2018-2020 Nissan Pathfinder. Always verify your specific year, make, and model before ordering.
The 2018-2020 Nissan Pathfinder Draw-tite Class 4 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB76031-4-118670) Refer to the included instructions for installation details. Basic hand tools are typically all you need.

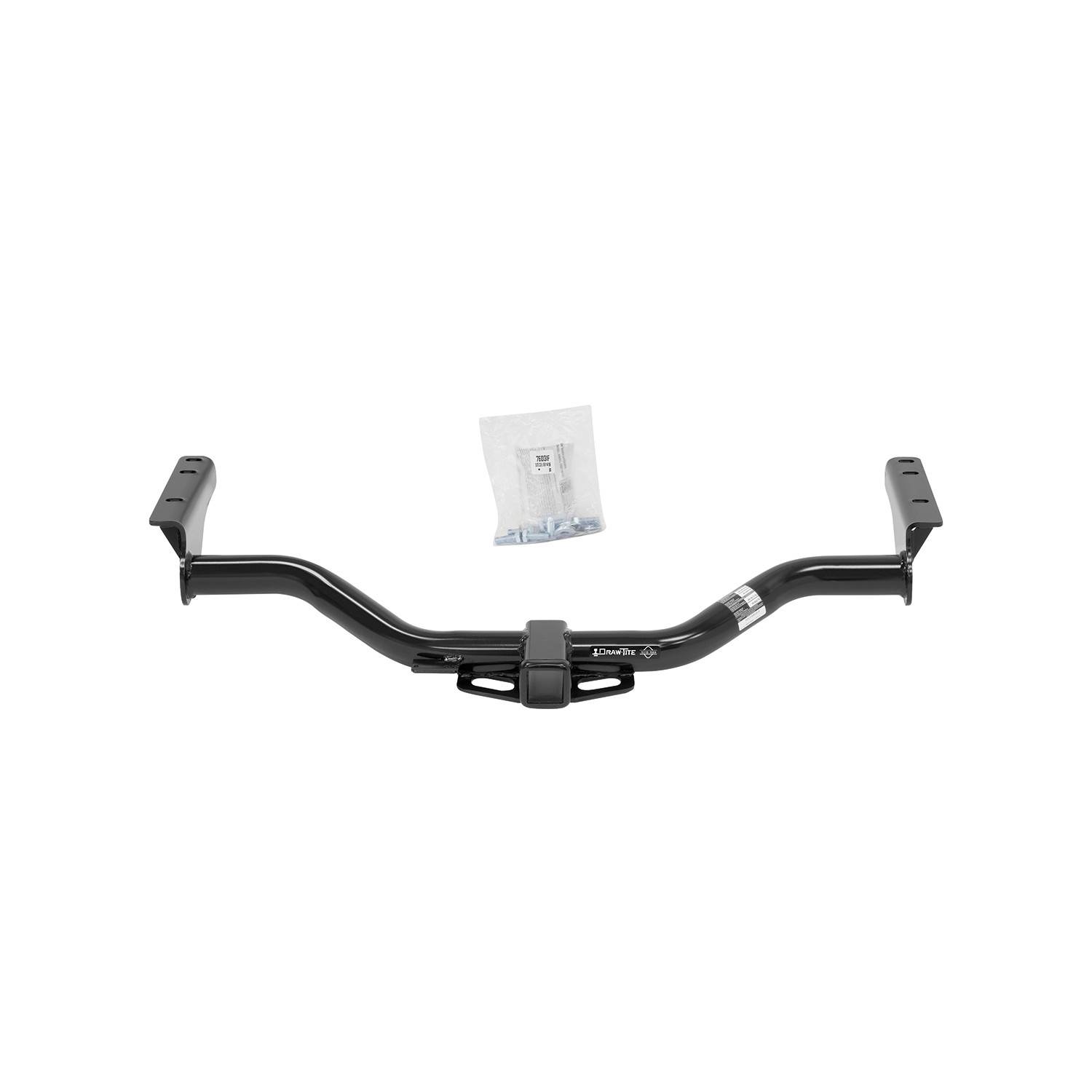

Yes, the 76031 hitch is designed for 2013 and current model year Nissan Pathfinder vehicles. For the most up-to-date information regarding specific trim levels and application years, visit the Horizon Global website.
Yes, the 76031 hitch is compatible with 2014 and current model year Infiniti QX60 vehicles. Check the Horizon Global website for the most current information on trim levels and application years.
Yes, the 76031 hitch is designed for the 2013 Infiniti JX35.
The 76031 hitch has a maximum gross trailer weight of 6000 lb (2722 kg) and a maximum tongue weight of 900 lb (408 kg) for both weight carrying and weight distributing configurations. Do not exceed the lower of your towing vehicle manufacturer's rating or these limits.
You will need: a ratchet, a torque wrench, a 19 mm socket, a 6 inch socket extension, tin snips, a wire brush, safety glasses, and compressed air. The manual notes that if you do not feel comfortable performing the installation or need assistance, you should contact a professional installer.

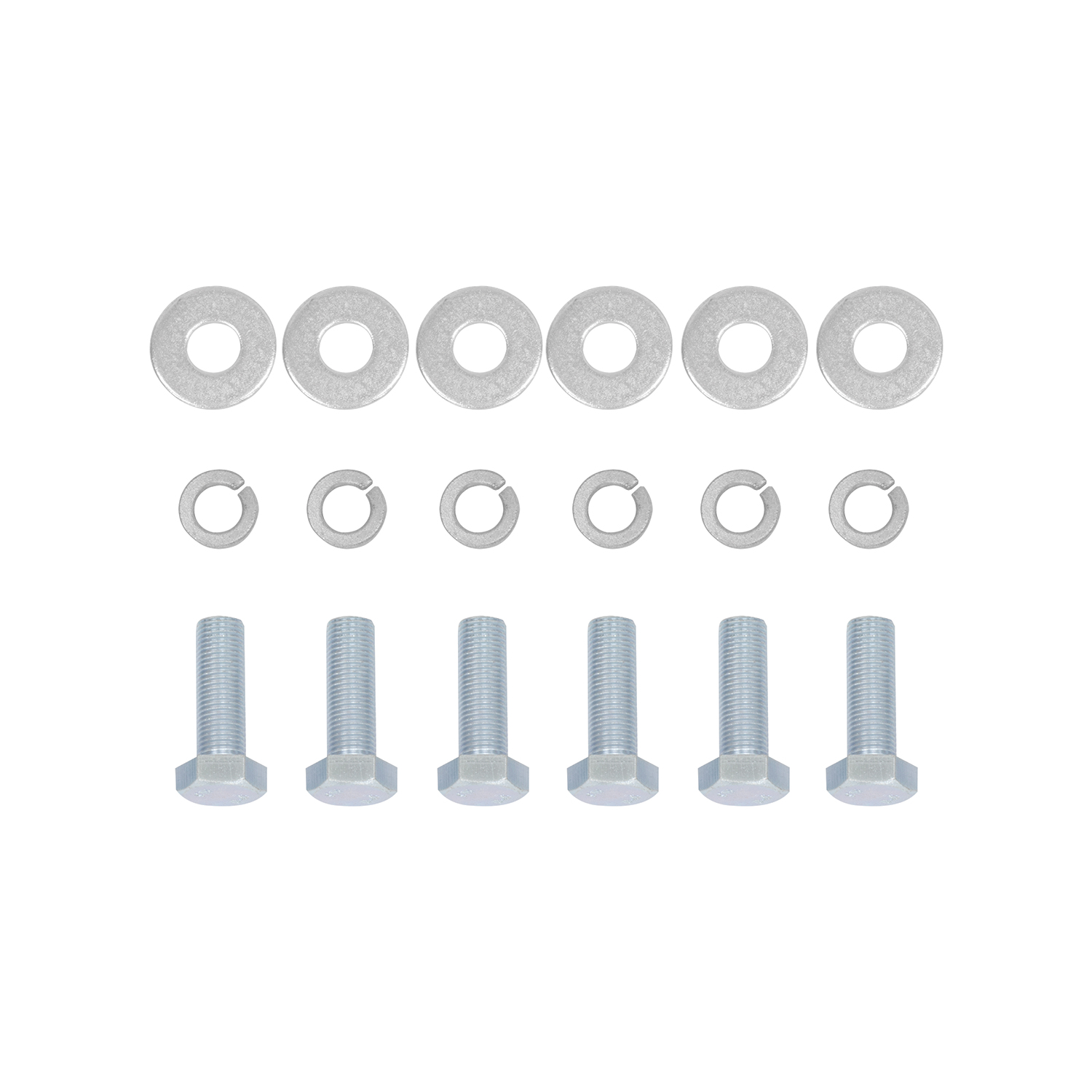

The fastener kit 76031F includes: (6) M12 x 1.25 x 35 mm CL 8.8 bolts, (6) 1/2 inch flat washers, and (6) 1/2 inch lock washers. Three bolts, three flat washers, and three lock washers are installed on each side of the vehicle.
The first step is to remove the tie down bracket and return bracket and mounting bolts to the customer. These items are not part of the hitch installation.
Yes, you must trim the carbon canister shield. Using tin snips, trim the bottom rear corner of the carbon canister shield as shown in Figure 2 of the manual. This is a required modification for proper hitch installation.
If necessary, yes. Using a wire brush and compressed air, clean the weldnuts used to attach the hitch (3 per side). This step is optional but recommended if the weldnuts are dirty or corroded.
Raise the hitch into position and install (3) M12 bolts, (3) 1/2 inch lock washers, and (3) 1/2 inch flat washers into the weldnuts on each side of the vehicle frame.
Tighten all M12 CL8.8 fasteners with a torque wrench to 76 ft-lbs (103 N-m). Proper torque is essential to keep the hitch secure to the vehicle when towing.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. The manual emphasizes that proper torque is needed to keep the hitch secure to the vehicle when towing.
If excess sway occurs, take your foot off the gas pedal and hold the steering wheel as steady as possible. Do not apply your brakes and do not speed up.
Always wear your seatbelt. Slow down when towing and never exceed any posted speed limit. Load the trailer heavier in front. Do not exceed the lower of your towing vehicle manufacturer's rating or the hitch's maximum capacity of 6000 lb GVWR and 900 lb tongue weight.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
Always wear safety glasses when installing the hitch. Observe safety precautions when working beneath a vehicle and wear eye protection.
No. Do not cut, weld, or modify this receiver. Additionally, do not cut access or attachment holes with a torch.
A hitch or ball which has been damaged should be removed and replaced. Do not attempt to repair a damaged hitch.
Yes, the 76031 is designed for 2013-current Nissan Pathfinder, 2013 Infiniti JX35, and 2014-current Infiniti QX60. Check the Horizon Global website for the most current trim level information.
You need a ratchet, torque wrench, 19 mm socket, 6 inch socket extension, tin snips, wire brush, safety glasses, and compressed air. Installation takes approximately 25 minutes for a professional installer.
Yes, you must trim the bottom rear corner of the carbon canister shield using tin snips. This is a required modification shown in Figure 2 of the manual.
No. Do not cut, weld, or modify the receiver. Do not cut access or attachment holes with a torch.
Yes, the T-One® T-Connector (118670-037) is designed for the Nissan Pathfinder. It is also compatible with the Infiniti QX60. Always verify compatibility with your specific model year and consult your vehicle's owner's manual for additional information.
Yes, the T-One® T-Connector (118670-037) is compatible with the Infiniti QX60. It is also designed for the Nissan Pathfinder. Always verify compatibility with your specific model year and consult your vehicle's owner's manual for additional information.

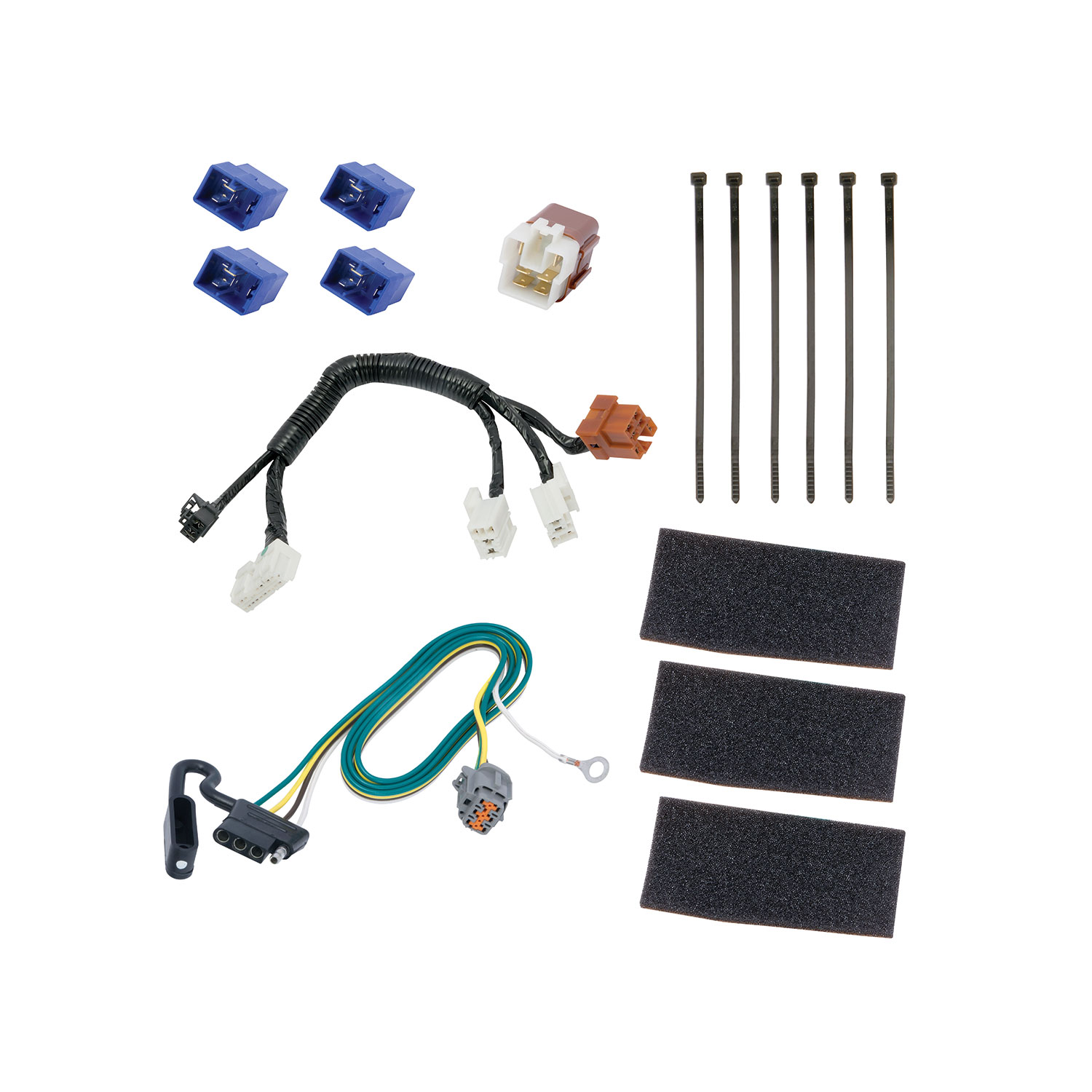

The kit includes: two small relays and one large relay for the jumper harness; two blue relays for the engine relay box; a 4-Flat harness; a grey 6-pin connector; a white wire with eyelet and screw for grounding; and cable ties for securing the harness. The tow plug bracket is not included and must be purchased separately.
Required tools are: wire cutters, Phillips head screwdriver, test-probe, trim panel puller, and a 10mm socket & ratchet or 10mm wrench. These tools are needed to remove interior trim panels, disconnect components, and secure fasteners during installation.
Only if your vehicle is equipped with a rear subwoofer. If present, carefully unscrew the retainer bolt at the top of the speaker, disconnect the speaker connector (being careful not to damage the locking tabs), and set the subwoofer aside during installation. You will reinstall it after the harness is secured.
Yes. You must fold the rear seats forward to access the cargo assembly and rotate it to rest on the folded seats. This is necessary to reach the jumper harness connectors located in the storage cargo area.
Using two small relays and one large relay, carefully insert them into the relay jumper harness. The terminals of each relay will match the configuration of the relay jumper harness end. Ensure that the relays are fully inserted with locking tabs in place. Do not use relays other than those included, as different relays can result in the unit not functioning or may damage the vehicle and/or trailer.
On the driver's side, under the trim panel area, locate the jumper harness connectors. The plugs will mate into the two relay jumper harness connectors. After connecting, secure the remainder of the harness with the cable ties provided and ensure that the connectors are fully inserted with locking tabs in place.
The relay box is located behind the driver's side headlight. Open the cover and insert the two blue relays into the open cavities. Ensure that the relays are fully inserted with locking tabs in place.
The grey 6-pin connector is located behind the rear bumper near the center of the vehicle. From underneath the vehicle, locate the tow plug harness and this connector. Remove the vehicle's tow plug protective cap. All connector surfaces should be clean and free of dirt before connecting.
Connect the tow plug end to the vehicle's mating connector. Be careful not to damage the locking tabs and ensure that connectors are fully inserted with locking tabs in place. All connections must be complete for the T-One® T-Connector to function properly.
Yes. You must drill a 3/32" hole to secure the white grounding wire. Locate a suitable grounding point near the adapter such as the vehicle frame or crossmember (do not drill into vehicle floor or bed). Clean dirt and rustproofing from the area, drill the 3/32" hole, and secure the white wire using the eyelet and screw provided. Always verify what is behind any surface prior to drilling to avoid damage to the vehicle and/or personal injury. Do not drill into any exposed surfaces.
Drill a 3/32" hole for the white grounding wire. The hole should be made in a suitable grounding point near the adapter such as the vehicle frame or crossmember, not in the vehicle floor or bed. Clean dirt and rustproofing from the area before drilling.
Route the 4-Flat harness rearward to the back of the fascia of the bumper. Route the wire carefully to avoid any hot pipes, heat shields, the fuel tank, or any other points that may pinch or break the wire. After routing, secure the 4-Flat tow harness to the hitch. Note that a bracket is not included and must be purchased separately.
Do not exceed the lower of your towing manufacturer's rating or these limits: maximum stop/turn light is 1 per side (7.5 amps); maximum tail lights (7.5 amps). Overloading the circuit can cause fires. Always consult your vehicle's owner's manual and the towing manufacturer's specifications.
For the initial test, reset the vehicle's electrical system by temporarily removing the key from the ignition. Then test and verify the installation with a test light or trailer once installed. All connections must be complete for the T-One® T-Connector to function properly.
Test and verify the installation with a test light or trailer once installed. For the initial test, reset the vehicle's electrical system by temporarily removing the key from the ignition. All connections must be complete for the T-One® T-Connector to function properly before testing.
Remove the vehicle's tow plug protective cap and return it to the customer. The manual does not specify whether the cap should be retained for future use or discarded.
Yes. After the harness is secured, reinstall the plastic trim panels, threshold, storage covers, floor covering, and other items removed during installation. Be careful not to pinch or cut the wires during reinstallation.
Remove three 10mm bolts from the storage cargo area using a socket or wrench. Additionally, remove two 10mm bolts holding the cargo loops in place on the driver's side near the driver's side trim panel.
Remove four retaining clips from the cargo assembly area and two retaining clips holding the carpeted trim piece in place on the driver's side. Use a panel puller to carefully remove these clips.
The T-One® T-Connector (118670-037) is designed for the Nissan Pathfinder and Infiniti QX60. Always verify compatibility with your specific model year and consult your vehicle's owner's manual.
No, the tow plug bracket is not included and must be purchased separately. The kit includes relays, harnesses, connectors, grounding wire, and cable ties.
Maximum stop/turn light is 1 per side (7.5 amps); maximum tail lights (7.5 amps). Do not exceed the lower of your towing manufacturer's rating or these limits, as overloading can cause fires.
