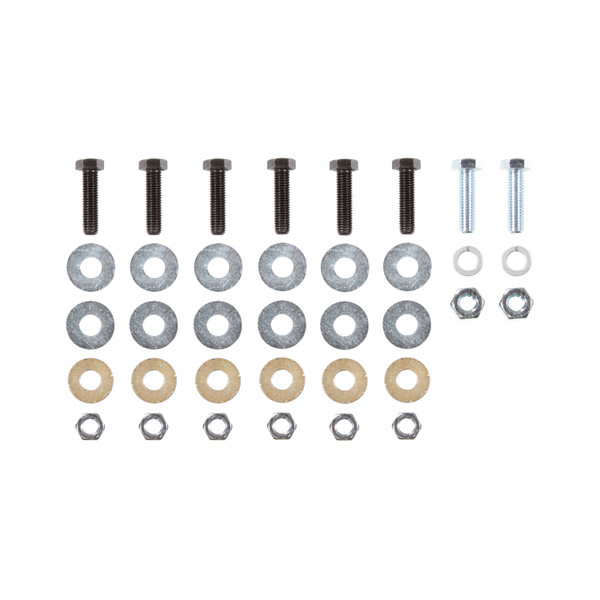

These durable custom hitches are manufactured for 1996-2004 Chevrolet S10, 1996-2004 GMC Sonoma, 1998-2000 Isuzu Hombre and attach to your vehicle?s frame or bumper for a sleek, clean appearance. Each hitch also has a 2 inch square receiver tube opening ? the most common and versatile on the market - allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. The options are endless! DRAW-TITE Class 3 Custom Trailer Hitches come complete with all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. So, whether you are headed out to the campground, the lake, or the bike trails, or you are tackling a project at home and need to haul the materials home, choose DRAW-TITE and travel with confidence knowing your setup is connected with the security only DRAW-TITE can provide. DRAW-TITE: North America?s Favorite Hitch
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 1998 - 2004 | Chevrolet S10 | — |

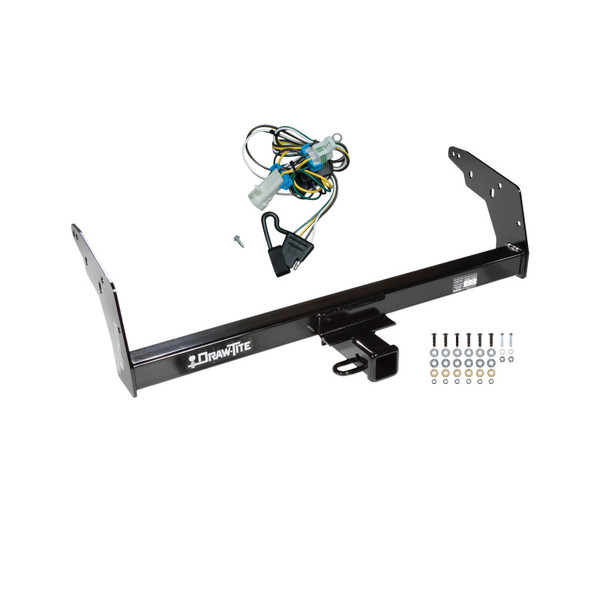

The 1998-2004 Chevrolet S10 Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB75085-118359) fits the following vehicles: 1998-2004 Chevrolet S10. Always verify your specific year, make, and model before ordering.
Yes, the 1998-2004 Chevrolet S10 Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB75085-118359) is designed to fit the 1998-2004 Chevrolet S10.
The 1998-2004 Chevrolet S10 Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB75085-118359) fits 1998-2004 Chevrolet S10 models. The 2004 model year is the last year covered by this part number. For newer models, check for an updated version.
The 1998-2004 Chevrolet S10 Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB75085-118359) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
This unit is rated for 7.5 amps per circuit.

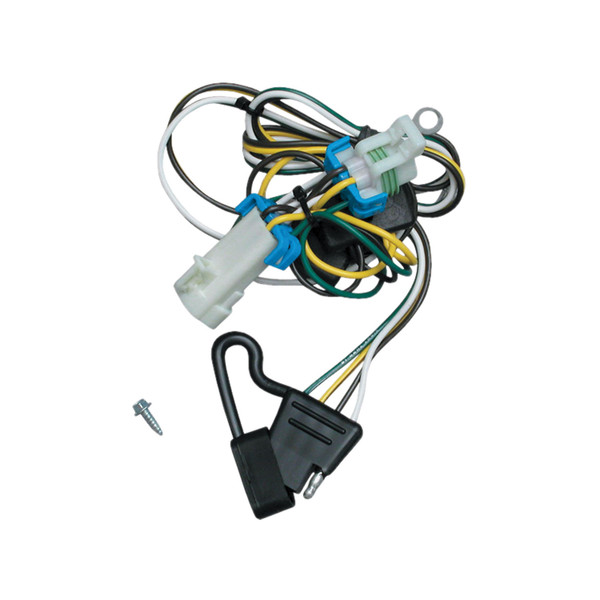

The taillight wiring harness is located along the inside of the left rear frame rail. It will have a connection point with connectors that match the ends of the T-connector adapter.
You will need a drill with a 3/32" drill bit. The installation also requires electrical tape or tie straps (not provided) to secure the harness to the vehicle. A test light or trailer is needed to verify the installation after completion.
The adapter includes a white wire with an eyelet and a screw for grounding. Electrical tape or tie straps are not provided and must be sourced separately.
Separate the vehicle's connectors carefully, being careful not to break the locking tabs. Check that the mating surfaces of the connectors are free of dirt and clean them if necessary before proceeding.
After separating the vehicle's connectors and cleaning the mating surfaces, insert the T-connector harness between the vehicle's connectors. The connectors on the T-connector will match the ends of the vehicle's connectors.
Yes. You must drill a 3/32" hole in a suitable grounding point near the connectors, such as the vehicle's frame or crossmember. Do not drill into the vehicle floor or bed.
Locate a suitable grounding point near the connectors, such as the vehicle's frame or crossmember. Do not drill into the vehicle floor or bed. Clean dirt and rust-proofing from the area before drilling the 3/32" hole.
The grounding hole must be drilled to 3/32" (2.4 mm).
Locate a suitable grounding point near the connectors on the vehicle's frame or crossmember. Clean dirt and rust-proofing from the area. Drill a 3/32" hole and secure the white wire with the eyelet using the screw provided.
Route the T-connector harness to the center of the vehicle and secure the wire to the vehicle's crossmember or other mounting point using electrical tape or tie straps (not provided).
Test the installation with a test light or trailer. This will verify that the connections are correct and the adapter is functioning properly.
The T-connector adapter is designed to match the connectors on your vehicle's taillight wiring harness, located along the inside of the left rear frame rail. Verify that the connector ends match before purchasing.
You will need electrical tape or tie straps to secure the harness. A test light or trailer is also needed to verify the installation. A 3/32" drill bit is required if you do not already have one.
The unit is rated for 7.5 amps per circuit.
Test the installation with a test light or trailer to confirm all connections are correct and the adapter is functioning properly.
