20-22 Hyundai Palisade CURT 7-way Plug and Play Trailer WiringCURTOriginal price was $123.90. Current price is $109.09.In Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
CURT
Verify Fitment
Select your vehicle to confirm this part fits.
2020 - 2022 Hyundai Palisade
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
| Battery-Powered | Yes |
| Converter Type | Circuit Protected and Powered |
| Electrical System Type | 3W |
| Finish | N/A |
| Material | Blank |
| Mount Type Description | Blank |
| Output Type | 4-Way Flat |
| Side Application Type Description | Blank |
| T-Connector Location | S5 |
| Tail Light Circuits | 7.5 Amps |
| Turn and Brake Circuits | 5.0 Amps |
| Warranty | One-Year Limited Warranty |
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2020 - 2022 | Hyundai Palisade | — |
The 20-22 Hyundai Palisade CURT 4-flat Plug and Play Trailer Wiring (Part #CTW1432) fits the following vehicles: 2020-2022 Hyundai Palisade. Always verify your specific year, make, and model before ordering.
The 20-22 Hyundai Palisade CURT 4-flat Plug and Play Trailer Wiring (Part #CTW1432) fits 2020-2022 Hyundai Palisade models. The 2022 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 20-22 Hyundai Palisade CURT 4-flat Plug and Play Trailer Wiring (Part #CTW1432) is designed to fit the 2020-2022 Hyundai Palisade.
The 20-22 Hyundai Palisade CURT 4-flat Plug and Play Trailer Wiring (Part #CTW1432) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
CURT part 56420 is designed for SUVs and vans classified as S-series vehicles. The manual does not list specific vehicle makes, models, or years. Contact CURT or consult a fitment database to confirm compatibility with your exact vehicle before purchasing.

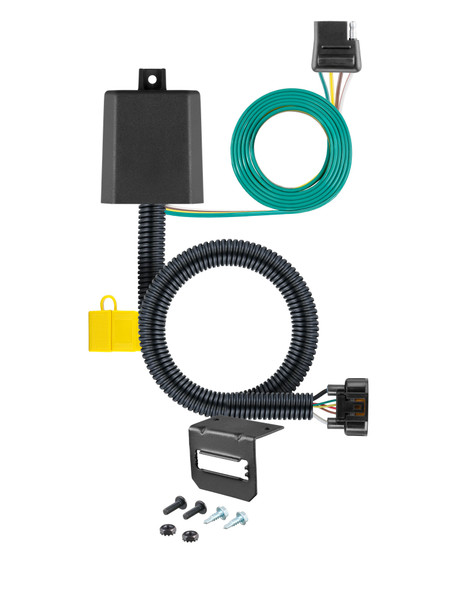

CURT 56420 is a custom wiring harness for SUVs and vans that connects the vehicle's factory electrical system to a trailer connector. It includes a converter box, 4-flat connector, fuse holder, and cable ties. The harness allows you to power trailer lights and signals from your vehicle's existing lighting circuits.
You will need: a ratchet, a 14mm socket, a socket extension, a panel trim removal tool, and a cutting tool. These are the minimum tools required for installation.
Yes. Step 1 requires you to locate the vehicle battery on the driver side in the engine compartment and disconnect the negative terminal. Fasten this wire down and away from the battery during installation. Reconnect it in Step 5 after all other work is complete.
The battery connection must be fuse-protected with a maximum of 15 amps. The fuse is provided in the kit and must be installed into the fuse holder in the custom wiring harness during Step 3. Exceeding this rating can cause loss of warranty, overheating, and potential fire.
The manual does not provide a specific torque value for the 14mm bolts. It states only that the 14mm nuts on the shroud are push nuts and should be tightened so they do not cause noise. Contact CURT for the exact torque specification.
Signal circuits are rated at 5.0 amps per side. Tail and running circuits are rated at 7.5 amps total. Do not exceed the product rating or your tow vehicle's lamp load rating, whichever is lower.
The wiring harness is installed behind the driver side rear bumper (location S5). The converter box is adhered to a flat spot near the factory harness area using provided double-sided tape. The 4-flat connector is routed along the back of the vehicle to the hitch.
In Step 3, remove the dust cover from the harness without damaging the locking tabs. Insert the custom wiring harness end into the OEM (factory) harness. Make sure the connectors are fully inserted with locking tabs in place. Then install the provided fuse into the fuse holder in the custom wiring harness.
In Step 2, locate the plastic shroud below the driver-side rear bumper cover. Remove three push fasteners and two 14mm bolts (which are attached to the shroud). These bolts are push nuts and should be tightened so they do not cause noise when reinstalled.
In Step 4, route the 4-flat connector along the back of the vehicle to the hitch. Secure any loose wires with the provided cable ties to prevent movement and damage.
The black converter box is part of the CURT 56420 harness assembly. In Step 4, locate a flat spot near the factory harness area and adhere the converter box using the provided double-sided tape. This box converts the vehicle's factory lighting signals to the 4-flat trailer connector format.
Do not lay tools across the positive terminal (typically labeled with red covers or a red '+' symbol). This can cause a ground short, resulting in sparks and/or electrical shocks. After disconnecting the negative terminal in Step 1, fasten this wire down and away from the battery during the entire installation.
After installation, test for proper function by using a test light or connecting a properly wired trailer. This will verify that all signal and running circuits are functioning correctly before towing.
Periodic inspection of all wires and connections should be performed to ensure there is no visible damage or loose connections. Install the provided 4-flat dust cover to help prevent corrosion.

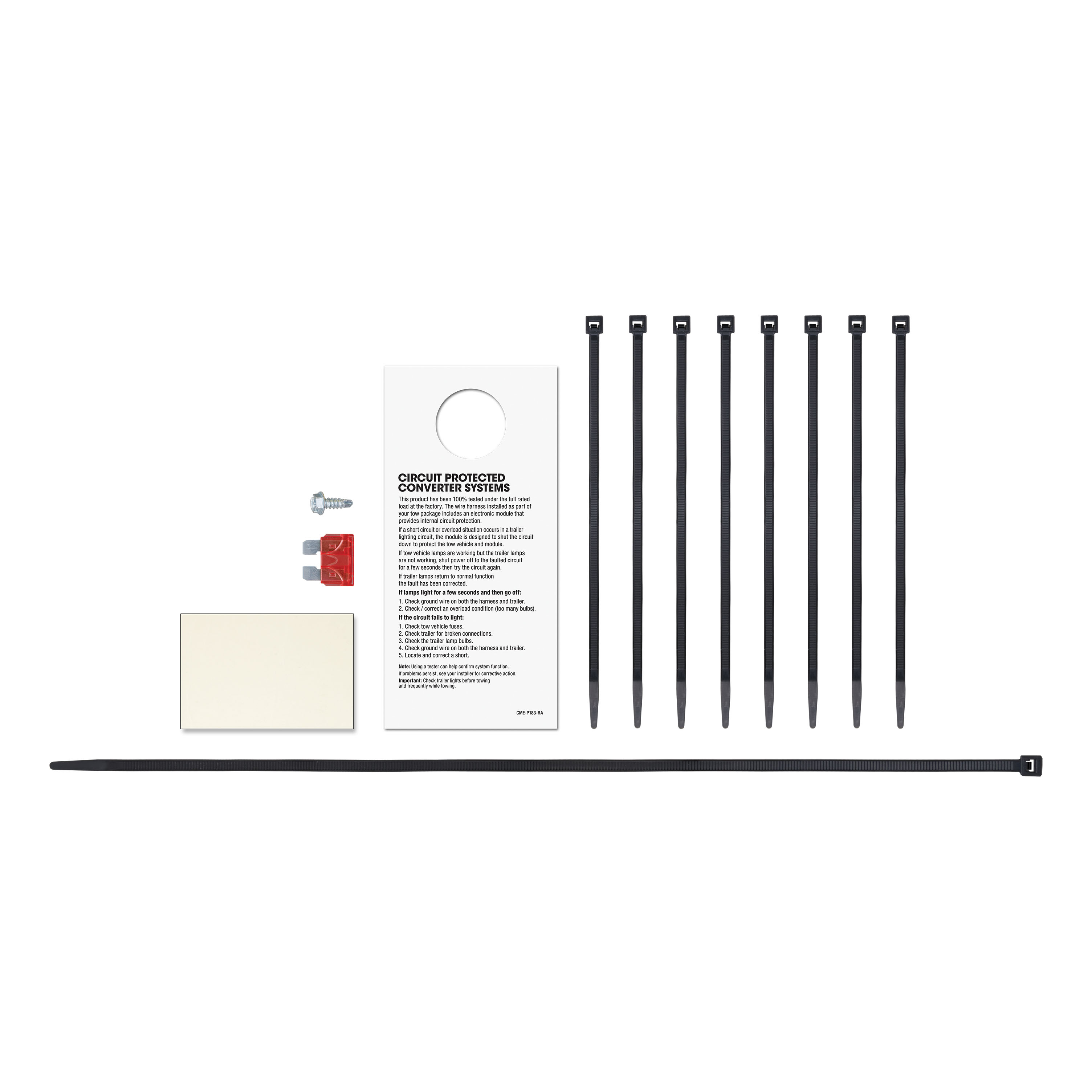

The kit includes a custom wiring harness with connector, a converter box, a 4-flat connector with dust cover, a fuse (15-amp max), a fuse holder, double-sided tape, and cable ties. All components are needed for proper installation.
CURT 56420 is designed for SUVs and vans (S-series vehicles). Consult a fitment database or contact CURT to confirm compatibility with your specific vehicle make, model, and year.
Yes. Disconnect the negative battery terminal before starting installation and reconnect it after all work is complete.
No drilling is required. The converter box is adhered using provided double-sided tape, and the harness connects to the factory connector without drilling.
Do not exceed the product rating or tow vehicle lamp load rating. Do not lay tools across the positive battery terminal, as this can cause sparks or electrical shocks.
Periodically inspect all wires and connections for visible damage or loose connections. Install the provided 4-flat dust cover to prevent corrosion.
