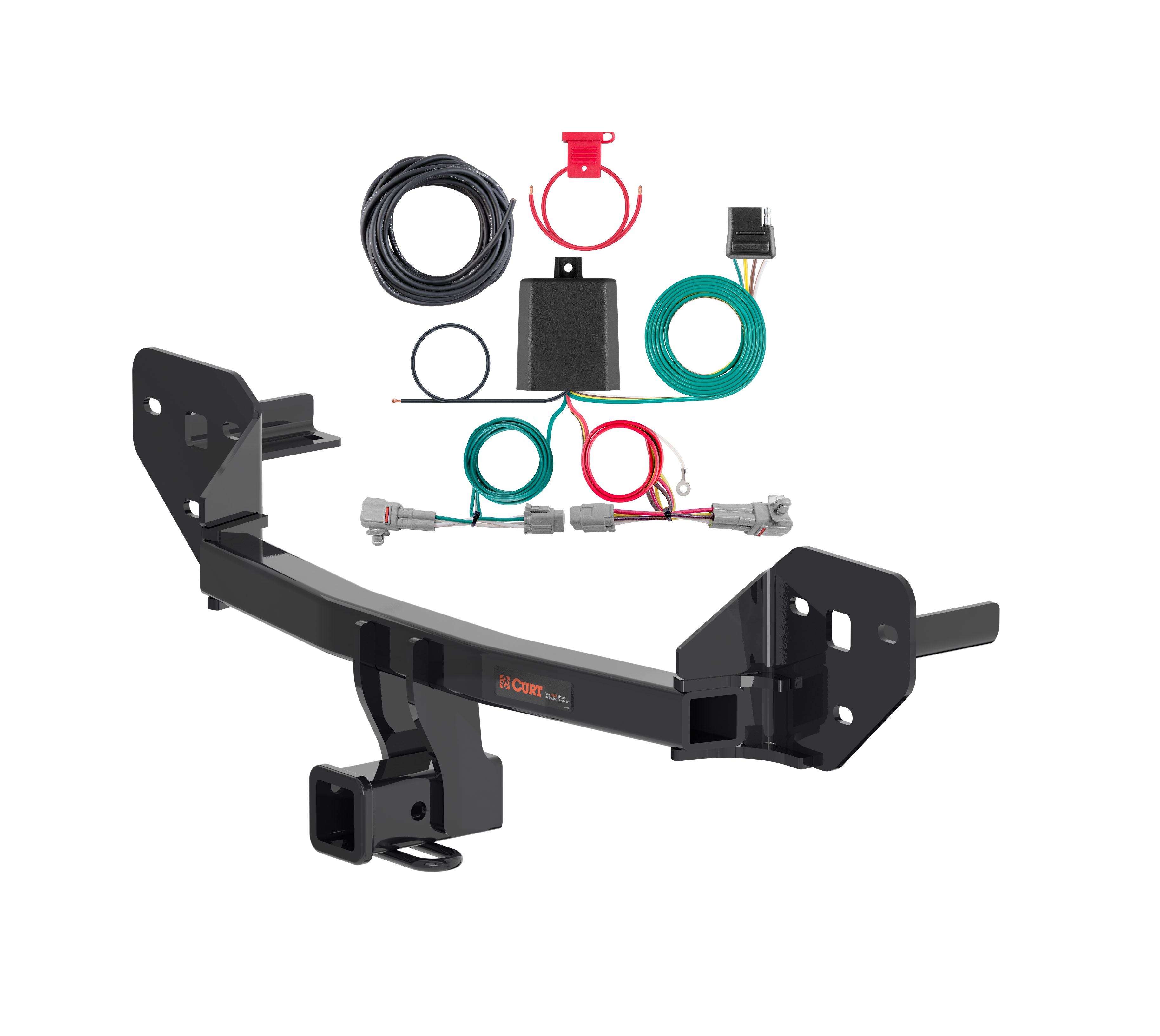

Complete CURT Class 3 2" trailer hitch and 4-flat custom wiring kit engineered for the 2020 - 2025 Subaru Legacy Sedan. Vehicle-specific fit, plug-and-play installation, all hardware and instructions included.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Subaru Outback and Subaru Legacy (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 3,500 lbs. GTW and 350 lbs. TW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.
If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution. A custom wiring harness -- also called a T-connector -- is a simple, plug-and-play electrical device that plugs into your automotive electric system and provides a standard, universal trailer wiring connection. This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation. Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing. This particular plug-in harness provides a 4-way flat connector socket and is designed to be a custom wiring harness to fit certain years of the Subaru Legacy (to verify your vehicle compatibility, see application info). It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use. You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite. However, turning that picture into a reality takes more than just daydreaming. It takes a solid connection and the right amount of power. CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing hitch setup.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2020 - 2025 | Subaru Legacy | Sedan |
The 20 - 25 Subaru Legacy Sedan Curt 2", Class 3 Trailer Tow Hitch + 4-flat Wiring Kit 13494 (Part #CHW-2779) fits 2020-2025 Subaru Legacy models. The 2025 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 20 - 25 Subaru Legacy Sedan Curt 2", Class 3 Trailer Tow Hitch + 4-flat Wiring Kit 13494 (Part #CHW-2779) is designed to fit the 2020-2025 Subaru Legacy.
The 20 - 25 Subaru Legacy Sedan Curt 2", Class 3 Trailer Tow Hitch + 4-flat Wiring Kit 13494 (Part #CHW-2779) fits the following vehicles: 2020-2025 Subaru Legacy. Always verify your specific year, make, and model before ordering.
The 20 - 25 Subaru Legacy Sedan Curt 2", Class 3 Trailer Tow Hitch + 4-flat Wiring Kit 13494 (Part #CHW-2779) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Part 56444 is designed for SUVs and vans with 12 volt negative ground electrical systems. The manual does not specify individual vehicle models or years. Confirm your vehicle has a 12 volt negative ground system before purchasing. Contact Curt Manufacturing or your vehicle manufacturer if you are unsure of your vehicle's electrical system type.
Signal circuits are rated at 6.0 amps per side. Tail and running circuits are rated at 3.0 amps total. The battery connection must be fuse-protected with a 10-amp maximum fuse. Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower, as exceeding the rating can cause loss of warranty, overheating and potential fire.
Required tools are: ratchet, cutting tool, 10mm socket, wire crimper, socket extension, wire stripper, Phillips screwdriver, trim panel removal tool, and electrical tape. Proper tools will improve the quality of installation and reduce the time required.
Yes. Locate the vehicle's battery in the engine compartment on the driver side and disconnect the negative battery terminal. Fasten this wire down and away from the battery while completing the installation. Reconnect the negative battery terminal after all other installation steps are complete.
The primary wiring locations are S1 (behind driver side taillight housing) and S2 (behind passenger side taillight housing). Additional optional locations include S3–S10 behind rear access panels, bumpers, and under the rear floor panel. The manual provides a diagram showing all ten possible wiring locations on a representative vehicle.
Open the trunk. Using a Phillips screwdriver, loosen and remove the two taillight trim fasteners and remove the trim piece. Using a Phillips screwdriver or 10mm socket, remove the taillight fasteners. Remove the taillight by pulling straight rearward. Locate the vehicle taillight wiring connectors, which will be similar to those on the new converter product. Separate the connectors from the taillight housing, taking care not to damage the locking tabs. Repeat on the other side of the vehicle.
Fishwiring is a method to push or pull an electrical wire through a blind hole. Insert a stiff wire (such as a cut-up wire hanger, rope or string) through the blind hole and locate it on the other side. Use tape to secure the harness to the fish wire and pull back up. If the fish wire or harness gets hung up, you may need to push back down, wiggle it around or twist the wire to loosen it. Make sure the fish wire is long enough to stick out on the other side.
On the driver side, route the fishwire down between the body and bumper cover. From under the vehicle, locate and attach the fishwire to the housing with the yellow wire. Pull the wire back up and attach it to the factory harness. Make sure the connectors are fully inserted with locking tabs in place. Repeat on the passenger side with the green wire.
Locate a suitable grounding point near the connector, such as an existing screw with nut in the vehicle frame. If no suitable existing point is available, drill a 3/32" pilot hole for the provided screw. The area should be free of rust, dirt and paint. Secure the white ground wire using the ring terminal and provided screw. Before drilling, check for miscellaneous items that may be hidden behind or under any surface to avoid damage and personal injury.
Route the green wire along the backside of the bumper cover. Use cable ties as needed to secure the routed wiring. Route the black power wire from the vehicle battery as shown on the provided Powered Converter Lead Instruction Sheet. Route the 4-flat to the trailer hitch and mount in an easy-to-access location. Secure any loose wires with the provided cable ties.
Locate a flat spot inside the vehicle near the yellow wire. Adhere the black converter box using the provided double-sided tape.
Use 12 GA wire or larger for the power lead to the vehicle battery. The black wire connects to the positive battery (+) terminal. The white ground wire with a ring terminal connects to the vehicle body using the provided screw (drill a 3/32" hole if necessary). A fuse holder with 10 amp fuse maximum must be installed in the power circuit; install the fuse after all other steps are complete.
Green = Right turn; Red = Brake; Yellow = Left turn; Brown = Taillight. These colors correspond to the standard trailer lighting functions.
When passing the power wire through sheet metal, use an existing grommet, add a grommet, or use silicone to protect the power wire from sharp edges. Secure the power wire to the vehicle chassis using the cable ties provided.
The battery connection must be fuse-protected with a 10-amp maximum fuse. Exceeding this rating can cause loss of warranty, overheating and potential fire. Install the fuse after all other installation steps are complete.
Once the 12 volt power wire is connected to the harness, verify that the harness is functioning by attaching the battery and testing with a test light, 4-flat tester, or a functioning trailer. Install the provided 4-flat dust cover to help prevent corrosion.
Periodic inspection of all wires and connections should be performed to ensure there is no visible damage or loose connections.
The Curt 56444 is designed for SUVs and vans with 12 volt negative ground electrical systems. Confirm your vehicle meets these requirements before purchasing.
You will need a ratchet, 10mm socket, socket extension, Phillips screwdriver, trim panel removal tool, wire crimper, wire stripper, cutting tool, and electrical tape.
Drilling is required only if no suitable existing grounding point is available. If needed, drill a 3/32" pilot hole for the ground wire screw. Always check for hidden items before drilling.
Exceeding the product rating or tow vehicle lamp load rating can cause loss of warranty, overheating and potential fire. Do not exceed 6.0 amps per signal circuit side or 3.0 amps total for tail and running circuits.
The CURT 13494 is designed for Subaru Outback Wilderness only. The manual does not specify which model years are compatible. Contact CURT product support at 877-287-8634 or check curtmfg.com to confirm your vehicle's model year before purchasing.
The CURT 13494 has a gross trailer weight (GTW) capacity of 3,500 lbs. and a tongue weight (TW) capacity of 350 lbs. Never exceed your vehicle manufacturer's recommended towing capacity.
Subaru Outback Wilderness only. Confirm your model year with CURT product support at 877-287-8634 before purchasing.
Gross trailer weight: 3,500 lbs. Tongue weight: 350 lbs. Never exceed your vehicle manufacturer's recommended towing capacity.
Required tools: 11/16", 10mm, 14mm, and 17mm sockets; socket extension (6"); ratchet; torque wrench; tape measure; masking tape; safety glasses; aviation shears; and fishwire (7/16", 2 qty included). For a full tools reference guide, visit curtmfg.com/trailer-hitch-installation.
You will need 11/16", 10mm, 14mm, and 17mm sockets, plus a 6" socket extension, ratchet, and torque wrench.
The kit includes: 2 carriage bolts (7/16"-14 x 1-1/4", grade 8); 4 hex bolts (M10 x 1.25 – 35); 2 serrated-flange nuts (7/16" – 14); 4 conical-toothed washers (3/8"); and 2 fishwire tools (7/16").
Yes. Installation requires removal of the bumper cover (Step 2) and bumper beam (Step 3). Both are reinstalled after the hitch is mounted and the bumper fascia is trimmed (Steps 5–7). The bumper cover has electrical connectors that must be disconnected during removal.
No drilling is required. However, the installation requires partial removal and trimming of the underbody panel and trimming of the bumper fascia using the trim diagram provided in Step 7.
Yes. Step 7 requires trimming the bumper fascia using the trim diagram provided. The underbody panel also requires partial removal and trimming.
If your vehicle has mud flaps, they must be removed first using an 8mm socket to remove two bolts and a flathead screwdriver to remove two push fasteners. Save them for reinstallation in Step 7.
1. Remove seven plastic fasteners from bumper cover bottom and one from each wheel well (Step 1). 2. Remove bumper cover and disconnect electrical connectors (Step 2). 3. Remove four bolts and two nuts from bumper beam using 17mm and 14mm sockets; save nuts (Step 3). 4. Raise hitch into position, slide tabs into frame rail, and fishwire carriage bolts through side plate and frame rail; secure with serrated-flange nuts (Step 4). 5. Place bumper beam over hitch and secure with saved nuts; loosely install M10 bolts and conical-toothed washers (Step 5). 6. Torque all hardware (Step 6). 7. Trim bumper fascia and reinstall bumper cover (Step 7).
Insert the coiled end of the fishwire through the hitch mounting hole in the vehicle frame rail and out the access hole. Pass the coiled end through the spacer and thread the bolt into the coil. Kink the wire to keep the spacer separate from the bolt. Pull the fishwire, spacer, and bolt through the frame and out the mounting hole. Use the fishwire to guide the hitch during mounting and prevent loss of the bolt or spacer inside the frame rail.
Leave the M10 bolts and conical-toothed washers loose during Step 5. Tighten all hardware to final torque specifications only in Step 6, after the bumper beam is positioned over the hitch.
Torque all M10 hardware to 45 ft-lbs and all 7/16" hardware to 59 ft-lbs. Use a torque wrench to ensure proper tightening and prevent damage to the product or vehicle.
M10 hardware: 45 ft-lbs. 7/16" hardware: 59 ft-lbs. Use a torque wrench for proper installation.
The conical-toothed washers are installed with the hex bolts on the bumper beam. The diagram on page 2 shows the washer orientation relative to the vehicle frame and hitch side plate. The washers should be positioned between the hex bolt head and the bumper beam surface.
Yes. Save all fasteners removed during installation for reinstallation: the seven plastic fasteners from the bumper cover bottom and one from each wheel well (Step 1), the two nuts from the bumper beam (Step 3), and the two bolts and two push fasteners from mud flaps if present (Step 1 note). All are reinstalled in Step 7.
Wear safety glasses at all times during installation. Never exceed your vehicle manufacturer's recommended towing capacity. Proper tools will improve installation quality and reduce time required. Read all instructions thoroughly before beginning.
Safety glasses must be worn at all times during installation. Never exceed your vehicle manufacturer's recommended towing capacity.
Periodic inspection of the trailer hitch should be performed to ensure all mounting hardware remains tight and structural components are secure. Check that all bolts and nuts are properly torqued to the specified values (M10 hardware to 45 ft-lbs and 7/16" hardware to 59 ft-lbs).
Periodic inspection should be performed to ensure all mounting hardware remains tight and structural components are secure.
The installation difficulty level is Difficult. Installation difficulty levels are based on time and effort involved and may vary depending on the installer's level of expertise, condition of the vehicle, and availability of proper tools and equipment.
Visit www.curtmfg.com for a full-color copy of the installation manual, as well as helpful videos, guides, and more. For product support, call 877-287-8634.
To register your purchase, get copies of product warranties, or provide feedback, visit warranty.curtgroup.com/surveys. CURT stands behind its products with industry-leading warranties.
