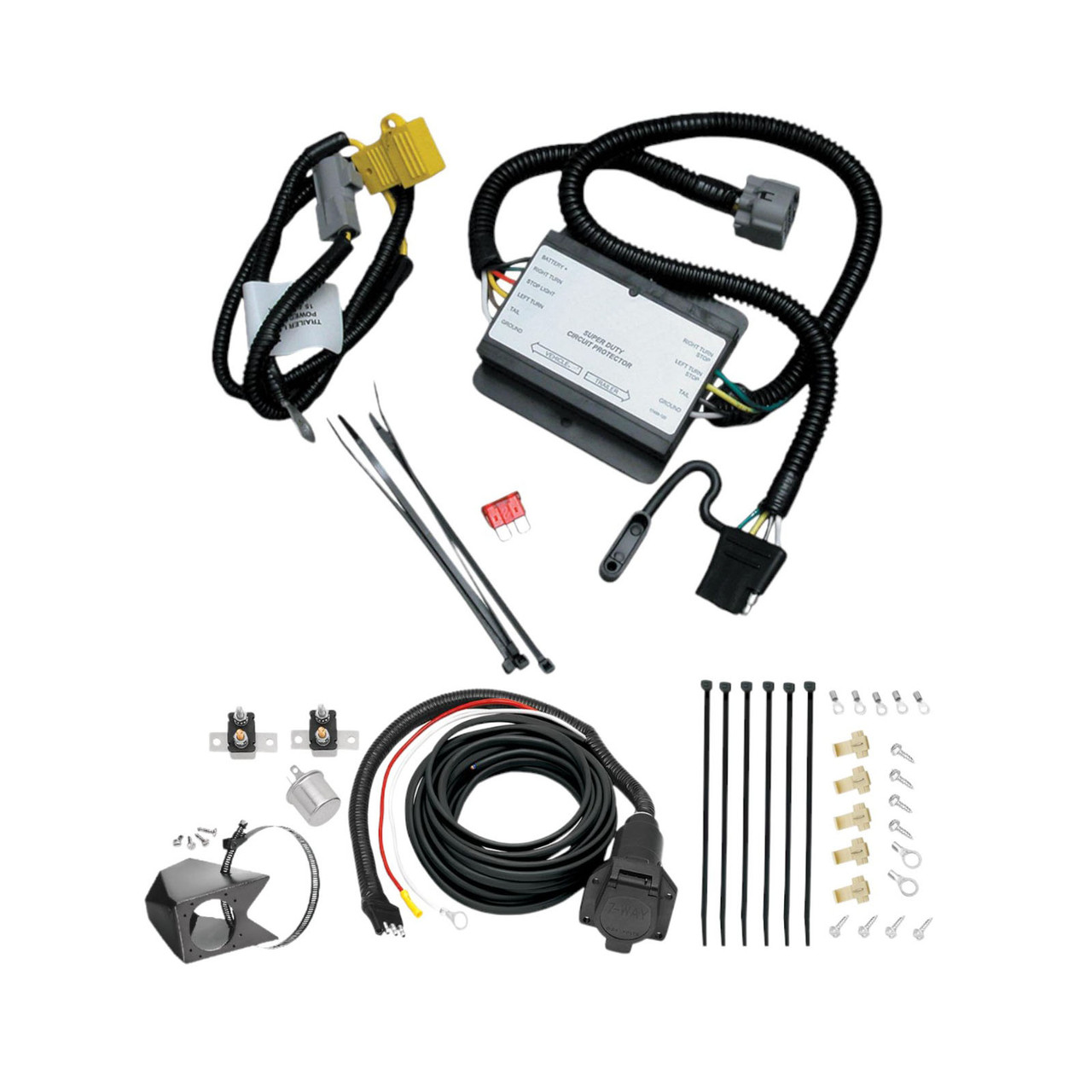

2000-2002 Toyota Echo Tekonsha Custom 7-Way + Brake Controller Install KitTekonsha$218.09Out of Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
Tekonsha
Verify Fitment
Select your vehicle to confirm this part fits.
2000 Toyota Tundra
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Tekonsha is a leading manufacturer of electronic trailer brake controllers, pioneering the category in the 1970s. The lineup spans proportional units such as the Prodigy P3 and Prodigy iD, time-delayed controllers, the wireless Prodigy RF, plus vehicle-specific wiring harnesses, adapters and trailer brake components engineered for smooth, predictable stopping at any speed.
Tekonsha Engineering Company began in 1964 building RV steps and mirrors. Within a few years it had found its real calling, and by the 1970s Tekonsha was pioneering the manufacture of electronic trailer brake controllers, the product category that still defines the brand. More than half a century later it remains the reference name in trailer braking and is part of the Horizon Global group alongside Reese, Draw-Tite, Fulton, Bulldog and Wesbar.
A brake controller is the component that tells a trailer's electric brakes how hard to work and when, and getting that right is the difference between a controlled stop and a shove from behind. Tekonsha builds both major types. Proportional controllers use an internal accelerometer to sense how quickly the tow vehicle is slowing and apply trailer braking to match, so light braking stays light and hard braking is immediate. Time-delayed controllers ramp to a preset output over a fixed interval, a simpler and more economical approach that suits occasional towing.
The current brake controller range covers most of that ground. The Prodigy iD pairs with a phone through Tekonsha's EDGE technology for setup and monitoring, the P3 offers storable settings for multiple trailers and a trilingual colour LED display, the Prodigy P2 adds a dimmable display and boost mode for heavier loads, and the Voyager keeps operation simple and dependable. The Prodigy RF mounts to the trailer itself and controls wirelessly, which suits rental fleets and drivers who swap tow vehicles.
Installation is supported by vehicle-specific brake control harnesses that plug into a factory connector rather than requiring cut-and-splice wiring, along with mounting brackets and adapters. Matched controller bundles pair a unit with the correct harness. Products are tested to meet and often exceed published industry standards.
Experts available to answer your questions
Call 888-634-94941 Year
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2000 | Toyota Tundra | — |
The 2000-2000 Toyota Tundra Tekonsha Custom 7-Way + Brake Controller Install Kit (Part #TBCW17750) fits the following vehicles: 2000 Toyota Tundra. Always verify your specific year, make, and model before ordering.
Yes, the 2000-2000 Toyota Tundra Tekonsha Custom 7-Way + Brake Controller Install Kit (Part #TBCW17750) is designed to fit the 2000 Toyota Tundra.
The 2000-2000 Toyota Tundra Tekonsha Custom 7-Way + Brake Controller Install Kit (Part #TBCW17750) fits 2000 Toyota Tundra models. The 2000 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2000-2000 Toyota Tundra Tekonsha Custom 7-Way + Brake Controller Install Kit (Part #TBCW17750) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The part number is 18367-037.
This unit is rated for 7.5 amps per circuit.
No. If your vehicle has a 30 amp trailer harness fuse holder already installed, you must remove it and return it to the vehicle owner. Do not use it. Instead, use the yellow fuse holder and 10 amp fuse supplied with this product.
The trailer tow plug is located underneath the vehicle on the driver's side next to the frame rail.
The gray connector is located on the vehicle between the battery and the fender.
Install the 10 amp fuse supplied with the product. The maximum fuse rating allowed is 15 amps; do not exceed this limit.
You will need: cable ties (provided), double-sided tape (provided), a 50/50 water and alcohol solution for cleaning the mounting surface, and basic hand tools. The manual does not specify additional tools required.
Yes. Disconnect the vehicle's negative battery cable before beginning installation. This is the first step in the installation process.
You do not need to fully remove the battery. Temporarily remove the battery hold-down bracket and slide the battery towards the motor to access the gray connector. After installing the fuse holder connector and securing the wiring, return the battery to its original position and reinstall the bracket.
1. Disconnect the negative battery cable. 2. Temporarily remove the battery hold-down bracket and slide the battery towards the motor. 3. Locate the gray connector between the battery and fender, remove the cap, and install the trailer harness fuse holder connector. Tie wrap the gray connector and fuse harness to the vehicle's wiring. 4. Route the fuse holder wiring to the positive battery side, between the battery and fuse box. 5. Attach the ring terminal to the positive battery post. 6. Secure the fuse holder wire with 2 tie wraps. 7. Reinstall the battery hold-down bracket and install the 10 amp fuse. Reconnect the negative battery cable. 8. Locate the trailer tow plug underneath the vehicle on the driver's side next to the frame rail, remove the cap, and plug in the T-Connector harness. 9. Mount the black converter box to the truck end sill using double-sided tape after cleaning with 50/50 water-alcohol solution. 10. Secure the T-Connector wire harness to the vehicle's harness with cable ties.
Route the trailer harness fuse holder wiring over to the positive side of the battery, between the battery and the vehicle's fuse box. Attach the trailer harness fuse holder ring terminal to the positive battery post.
Secure the trailer fuse holder wire with 2 tie wraps.
Using the double-sided tape provided, mount the T-Connector black converter box to the truck end sill. Before mounting, clean the truck-mounting surface with a 50/50 water and alcohol solution.
Secure the T-Connector wire harness to the vehicle's harness with the cable ties provided.
Test the installation with a test light or trailer.
The T-Connector 18367-037 is designed for universal vehicle trailer towing installation. Your vehicle must have a gray connector between the battery and fender, and a trailer tow plug underneath the vehicle on the driver's side next to the frame rail. Consult the manufacturer or a fitment database if you are unsure whether your specific vehicle has these connectors.
Install the 10 amp fuse supplied with the product in the yellow fuse holder. The maximum fuse rating allowed is 15 amps.
Yes, disconnect the vehicle's negative battery cable before starting installation.
No. Temporarily remove the battery hold-down bracket and slide the battery towards the motor to access the gray connector, then return it to its original position after installation.
Mount the black converter box to the truck end sill using the double-sided tape provided, after cleaning the mounting surface with a 50/50 water and alcohol solution.
Test the installation with a test light or trailer.
The BRAKE mate is a trailer brake control system that allows you to control trailer brakes from your vehicle. It connects to your vehicle's electrical system and includes a brake control unit that mounts under the dash, circuit breakers for power management, and a prewired connector that attaches to your trailer.
The manual does not specify which vehicle makes, models, or years are compatible with the BRAKE mate. Contact Cequent Towing Products technical service at (888) 521-0510 or consult a fitment database to confirm compatibility with your specific vehicle.
Yes. Step 4 of the installation instructions requires connecting the 4-pole flat connector to the vehicle's connector, which means your vehicle must already have a 4-pole flat connector. If your vehicle does not have one, the BRAKE mate cannot be installed using these instructions.
The kit includes: 1 prewired connector, 1 heavy duty flasher, 1 20 amp circuit breaker, 1 40 amp circuit breaker, 5 #10 G-ring connectors, 2 3/8" G-ring connectors, 5 Scotch locks, 8 self-tapping screws, and 6 wire tie straps.
The manual does not specify required tools. However, based on the installation steps, you will likely need a drill (to create a firewall hole if one does not exist), wire strippers, a screwdriver (for self-tapping screws), and possibly a crimper or pliers for ring connectors. Contact technical service at (888) 521-0510 for a complete tool list.
The manual does not specify whether the battery must be disconnected before installation. Contact Cequent Towing Products technical service at (888) 521-0510 for safety guidance before beginning work.
Mount the bracket for the round connector on the bumper if that is where you intend to install it. Some hitches have built-in brackets, so check your hitch first before mounting a separate bracket.
Mount the brake control unit under the dash onto something firm. The unit must be securely fastened to a solid surface.
Mount the 2 circuit breakers (20 amp and 40 amp) end to end on the firewall within reach of the BLUE/BLACK cable. Secure them with the self-tapping screws supplied in the kit.
You may need to drill a hole through the firewall to run the BLUE/BLACK 2-strand wire from the engine bay into the cab. Look for an existing spot first; if none is available, drill a hole and seal it with a rubber grommet or silicone to prevent water and debris from entering the cab.
Some hitch brackets may need to be cut to allow the various connectors to pass through. Check your specific hitch bracket during installation; if it blocks connector passage, you will need to cut it.
Yes. In step 9, you must cut the black wire to create two open ends. These ends are then fitted with ring connectors and attached to the 40 amp and 20 amp circuit breakers respectively.
WHITE = ground wire; BLUE/BLACK = 2-strand power and trailer brake wire (runs from rear connector to front of vehicle and through firewall); RED = power wire from brake control unit; BLUE = trailer brake wire from brake control unit; GREEN = wire from brake control unit to brake switch.
Connect the WHITE ground wire to the frame of the vehicle. This provides the ground connection for the system.
Run the BLUE/BLACK 2-strand wire along the frame rail to the front of the vehicle, avoiding the exhaust, axles, and brake cables. Secure it with the plastic tie straps supplied. Then run it up the firewall, avoiding the steering mechanism, and secure it with ties.
Split the BLUE/BLACK 2-strand wire down the middle. Connect the RED (power) wire of the brake control unit to the BLACK wire using a Scotch lock. Connect the BLUE (trailer brake) wire of the brake control unit to the BLUE wire using a Scotch lock. Connect the WHITE wire of the brake control unit to the ground on the vehicle body. Connect the GREEN wire of the brake control unit to the inactive side of the brake switch.
Run a heavy gauge wire from the battery or equivalent power source to the battery side of either circuit breaker. Attach a #10 G-ring connector to one end of the wire. Then split a wire off this main wire to the 20 amp breaker using a Scotch lock and attach a #10 G-ring connector to the end of this wire. Alternatively, you can run a jumper between the two breakers.
The circuit breakers protect the electrical system. The 40 amp breaker is connected to the auxiliary side of the wire going to the rear connector. The 20 amp breaker is connected to the auxiliary side of the wire going through the firewall to the brake control unit.
The heavy duty flasher is a replacement turn signal flasher. If your turn signals blink too fast after installation, replace your vehicle's original turn signal flasher with the one supplied in the kit.
After attaching the round connector with self-tapping screws, test the connector for: running lights, brake lights, turn signals, and hot wire (power). Note that the brake control output cannot be tested unless a trailer is connected to the connector.
If the turn signals are blinking too fast after installation, replace the turn signal flasher with the heavy duty flasher supplied in the BRAKE mate kit.
After drilling a hole through the firewall to run the BLUE/BLACK wire into the cab, seal the hole with a rubber grommet or silicone to prevent water and debris from entering the vehicle.
When running the BLUE/BLACK 2-strand wire along the frame rail and up the firewall, avoid the exhaust, axles, brake cables, and steering mechanism. These components can damage the wire or be damaged by it. Secure the wire with the supplied plastic tie straps.
Your vehicle must have a 4-pole flat connector. Contact Cequent Towing Products at (888) 521-0510 or check a fitment database to confirm compatibility with your specific make, model, and year.

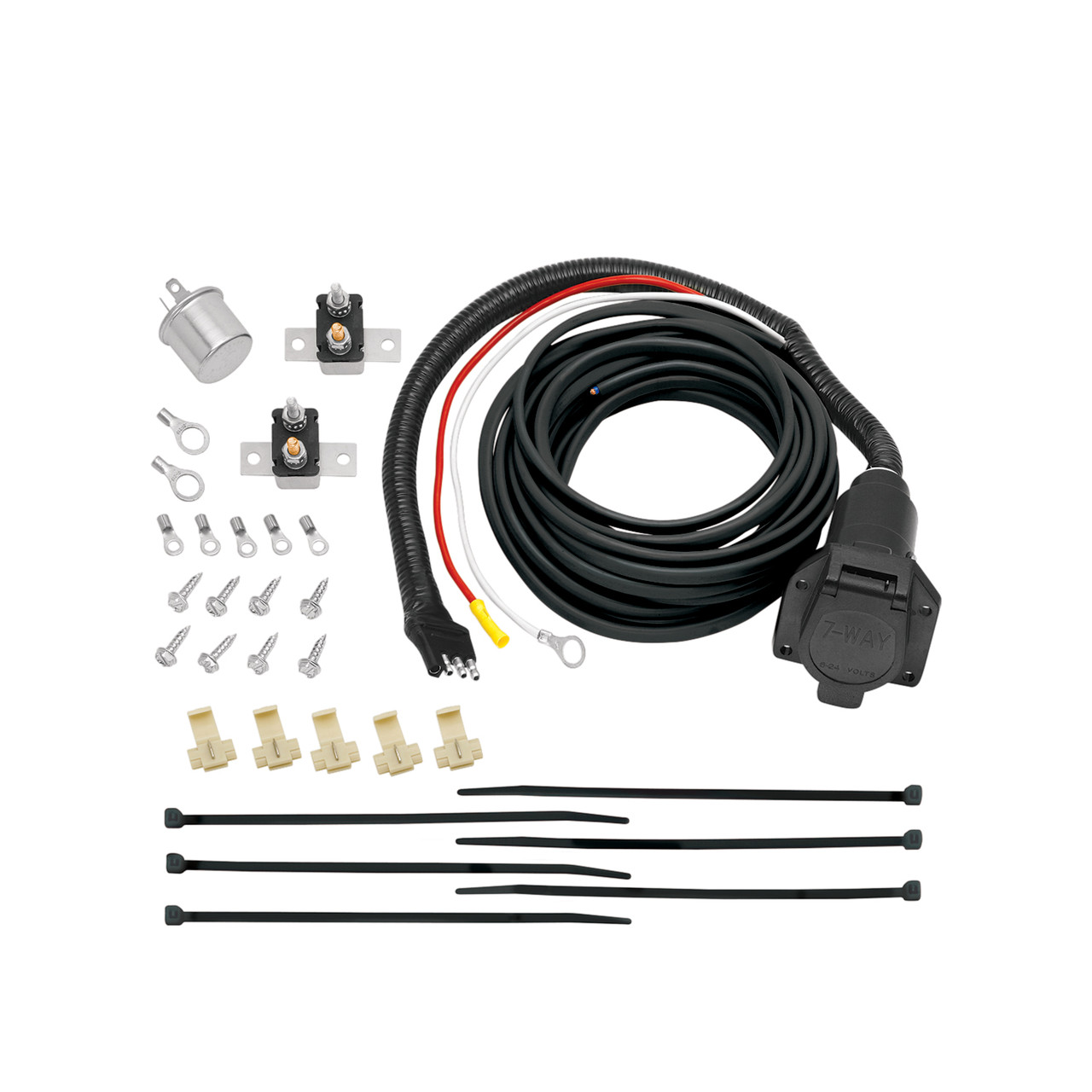

The kit includes a prewired connector, brake control unit, 20 amp and 40 amp circuit breakers, 5 #10 G-ring connectors, 2 3/8" G-ring connectors, 5 Scotch locks, 8 self-tapping screws, 6 wire tie straps, and a heavy duty flasher.
You may need to drill a hole through the firewall to run the brake wire into the cab if an existing hole is not available. The hole must be sealed with a rubber grommet or silicone.
Connect WHITE (ground) to frame, RED (power) to BLACK wire, BLUE (trailer brake) to BLUE wire, GREEN to brake switch, and run BLUE/BLACK from rear connector through firewall to brake control unit.
Test for running lights, brake lights, turn signals, and hot wire (power). Brake control output cannot be tested without a trailer connected. If turn signals blink too fast, replace the flasher with the one supplied.
Avoid routing the BLUE/BLACK wire near the exhaust, axles, brake cables, or steering mechanism. Secure all wires with the supplied plastic tie straps.
