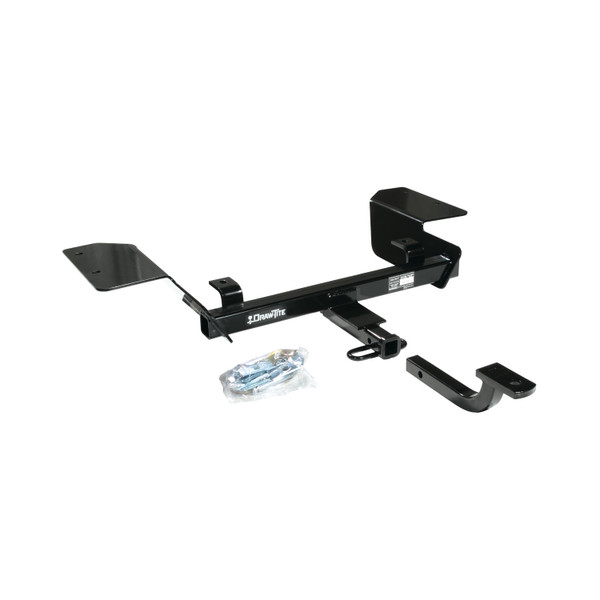

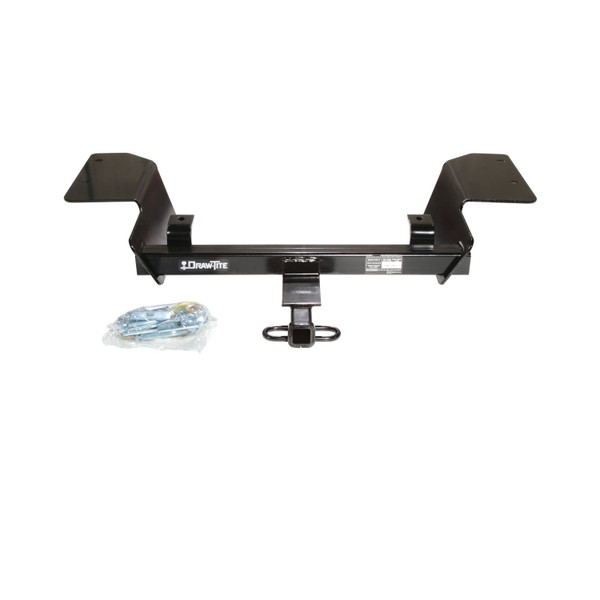

These dependable custom hitches are manufactured for 2000-2013 Chevrolet Impala and attach to your vehicle?s frame or bumper for a sleek, clean appearance. Each hitch also has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. DRAW-TITE Class 2 custom trailer hitches come complete with all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. So, whether you are headed out to the campground and need a place for the cooler, taking the bikes to hit the trails in the park, or you are tackling a DIY project (maybe some landscaping or a home repair), choose DRAW-TITE and travel with confidence knowing your setup is connected with the security only DRAW-TITE can provide. DRAW-TITE: North America?s Favorite Hitch.
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2003 | Chevrolet Impala | — |

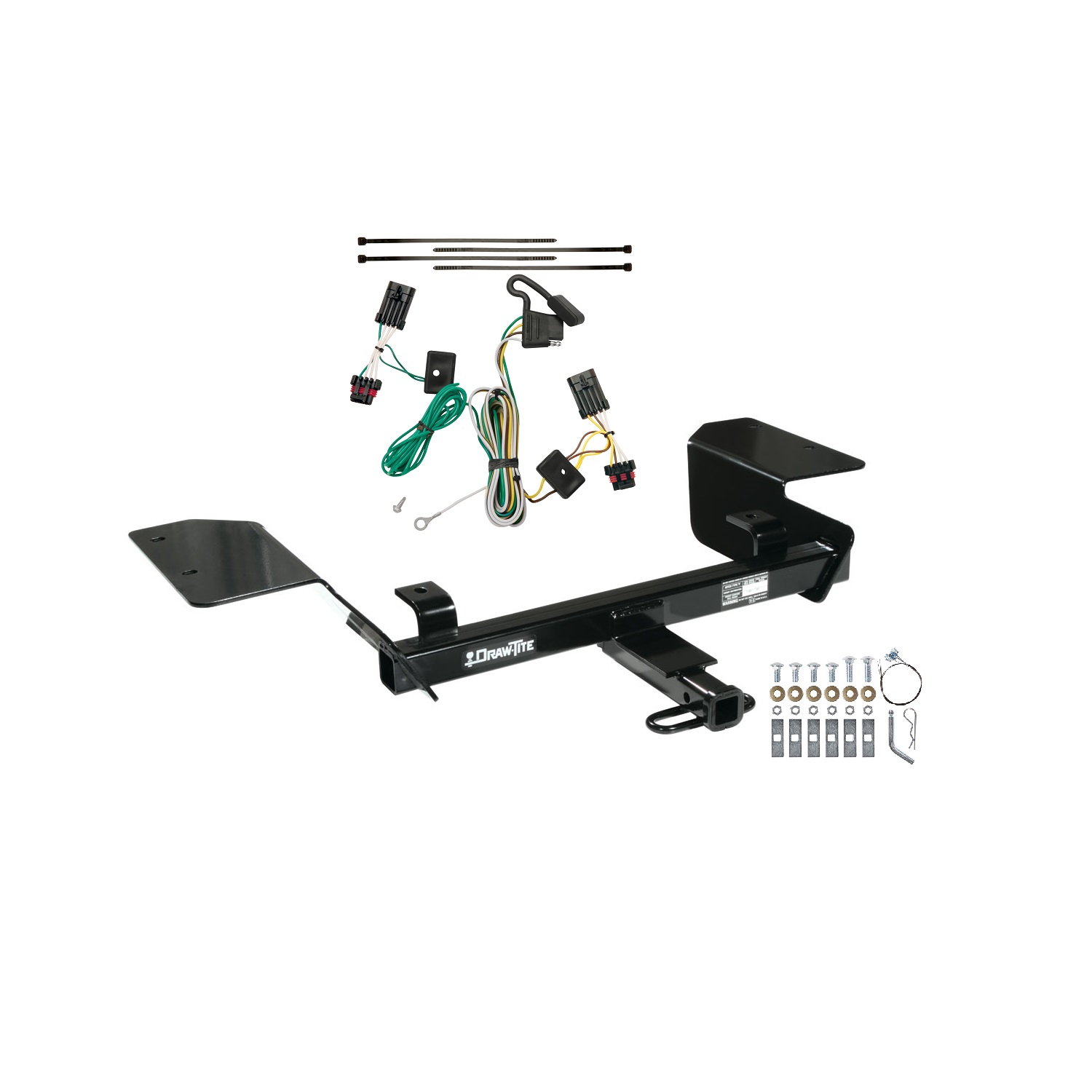

The 2000-2005 Chevrolet Impala Draw-tite Class 2 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB36407-118512) fits the following vehicles: 2003 Chevrolet Impala. Always verify your specific year, make, and model before ordering.
Yes, the 2000-2005 Chevrolet Impala Draw-tite Class 2 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB36407-118512) is designed to fit the 2003 Chevrolet Impala.
The 2000-2005 Chevrolet Impala Draw-tite Class 2 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB36407-118512) fits 2003 Chevrolet Impala models. The 2003 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2000-2005 Chevrolet Impala Draw-tite Class 2 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB36407-118512) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Part number 36407 is designed for Chevrolet Impala model years 2005, 2008, 2009, 2011, and 2015. If your Impala is one of these years, the hitch is compatible. If your model year is not listed, contact the manufacturer or a fitment specialist to confirm compatibility.
The maximum gross trailer weight is 3500 lb and the maximum tongue weight is 300 lb. Do not exceed the lower of the towing vehicle manufacturer's rating or these limits.
You will need a 3/4" wrench and a torque wrench. No drill bits are required. The pull wire is provided with the hitch.
Yes. You must lower the exhaust by removing the rubber hangers from the hanger brackets. If your vehicle is equipped with dual exhaust, lower the exhaust on both sides. This is the first installation step.

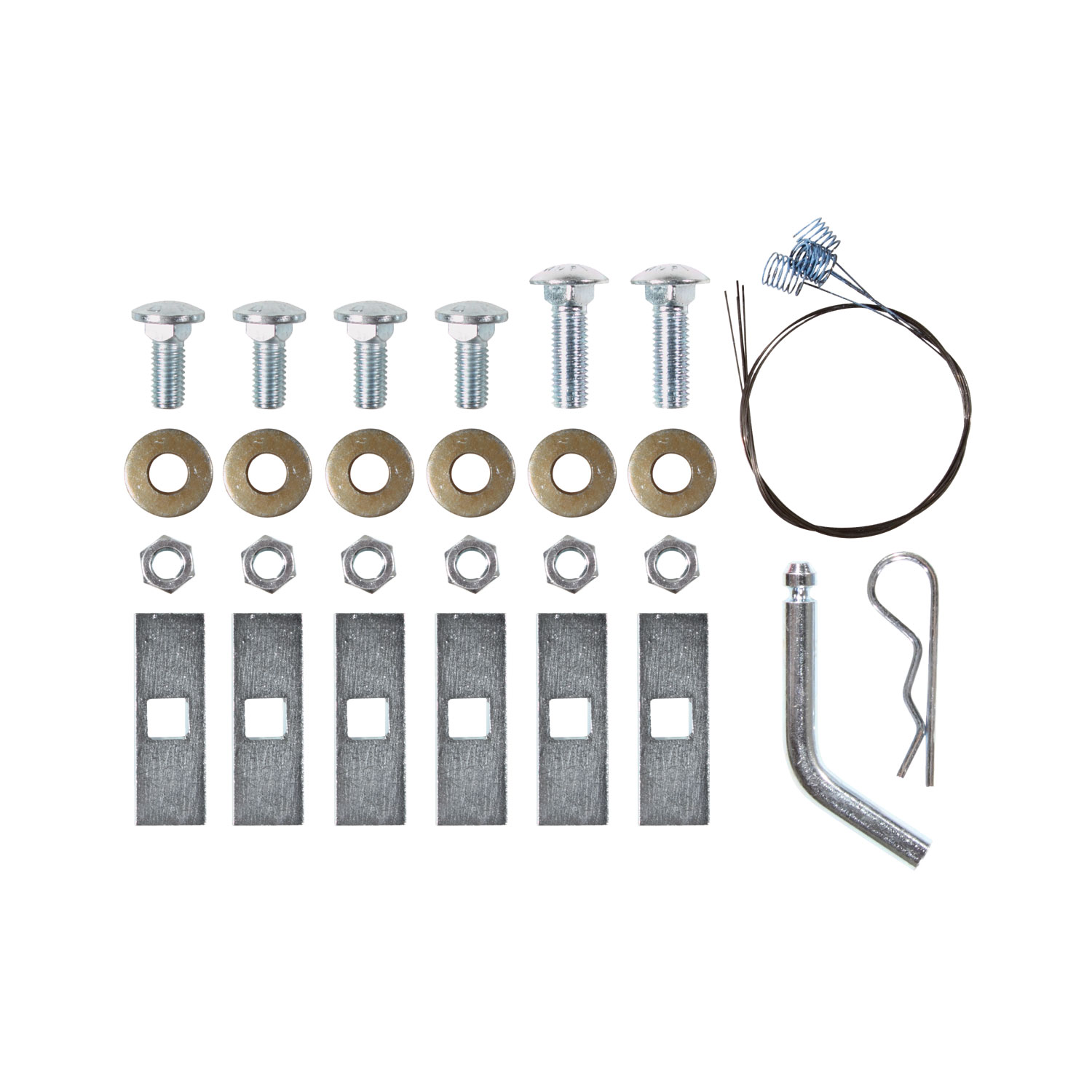

The hitch includes: 4 carriage bolts ½-13 x 1-1/4", 2 carriage bolts ½-13 x 1-3/4", 6 hex nuts ½-13, 6 blocks ¼ x 1 x 3, 6 conical toothed washers ½", and 4 pull wires. A separate fastener kit 36407F is available if additional fasteners are needed.
The pull wire is used to fishwire (thread) the carriage bolts and blocks through the access slots and holes in the vehicle frame rail and cross member. Four pull wires are provided with the hitch.
Four carriage bolts ½-13 x 1-1/4" are used to attach the hitch to the frame rail, two on each side. These are fishwired through the access slot and over the holes in the vehicle frame rail.
Two carriage bolts ½-13 x 1-3/4" are used to attach the hitch to the cross member. These are fishwired through the access holes in the vehicle cross member and down through the holes in the cross member.
All ½-13 GR5 fasteners must be tightened to 75 lb.-ft. (102 N·M) using a torque wrench.
Conical toothed washers are locking washers that prevent fasteners from loosening. Six ½" conical toothed washers are installed under the hex nuts when raising the hitch into position, as shown in the installation diagram.
The drawbar must be used in the RISE position only. Do not use it in any other position.
No. The drawbar kit 36061 is sold separately and must be purchased if you need a drawbar for your hitch.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. The manual emphasizes regular inspection as part of ongoing maintenance.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
A hitch or ball which has been damaged should be removed and replaced. Do not attempt to repair a damaged hitch or ball.
Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch.
No. The manual lists "Drill Bits: None", indicating that no drilling is required for installation.
The wiring access locations are PC3 and PC4.
Yes, if your Impala is a 2005, 2008, 2009, 2011, or 2015 model year. For other years, contact the manufacturer.
Tighten all ½-13 GR5 fasteners to 75 lb.-ft. (102 N·M) with a torque wrench.
Maximum gross trailer weight is 3500 lb; maximum tongue weight is 300 lb. Do not exceed your vehicle manufacturer's rating.
Yes, you must lower the exhaust by removing rubber hangers from the hanger brackets. If you have dual exhaust, lower both sides.
Wear eye protection when working beneath the vehicle. Do not cut holes with a torch. If removed, plug all holes to prevent water and exhaust fume entry. Replace any damaged hitch or ball immediately.
The T-Connector is a wiring harness that allows you to connect a trailer to your vehicle's taillight circuit. It taps into the existing taillight wiring on both the driver's and passenger's sides of the vehicle and provides a 4-Flat connector for trailer connection. The connector includes a yellow wire for the driver's side, a green wire for the passenger's side, and a white wire for grounding.
Yes, the T-Connector is designed for the Chevrolet Impala. However, the manual does not specify which model years or body styles are compatible. Contact the manufacturer or a fitment database to confirm compatibility with your specific Impala year and configuration.
You will need: a test-probe, a drill with a 3/32" drill bit, and a Philips head screwdriver. These are the only tools specified in the manual.
The T-Connector includes cable ties to secure the harness, an eyelet, and a screw for grounding the white wire. The manual notes that a bracket for mounting the 4-Flat connector is not included and must be sourced separately.
Open the trunk and remove the threshold panel and floor coverings. On both the driver's and passenger's sides, remove two plastic wing nuts from inside the trunk, then carefully pull back the carpet to expose two more plastic wing nuts on each side (4 total per side). Unscrew these wing nuts and carefully pry the taillight housing away from the vehicle, being careful not to break the alignment tabs.
On the driver's side, disconnect the vehicle wiring harness from the taillight socket. Plug the T-Connector end with the yellow wire in between the mating plugs on the driver's side taillight socket and the vehicle wiring harness. This creates a pass-through connection that allows the vehicle's taillight to function while also providing power to the trailer connector.
Route the T-Connector end with the green wire and the 4-Flat connector wire down through the opening between the vehicle bumper and body on the driver's side. Then route the green wire end to the passenger's side and route the 4-Flat connector underneath the bumper. Finally, route the green wire end up through the opening on the passenger side. Be careful to avoid hot pipes, heat shields, the fuel tank, and any points that could pinch or break the wire.
Repeat the same process as the driver's side: locate the taillight socket on the passenger's side, disconnect the vehicle wiring harness, and plug the T-Connector end with the green wire in between the mating plugs on the passenger's side taillight socket and the vehicle wiring harness.
Yes. You must drill a 3/32" hole to secure the white ground wire. Before drilling, verify what is behind the surface to avoid damage to the vehicle or personal injury. Do not drill into the vehicle floor or bed, and do not drill into any exposed surfaces. Choose a suitable grounding point near the connector, such as the vehicle's frame or crossmember.
Locate a suitable grounding point near the connector, such as the vehicle's frame or crossmember. Do not drill into the vehicle floor or bed. Clean dirt and rustproofing from the area. Drill a 3/32" hole and secure the white wire using the eyelet and screw provided with the T-Connector.
After connecting both taillight ends and routing the wiring, reinstall the taillight housing assemblies, positioning the vehicle wiring harness between the housing and the vehicle body. Secure the remainder of the T-Connector harness with the cable ties provided. Be careful to avoid any areas that would cut or pinch the wire.
Mount the 4-Flat connector in a suitable location under the vehicle. The manual does not provide specific location recommendations. A bracket for mounting is not included and must be sourced separately.
Do not exceed 7.5 amps on stop/turn lights or 7.5 amps on tail lights. Overloading the circuit can cause fires. Do not exceed the lower of the towing manufacturer's rating or these amperage limits. Consult your vehicle's owner's manual and instruction sheet for additional information.
All connections must be complete for the T-Connector to function properly. Test and verify the installation with a test light or by connecting a trailer once installed. Use the test-probe to verify that power is reaching the 4-Flat connector at the appropriate pins.
The T-Connector (118512-037) is designed for the Chevrolet Impala. Confirm your specific model year and body style with the manufacturer or a fitment database before purchasing.
You need a test-probe, a drill with a 3/32" bit, and a Philips head screwdriver. A bracket for the 4-Flat connector is not included.
Yes. You must drill a 3/32" hole to secure the white ground wire to the vehicle frame or crossmember. Verify what is behind the surface before drilling and do not drill into the floor or bed.
Maximum 7.5 amps for stop/turn lights and 7.5 amps for tail lights. Exceeding these limits or the towing manufacturer's rating can cause fires.
Yes. You must remove the taillight housing assemblies on both sides to access the taillight connectors. Remove plastic wing nuts from inside the trunk and pull back the carpet to access all fasteners.
Test the installation with a test light or by connecting a trailer. All connections must be complete for proper function. Use the test-probe to verify power at the 4-Flat connector.
