Draw-tite
Verify Fitment
Select your vehicle to confirm this part fits.
1996 - 2000 Toyota 4Runner
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!

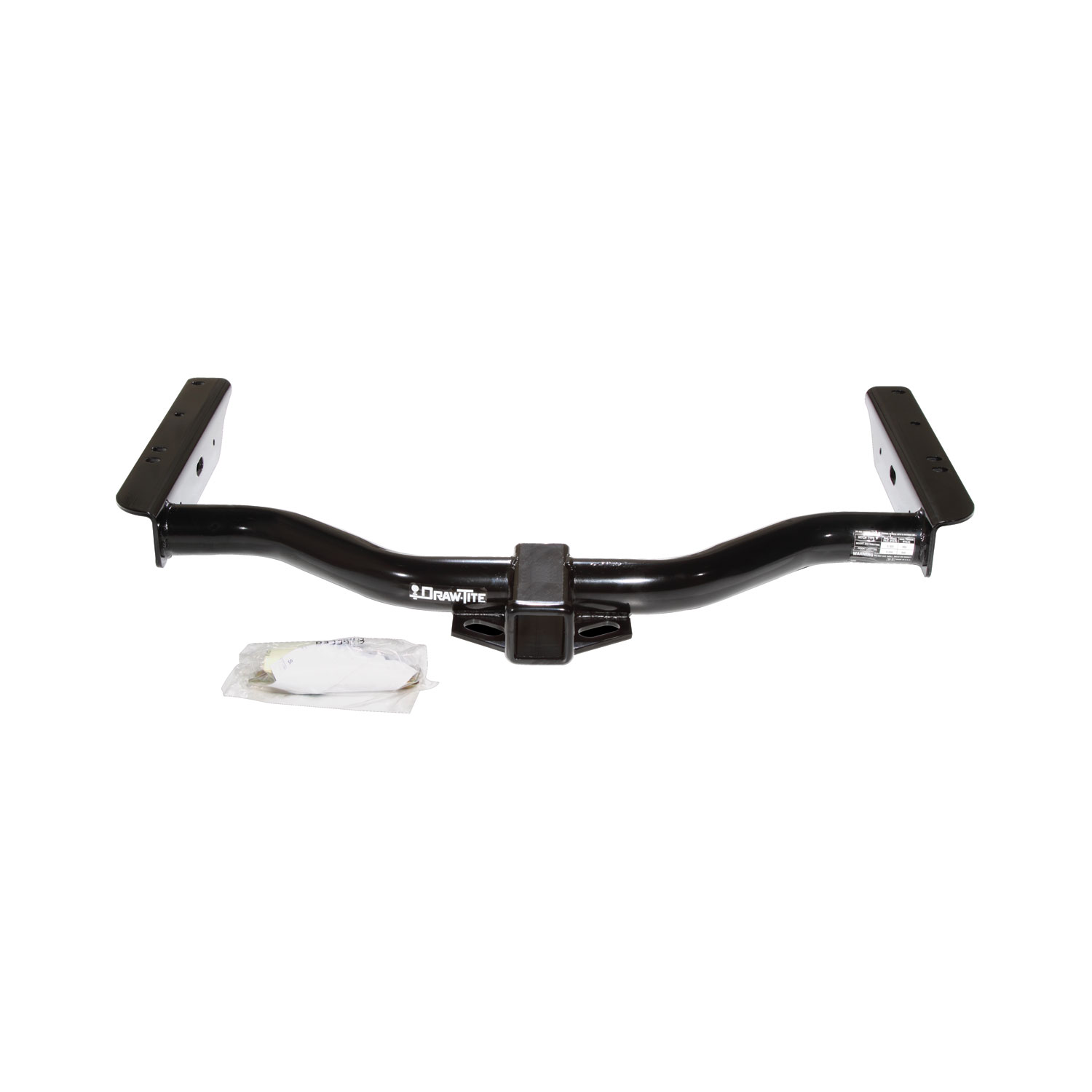

These durable custom hitches are manufactured for 1996-2002 Toyota 4Runner and attach to your vehicle?s frame or bumper for a sleek, clean appearance. Each hitch also has a 2 inch square receiver tube opening ? the most common and versatile on the market - allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. The options are endless! DRAW-TITE Class 3 Custom Trailer Hitches come complete with all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. So, whether you are headed out to the campground, the lake, or the bike trails, or you are tackling a project at home and need to haul the materials home, choose DRAW-TITE and travel with confidence knowing your setup is connected with the security only DRAW-TITE can provide. DRAW-TITE: North America?s Favorite Hitch
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 1996 - 2000 | Toyota 4Runner | — |
Yes, the 1996-2000 Toyota 4Runner Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB75091-1-118341) is designed to fit the 1996-2000 Toyota 4Runner.
The 1996-2000 Toyota 4Runner Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB75091-1-118341) fits 1996-2000 Toyota 4Runner models. The 2000 model year is the last year covered by this part number. For newer models, check for an updated version.
The 1996-2000 Toyota 4Runner Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB75091-1-118341) fits the following vehicles: 1996-2000 Toyota 4Runner. Always verify your specific year, make, and model before ordering.
The 1996-2000 Toyota 4Runner Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB75091-1-118341) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
This unit is rated for 4 amps per circuit.

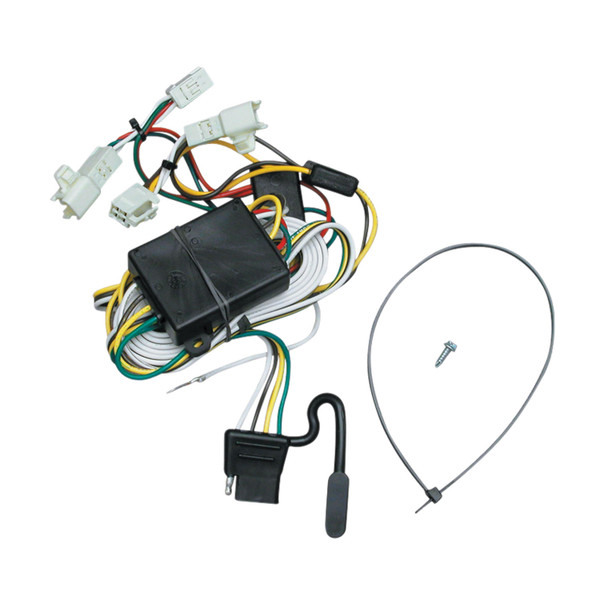

This T-connector adapter is designed for vehicles with tail light wiring harnesses that have connection points on both the left (driver) and right (passenger) sides with connectors matching the T-connector adapter ends. If your vehicle has this dual-connector tail light harness configuration, the adapter will fit. Consult your vehicle's wiring diagram or contact the manufacturer if you are unsure whether your specific vehicle model is compatible.
You will need a drill with a 3/32" drill bit, a screwdriver (to remove and reinstall screws), and a test light or trailer to verify the installation. The eyelet and screw for grounding the white wire are provided with the adapter.
Open the rear door and remove the five screws attaching the threshold panel. Then remove the shade latch screws on each side of the vehicle and carefully pull the plastic trim panels away from the sides to expose the vehicle wiring.
Separate the harness connectors on the left (driver) side of the vehicle, being careful not to break the locking tabs. Insert the T-connector harness with the yellow wire between the harness connectors and lock into place. Ensure that the connectors are fully inserted with locking tabs in place.
Repeat the process used for the left side: separate the harness connectors on the right (passenger) side, being careful not to break the locking tabs. Insert the T-connector harness with the green wire between the harness connectors and lock into place. Ensure that the connectors are fully inserted with locking tabs in place.
Locate a suitable grounding point near the connector, such as the vehicle's frame or cross member. Do not drill into the vehicle floor or bed. Clean dirt and rustproofing from the area, then drill a 3/32" hole and secure the white wire using the eyelet and screw provided.
Use a 3/32" drill bit to create the grounding hole for the white wire.
Route the yellow wire under the threshold panel. Then secure the threshold and side panels with the screws removed in steps 1 and 2.
Test the installation with a test light or trailer. This will verify that the connections are correct and the adapter is functioning properly.
The T-connector adapter uses three wires: yellow (connects to the left/driver side tail light harness), green (connects to the right/passenger side tail light harness), and white (ground wire that connects to the vehicle frame or cross member via a 3/32" hole with eyelet and screw).
The manual warns to be careful not to break the locking tabs when separating the harness connectors. If a locking tab is broken, the connector may not stay securely in place. Contact the manufacturer or a qualified installer for guidance on repair or replacement options.
Clean dirt and rustproofing from the grounding area before drilling the 3/32" hole for the white wire.
This T-connector adapter fits vehicles with dual tail light wiring harnesses on both left (driver) and right (passenger) sides with matching connectors. Check your vehicle's wiring configuration or contact the manufacturer to confirm compatibility.
You need a drill with a 3/32" bit, a screwdriver, and a test light or trailer. The eyelet and screw for grounding are included.
Yes, you must drill a 3/32" hole in the vehicle frame or cross member to secure the white ground wire using the provided eyelet and screw. Do not drill into the vehicle floor or bed.
This unit is rated for 4 amps per circuit.
Yellow wire connects to the left (driver) side; green wire connects to the right (passenger) side; white wire is the ground connection to the vehicle frame or cross member.
Test the installation with a test light or trailer to verify that the connections are correct and functioning properly.
