Draw-tite
Verify Fitment
Select your vehicle to confirm this part fits.
2001 - 2003 Dodge Grand Caravan
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!

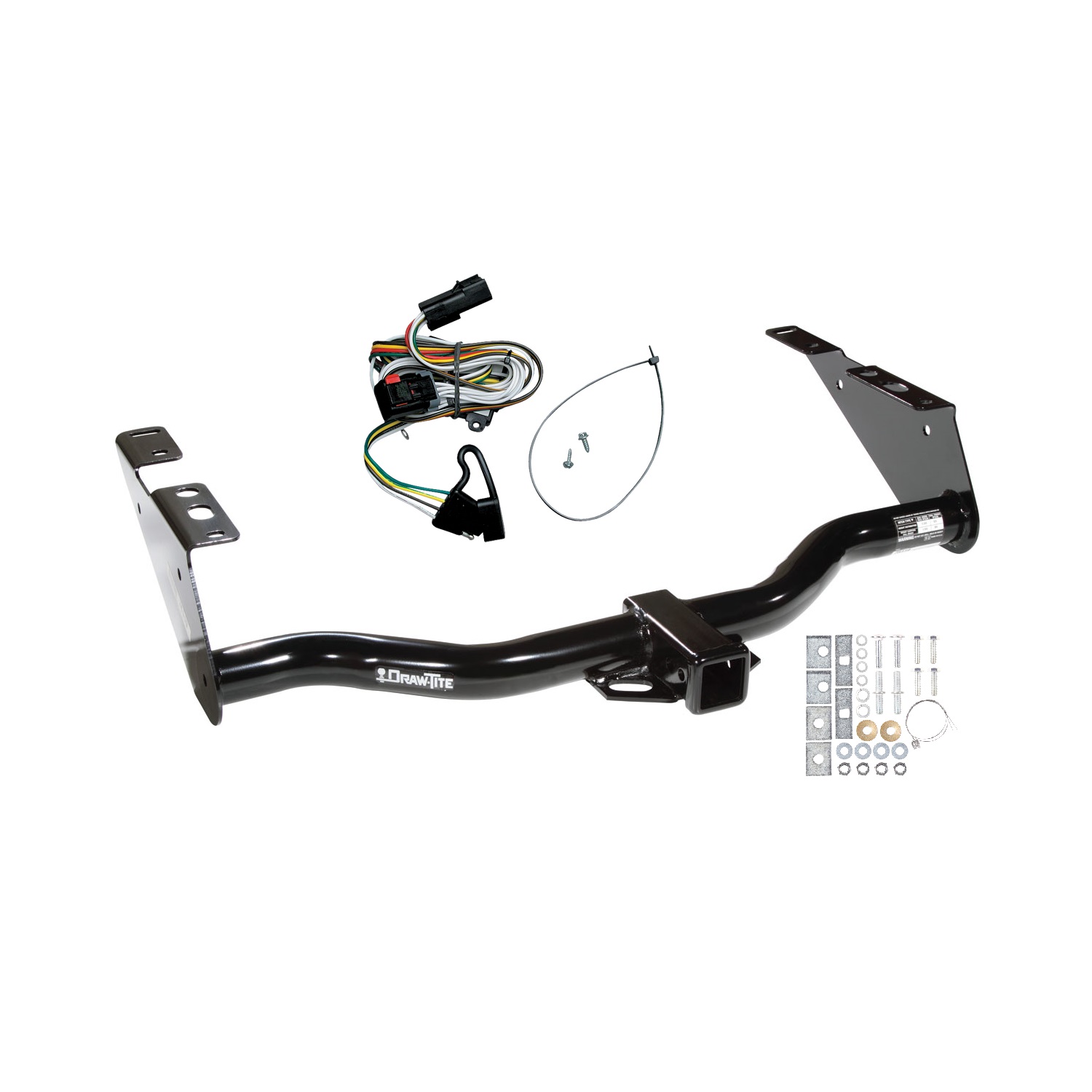

These durable custom hitches are manufactured for 1996-2007 Chrysler Town Country, 2001-2003 Chrysler Voyager, 1996-2007 Dodge Caravan, 1996-2007 Dodge Grand Caravan, 1996-2000 Plymouth Grand Voyager, 1996-2000 Plymouth Voyager and attach to your vehicle?s frame or bumper for a sleek, clean appearance. Each hitch also has a 2 inch square receiver tube opening ? the most common and versatile on the market - allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. The options are endless! DRAW-TITE Class 3 Custom Trailer Hitches come complete with all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. So, whether you are headed out to the campground, the lake, or the bike trails, or you are tackling a project at home and need to haul the materials home, choose DRAW-TITE and travel with confidence knowing your setup is connected with the security only DRAW-TITE can provide. DRAW-TITE: North America?s Favorite Hitch
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2001 - 2003 | Dodge Grand Caravan | — |
The 2001-2003 Dodge Grand Caravan Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB75119-12-118376) fits 2001-2003 Dodge Grand Caravan models. The 2003 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2001-2003 Dodge Grand Caravan Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB75119-12-118376) fits the following vehicles: 2001-2003 Dodge Grand Caravan. Always verify your specific year, make, and model before ordering.
Yes, the 2001-2003 Dodge Grand Caravan Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB75119-12-118376) is designed to fit the 2001-2003 Dodge Grand Caravan.
The 2001-2003 Dodge Grand Caravan Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB75119-12-118376) Refer to the included instructions for installation details. Basic hand tools are typically all you need.

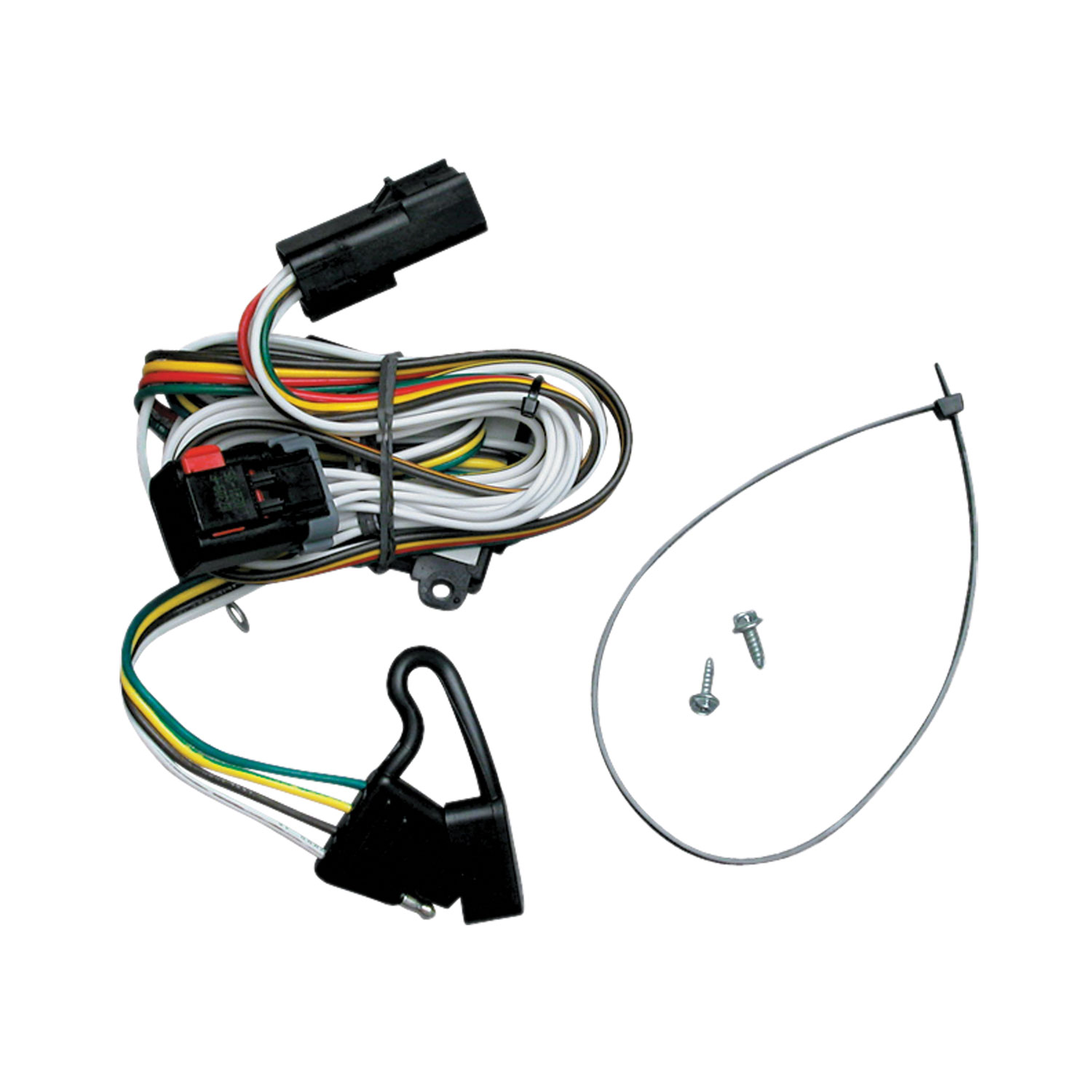

The T-Connector is a trailer wiring adapter that includes a black converter box. It allows you to connect trailer wiring to your vehicle's electrical system by tapping into the driver's side rear taillamp circuit. The converter box processes the signal and is stored in the vehicle's jack storage compartment when not in use.
You will need a utility knife, a 3/32" drill bit, and a circuit tester or trailer for testing the installation. The T-Connector kit includes an eyelet, screw, and optional double-sided tape and cable ties for securing the converter box. You may also need a screwdriver to install the provided screw.
The kit includes a red locking tab for the connector, a white ground wire with an eyelet and screw for securing to the vehicle body, a rubber grommet, double-sided tape, cable ties, and a mounting tab on the converter box. A 3/32" screw is provided for securing the converter box if drilling is used instead of tape or cable ties.
Remove the driver's side rear taillamp housing. Slide the red locking tab on the harness connector to the unlocked position and disconnect the wire harness from the taillamp sockets.
Open the vehicle's jack storage cover on the driver's side and partially remove the driver's side rear trim panel. Using the connector end of the T-Connector, push it inside the vehicle through the jack storage compartment and out through the driver's side rear taillamp opening. If necessary, peel back the black tape covering a hole on the vehicle body panel to allow the connector to pass through, then reposition the tape over the hole and wires.
Plug the T-Connector between the mating plug on the taillamp socket and the vehicle's wiring harness. Secure the connectors with the red locking tab.
Yes. With the vehicle wiring and grommets exposed, slit the grommet on the driver's side with a utility knife from the hole where the vehicle wiring passes through the grommet to the outside edge. Unwrap the tape around the grommet tabs, or cut the tabs off the grommet that hold it to the wires. After installing the T-Connector, place the grommet over the T-Connector wiring and push all existing vehicle wiring back into the grommet hole to re-seat it.
Drilling is required for two tasks: securing the white ground wire and securing the black converter box. For the ground wire, drill a 3/32" hole at a suitable grounding point on the vehicle body and secure the white wire using the eyelet and screw provided. For the converter box, you may use double-sided tape and cable ties, or drill a 3/32" hole at a suitable mounting position and secure it with the screw provided using the mounting tab on the converter box. Do not drill into any exposed surfaces.
Both the ground wire eyelet and the converter box mounting screw require a 3/32" hole.
Locate a suitable grounding point on the vehicle body. Drill a 3/32" hole and secure the white wire using the eyelet and screw provided. Do not drill into any exposed surfaces.
Yes. The manual states you may secure the black converter box and trailer wiring with double-sided tape and cable ties as an alternative to drilling. If you choose to drill, locate a suitable mounting position, drill a 3/32" hole, and secure the converter box with the screw provided using the mounting tab on the converter box to prevent damage or rattling.
The black converter box should be placed inside the jack storage compartment.
The white wire is the ground wire for the T-Connector. Locate a suitable grounding point on the vehicle body, drill a 3/32" hole, and secure the white wire using the eyelet and screw provided. Do not drill into any exposed surfaces.
Test the installation with a circuit tester or trailer. This verifies that the electrical connection is working correctly before you complete the installation by replacing all trim panels.
Replace all trim panels removed during the installation steps. Reinstall the taillamp housing, positioning the wire harness between the housing and the vehicle body. Store the 4-Flat connector in the jack storage compartment when not in use.
Do not drill into any exposed surfaces when securing the white ground wire or the converter box. This prevents damage to visible parts of the vehicle and potential safety hazards.
Yes. Slit the grommet with a utility knife and unwrap or cut the tabs holding it to the wires. After installing the T-Connector, re-seat the grommet over the T-Connector wiring.
The black converter box must be placed inside the jack storage compartment and can be secured with double-sided tape, cable ties, or a 3/32" screw.
Test with a circuit tester or trailer to verify the electrical connection is working before reinstalling trim panels.
