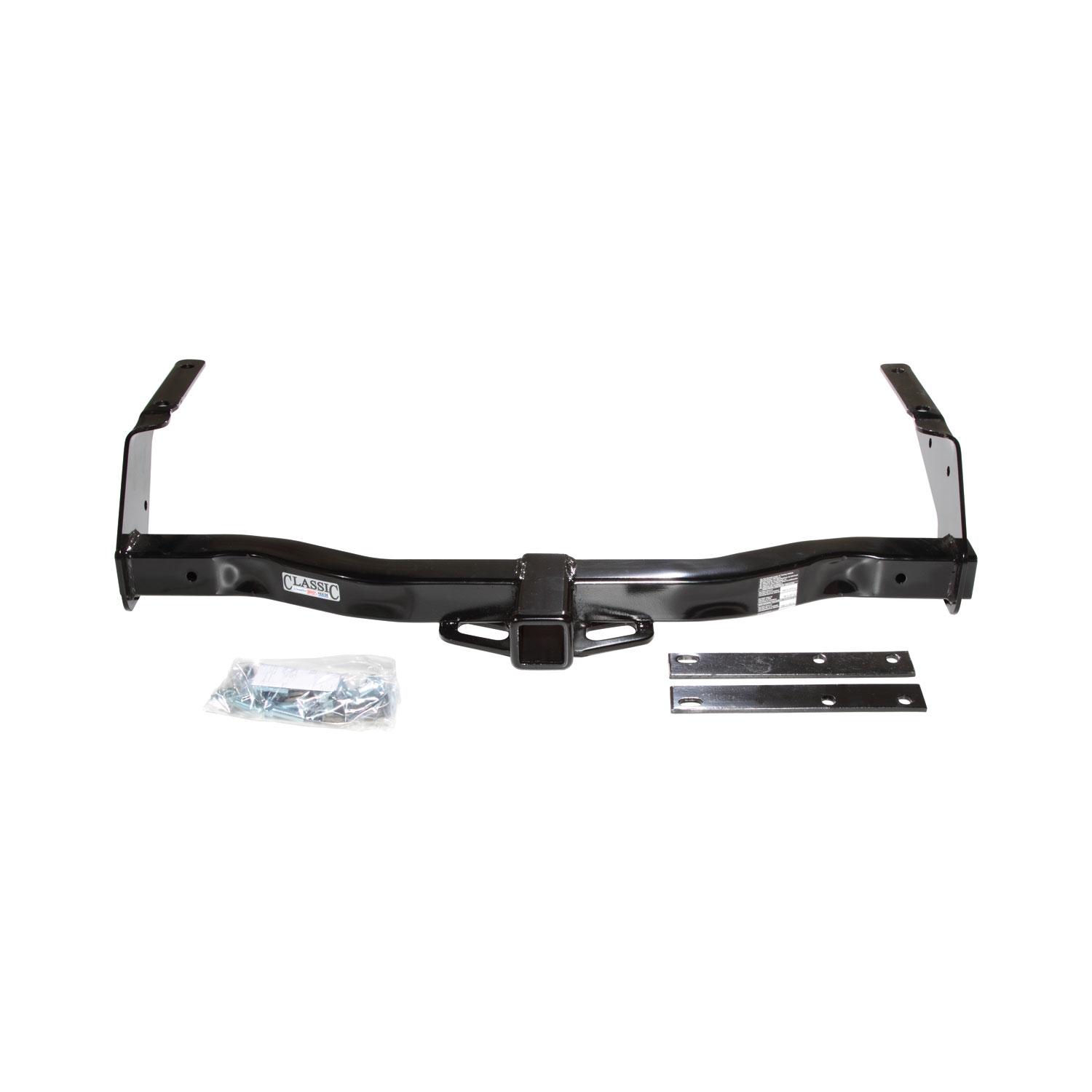

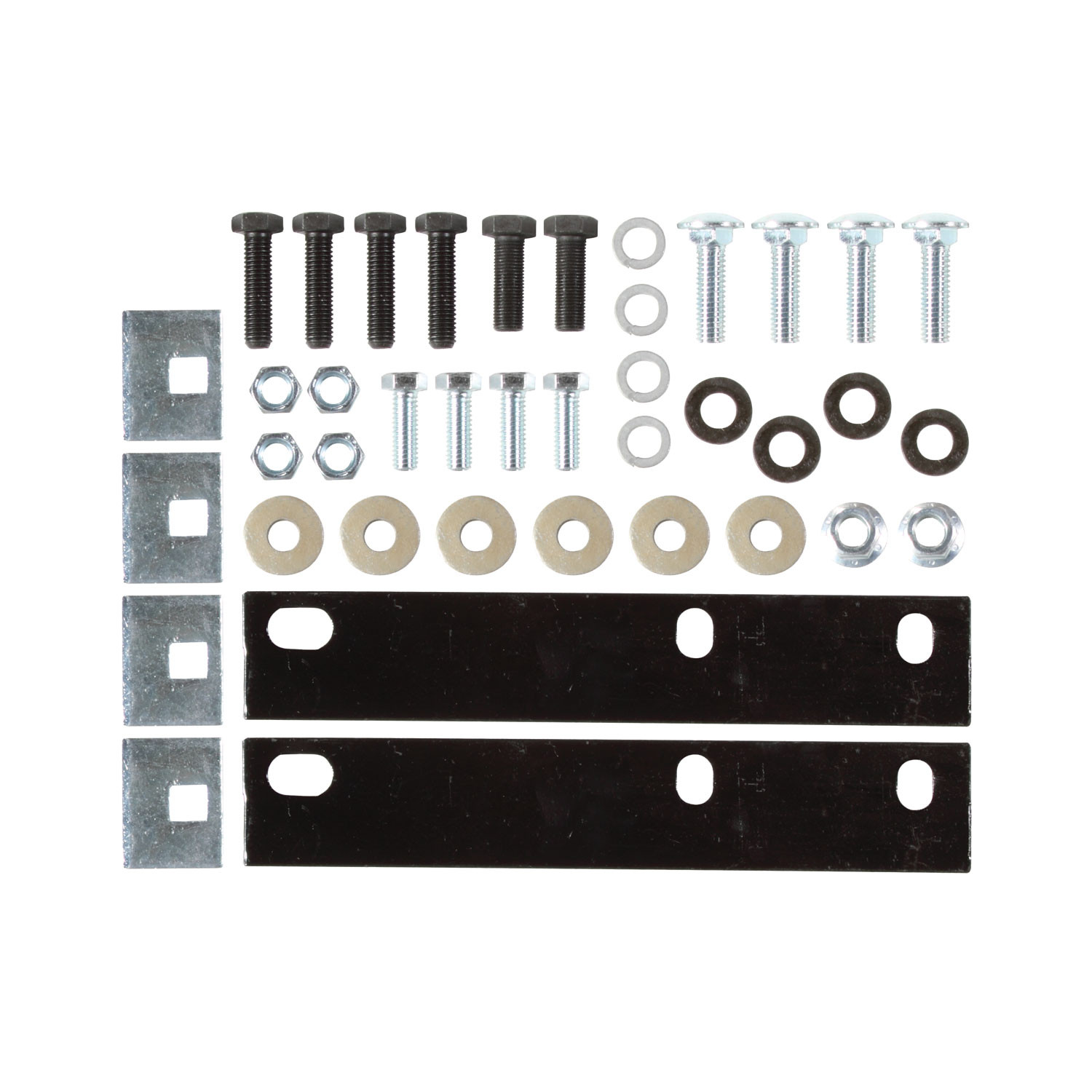

These durable custom hitches are manufactured for 1978-1980 Dodge B100, 1981-1994 Dodge B150, 1995-1998 Dodge B1500, 1978-1980 Dodge B200, 1981-1994 Dodge B250, 1995-1998 Dodge B2500, 1978-1980 Dodge B300, 1981-1994 Dodge B350, 1995-1998 Dodge B3500, 1999-2003 Dodge Ram 1500 Van, 1999-2003 Dodge Ram 2500 Van, 1999-2003 Dodge Ram 3500 Van and attach to your vehicle?s frame or bumper for a sleek, clean appearance. Each hitch also has a 2 inch square receiver tube opening ? the most common and versatile on the market - allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. The options are endless! DRAW-TITE Class 3 Custom Trailer Hitches come complete with all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. So, whether you are headed out to the campground, the lake, or the bike trails, or you are tackling a project at home and need to haul the materials home, choose DRAW-TITE and travel with confidence knowing your setup is connected with the security only DRAW-TITE can provide. DRAW-TITE: North America?s Favorite Hitch
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2001 - 2003 | Dodge Ram 3500 Van | — |

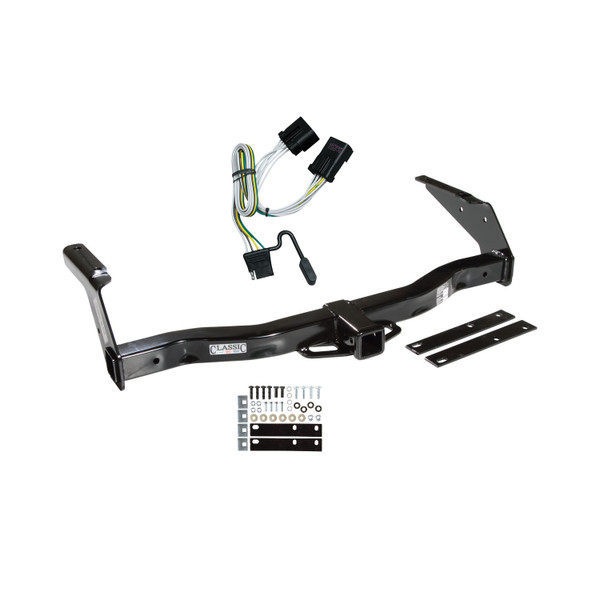

The 2001-2003 Dodge Ram 3500 Van Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB75140-24-118381) fits 2001-2003 Dodge Ram 3500 Van models. The 2003 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2001-2003 Dodge Ram 3500 Van Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB75140-24-118381) fits the following vehicles: 2001-2003 Dodge Ram 3500 Van. Always verify your specific year, make, and model before ordering.
Yes, the 2001-2003 Dodge Ram 3500 Van Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB75140-24-118381) is designed to fit the 2001-2003 Dodge Ram 3500 Van.
The 2001-2003 Dodge Ram 3500 Van Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB75140-24-118381) Refer to the included instructions for installation details. Basic hand tools are typically all you need.

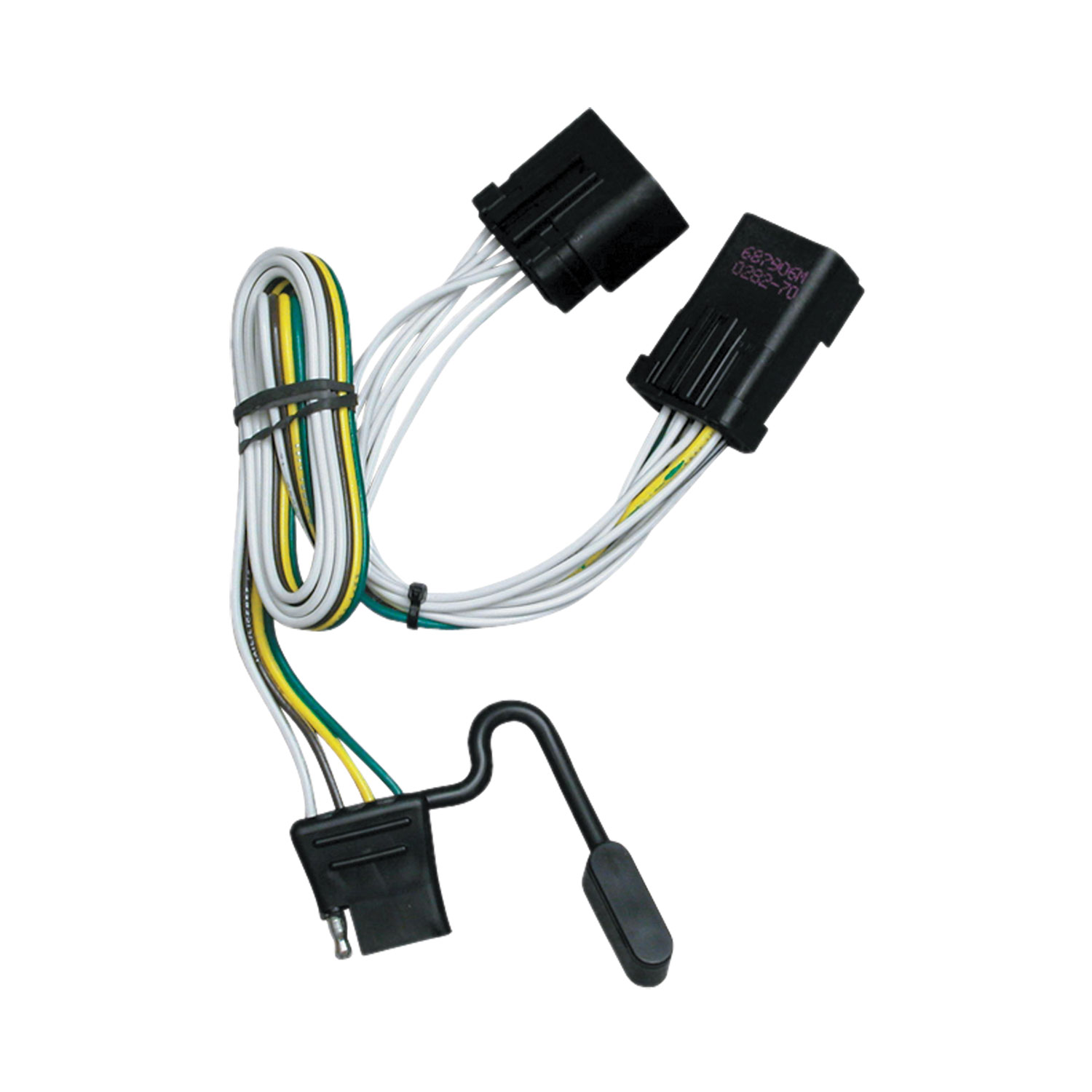

Yes, if your Dodge Van does not have a factory 7-way trailer tow package. If your Dodge Van is equipped with a factory 7-way trailer tow package, the adapter is compatible but requires a different installation procedure involving removal of the 7-way bracket.
Yes, this adapter is compatible with Durango, Dakota, and Full Size Ram trucks. If your vehicle is equipped with a factory 7-way trailer tow package, follow the factory 7-way installation procedure. If not, follow the standard installation procedure for vehicles without factory 7-way.
Yes, this adapter is compatible with Jeep Grand Cherokee. If your Grand Cherokee is equipped with a factory 7-way trailer tow package, follow the factory 7-way installation procedure (steps 5-6). If not, follow the standard installation procedure (steps 1-4).
This unit is rated for 7.5 amps per circuit.
The trailer harness connector is located under the vehicle, behind the bumper, on the driver's side of the vehicle.
Yes. Before connecting the T-connector adapter, check that the mating surfaces of the connectors are free of dirt. Clean if necessary to ensure proper connection.
1. Locate the trailer harness connector under the vehicle behind the bumper on the driver's side. 2. Remove the protective cap and clean the connector mating surfaces if necessary. 3. Connect the T-connector adapter end to the vehicle's connector, ensuring it is fully inserted with locking tabs in place. 4. Place the protective cap on the remaining plug end. 5. Test the installation with a test light or trailer.
1. Remove the screws on the bracket holding the 7-way in place. 2. Pull out the 7-way to access the plug on the back. 3. Slide the red tab to the unlocked position and separate the connector. 4. Connect the T-connector adapter between the separated halves. 5. Slide the red locking tab to the locked position. 6. Route the 4-flat connector away from the 7-way bracket. 7. Push the 7-way back into the bracket and reinstall the screws. 8. Test the installation with a test light or trailer.
Remove the protective cap from the vehicle's connector and save it. After connecting the T-connector adapter, place the protective cap on the remaining plug end to protect it from dirt and moisture.
The T-connector is fully inserted when the locking tabs are in place. Ensure the connector is completely seated before proceeding.
After connecting the T-connector adapter between the separated halves of the factory 7-way connector, position the 4-flat connector so it does not interfere with or rest against the 7-way bracket. This prevents potential damage or poor connection.
Test the installation with a test light or trailer. This confirms that the adapter is properly connected and functioning.
Yes, if you have a Full Size Dodge Van, Durango, Dakota, Full Size Ram, Jeep Grand Cherokee, or Dodge Van with or without a factory 7-way trailer tow package. Installation procedure varies depending on whether your vehicle has a factory 7-way.
7.5 amps per circuit.
Under the vehicle, behind the bumper, on the driver's side.
Only if your vehicle has a factory 7-way: remove the bracket screws and pull out the 7-way to access the connector. For vehicles without factory 7-way, no removal is necessary.
Yes, check that the mating surfaces are free of dirt and clean if necessary before connecting the adapter.
Test with a test light or trailer to confirm proper connection and function.
