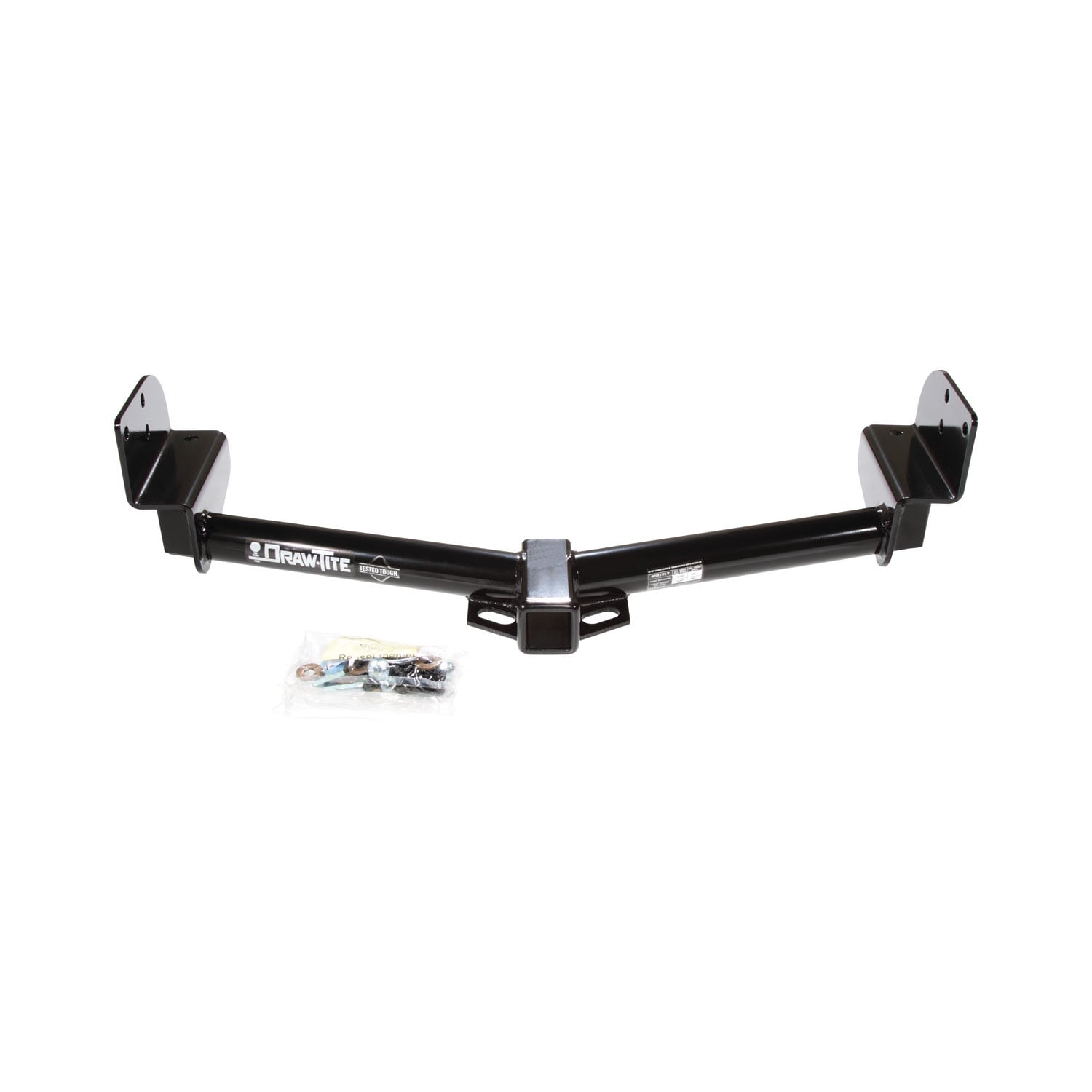

These durable custom hitches are manufactured for 2002-2005 Ford Explorer, 2003-2005 Lincoln Aviator, 2002-2005 Mercury Mountaineer and attach to your vehicle?s frame or bumper for a sleek, clean appearance. Each hitch also has a 2 inch square receiver tube opening ? the most common and versatile on the market - allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. The options are endless! DRAW-TITE Class 3 Custom Trailer Hitches come complete with all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. So, whether you are headed out to the campground, the lake, or the bike trails, or you are tackling a project at home and need to haul the materials home, choose DRAW-TITE and travel with confidence knowing your setup is connected with the security only DRAW-TITE can provide. DRAW-TITE: North America?s Favorite Hitch
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2002 - 2003 | Ford Explorer | — |

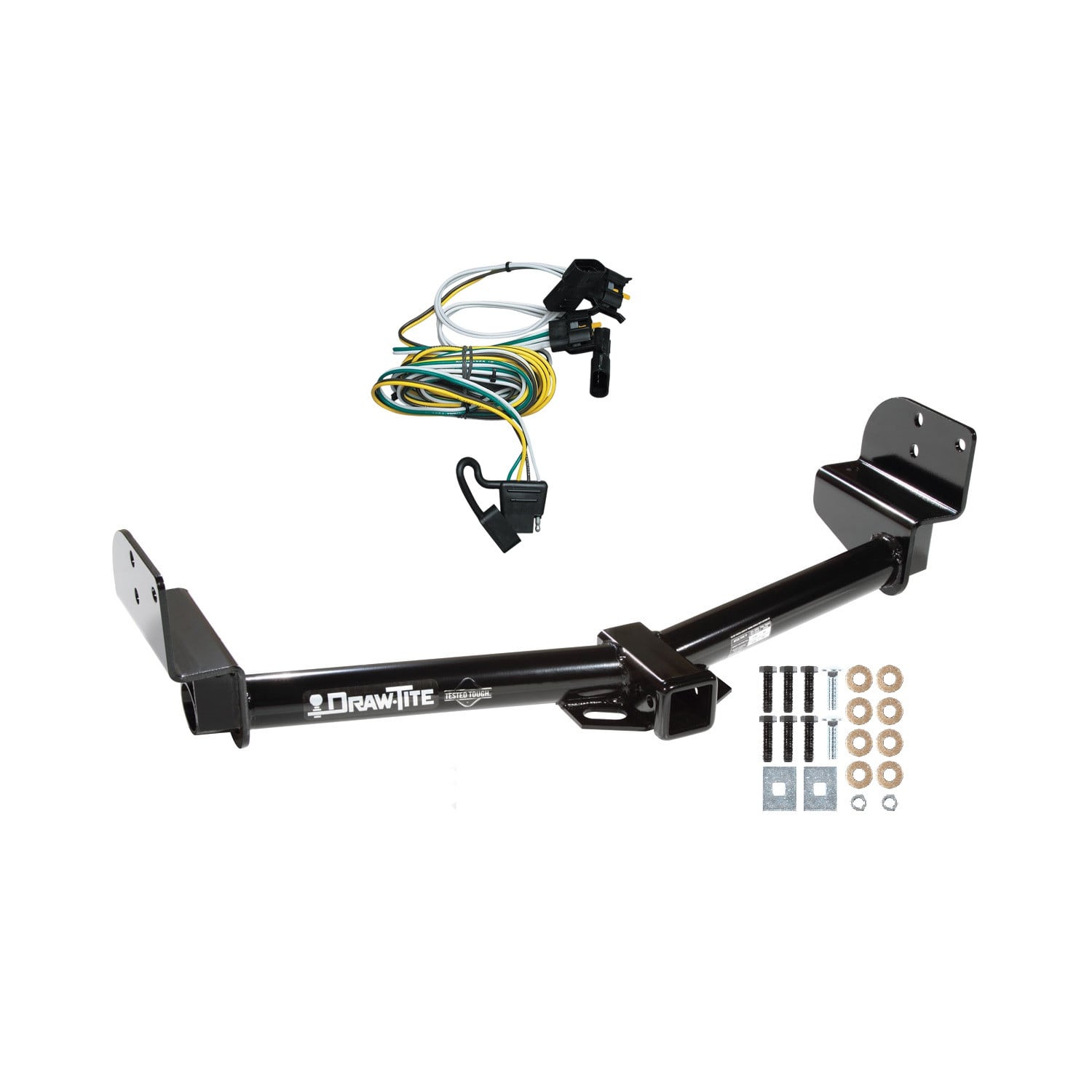

Yes, the 2002-2003 Ford Explorer Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB75132-118344) is designed to fit the 2002-2003 Ford Explorer.
The 2002-2003 Ford Explorer Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB75132-118344) fits 2002-2003 Ford Explorer models. The 2003 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2002-2003 Ford Explorer Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB75132-118344) fits the following vehicles: 2002-2003 Ford Explorer. Always verify your specific year, make, and model before ordering.
The 2002-2003 Ford Explorer Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB75132-118344) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes. This hitch (part numbers 44722, 75132, 87417) is designed for Ford Explorer 4-door, Mercury Mountaineer, and Lincoln Aviator. The manual does not specify model years, so contact the manufacturer or your retailer to confirm fitment for your specific vehicle year.
Maximum towing capacity depends on hitch type. Weight Distributing hitch: 8000 lb (3632 kg) gross trailer weight, 800 lb (363 kg) tongue weight. Weight Carrying Ball Mount hitch: 5000 lb (2724 kg) gross trailer weight, 500 lb (272 kg) tongue weight. Do not exceed the lower of the towing vehicle manufacturer's rating or these limits.
You will need wrenches in the following sizes: 7/8", 15mm, and 18mm. A torque wrench is also required for final tightening of fasteners. No drill bits are needed—no drilling is required for this installation.
No. The manual lists "Drill Bits: None," confirming that no drilling is required for this installation.
The fastener kit F75132 includes: (6) M12 × 1.75 × 45mm CL10.9 hex bolts, (2) 1/4" × 1-1/2" × 2" blocks, (8) 1/2" conical washers, (2) 1/2" – 13 hex nuts, and (2) 1/2" – 13 × 1.75 GR5 carriage bolts.
1. Remove the three existing bumper bracket nuts (if present) and three M12 or M14 bolts from each side of the frame. 2. Use fishwire to guide carriage bolts and blocks through the end of the frame. 3. Raise the hitch into position and loosely install conical washers and nuts. 4. For vehicles with 14mm factory fasteners, reinstall the factory M14 fasteners. For vehicles with 12mm factory fasteners, install and torque the supplied M12 fasteners and reinstall the factory M12 nuts. 5. Tighten all fasteners to the specified torque values.
Tighten all M12 fasteners with a torque wrench to 92 Lb.-Ft. (125 N·M).
Tighten all M14 fasteners with a torque wrench to 148 Lb.-Ft. (201 N·M).
Tighten all 1/2" fasteners with a torque wrench to 75 Lb.-Ft. (102 N·M).
No. The manual states: "Do not use both hitches at the same time. This may overload and cause damage to vehicle." Only one hitch should be installed and used on the vehicle.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. The manual emphasizes regular inspection as part of ongoing maintenance to verify that no fasteners have loosened during use.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes. This protects the vehicle interior from moisture and harmful gases.
A hitch or ball which has been damaged should be removed and replaced. Do not attempt to repair or continue using a damaged hitch or ball.
Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch. These precautions protect you from injury and prevent damage to the vehicle.
The wiring access locations are SUV1 and SUV2. Refer to the vehicle-specific wiring diagram (Form F205 Rev A) for detailed routing and connector information.
Yes, this hitch is designed for Ford Explorer 4-door, Mercury Mountaineer, and Lincoln Aviator. Confirm your vehicle year with the manufacturer or retailer.
No drilling is required. You will need wrenches (7/8", 15mm, 18mm) and a torque wrench.
M12 fasteners: 92 Lb.-Ft. (125 N·M). M14 fasteners: 148 Lb.-Ft. (201 N·M). 1/2" fasteners: 75 Lb.-Ft. (102 N·M). Use a torque wrench for all final tightening.
No. Using both hitches at the same time may overload and damage the vehicle. Install and use only one hitch.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. If removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fume entry.

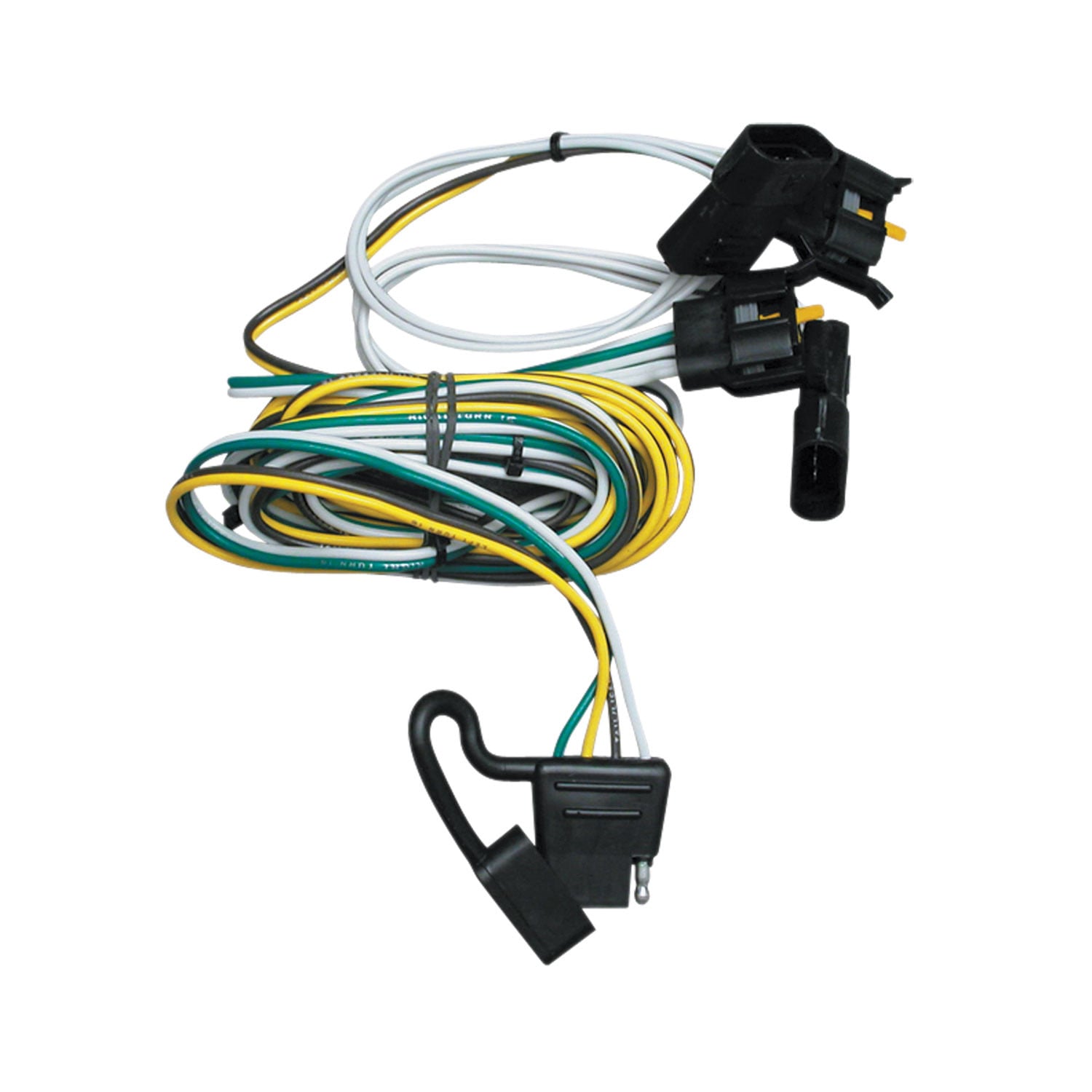

The T-connector adapter is designed for Ford Vans, Expedition, Navigator, Escort, Tracer, and F-150 Pickups with Flareside beds only. If your F-150 has a Flareside bed, it is compatible. If you have a different truck bed style or a different vehicle brand, this adapter will not fit. Check your vehicle's model and bed type before purchasing.
No. The installation instructions specify F-150 Pickups with Flareside beds only. The access method for non-Flareside F-150s is different and not covered in this manual. Do not use this adapter on F-150s with other bed styles.
The unit is rated for 7.5 amps per circuit. Do not exceed this rating, as it may damage the adapter or create a fire hazard.
The manual specifies that you will need a test light or trailer to test the installation after completion. No other tools are explicitly listed. Depending on your vehicle, you may need basic hand tools to remove trim panels and tail light assemblies, but the manual does not detail these.
Remove both tail light assemblies and locate the vehicle's wiring harness. There will be connection points on each side of the vehicle matching the ends of the T-connector adapter.
Partially remove the rear interior plastic trim panels on the driver's (left) side and open the vehicle's jack storage compartment to expose the openings to the tail light assemblies. Also remove the threshold cover plate between the rear doors.
Partially remove the trunk lining to expose the grommets accessing the tail lights. Remove and slit the grommet to allow wires to pass into the tail light openings.
From underneath the vehicle, locate the access hole into the tail light openings. There will be an access hole on each side of the vehicle.
The T-connector end containing the green wire is routed from the passenger side. This connector is plugged between the separated halves of the vehicle's center black wiring harness connector at the tail light assembly.
The T-connector end containing the yellow wire is routed across the vehicle under the threshold cover and out through the tail light opening on the driver's side. This connector is plugged between the separated halves of the vehicle's center black wiring harness connector at the tail light assembly.
Route the yellow wire across the vehicle under the threshold cover that was removed in step 2. Then route the T-connector end containing the yellow wire out from inside the vehicle through the tail light opening.
Disconnect the vehicle's center black wiring harness connector from the tail light assembly, being careful not to damage the locking tabs. Plug the T-connector connector between these separated halves. Repeat this process for both the green wire connector (passenger side) and the yellow wire connector (driver's side).
The manual warns to be careful not to damage the locking tabs when disconnecting the vehicle's center black wiring harness connector. If the tabs are damaged, the connector may not hold securely. Do not proceed; contact the manufacturer or a qualified technician for repair or replacement of the connector.
Test the installation with a test light or trailer. The manual does not specify the exact testing procedure, so consult the test light or trailer manufacturer's instructions for proper use.
Tuck the yellow wire under the threshold panel and secure it. Then reinstall the plastic trim panel, jack storage panel grommets, and tail lights.
The T-connector fits Ford Vans, Expedition, Navigator, Escort, Tracer, and F-150 Pickups with Flareside beds only. Check your vehicle model and bed type before purchasing.
The unit is rated for 7.5 amps per circuit. Do not exceed this rating.
You will need a test light or trailer to test the installation after completion.
The T-connector has a green wire (passenger side) and a yellow wire (driver's side). Both connect to the vehicle's tail light wiring harness.
Yes. Remove both tail light assemblies first to access the vehicle's wiring harness and connect the T-connector.
Do not damage the locking tabs on the vehicle's center black wiring harness connector when disconnecting it from the tail light assembly.
