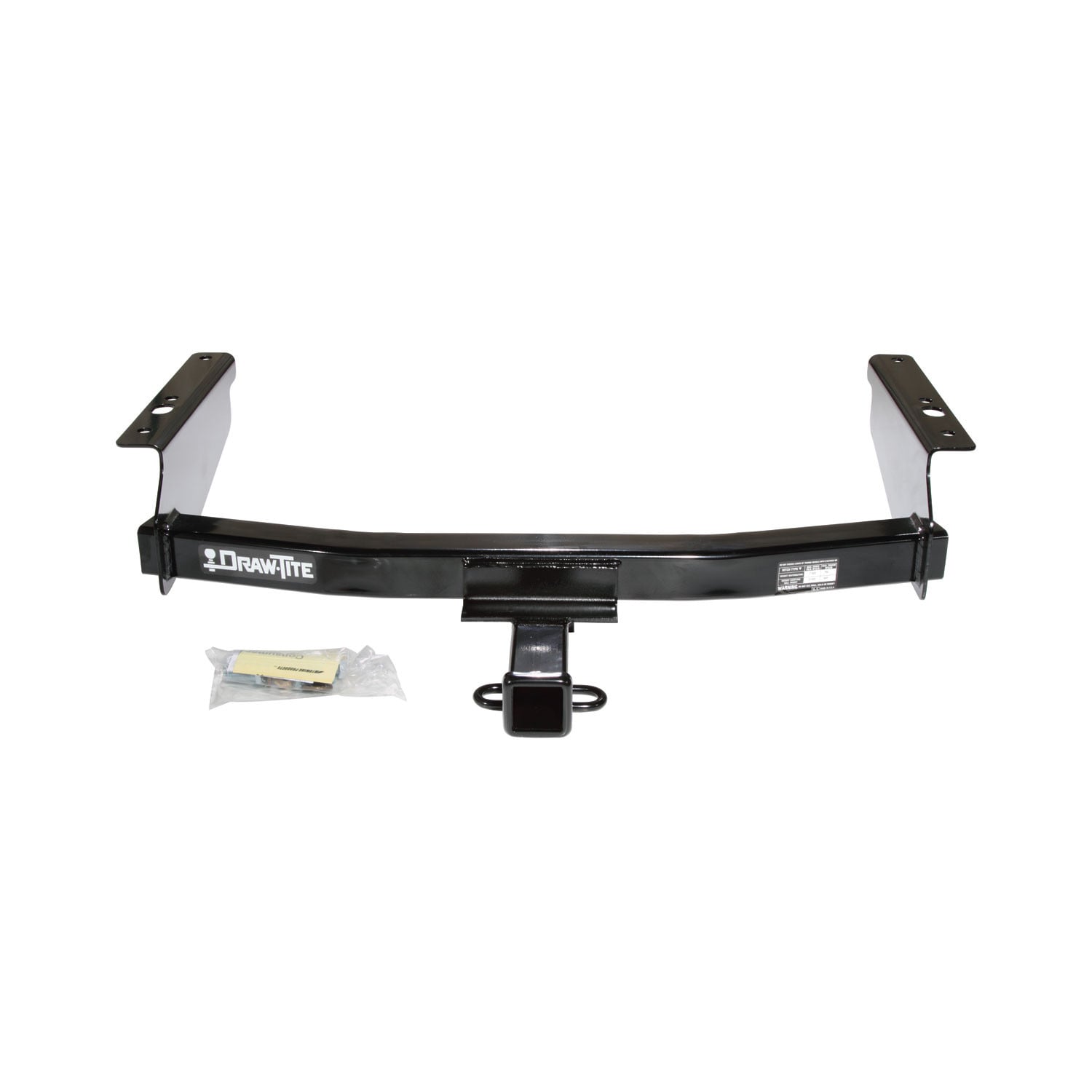

These durable custom hitches are manufactured for 2002-2007 Jeep Liberty and attach to your vehicle?s frame or bumper for a sleek, clean appearance. Each hitch also has a 2 inch square receiver tube opening ? the most common and versatile on the market - allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. The options are endless! DRAW-TITE Class 3 Custom Trailer Hitches come complete with all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. So, whether you are headed out to the campground, the lake, or the bike trails, or you are tackling a project at home and need to haul the materials home, choose DRAW-TITE and travel with confidence knowing your setup is connected with the security only DRAW-TITE can provide. DRAW-TITE: North America?s Favorite Hitch
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2002 - 2004 | Jeep Liberty | — |

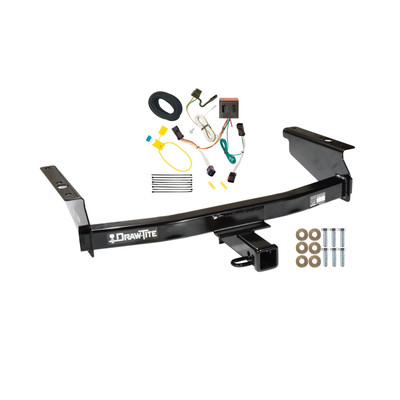

The 2002-2004 Jeep Liberty Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB75128-118524) fits 2002-2004 Jeep Liberty models. The 2004 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2002-2004 Jeep Liberty Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB75128-118524) fits the following vehicles: 2002-2004 Jeep Liberty. Always verify your specific year, make, and model before ordering.
Yes, the 2002-2004 Jeep Liberty Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB75128-118524) is designed to fit the 2002-2004 Jeep Liberty.
The 2002-2004 Jeep Liberty Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB75128-118524) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The T-Connector is a trailer wiring adapter that allows you to connect a trailer to your vehicle's existing taillight wiring. It intercepts the vehicle's taillight signals and provides a 4-flat connector for trailer lights. The product includes a black module box, harnesses with colour-coded wires (yellow, green, white), a 4-flat connector, fuse holder, ring terminal, butt connector, cable ties, and double-sided tape.
Yes, the manual confirms the T-Connector is designed for the Jeep Liberty. However, the manual does not specify which model years or body styles are compatible. Contact the manufacturer or your installer to confirm fitment for your specific vehicle year and configuration.
The manual only confirms compatibility with the Jeep Liberty. Do not assume it will fit other vehicles. Contact the manufacturer or check the product fitment database before purchasing for a different vehicle.
Required tools are: trim panel remover, 10 mm socket and ratchet or 10 mm wrench, drill with 3/32" drill bit, 1/4" socket, wire crimpers, wire cutters, Phillips head screwdriver, test probe, and T20 Torx screwdriver. You will also need rubbing alcohol and water for cleaning.

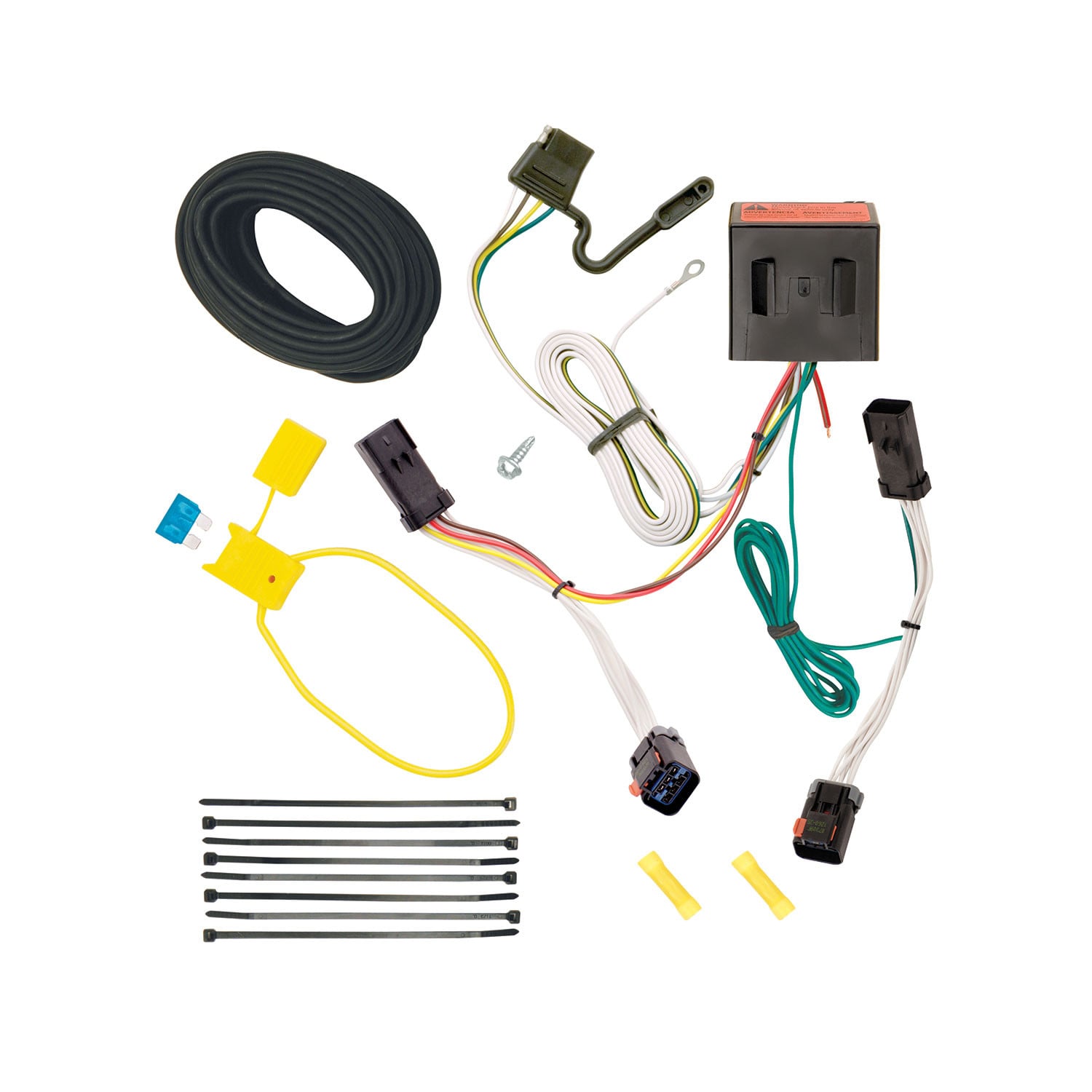

The T-Connector includes: a black module box, two harnesses with colour-coded wires (yellow and green), a 4-flat connector, a white wire with eyelet and screw for grounding, a red 12 ga. power wire from the module, a black 12 ga. wire, a yellow fuse holder with 15 amp fuse, a ring terminal, a yellow butt connector, cable ties, and double-sided tape.
Yes. Step 8 requires you to disconnect the vehicle's negative (−) battery cable before connecting the power wire to the positive battery terminal. Reconnect the negative cable in step 9 after the fuse holder is installed.
Yes. Step 1 requires you to open the rear glass gate and tailgate, then remove the T20 Torx screws holding the taillight housings in place. Carefully pry the taillight housings rearward away from the vehicle, being careful not to break the alignment tabs. The taillight assemblies are reinstalled in step 11.
Step 2 requires you to slide the red locking tab on the harness connector to the unlocked position and disconnect the vehicle's wire harness from both taillight sockets. In step 3, plug the T-Connector harness containing the yellow wire between the vehicle's mating connectors, then slide the red locking tab into the locked position. Repeat for the passenger side in step 5 using the harness end with the green wire.
Step 4 requires you to route the harness containing the green wire and the 4-flat connector down the opening behind the taillight on the driver's side, then route the 4-flat to the center of the vehicle. Route the harness containing the green wire underneath the vehicle and up through the opening behind the passenger's side taillight. Step 12 requires you to secure the remainder of the harness with cable ties provided, avoiding areas that would pinch, cut, or melt the wire.
Yes. Step 6 requires you to drill a 3/32" hole for the white ground wire. Before drilling, verify what is behind any surface to avoid damage to the vehicle or personal injury. Do not drill into the vehicle floor or bed, and do not drill any exposed surfaces. Clean dirt and rustproofing from the area, then drill the hole and secure the white wire using the eyelet and screw provided.
Step 6 requires you to locate a suitable grounding point near the adapter such as the vehicle frame or crossmember. Do not drill into the vehicle floor or bed. Clean dirt and rustproofing from the area before drilling.
The T-Connector uses colour-coded wires: yellow wire connects to the driver's side taillight connector (step 3), green wire connects to the passenger's side taillight connector (step 5), white wire is the ground wire that connects to the vehicle frame or crossmember (step 6), red 12 ga. wire is the power wire from the T-Connector module (step 7), and black 12 ga. wire connects the power wire to the vehicle's positive battery terminal via the fuse holder (steps 7–8).
Step 7 requires you to locate the red 12 ga. power wire from the T-Connector box on the driver's side and attach the black 12 ga. wire provided. Route the black wire along the exterior frame or follow existing wiring along the thresholds into the engine compartment up to the battery, avoiding areas that may pinch, break, or melt the wire. Step 8 requires you to disconnect the vehicle's negative battery cable, then attach the ring terminal to the vehicle's positive battery cable. Connect the other end of the fuse holder to the black 12 ga. wire using the yellow butt connector provided. Step 9 requires you to reconnect the negative battery cable and install the 15 amp fuse into the fuse holder.
The T-Connector uses a 15 amp fuse. The fuse holder is provided with the product. Step 8 requires you to install the fuse into the fuse holder after connecting the power wire to the vehicle's positive battery terminal.
Step 6 requires you to locate a suitable grounding point near the adapter such as the vehicle frame or crossmember (do not drill into the vehicle floor or bed). Clean dirt and rustproofing from the area. Drill a 3/32" hole and secure the white wire using the eyelet and screw provided.
Step 10 requires you to mount the black box behind the taillight assembly on the driver's side. Clean a flat area using a mixture of rubbing alcohol and water, then mount the box using cable ties or double-sided tape provided. The epoxy side of the module must point towards the ground to prevent water buildup. The module must not be mounted underneath the vehicle or in an area directly exposed to the elements. Ensure the taillight assembly can be reinstalled before mounting the box.
Step 4 requires you to route the 4-flat connector to the center of the vehicle. The manual notes that the 4-flat should be mounted in a suitable location under the vehicle, but does not specify the exact location. Consult your installer or the manufacturer for the recommended mounting location on your vehicle.
Do not exceed the lower of the vehicle manufacturer's rating or: maximum 2 stop/turn lights per side (4.2 amps total), or maximum tail lights (7.5 amps). Overloading the circuit can cause fires. Consult your vehicle's owner's manual and instruction sheet for additional information.
Wear safety glasses and use all safety precautions during installation. Before drilling, verify what is behind any surface to avoid damage to the vehicle or personal injury. Do not drill into the vehicle floor, bed, or any exposed surfaces. Route wires carefully to avoid areas that may pinch, break, or melt the wire. Read and follow all warnings and cautions printed on the vehicle's battery. Ensure all connections are complete before testing.
Step 9 requires you to test and verify the installation with a test light or trailer once installed. For the initial test, reset the vehicle electrical system by temporarily removing the key from the ignition, then re-insert the key and turn it to the proper position. All connections must be complete for the T-Connector to function properly.
After installation, verify that: (1) all wire connections are secure and complete, (2) the black module box is mounted with the epoxy side pointing downward and is not underneath the vehicle or directly exposed to elements, (3) the taillight assemblies are reinstalled without pinching or cutting wires, (4) the harness is secured with cable ties to prevent damage or rattling, (5) the 4-flat connector is mounted in a suitable location under the vehicle, and (6) the T-Connector functions properly using a test light or trailer.
The T-Connector is designed for the Jeep Liberty. Confirm your specific model year and body style with the manufacturer before purchasing.
Yes, disconnect the vehicle's negative battery cable before connecting the power wire to the positive terminal (step 8). Reconnect it after the fuse holder is installed (step 9).
The T-Connector uses a 15 amp fuse, provided with the product. Install it into the fuse holder after connecting the power wire to the vehicle's positive battery terminal.
Do not exceed: 2 stop/turn lights per side (4.2 amps) or tail lights (7.5 amps). Overloading can cause fires. Check your vehicle's owner's manual for additional limits.
Step 9 states that all connections must be complete for the T-Connector to function properly. Verify that: (1) the yellow wire harness is locked into the driver's side taillight connector, (2) the green wire harness is locked into the passenger's side taillight connector, (3) the white ground wire is securely fastened to the vehicle frame or crossmember, (4) the black 12 ga. power wire is connected to the vehicle's positive battery terminal via the fuse holder, (5) the 15 amp fuse is installed in the fuse holder, and (6) the negative battery cable is reconnected. Reset the vehicle electrical system by temporarily removing the ignition key, then re-insert and turn to the proper position.
The module is not mounted correctly. Step 10 requires that the epoxy side of the module point towards the ground to prevent water buildup. Remount the black box so that the epoxy side faces downward. Also ensure the module is not mounted underneath the vehicle or in an area directly exposed to elements, as this can cause damage.
Step 10 includes a warning to ensure the taillight assembly can be reinstalled before mounting the black box. If the box is already mounted and blocking the taillight, you must remount the black box in a different location behind the taillight assembly on the driver's side, or use a different mounting method (cable ties instead of double-sided tape, or vice versa) to ensure clearance.
