Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
This fits: 2002-2006 Honda CR-V All
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Honda CR-V (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 3,500 lbs. GTW and 350 lbs. TW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.
Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
Not compatible for use with vertical hanging bicycles (bike racks that require the bicycles to be hung / mounted vertically)
Includes installation hardware
2002, 2003, 2004, 2005, 2006 Honda CR-V All Class 3 Trailer Hitch, 2" Receiver, Select Honda CR-V
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Lifetime
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2002 - 2006 | Honda CR-V | — |

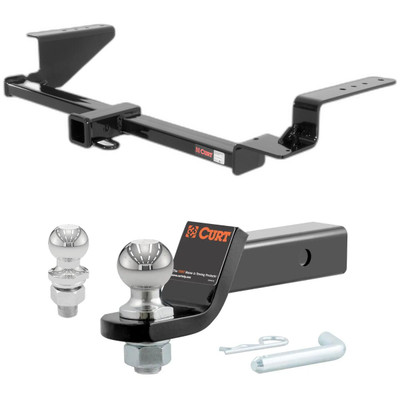

Yes, the 2002-2006 Honda CR-V All CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13535-001) is designed to fit the 2002-2006 Honda CR-V.
The 2002-2006 Honda CR-V All CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13535-001) fits 2002-2006 Honda CR-V models. The 2006 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2002-2006 Honda CR-V All CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13535-001) fits the following vehicles: 2002-2006 Honda CR-V. Always verify your specific year, make, and model before ordering.
The 2002-2006 Honda CR-V All CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13535-001) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
No. This hitch is designed for 2002–2006 Honda CR-V only and will not fit Hybrid models.
This hitch fits 2002–2006 Honda CR-V (non-Hybrid models only).
The gross load capacity is 3500 lbs trailer weight and 350 lbs tongue weight. However, you must not exceed your vehicle manufacturer's recommended towing capacity, which may be lower.
Non-trailer loads can be applied to this hitch only if they are supported by auxiliary stabilizing straps. Failure to properly support non-trailer loads will void the product warranty.
No. The installation notes explicitly state that no drilling is required.
Fishwiring is a technique used to thread fasteners through frame holes. In this installation, you use 7/16" fishwire (included) to guide carriage bolts and spacers through the large frame hole and out the small front hole, then repeat the process for the rear frame hole on both sides of the frame.
Yes. The first installation step requires you to lower the exhaust by removing two rear exhaust hangers and one hanger in front of the axle. After installation is complete, you reattach these three hangers. If the muffler interferes with the hitch, you may need to modify the exhaust hangers.
1. Lower the exhaust by removing two rear hangers and one front hanger. 2. Fishwire a 7/16" carriage bolt and spacer through the large frame hole and out the small front hole. 3. Fishwire a carriage bolt and spacer into the rear frame hole; repeat for the driver's side frame rail. 4. Place the U-bolt over the tow hook in the middle of the vehicle. 5. Raise the hitch into position and secure with the U-bolt and flange nuts first, then attach the remaining 7/16" hardware. 6. Torque all fasteners. 7. Reattach the three exhaust hangers.
Torque all 7/16" hardware to 70 ft-lbs and all 3/8" hardware to 45 ft-lbs.
The kit includes: 2× 7/16" fishwire, 2× 3/8-16 UNC serrated flange nuts (part 20-00102), 4× 7/16-14 UNC carriage bolts 1-1/4" long (part 10-10281), 4× 0.250 × 0.88 × 2.25" square hole spacers (part CM-SP2), 4× 7/16-14 UNC serrated flange nuts (part 20-00103), and 1× 3/8-16 × 1.938 × 0.875" U-bolt (part CM-3805-UBR).
The manual does not specify which tools are required. Contact Curt Manufacturing technical support at 1-877-287-8634 for a complete tool list.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound.
Curt Manufacturing warrants this product to be free of defects in material and workmanship at the time of retail purchase by the original purchaser. If defective, Curt may repair or replace the product at their option when returned prepaid with proof of purchase. Warranty is voided by alteration, misuse, or improper installation. Curt's liability is limited to repair or replacement and excludes incidental or consequential loss or damage.
Yes, if it is a 2002–2006 non-Hybrid model. It will not fit Hybrid CR-Vs.
No drilling is required. Fishwiring is used to thread fasteners through existing frame holes.
Yes. You must lower the exhaust by removing two rear hangers and one front hanger before installation, then reattach them afterward.
Torque 7/16" hardware to 70 ft-lbs and 3/8" hardware to 45 ft-lbs.
Gross load capacity is 3500 lbs trailer weight and 350 lbs tongue weight, but do not exceed your vehicle manufacturer's recommended towing capacity.
Non-trailer loads must be supported by auxiliary stabilizing straps, or the warranty is voided.
