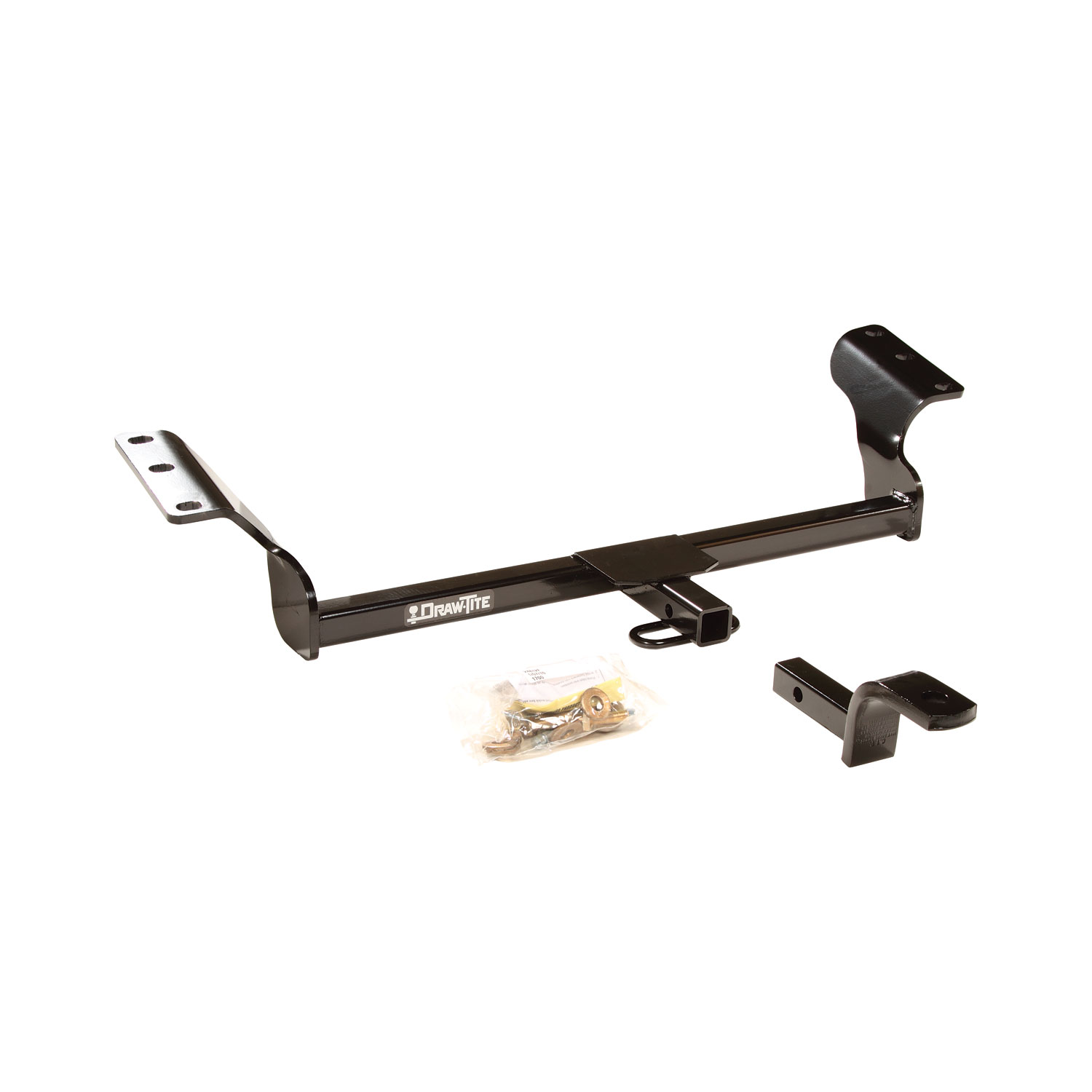

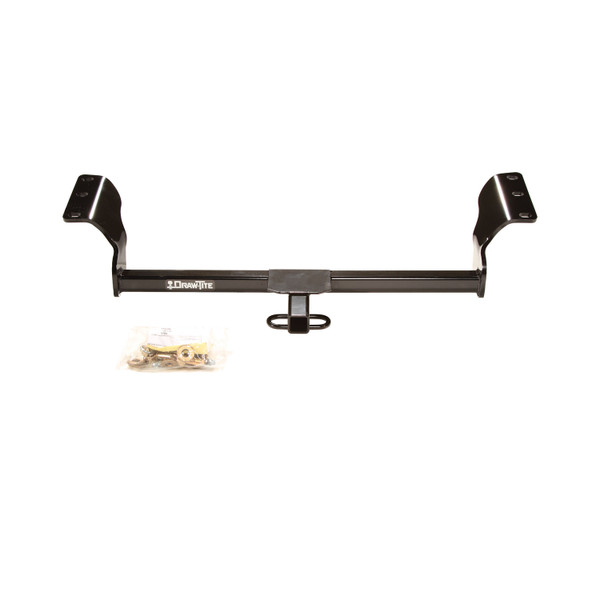

These dependable custom hitches are manufactured for 2003-2010 Pontiac Vibe, 2003-2014 Toyota Matrix and attach to your vehicle?s frame or bumper for a sleek, clean appearance. Each hitch also has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. DRAW-TITE Class 1 custom trailer hitches come complete with all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. So, whether you are headed out to the campground and need a place for the cooler, taking the bikes to hit the trails in the park, or you are tackling a DIY project (maybe some landscaping or a home repair), choose DRAW-TITE and travel with confidence knowing your setup is connected with the security only DRAW-TITE can provide. DRAW-TITE: North America?s Favorite Hitch.
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2003 | Pontiac Vibe | — |

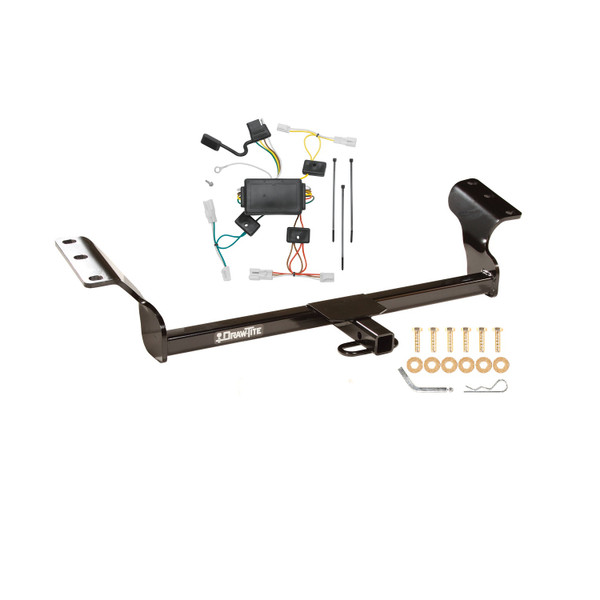

The 2003-2008 Pontiac Vibe Draw-tite Class 1 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB24812-118458) fits 2003 Pontiac Vibe models. The 2003 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2003-2008 Pontiac Vibe Draw-tite Class 1 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB24812-118458) fits the following vehicles: 2003 Pontiac Vibe. Always verify your specific year, make, and model before ordering.
Yes, the 2003-2008 Pontiac Vibe Draw-tite Class 1 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB24812-118458) is designed to fit the 2003 Pontiac Vibe.
The 2003-2008 Pontiac Vibe Draw-tite Class 1 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB24812-118458) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, part number 24812 is designed for Toyota Matrix and Pontiac Vibe vehicles. However, if you own a Toyota Matrix XRS or XR Sport model, the center fascia must be removed before installation. The center fascia is sold separately.
The maximum gross trailer weight is 2000 LB (908 kg) and the maximum tongue weight is 200 LB (91 kg). However, you must not exceed the lower of the towing vehicle manufacturer's rating or these specifications.
You need a 19mm wrench. No drilling is required. The hitch uses existing factory weld nuts on the frame rails, so no additional holes need to be created.
The hitch assembly includes 6 M12 x 1.25 x 40mm CL10.9 bolts and 6 conical 1/2" washers. A separate fastener kit 24812F is available if additional fasteners are needed.
1. Raise the hitch into position. 2. Install the 6 M12 x 1.25 x 40mm bolts with conical washers into the existing factory weld nuts on both frame rails, as shown in the diagram. The fasteners are installed on both sides of the vehicle.
All M12 CL10.9 fasteners must be tightened to 92 Lb.-Ft. (125 N·M) using a torque wrench.
Center fascia removal is required only for Toyota Matrix XRS and XR Sport models. The center fascia must be removed for hitch installation on these models and is sold separately. Other Matrix and Vibe models do not require fascia removal.
Observe safety precautions when working beneath the vehicle and wear eye protection. Do not cut access or attachment holes with a torch. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. A damaged hitch or ball must be removed and replaced immediately.
The drawbar kit is part number 3593 and is sold separately. It is not included with the hitch assembly. The drawbar must be used in the raised position only.
The wiring access location is SUV3 or SUV4, depending on your vehicle configuration.
Yes, it fits both vehicles. If you have a Matrix XRS or XR Sport, the center fascia (sold separately) must be removed.
No, drilling is not required. The hitch fastens to existing factory weld nuts on the frame rails.
All M12 CL10.9 fasteners must be tightened to 92 Lb.-Ft. (125 N·M).
Maximum gross trailer weight is 2000 LB (908 kg); maximum tongue weight is 200 LB (91 kg). Do not exceed your vehicle manufacturer's towing rating.
The drawbar must be used in the raised position only. Do not operate with the drawbar in any other position.
The T-Connector is a trailer wiring interface for Pontiac Vibe vehicles. It connects to the vehicle's taillight wiring harness and provides a 4-flat connector for trailer lighting. The product includes a black box module, wiring harness with colour-coded wires (yellow, brown, red, and green), grounding wire (white), double-sided tape, cable ties, an eyelet, and a screw for grounding.
Yes, the T-Connector 118458-037 is designed for the Pontiac Vibe. The manual provides installation instructions specific to this vehicle model, including access points for the spare tire area and taillight wiring harness connectors.
You need a drill with a 3/32" drill bit and a Phillips head screwdriver. The 3/32" bit is used to drill the grounding hole. All other fasteners and hardware are provided with the T-Connector.
The T-Connector includes: a black box module, colour-coded wiring harness (yellow, brown, red, and green wires), white grounding wire, double-sided tape for mounting the black box, cable ties for securing the harness, an eyelet, and a screw for the grounding connection. A 4-flat connector is referenced for storage but the manual does not specify whether it is included.
You must remove: the rear tailgate, cargo nets, cargo floor hatch, the spare tire cover (by unscrewing the nut holding it), and the access panel doors on both driver and passenger sides. All removed items should be set aside carefully to avoid damage and replaced after installation.
On both driver and passenger sides, locate the vehicle's taillight wiring harness. Separate the existing connector carefully without breaking the locking tabs. Ensure all connector surfaces are clean and free of dirt. On the driver's side, attach both ends of the T-Connector containing the yellow, brown, and red wires. On the passenger's side, attach the T-Connector end containing the green wire. Be careful not to damage the locking tabs and ensure connectors are fully inserted with locking tabs in place.
Locate the access hole on the driver's side between the spare tire and the rear threshold. Route the T-Connector end with the yellow wire and the end with brown and red wires up through this hole to the access panel. The green wire end is routed to the passenger's side following the same process.
Locate a suitable grounding point on the vehicle. Do not drill into the vehicle floor, bed, or any exposed surfaces. Clean dirt and rustproofing from the area before drilling. Drill a 3/32" hole and secure the white grounding wire using the eyelet and screw provided.
Use a 3/32" drill bit to create the grounding hole. This hole is used to secure the white grounding wire with the provided eyelet and screw.
Mount the black box using the double-sided tape provided. Secure the remainder of the T-Connector harness with the cable ties provided to prevent damage or rattling. Be careful to avoid any areas that would pinch, cut, or melt the wire.
The T-Connector has the following maximum ratings: stop/turn light maximum 1 per side (2.1 amps), and tail lights maximum (5 amps). Do not exceed the lower of the towing manufacturer's rating or these limits, as overloading the circuit can cause fires.
All connections must be complete for the T-Connector to function properly. Test and verify the installation with a test light or by connecting a trailer once installed. This ensures all wiring is correct and the system is functioning safely.
Replace both access panels, spare tire cover, cargo floor hatch, and cargo nets that were removed during installation. Ensure all components are securely reinstalled. When not in use, store the 4-flat connector in the trunk or rear cargo area.
Wear safety glasses during installation. Before drilling, verify what is behind any surface to avoid damage to the vehicle and personal injury. Do not drill into the vehicle floor, bed, or exposed surfaces. Be careful not to break the locking tabs on connectors. Avoid pinching, cutting, or melting the wires when securing the harness. Read the vehicle's owner's manual and instruction sheet for additional information.
Yes. When you separate the vehicle's existing taillight connector, ensure all connector surfaces are clean and free of dirt before attaching the T-Connector ends. This ensures proper electrical contact.
Yes, the T-Connector 118458-037 is designed specifically for the Pontiac Vibe.
You need a drill with a 3/32" bit and a Phillips head screwdriver. All fasteners and hardware are included.
Yes, you must drill a 3/32" hole for the grounding wire. Do not drill into the vehicle floor, bed, or exposed surfaces.
Maximum 2.1 amps per side for stop/turn lights and 5 amps for tail lights. Do not exceed the lower of the towing manufacturer's rating or these limits.
Test the installation with a test light or by connecting a trailer. All connections must be complete for proper function.
