These dependable custom hitches are manufactured for 2003-2010 Pontiac Vibe, 2003-2014 Toyota Matrix and attach to your vehicle?s frame or bumper for a sleek, clean appearance. Each hitch also has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. DRAW-TITE Class 1 custom trailer hitches come complete with all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. So, whether you are headed out to the campground and need a place for the cooler, taking the bikes to hit the trails in the park, or you are tackling a DIY project (maybe some landscaping or a home repair), choose DRAW-TITE and travel with confidence knowing your setup is connected with the security only DRAW-TITE can provide. DRAW-TITE: North America?s Favorite Hitch.
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 1996 - 1999 | Toyota Matrix | — |

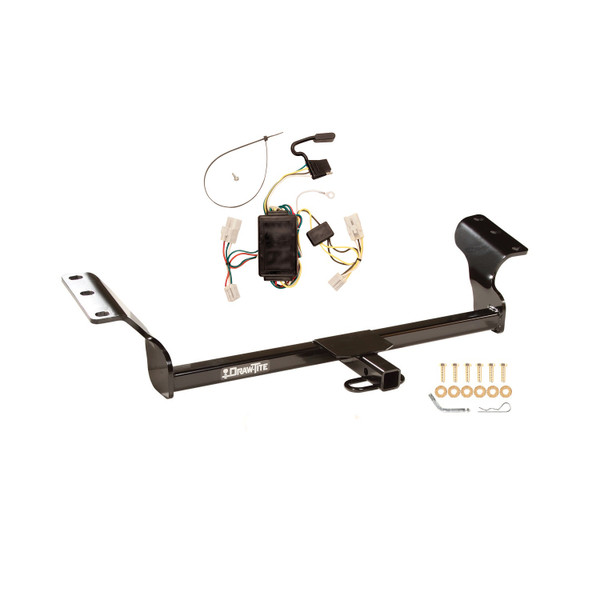

Yes, the 2003-2008 Toyota Matrix Draw-tite Class 1 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB24812-118386) is designed to fit the 1996-1999 Toyota Matrix.
The 2003-2008 Toyota Matrix Draw-tite Class 1 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB24812-118386) fits 1996-1999 Toyota Matrix models. The 1999 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2003-2008 Toyota Matrix Draw-tite Class 1 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB24812-118386) fits the following vehicles: 1996-1999 Toyota Matrix. Always verify your specific year, make, and model before ordering.
The 2003-2008 Toyota Matrix Draw-tite Class 1 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB24812-118386) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, part number 24812 is designed for Toyota Matrix and Pontiac Vibe vehicles. However, if you own a Toyota Matrix XRS or XR Sport model, the center fascia must be removed before installation. The center fascia is sold separately.
The maximum gross trailer weight is 2000 LB (908 kg) and the maximum tongue weight is 200 LB (91 kg). However, you must not exceed the lower of the towing vehicle manufacturer's rating or these specifications.
You need a 19mm wrench. No drilling is required. The hitch uses existing factory weld nuts on the frame rails, so no additional holes need to be created.

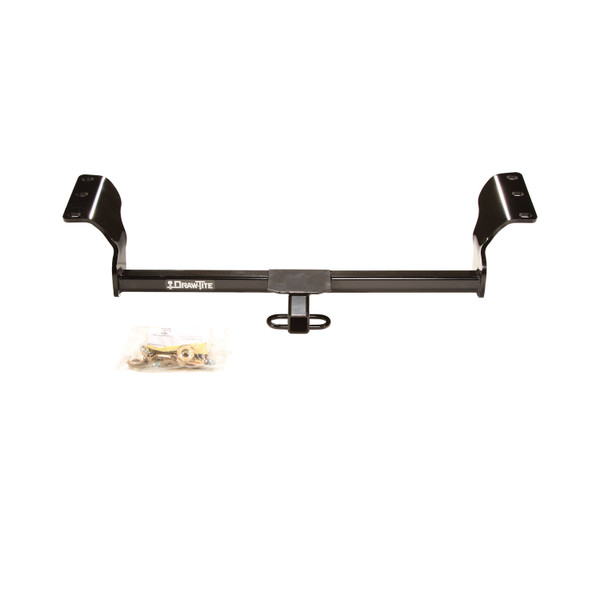

The hitch assembly includes 6 M12 x 1.25 x 40mm CL10.9 bolts and 6 conical 1/2" washers. A separate fastener kit 24812F is available if additional fasteners are needed.
1. Raise the hitch into position. 2. Install the 6 M12 x 1.25 x 40mm bolts with conical washers into the existing factory weld nuts on both frame rails, as shown in the diagram. The fasteners are installed on both sides of the vehicle.
All M12 CL10.9 fasteners must be tightened to 92 Lb.-Ft. (125 N·M) using a torque wrench.
Center fascia removal is required only for Toyota Matrix XRS and XR Sport models. The center fascia must be removed for hitch installation on these models and is sold separately. Other Matrix and Vibe models do not require fascia removal.
Observe safety precautions when working beneath the vehicle and wear eye protection. Do not cut access or attachment holes with a torch. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. A damaged hitch or ball must be removed and replaced immediately.

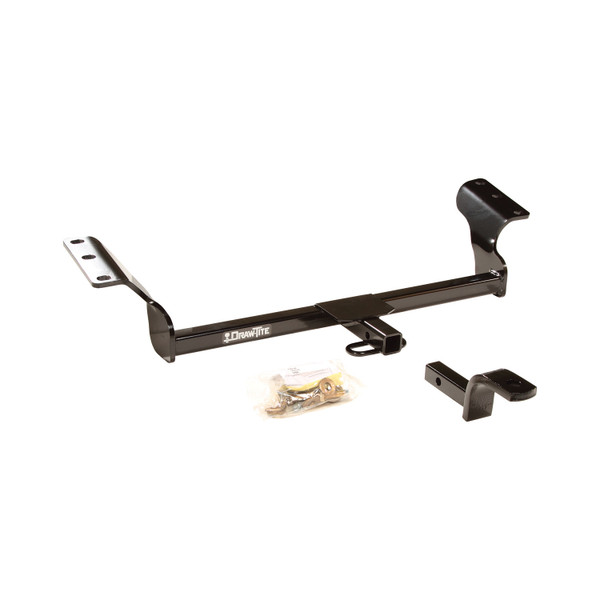

The drawbar kit is part number 3593 and is sold separately. It is not included with the hitch assembly. The drawbar must be used in the raised position only.
The wiring access location is SUV3 or SUV4, depending on your vehicle configuration.
Yes, it fits both vehicles. If you have a Matrix XRS or XR Sport, the center fascia (sold separately) must be removed.
No, drilling is not required. The hitch fastens to existing factory weld nuts on the frame rails.
All M12 CL10.9 fasteners must be tightened to 92 Lb.-Ft. (125 N·M).
Maximum gross trailer weight is 2000 LB (908 kg); maximum tongue weight is 200 LB (91 kg). Do not exceed your vehicle manufacturer's towing rating.
The drawbar must be used in the raised position only. Do not operate with the drawbar in any other position.
The T-Connector is designed for Toyota Matrix, Pontiac Vibe, and Toyota Echo only. If your vehicle is not one of these models, this product will not fit. Verify your vehicle model before purchasing.
The T-Connector is a trailer wiring connector that taps into your vehicle's taillight wiring harness to provide power for trailer lights. It includes a black box module and a 4-flat connector for storing in your trunk or rear cargo area when not in use.
You will need a Philips head screwdriver and a drill with a 3/32" drill bit. These are the only tools required for installation.
The T-Connector includes double-sided tape for mounting the black box, cable ties for securing the harness, an eyelet and screw for grounding the white wire, and a 4-flat connector for storage when not in use.
The manual does not specify whether the battery must be disconnected. Consult your vehicle's owner's manual or contact the manufacturer for guidance on this safety requirement.
Open the rear tailgate and remove the cargo nets and cargo floor hatch to access the spare tire area. Unscrew the nut holding the spare tire cover and remove it. Remove the access panel doors on both sides to access the vehicle's wiring connectors.
Open the trunk and remove the threshold panel. Partially remove the corner felt trunk liner on both sides to expose the vehicle's taillight wiring harness.
On both the driver and passenger sides of the vehicle, locate the taillight wiring harness. The harness will have a connection point on each side that matches the ends of the T-Connector. Ensure all connector surfaces are clean and free of dirt before proceeding.
The T-Connector has a yellow wire end and a green wire end. The yellow wire end is routed through the access hole on the driver's side (Matrix/Vibe only) and inserted into the driver's side taillight connector. The green wire end is routed to the passenger's side and inserted into the passenger's side taillight connector.
Separate the vehicle's taillight connector carefully without breaking the locking tabs. Insert the T-Connector end (yellow wire for driver's side, green wire for passenger's side) between the vehicle wiring connectors and lock into place. Ensure connectors are fully inserted with locking tabs in place.
Yes. You must drill a 3/32" hole to secure the white grounding wire using the eyelet and screw provided. Before drilling, verify what is behind the surface to avoid damage to the vehicle or personal injury. Do not drill into any exposed surfaces.
Drill a 3/32" hole for the white grounding wire. This hole is used to secure the eyelet and screw provided with the T-Connector.
Locate a suitable grounding point on the vehicle and clean any dirt from the area. Drill a 3/32" hole and secure the white wire using the eyelet and screw provided. Before drilling, verify what is behind the surface to avoid damage to the vehicle or personal injury.
Mount the T-Connector black box using the double-sided tape provided. Secure the remainder of the T-Connector harness with the cable ties provided to prevent damage or rattling. Be careful to avoid areas that would cut or pinch the wire.
Route the T-Connector end with the yellow wire up through the access hole on the driver's side (Matrix/Vibe only) to the access panel. Route the T-Connector end with the green wire to the passenger's side. Secure the harness with cable ties to prevent damage or rattling, avoiding areas that would cut or pinch the wire.
Replace both access panels, the spare tire cover, cargo floor hatch, and cargo nets that were removed during installation.
Reposition the trunk liner and reattach the threshold panel.
Do not exceed the lower of the towing manufacturer rating or: maximum stop/turn light 1 per side (2.1 amps), maximum tail lights (5 amps). Overloading the circuit can cause fires. Consult your vehicle's owner's manual and the T-Connector instruction sheet for additional information.
All connections must be complete for the T-Connector to function properly. Test and verify the installation with a test light or trailer once installed.
Store the 4-flat connector in the trunk or rear cargo area when not in use.
Yes, the T-Connector (18386-037) is designed for Toyota Matrix, Pontiac Vibe, and Toyota Echo only. Verify your vehicle model before purchasing.
Do not exceed 2.1 amps per side for stop/turn lights or 5 amps for tail lights. Do not exceed the lower of the towing manufacturer rating or these limits. Overloading can cause fires.
The T-Connector has a yellow wire end for the driver's side and a green wire end for the passenger's side. The white wire is for grounding.
