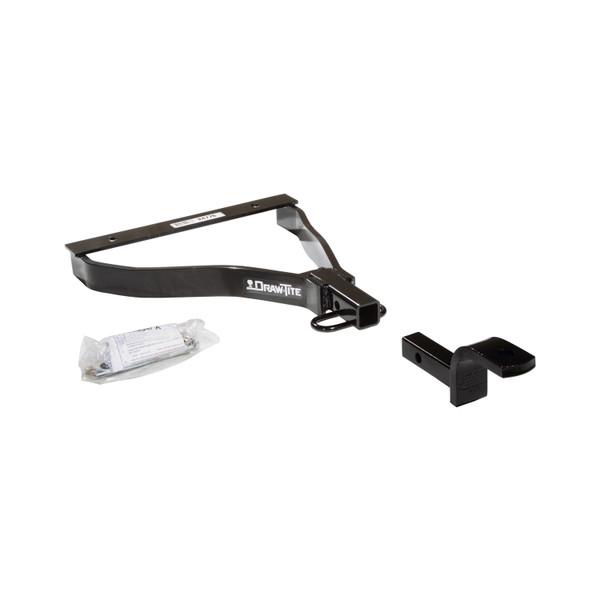

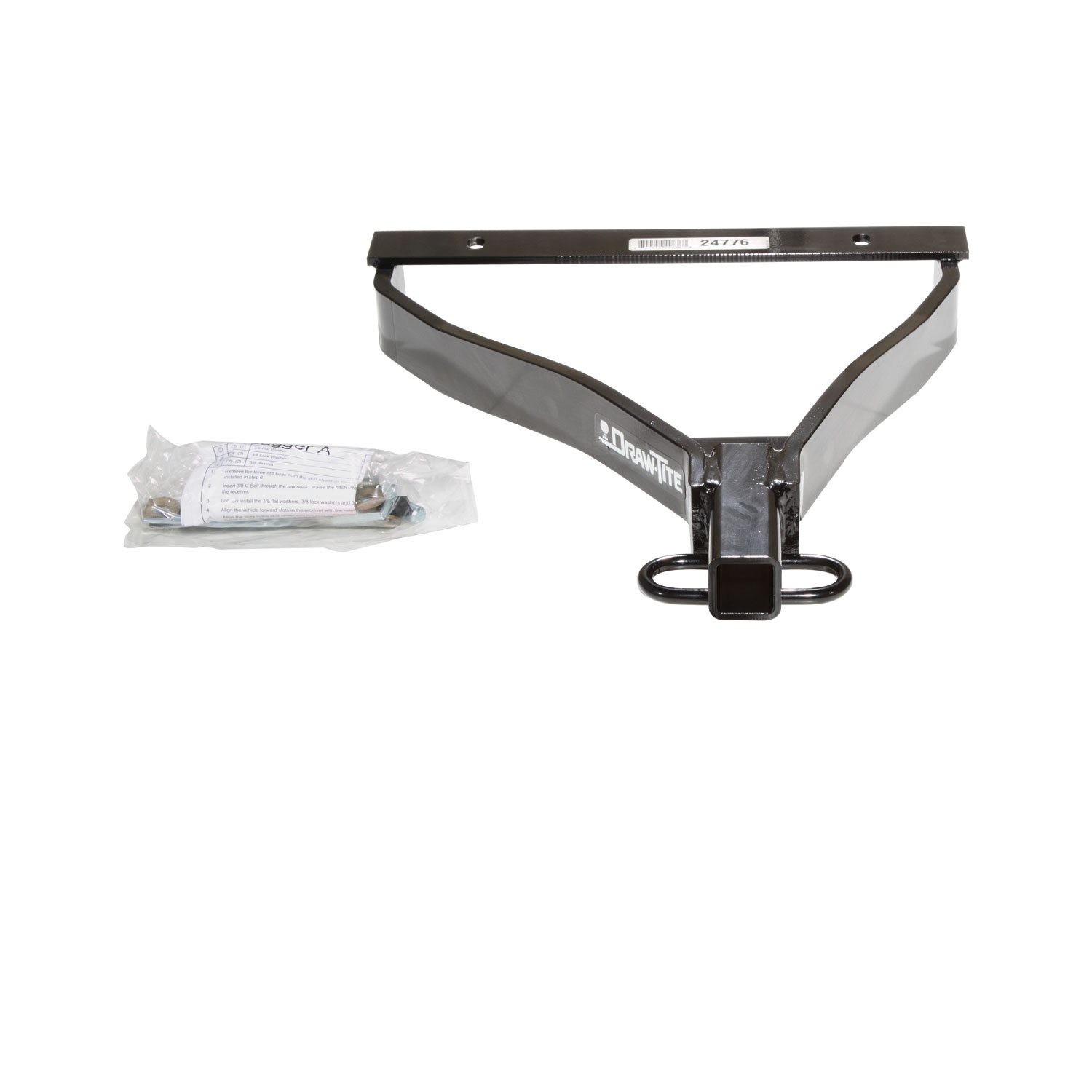

These dependable custom hitches are manufactured for 2007-2008 Honda Fit and attach to your vehicle?s frame or bumper for a sleek, clean appearance. Each hitch also has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. DRAW-TITE Class 1 custom trailer hitches come complete with all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. So, whether you are headed out to the campground and need a place for the cooler, taking the bikes to hit the trails in the park, or you are tackling a DIY project (maybe some landscaping or a home repair), choose DRAW-TITE and travel with confidence knowing your setup is connected with the security only DRAW-TITE can provide. DRAW-TITE: North America?s Favorite Hitch.
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions

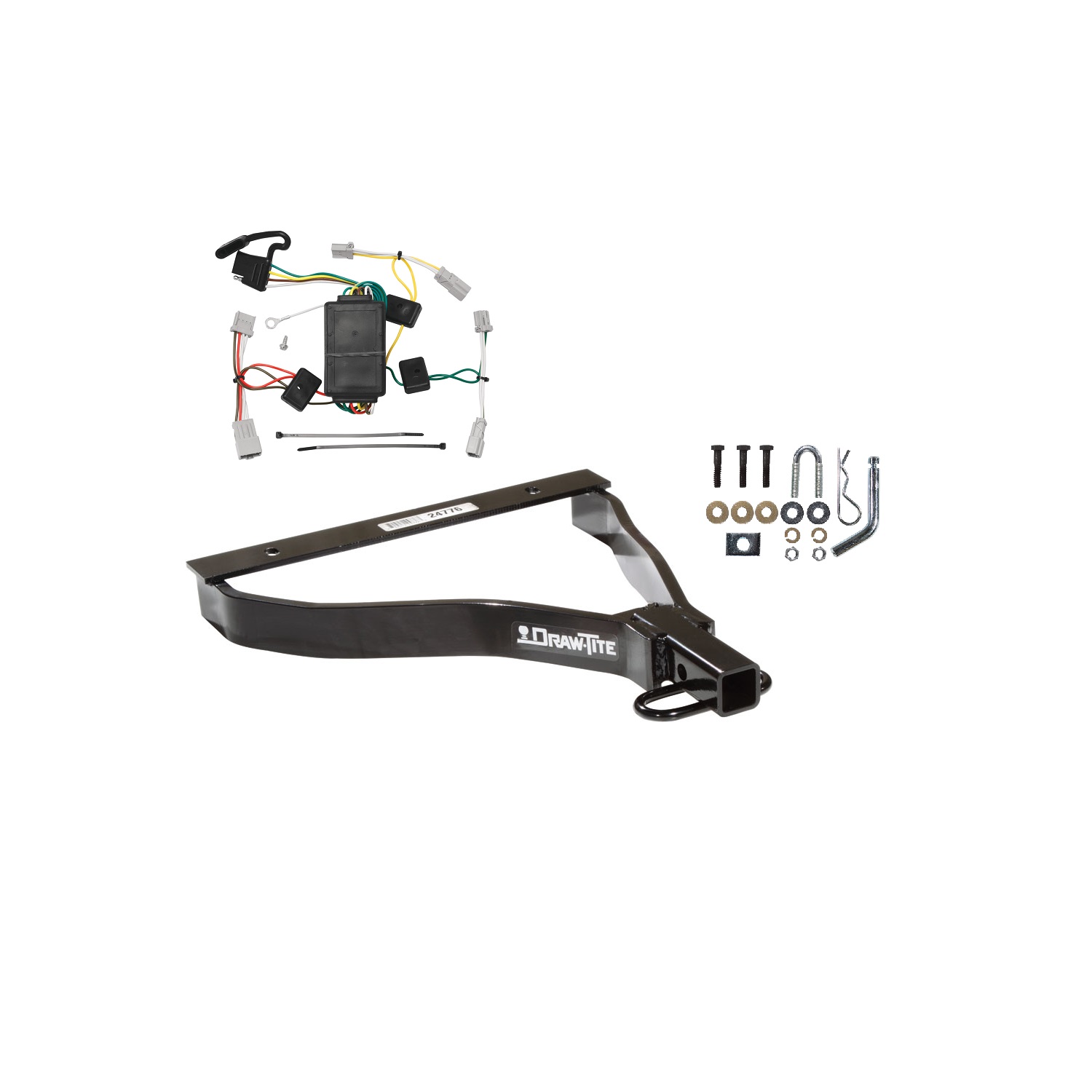

Call 888-634-9494Yes, the 2007-2008 Honda Fit Draw-tite Class 1 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB24776-118420) is designed to fit the 2004-2018 Honda Fit.
The 2007-2008 Honda Fit Draw-tite Class 1 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB24776-118420) fits 2004-2018 Honda Fit models. The 2018 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2007-2008 Honda Fit Draw-tite Class 1 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB24776-118420) fits the following vehicles: 2004-2018 Honda Fit. Always verify your specific year, make, and model before ordering.
The 2007-2008 Honda Fit Draw-tite Class 1 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB24776-118420) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, this hitch (part numbers 77153, 24776, 60847) is designed for Honda Fit and Honda Fit Sport vehicles. The installation instructions are specific to these models.
The maximum gross trailer weight is 2000 LB (908 kg) and the maximum tongue weight is 200 LB (90.8 kg). Do not exceed the lower of your vehicle manufacturer's towing rating or these limits.
This hitch requires a ½" pin and clip.
You will need wrenches in the following sizes: 12mm, 13mm, and 11/16". No drill bits are required for this installation.
No, drilling is not required. The installation uses existing holes in the vehicle's tow hook bracket and crossmember.
Yes. Step 1 requires you to remove three M8 bolts from the skid shield on the underside of the vehicle trunk pan. However, do not discard the skid shield—it will be reinstalled in step 6 as part of the final assembly.
1. Insert the 3/8 U-bolt through the tow hook. 2. Raise the hitch into position, aligning the U-bolt with the holes in the tow hook bracket of the receiver. 3. Loosely install the 3/8 flat washers, 3/8 lock washers, and 3/8 hex nuts to the tow hook attachment. 4. Align the vehicle forward slots in the receiver with the holes in the vehicle crossmember. 5. Align the slots in the skid shield with the slots in the receiver and install the 3/8 conical toothed washers and M8 hex bolts. 6. Tighten all fasteners to the required torque specifications.
The block is placed between the skid shield and the vehicle trunk pan at the vehicle rearward skid shield attachment point. It is used as a spacer before installing the 3/8 conical toothed washer and M8 hex bolt at that location.
All M8 CL8.8 fasteners must be tightened with a torque wrench to 20 Lb.-Ft. (27 N·M).
All 3/8-16 GR5 fasteners must be tightened with a torque wrench to 30 Lb.-Ft. (41 N·M).
Fasteners should be left loose during initial assembly. Step 3 specifies to "loosely install" the 3/8 flat washers, 3/8 lock washers, and 3/8 hex nuts to the tow hook attachment. All fasteners are tightened to their final torque specifications only in step 6, after all components are aligned.

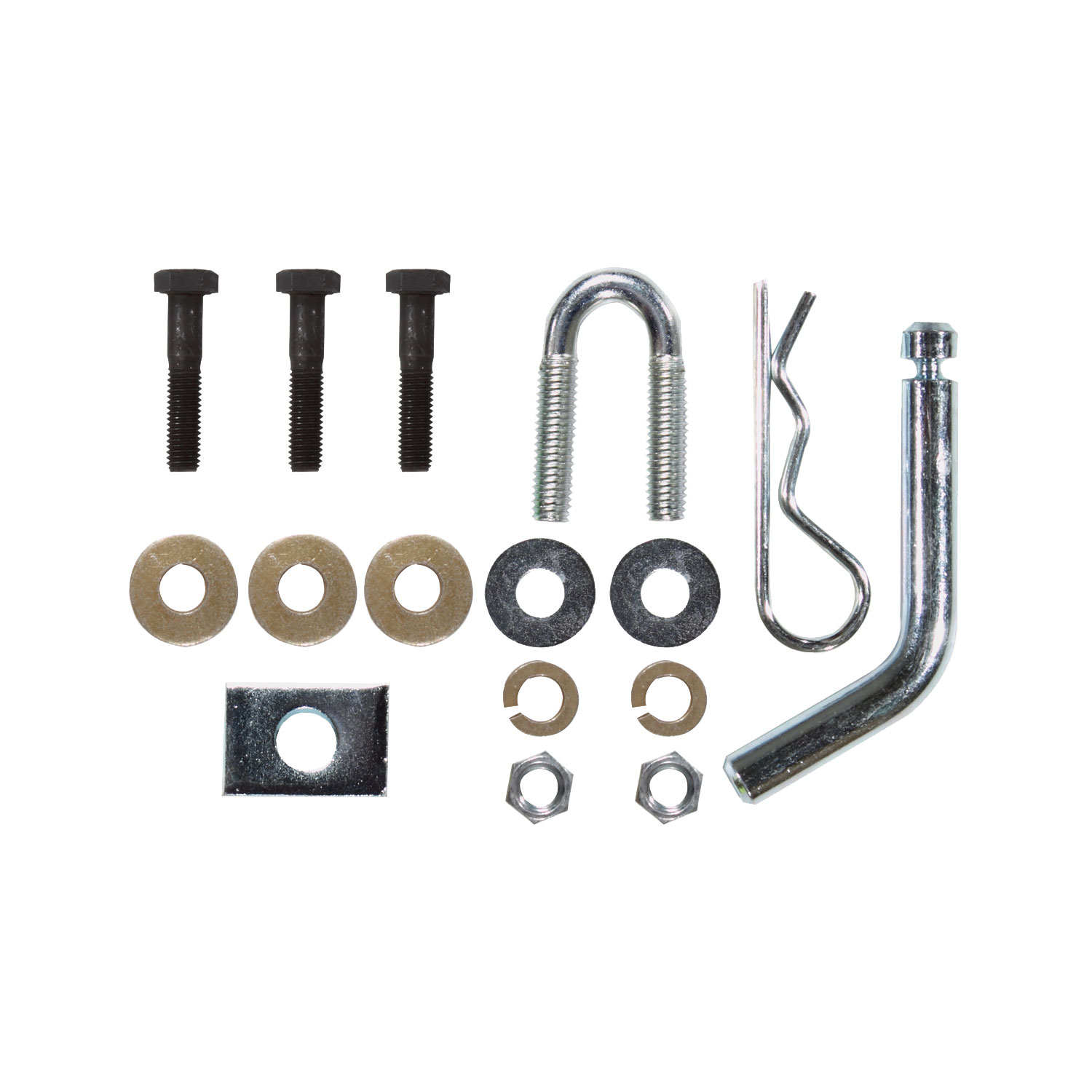

The hitch includes: 1× 3/8-16 U-bolt, 2× 3/8 flat washers, 2× 3/8 lock washers, 2× 3/8 hex nuts, 3× M8-1.25 × 40 GR 8.8 hex bolts, 3× 3/8 conical toothed washers, and 1× 1/4 × 1.00 × 1.50 block. The three M8 bolts from the original skid shield are reused.
The drawbar must be used in the rise position only. Do not use it in any other position.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch. If the hitch or ball becomes damaged, it should be removed and replaced immediately.
Check the hitch frequently, making sure all fasteners and the ball are properly tightened. The manual does not specify an exact interval, but regular inspection is essential for safe towing.
The drawbar kit (part 3593) is listed separately and is sold separately from the hitch. You will need to purchase it if you require a drawbar.
Yes, this hitch (part numbers 77153, 24776, 60847) is designed for Honda Fit and Honda Fit Sport models.
You need wrenches in 12mm, 13mm, and 11/16" sizes. No drilling is required.
No, no drilling is required. The hitch uses existing holes in the vehicle's tow hook bracket and crossmember.
Maximum gross trailer weight is 2000 LB (908 kg) and maximum tongue weight is 200 LB (90.8 kg). Do not exceed your vehicle manufacturer's towing rating.
M8 CL8.8 fasteners: 20 Lb.-Ft. (27 N·M). 3/8-16 GR5 fasteners: 30 Lb.-Ft. (41 N·M). Use a torque wrench for all fasteners.
Wear eye protection when working beneath the vehicle. Do not cut holes with a torch. Check the hitch frequently to ensure all fasteners and the ball are properly tightened. If damaged, remove and replace the hitch immediately.
This hitch requires a ½" pin and clip.

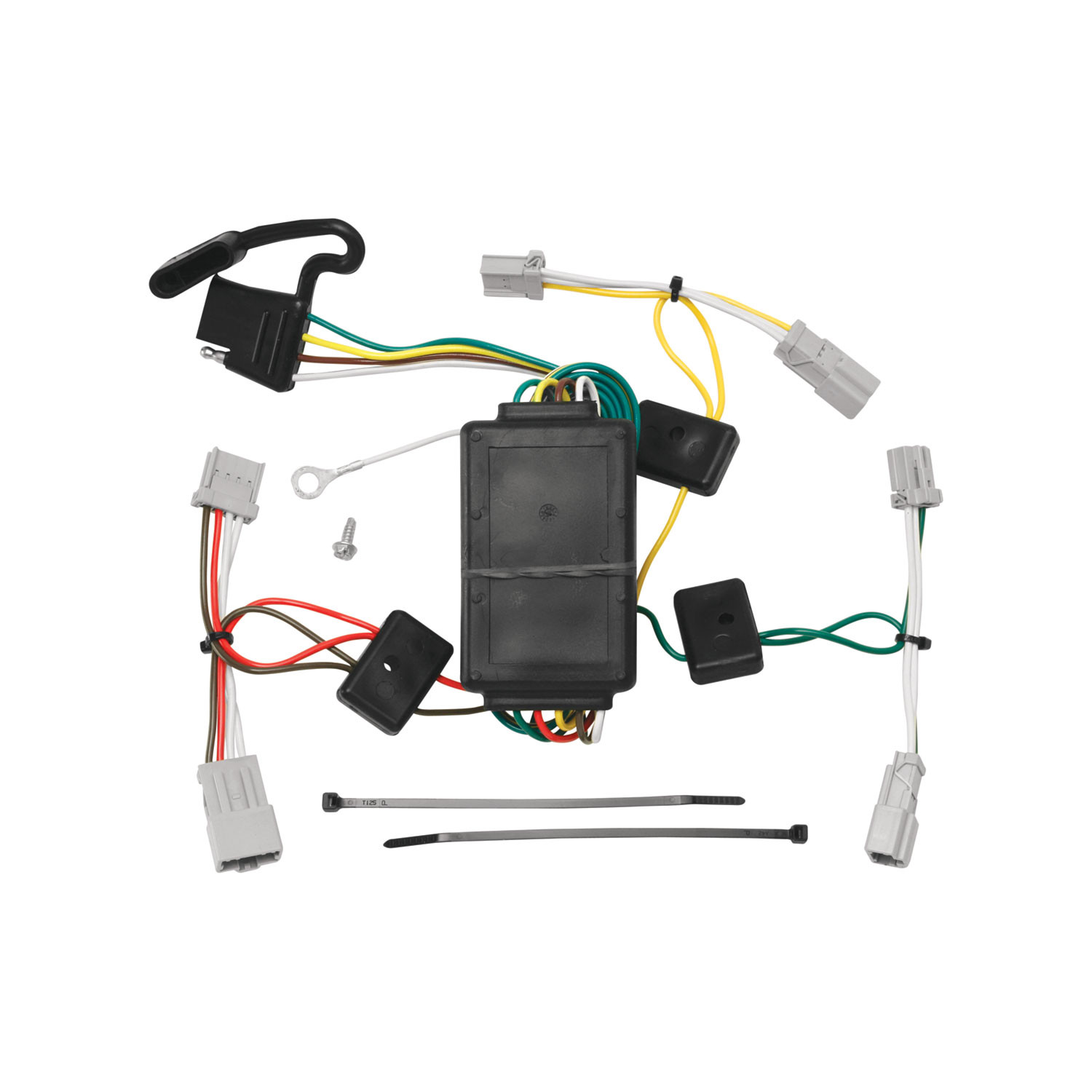

The T-Connector 118420-037 is designed for 07-08 Honda Fit, Honda Civic 4 Door, Mazda 3 (All Models), Honda Accord 4 Door Sedan, and Honda Accord Sedan. If your vehicle is not listed, it is not compatible with this product.
For 07-08 Honda Fit only, you must use the vehicle's blue 3-pin housing, not the green 3-pin housing. Using the wrong connector will prevent proper function.
You will need: Philips head screwdriver, trim panel remover, drill with 3/32" drill bit, and 1/4" socket.
Open the trunk or hatch and locate the vehicle wiring inside the rear cargo area. Partially remove the plastic threshold cover, side access panels, or carpet panels and cargo trays to access the connection points at the back of each taillight housing.
1. On the driver's side, attach both ends of the T-Connector containing the yellow, brown, and red wires to the driver's side taillight housing. 2. Route the T-Connector containing the green wire below the threshold cover to the passenger's side taillight housing. 3. Attach the green wire connector to the passenger's side taillight housing. Be careful not to damage the locking tabs and ensure connectors are fully inserted with locking tabs in place.
Be careful not to break the locking tabs when separating the original connectors. When attaching the T-Connector, ensure that connectors are fully inserted with locking tabs in place. Do not damage the locking tabs during insertion.
Yes. All connector surfaces should be clean and free of dirt before connecting the T-Connector. Clean the area to ensure proper electrical contact.
Drilling is required only for the ground wire connection. You must locate a suitable grounding point near the connector, such as an existing ground stud, or drill a 3/32" hole to secure the white wire using the eyelet and screw provided. Do not drill into the vehicle floor or bed. Do not drill into any exposed surfaces. Before drilling, verify what is behind the surface to avoid damage to the vehicle or personal injury.
Use a 3/32" drill bit to create the hole for the ground wire connection.
No. Do not drill into the vehicle floor or bed. Locate an existing ground stud or drill in an appropriate location that does not penetrate the floor or bed structure.
Yes. Clean dirt and rustproofing from the area where you will secure the white ground wire using the eyelet and screw provided. This ensures proper electrical contact.
Reinstall the plastic trim panels, threshold, storage covers, floor covering, and other items removed during installation. Be careful not to pinch or cut the wires when reinstalling these components.
All connections must be complete for the T-Connector to function properly. Test and verify the installation with a test light or by connecting a trailer once installed.
Do not exceed the lower of the towing manufacturer rating or: Maximum stop/turn light: 1 per side (2.1 amps); Maximum tail lights: 5 amps. Overloading the circuit can cause fires. Consult your vehicle's owner's manual and instruction sheet for additional information.
Store the 4-Flat connector in the trunk or hatch area when not in use.
Wear safety glasses during installation. Before drilling, verify what is behind any surface to avoid damage to the vehicle or personal injury. Do not drill into any exposed surfaces. Be careful not to pinch or cut wires when reinstalling trim panels and other components.
The T-Connector fits 07-08 Honda Fit, Honda Civic 4 Door, Mazda 3 (All Models), Honda Accord 4 Door Sedan, and Honda Accord Sedan.
Philips head screwdriver, trim panel remover, drill with 3/32" bit, and 1/4" socket.
Test and verify the installation with a test light or by connecting a trailer once installed. All connections must be complete for proper function.
Use the vehicle's blue 3-pin housing, not the green 3-pin housing.
