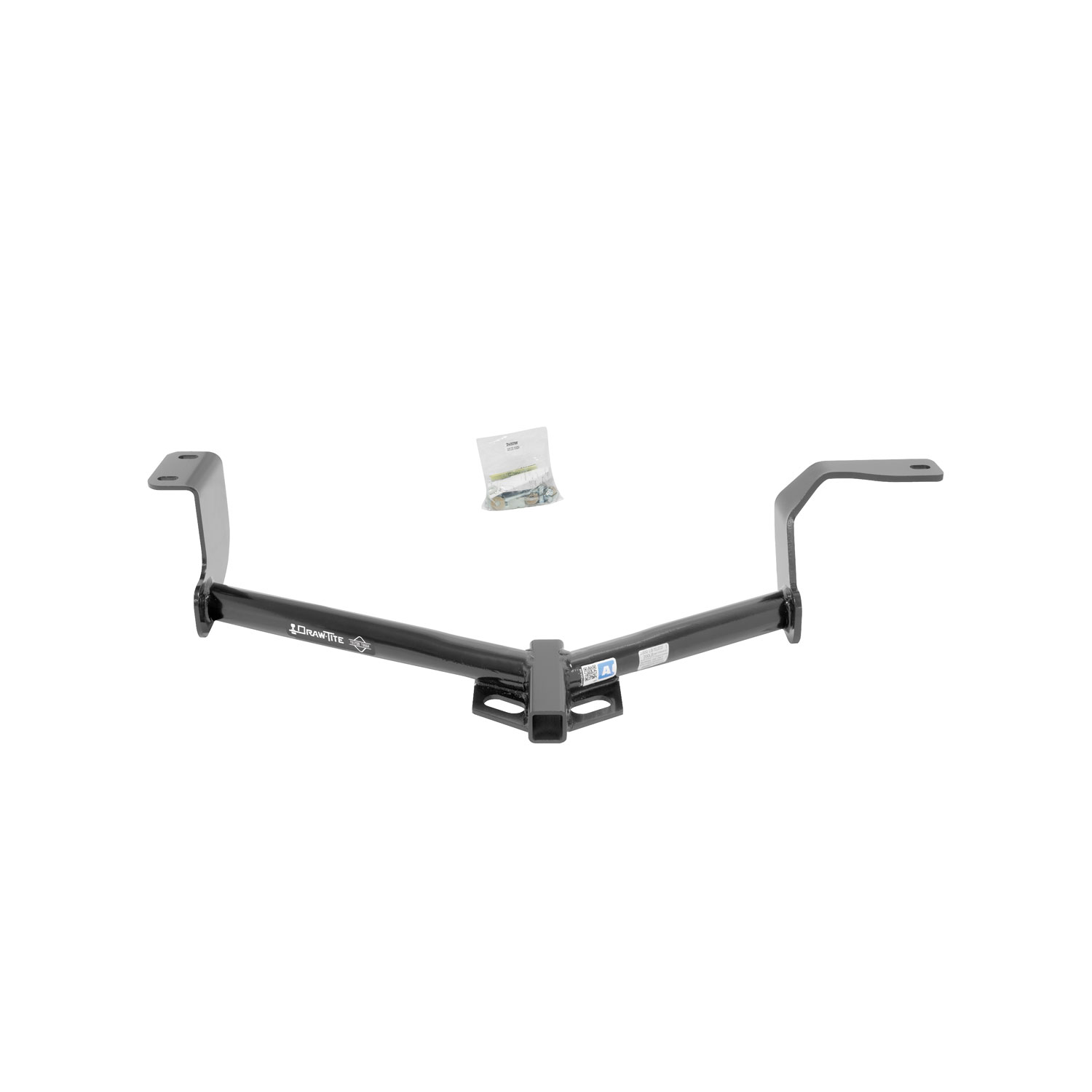

These dependable custom hitches are manufactured for 2015-2020 Honda Fit and attach to your vehicle?s frame or bumper for a sleek, clean appearance. Each hitch also has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. DRAW-TITE Class 1 custom trailer hitches come complete with all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. So, whether you are headed out to the campground and need a place for the cooler, taking the bikes to hit the trails in the park, or you are tackling a DIY project (maybe some landscaping or a home repair), choose DRAW-TITE and travel with confidence knowing your setup is connected with the security only DRAW-TITE can provide. DRAW-TITE: North America?s Favorite Hitch.
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 1985 - 1990 | Honda Fit | — |

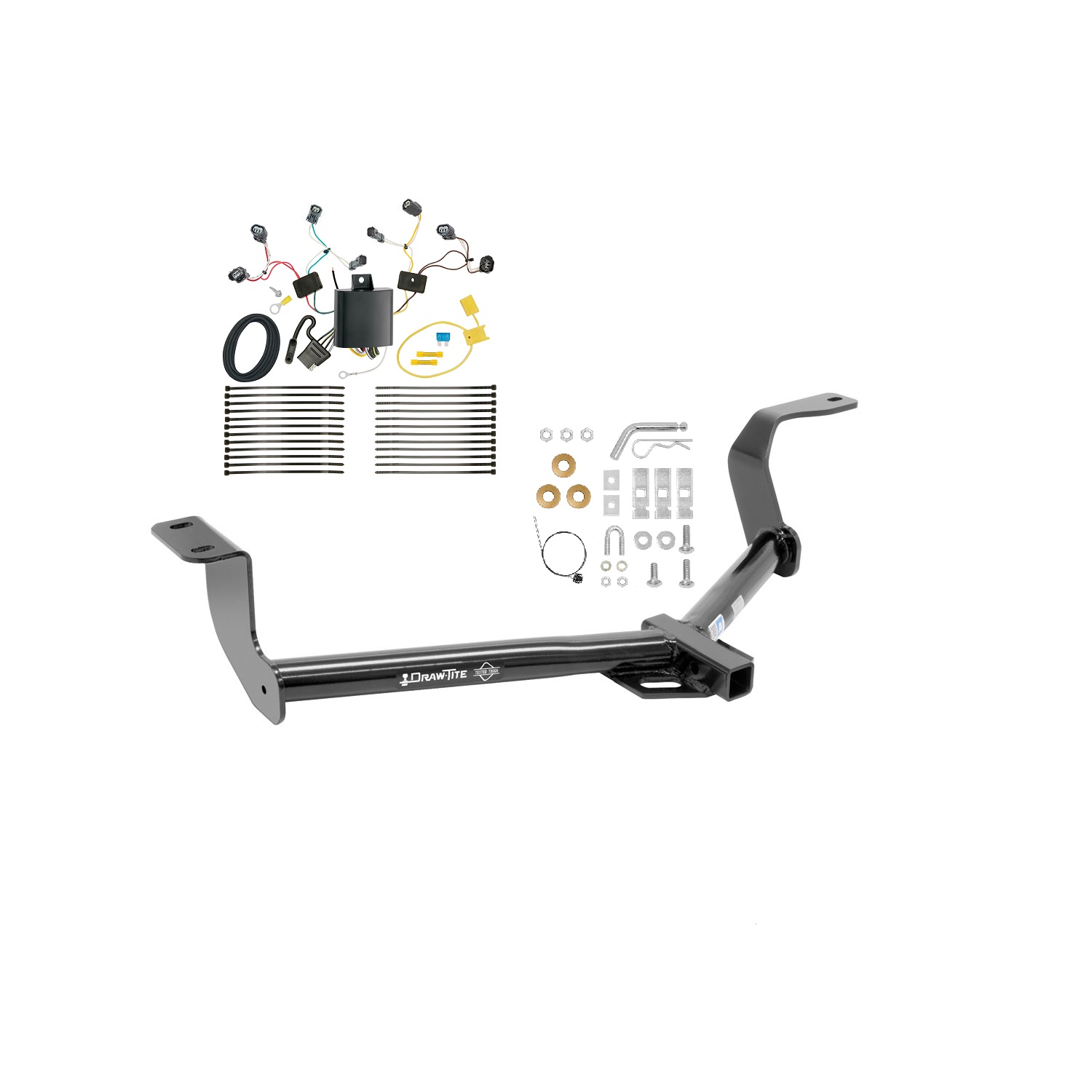

Yes, the 2015-2020 Honda Fit Draw-tite Class 1 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB24920-118767) is designed to fit the 1985-1990 Honda Fit.
The 2015-2020 Honda Fit Draw-tite Class 1 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB24920-118767) fits the following vehicles: 1985-1990 Honda Fit. Always verify your specific year, make, and model before ordering.
The 2015-2020 Honda Fit Draw-tite Class 1 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB24920-118767) fits 1985-1990 Honda Fit models. The 1990 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2015-2020 Honda Fit Draw-tite Class 1 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB24920-118767) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, part number 24920 is designed for Honda Fit. The hitch assembly includes part numbers 60353, 24920, and 77307.
No, drilling is not required. The manual lists "Drill Bits: None" under Equipment Required.
You need an 11/16" wrench, a torque wrench, pull wire, and lubricant. No drill bits are required.
Yes. You must lower the exhaust by detaching it from the rubber isolators, and after installation, bend the exhaust hanger spears downward ½" for additional muffler clearance before reattaching the exhaust.
Tighten all 7/16"-14 GR5 fasteners with a torque wrench to 55 Lb.-Ft. (75 N·M).
Tighten all 3/8"-16 GR5 fasteners with a torque wrench to 30 Lb.-Ft. (41 N·M).
Maximum Gross Trailer Weight is 2000 LB (908 kg) and Maximum Tongue Weight is 200 LB (90.8 kg). Do not exceed the lower of these ratings or the towing vehicle manufacturer's rating.

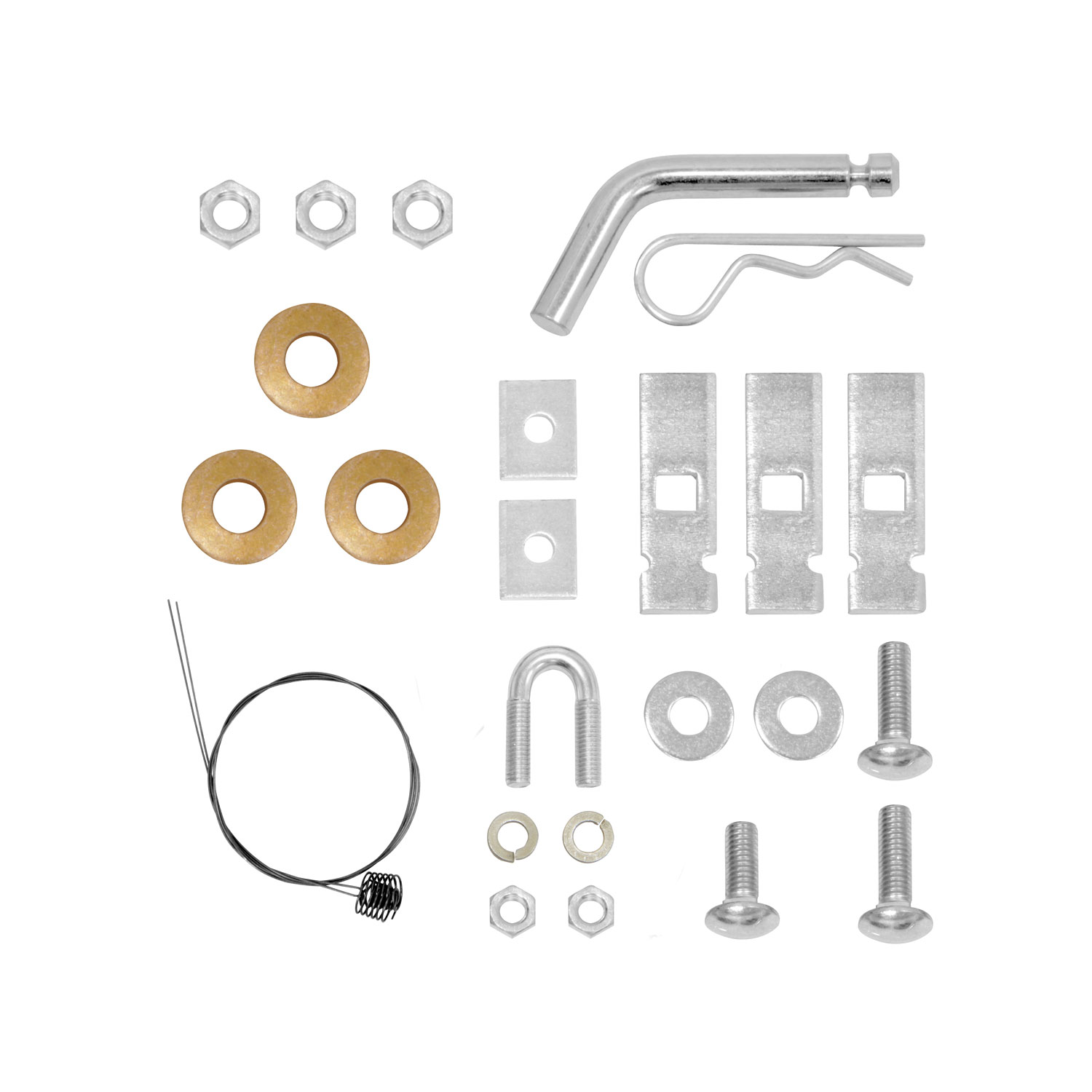

Fastener Kit 24920F includes: 1 carriage bolt 7/16" x 1-1/4" GR5, 2 carriage bolts 7/16" x 1-1/2" GR5, 2 spacers ¼" x 1" x 1.5", 3 spacers ¼" x 7/8" x 3", 3 hex nuts 7/16" GR5, 3 conical toothed washers 7/16", 1 U-bolt 3/8", 2 flat washers 3/8", 2 lock washers 3/8", and 2 hex nuts 3/8".

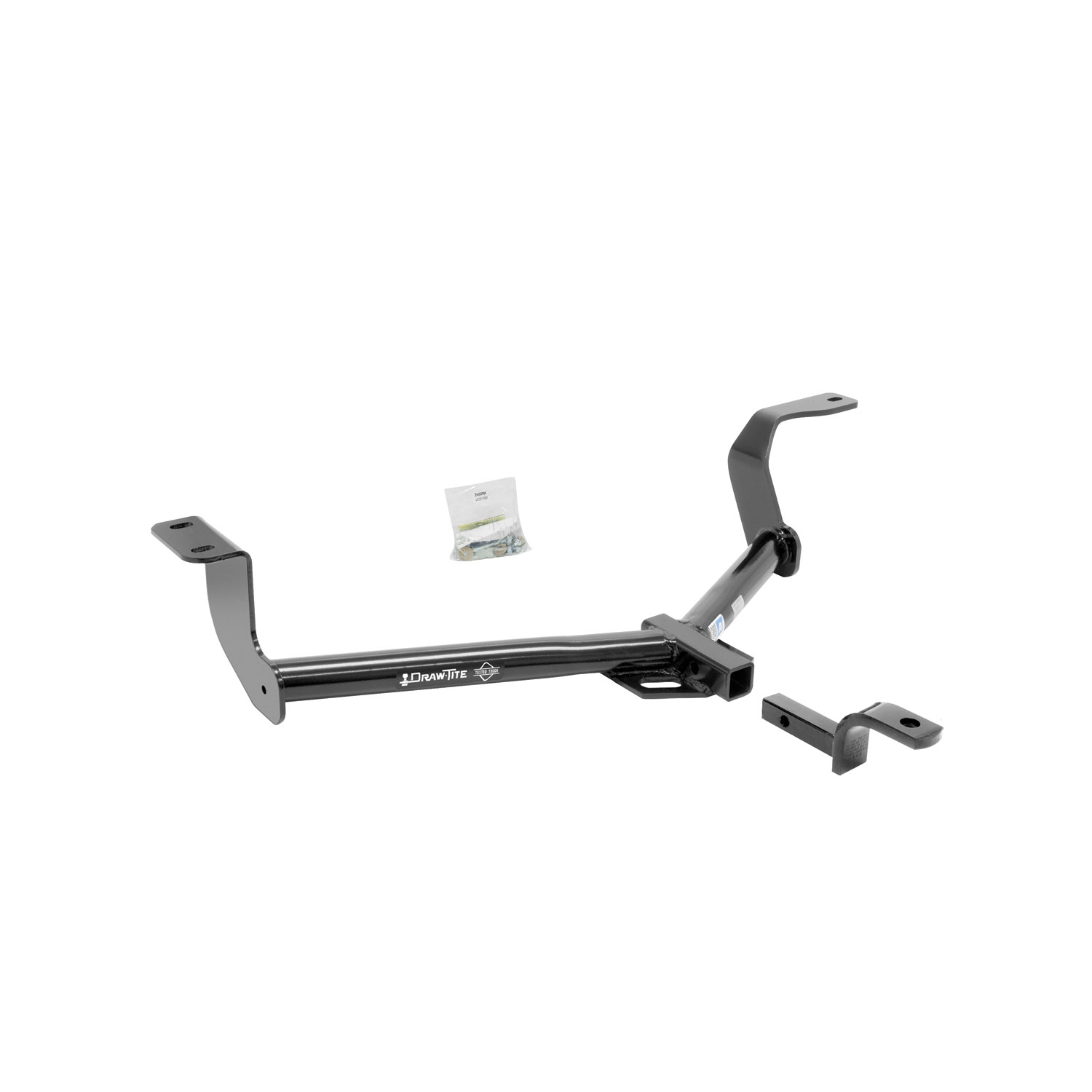

No, the drawbar is sold separately. Drawbar Kit 3593 is available as an optional purchase.
The drawbar must be used in the RISE position only.
Spraying lubricant on the rubber isolators helps with removal, making it easier to detach the exhaust from the isolators during the first step of installation.
The shorter 7/16" x 1-1/4" bolt (item 1) must be installed on the passenger side frame rail. The manual explicitly states: "shorter bolt must be on passenger side."
The Reverse Pull Wire Procedure (shown in Figure 5) is used to install carriage bolts through the frame rails. The procedure involves inserting the bolt and block into the frame, aligning the block on the access hole, and pulling the bolt through the block. This technique allows bolts to be installed without drilling.
The pull wire should remain attached until the conical washers are installed. In Step 5, you raise the hitch into position, feed the conical washers through the pull wire to hold the carriage bolts in place, then remove the pull wires and attach the hex nuts.
After hanging the U-bolt around the tow hook and through the holes on the chain plate, and installing the flat washer, lock washer, and 3/8" nuts, center the hitch before tightening all fasteners to the required torque specifications.
The conical toothed washers (item 5) are used to hold the carriage bolts in place. They are fed through the pull wire and positioned before the hex nuts are attached.
Bend the exhaust hanger spears downward ½" for additional muffler clearance. This modification is performed after raising the hitch into position and before reattaching the exhaust to the rubber isolators.
Two types of spacers are used: 2 spacers measuring ¼" x 1" x 1.5" (item 3) and 3 spacers measuring ¼" x 7/8" x 3" (item 7).
The U-bolt is 3/8" in diameter. It is hung around the tow hook and through the holes on the chain plate, with a flat washer, lock washer, and 3/8" hex nuts installed on each end.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
A hitch or ball which has been damaged should be removed and replaced. Do not continue to use a damaged hitch.
Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch.
Check the hitch frequently, making sure all fasteners and ball are properly tightened.
No drilling is required. The only vehicle modification is lowering and bending the exhaust hanger spears downward ½" for muffler clearance. The hitch uses the existing frame rails and tow hook.
On the driver side, install the forward bolt and spacer first (items 2 & 3), leaving the pull wire attached. Then, using the reverse pull wire procedure, install the rearward bolt and spacer (items 2 & 3), also leaving the pull wire attached.
Place spacers (item 7) on the driver side bracket, then feed the pull wire end through the appropriate slots shown in Figure 3. Also feed the pull wire through the slot on the passenger side.
The T-One® Connector is a vehicle wiring harness system designed for the Honda Fit that enables trailer lighting control. It intercepts the vehicle's taillight wiring on both driver and passenger sides and provides connections for trailer lights through a 4-Flat connector. The system uses a black module box mounted in the driver's side taillight pocket and routes power from the vehicle battery through a 15 amp fuse.
Yes, the T-One® Connector (part number 118767-037) is designed specifically for the Honda Fit. The installation instructions are written for this vehicle model.
You will need: Trim Panel Remover, Drill with 3/32" Drill Bit, Wire Crimpers, Wire Cutters, Philips Head Screwdriver, and Test-probe. These tools are required to remove taillight trim, drill the ground wire hole, prepare wire connections, and test the installation.

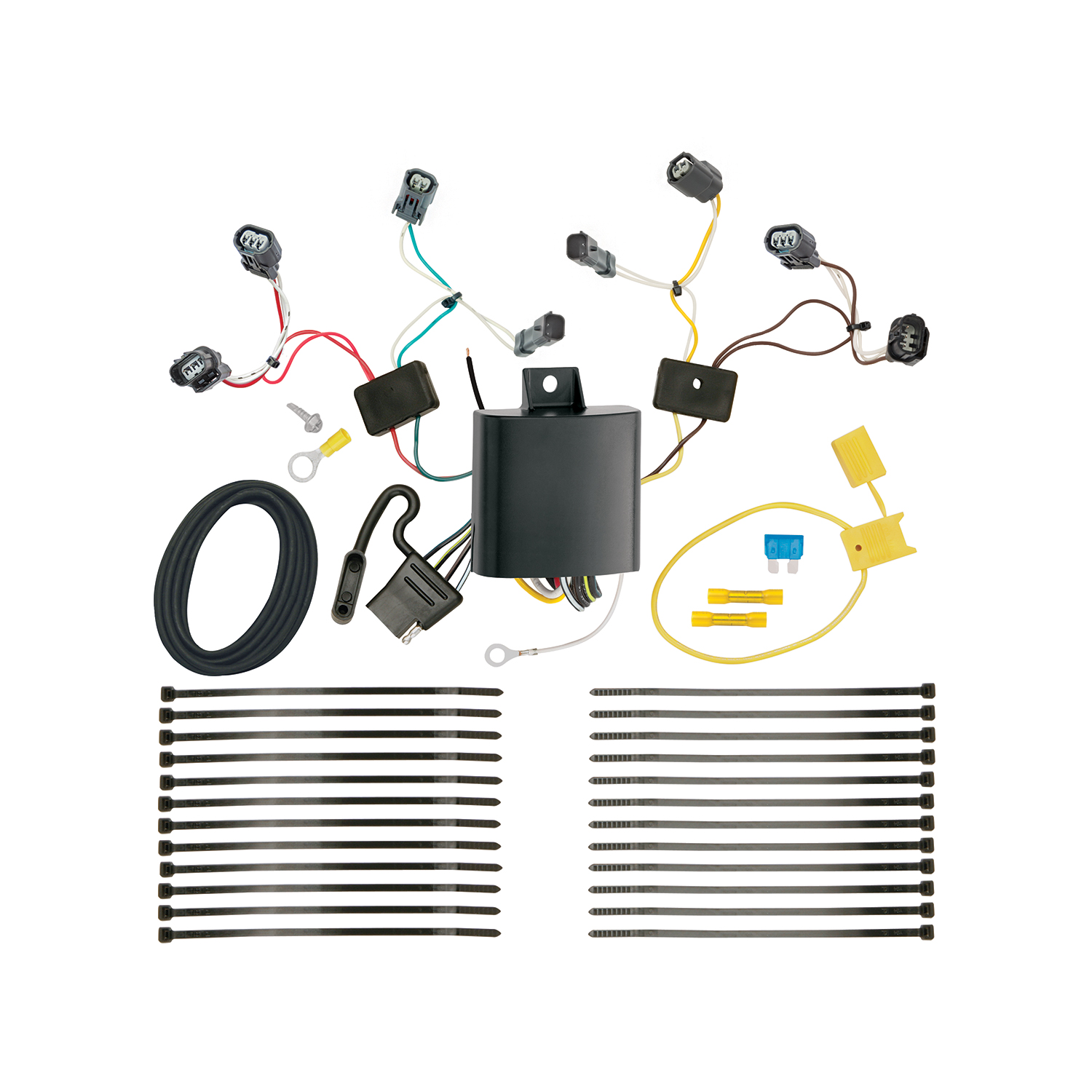

The kit includes: T-One® Connector black module box, yellow wire, brown wire, green wire, red wire, white wire, black 12 ga. power wire, double-sided tape, cable ties, yellow fuse holder with 15 amp fuse, ring terminal, eyelet, screw, and yellow butt connector. The 4-Flat harness connector bracket or electrical box is not included and must be purchased separately.
Yes. You must disconnect the vehicle's negative (-) battery cable before connecting the power wire to the battery. This is done in step 12 before attaching the ring terminal to the positive battery cable. The negative cable is reconnected in step 14 after the fuse holder is installed.
Yes. You must remove the taillights on both the driver and passenger sides of the vehicle to access the taillight wiring harness connectors. Carefully pull the taillights away from the vehicle, being careful not to damage the alignment pins. The taillights are reinstalled in step 15 after all wiring is complete.
On the driver's side taillight housing, locate and disconnect the grey 2-pin connector. Insert the T-One® Connector end with the yellow wire between the vehicle wiring connectors and lock into place, ensuring locking tabs are fully seated. Then locate and disconnect the black 3-pin connector and insert the T-One® Connector end with the brown wire between the vehicle connectors and lock into place. Both connectors must be fully inserted with locking tabs in place.
On the passenger's side taillight housing, locate and disconnect the grey 2-pin connector. Insert the T-One® Connector end with the green wire between the vehicle wiring connectors and lock into place with locking tabs fully seated. Then locate and disconnect the black 3-pin connector and insert the T-One® Connector end with the red wire between the vehicle connectors and lock into place. Both connectors must be fully inserted with locking tabs in place.
Mount the T-One® Connector black box on the driver's side using the double-sided tape provided. The module must be mounted so that the epoxy side points toward the ground to prevent water buildup. Secure the remainder of the harness with cable ties provided, avoiding areas that would cut or pinch the wire.
You may locate an existing ground stud near the connector, or you must drill a 3/32" hole to secure the white ground wire using the eyelet and screw provided. Do not drill into the vehicle floor or bed. Before drilling, verify what is behind the surface to avoid damage to the vehicle or personal injury. Do not drill into any exposed surfaces. Clean dirt and rustproofing from the area before securing the wire.
Locate the black 12 ga. power wire from the T-One® Connector box on the driver's side. Attach the black 12 ga. wire provided. Route the black wire along the exterior frame or follow existing wiring along the thresholds into the engine compartment up to the battery. Avoid areas that may pinch or break the wire. If routing through a grommet and along the exterior, carefully avoid hot pipes, heat shields, fuel tank, or other points that may pinch or break the wire.
After disconnecting the vehicle's negative battery cable, remove the fuse from the yellow fuse holder if not already removed. Cut the fuse holder wire and attach the ring terminal to the vehicle's positive (+) battery cable. Connect the other end of the fuse holder to the black 12 ga. wire using the yellow butt connector provided. The 15 amp fuse is installed in step 14 after all other connections are complete.
The T-One® Connector uses the following wire colors: yellow wire (driver's side grey 2-pin connector), brown wire (driver's side black 3-pin connector), green wire (passenger's side grey 2-pin connector), red wire (passenger's side black 3-pin connector), white wire (ground connection), and black 12 ga. wire (battery power connection).
The T-One® Connector uses a 15 amp fuse. The fuse is installed in the yellow fuse holder provided. The fuse is removed during installation (step 12) and reinstalled in step 14 after all connections are complete.
Route the 4-Flat harness underneath and to the center of the vehicle. Mount the 4-Flat end in an accessible location with a bracket or electrical box (not included). This connector is where the trailer lights will be plugged in.
Always wear safety glasses and use all safety precautions during installation. Before drilling, verify what is behind any surface to avoid damage to the vehicle or personal injury. Do not drill into exposed surfaces. When routing wires, avoid hot pipes, heat shields, fuel tank, and other points that may pinch or break the wire. Secure all wires with cable ties to prevent damage or rattling. Do not exceed the towing manufacturer rating or product amperage ratings, as overloading circuits can cause fires.
After installation is complete, test and verify the installation with a test light or trailer. For the initial test, reset the vehicle electrical system by temporarily removing the key from the ignition. All connections must be complete for the T-One® Connector to function properly. Use a test-probe to verify connections if needed.
After installation, verify that: the T-One® Connector black box is mounted with the epoxy side pointing toward the ground; all taillight connectors are fully inserted with locking tabs in place; the ground wire is securely fastened; the power wire is routed safely without pinching or cutting; all cable ties are secure; the 15 amp fuse is installed in the fuse holder; the vehicle's negative battery cable is reconnected; and the system functions properly with a test light or trailer.
Yes, the T-One® Connector (part 118767-037) is designed specifically for the Honda Fit.
You need: Trim Panel Remover, Drill with 3/32" bit, Wire Crimpers, Wire Cutters, Philips Head Screwdriver, and Test-probe.
Yes, you must disconnect the vehicle's negative battery cable before connecting the power wire to the battery in step 12.
Drilling is required only if no existing ground stud is available. You must drill a 3/32" hole for the ground wire. Do not drill into the vehicle floor or bed, and verify what is behind the surface before drilling.
Do not exceed the towing manufacturer rating or product amperage ratings, as overloading circuits can cause fires. Always wear safety glasses during installation and verify what is behind any surface before drilling.
