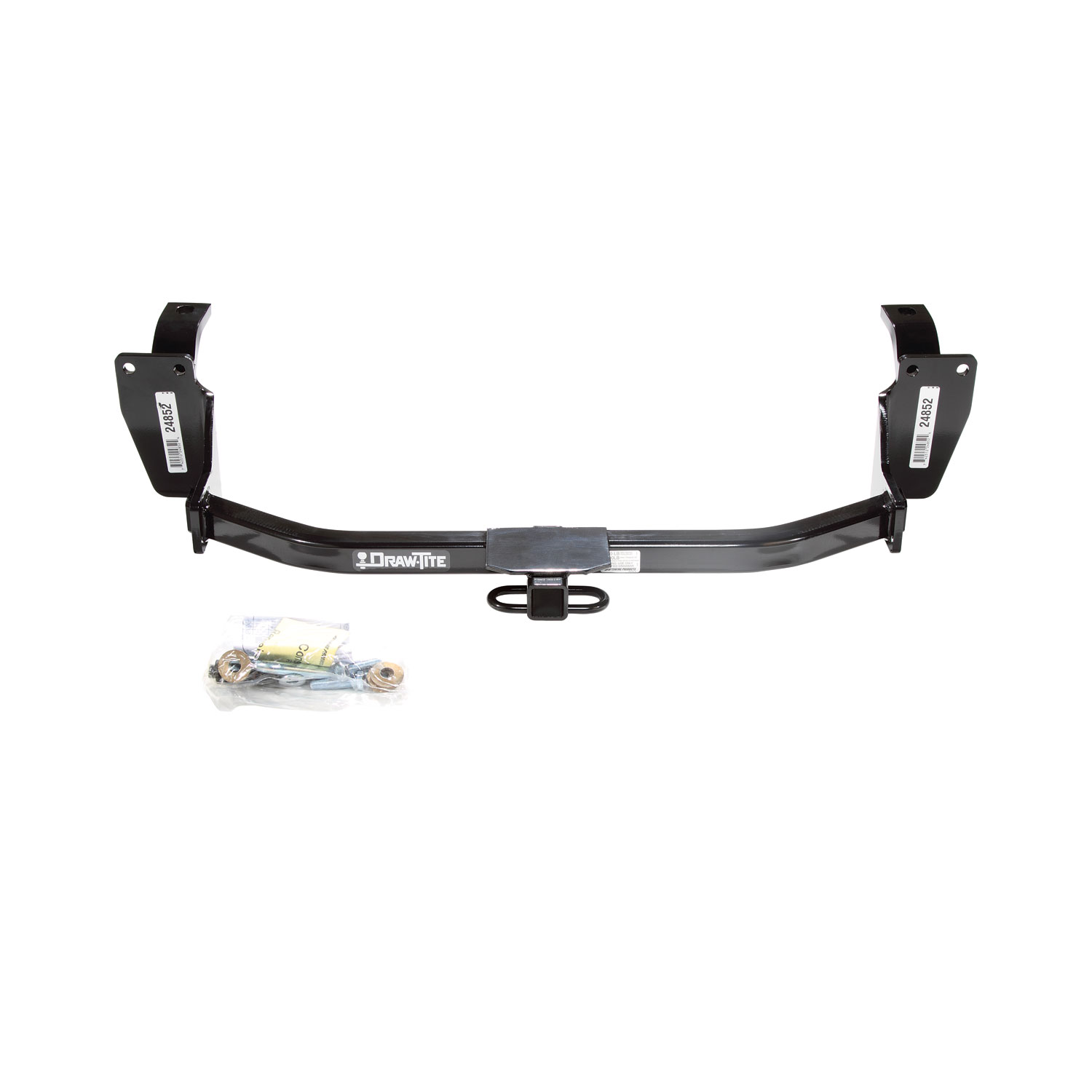

These dependable custom hitches are manufactured for 2010-2011 Honda Accord Crosstour, 2012-2015 Honda Crosstour and attach to your vehicle?s frame or bumper for a sleek, clean appearance. Each hitch also has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. DRAW-TITE Class 1 custom trailer hitches come complete with all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. So, whether you are headed out to the campground and need a place for the cooler, taking the bikes to hit the trails in the park, or you are tackling a DIY project (maybe some landscaping or a home repair), choose DRAW-TITE and travel with confidence knowing your setup is connected with the security only DRAW-TITE can provide. DRAW-TITE: North America?s Favorite Hitch.
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2005 - 2006 | Honda Crosstour | — |
The 2013-2015 Honda Crosstour Draw-tite Class 1 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB24852-118642) fits the following vehicles: 2005-2006 Honda Crosstour. Always verify your specific year, make, and model before ordering.
The 2013-2015 Honda Crosstour Draw-tite Class 1 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB24852-118642) fits 2005-2006 Honda Crosstour models. The 2006 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 2013-2015 Honda Crosstour Draw-tite Class 1 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB24852-118642) is designed to fit the 2005-2006 Honda Crosstour.
The 2013-2015 Honda Crosstour Draw-tite Class 1 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB24852-118642) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the 24852 hitch fits all Honda Accord Crosstour models including EX-2WD, EXL-2WD, and EXL-AWD. The installation uses existing weldnuts in the vehicle frame and does not require modifications specific to drivetrain or trim level.
The maximum gross trailer weight is 2000 lb (908 kg) and the maximum tongue weight is 200 lb (91 kg). However, you must not exceed the lower of the towing vehicle manufacturer's rating or the hitch rating.
You will need wrenches in 10mm, 13mm, and 17mm sizes, a torque wrench, spray lubricant, and metal shears. A torque wrench is essential because fasteners must be tightened to specific torque values: 8mm-1.25 bolts to 25 Lb.-Ft. (34 N·M) and 10mm-1.25 bolts to 42 Lb.-Ft. (57 N·M).
The hitch includes: 2× M8-1.25 × 55mm Grade 9.8 bolts with washers, 4× M10-1.25 × 40mm Grade 8.8 hex bolts, 2× M10-1.25 hex nuts, 4× conical toothed washers (7/16"), and 2× flat washers (3/8"). These are supplied in fastener kit 24852F. The installation also reuses existing 8mm bolts from the vehicle frame.
You do not need to remove the exhaust system completely, but you must lower the mufflers and exhaust hangers to access and trim the muffler heat shields. Drop the mufflers by removing rubber isolator hangers from metal pegs on both sides, and also drop the rubber exhaust hangers located further forward near the rear axle. Spray lubricant on the rubber isolators to help them slide off more easily.
No drilling is required. The hitch uses existing weldnuts in the vehicle frame and existing holes in the frame end panels. However, you must trim the muffler heat shields by cutting out a corner section of approximately 4-1/4" × 4-1/4" from both the driver's side and passenger's side shields using metal shears.
Using metal shears, cut out a corner section of approximately 4-1/4" × 4-1/4" from both the driver's side and passenger's side heat shields. The heat shields must be trimmed and reinstalled before the hitch is installed. Save the bolts that attach the heat shields so you can reinstall them after trimming.
1. Lower mufflers and exhaust hangers by removing rubber isolators from metal pegs. 2. Remove existing 8mm bolts from frame end panels (return to owner). 3. Remove plastic push rivets from bumper cover if needed for access. 4. Remove and trim muffler heat shields (cut 4-1/4" × 4-1/4" corners), then reinstall them. 5. Raise hitch into place and install 8mm bolts through hitch into existing weldnuts. 6. Install 10mm bolts with flat washers through hitch and frame end panels, add conical washers and hex nuts. 7. Install 10mm bolts with conical washers through hitch side arms into existing weldnuts. 8. Torque all fasteners to specification. 9. Reinstall muffler isolator hangers.
Tighten the 8mm-1.25 Grade 9.8 bolts to 25 Lb.-Ft. (34 N·M) using a torque wrench.
Tighten the 10mm-1.25 Grade 8.8 bolts to 42 Lb.-Ft. (57 N·M) using a torque wrench.
Yes. You can remove the plastic push rivets holding the plastic bumper cover on both sides at the bottom of the bumper. Save these rivets as they will be reinstalled. This allows you to pull the bumper cover back for better hand and wrench access during installation.
Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes. A damaged hitch or ball must be removed and replaced immediately.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. The manual does not specify a retorque interval, but regular inspection is recommended to maintain safe operation.
No. The existing 8mm bolts are removed from the frame end panels and returned to the vehicle owner. They are replaced with new supplied 8mm-1.25 × 55mm Grade 9.8 bolts that are installed through the hitch into the existing weldnuts.
No. The muffler heat shields must be removed, trimmed (a 4-1/4" × 4-1/4" corner section cut from each), and then reinstalled before the hitch is installed. The bolts that attach the heat shields are saved and reused to reinstall them after trimming.
The hitch is attached using: 2× M8-1.25 × 55mm Grade 9.8 bolts (with washers) through the hitch into existing weldnuts on both sides; 4× M10-1.25 × 40mm Grade 8.8 bolts (with flat washers) through the hitch and frame end panels, secured with conical toothed washers and M10-1.25 hex nuts; and 4× M10-1.25 × 40mm Grade 8.8 bolts (with conical toothed washers) through the hitch side arms into existing weldnuts.
Yes, the 24852 hitch fits all Honda Accord Crosstour models including EX-2WD, EXL-2WD, and EXL-AWD.
You need wrenches (10mm, 13mm, 17mm), a torque wrench, spray lubricant, and metal shears. A torque wrench is essential for tightening bolts to the correct specifications.
No drilling is required. The hitch uses existing weldnuts and holes in the vehicle frame. However, you must trim the muffler heat shields by cutting a 4-1/4" × 4-1/4" corner section from each using metal shears.
8mm-1.25 bolts: 25 Lb.-Ft. (34 N·M); 10mm-1.25 bolts: 42 Lb.-Ft. (57 N·M). Use a torque wrench for all fasteners.
Maximum gross trailer weight is 2000 lb (908 kg) and maximum tongue weight is 200 lb (91 kg), but do not exceed your vehicle manufacturer's rating.
Wear eye protection when working beneath the vehicle. Do not cut holes with a torch. Check the hitch frequently to ensure all fasteners and the ball are properly tightened. If removed, plug all holes to prevent water and exhaust fume entry.
Yes. You must lower the mufflers and exhaust hangers by removing rubber isolators from metal pegs to access and trim the muffler heat shields. Spray lubricant on the isolators to help them slide off.
Yes, the T-Connector (part number 118642-037) is designed for Honda Crosstour vehicles. The installation instructions are specific to this model.

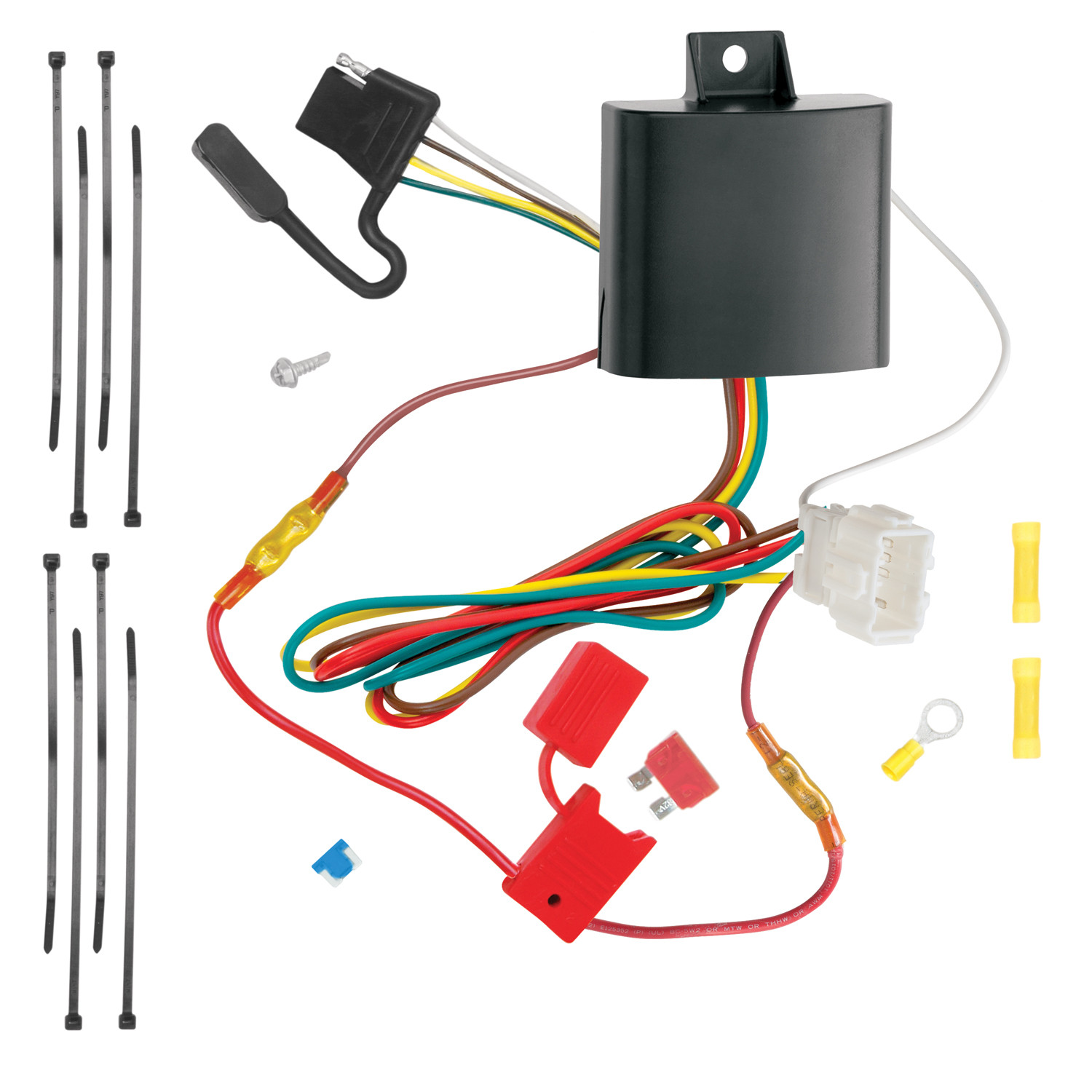

The T-Connector is a towing harness adapter that allows you to connect a trailer to your Honda Crosstour. It includes a black converter box that mounts inside the vehicle and a 4-flat connector that routes to the side storage compartment for use when towing.
Required tools are: trim panel remover, 10 mm socket and ratchet or 10 mm wrench, drill with 3/32" drill bit, 1/4" socket, wire crimpers, wire cutters, Phillips head screwdriver, and test probe.
The kit includes the T-Connector harness, a black converter box, a 4-flat connector, a 15 amp fuse, and double-sided tape for mounting the converter box.
Yes. You must remove the passenger side cargo tray by first prying open the dust cover, removing the bolt, and carefully pulling up the tray without breaking the clips that hold it. You must also partially remove the lower interior trim panel on the passenger side.
Remove: all floor coverings, center storage bin, passenger side cargo tray, cargo loop, and partially remove the lower interior trim panel on the passenger side. These items must be removed to access the white tow plug and route the wiring.
The white tow plug is located at the rear of the vehicle under the passenger side trim panel. It is held to the wire harness with black tape.
Insert the T-Connector harness into the vehicle's tow plug harness and lock it into place. The manual does not specify additional tools or techniques required for this connection.
Mount the black converter box on the passenger side in a flat, out-of-the-way location using the double-sided tape provided.
Route the 4-flat connector through the passenger side trim panel into the side storage compartment and store it there when not in use.
The fuse box is located on the driver side. Open the hood to access it. Insert the 15 amp fuse provided into the empty location shown in the manual (marked 'h').
A 15 amp fuse is required. This fuse is provided with the kit and must be inserted into the empty location in the driver side fuse box.
Do not exceed the lower of your towing manufacturer's rating or: maximum stop/turn light 1 per side (2.1 amps), maximum tail lights (5.6 amps). Overloading the circuit can cause fires.
All connections must be complete for the T-Connector to function properly. Test and verify the installation with a test light or trailer once installed. The manual does not provide detailed testing procedures.
Reinstall all plastic trim panels, threshold, storage covers, floor covering, and other items that were removed during installation. Be careful not to pinch or cut the wires during reinstallation.
Wear safety glasses and use all safety precautions during installation. Be careful not to break cargo tray clips or trim panel clips during removal. Do not pinch or cut wires during reinstallation. Read all vehicle warnings and installation instructions before beginning.
Yes, this T-Connector is designed specifically for Honda Crosstour vehicles.
You need: trim panel remover, 10 mm socket/ratchet or wrench, drill with 3/32" bit, 1/4" socket, wire crimpers, wire cutters, Phillips screwdriver, and test probe.
Yes. You must remove the passenger side cargo tray, cargo loop, and partially remove the lower interior trim panel to access the tow plug and route wiring.
A 15 amp fuse is required and is provided with the kit. It installs in the driver side fuse box.
Maximum stop/turn light: 1 per side (2.1 amps). Maximum tail lights: 5.6 amps. Do not exceed the lower of your towing manufacturer's rating or these limits to prevent circuit overload and fire.
Test and verify the installation with a test light or trailer once all connections are complete. All connections must be complete for proper function.
