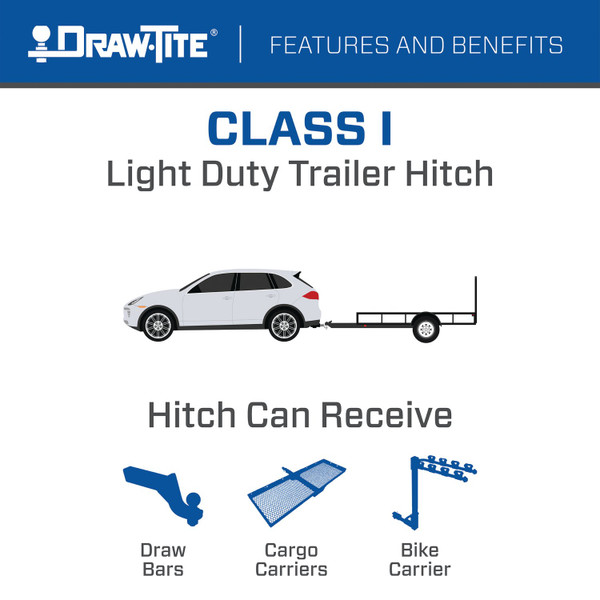

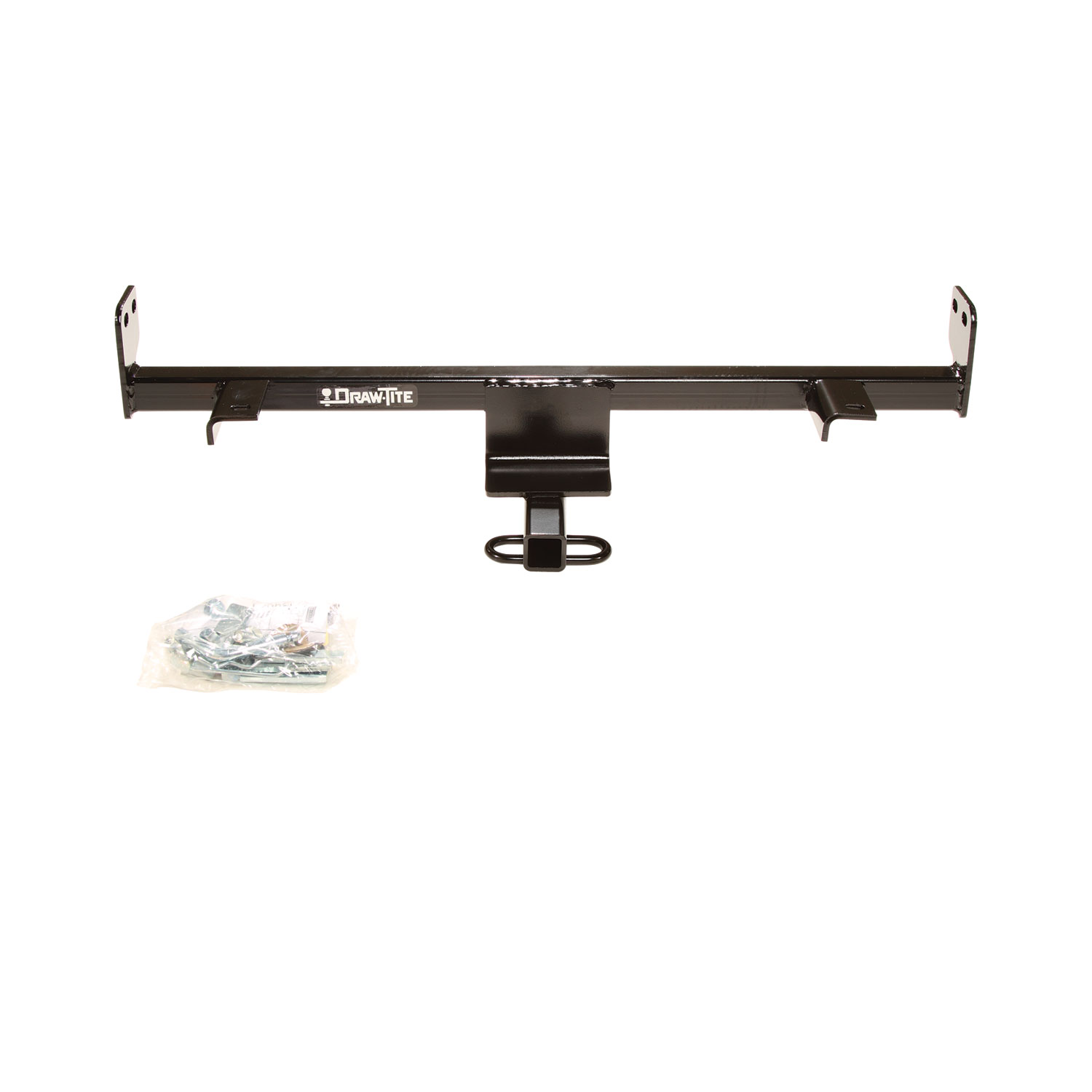

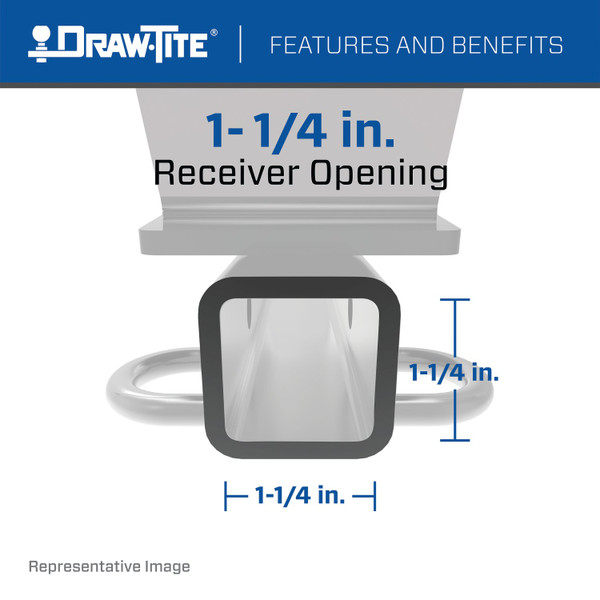

These dependable custom hitches are manufactured for 2004-2009 Mazda 3 and attach to your vehicle?s frame or bumper for a sleek, clean appearance. Each hitch also has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. DRAW-TITE Class 1 custom trailer hitches come complete with all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. So, whether you are headed out to the campground and need a place for the cooler, taking the bikes to hit the trails in the park, or you are tackling a DIY project (maybe some landscaping or a home repair), choose DRAW-TITE and travel with confidence knowing your setup is connected with the security only DRAW-TITE can provide. DRAW-TITE: North America?s Favorite Hitch.
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.

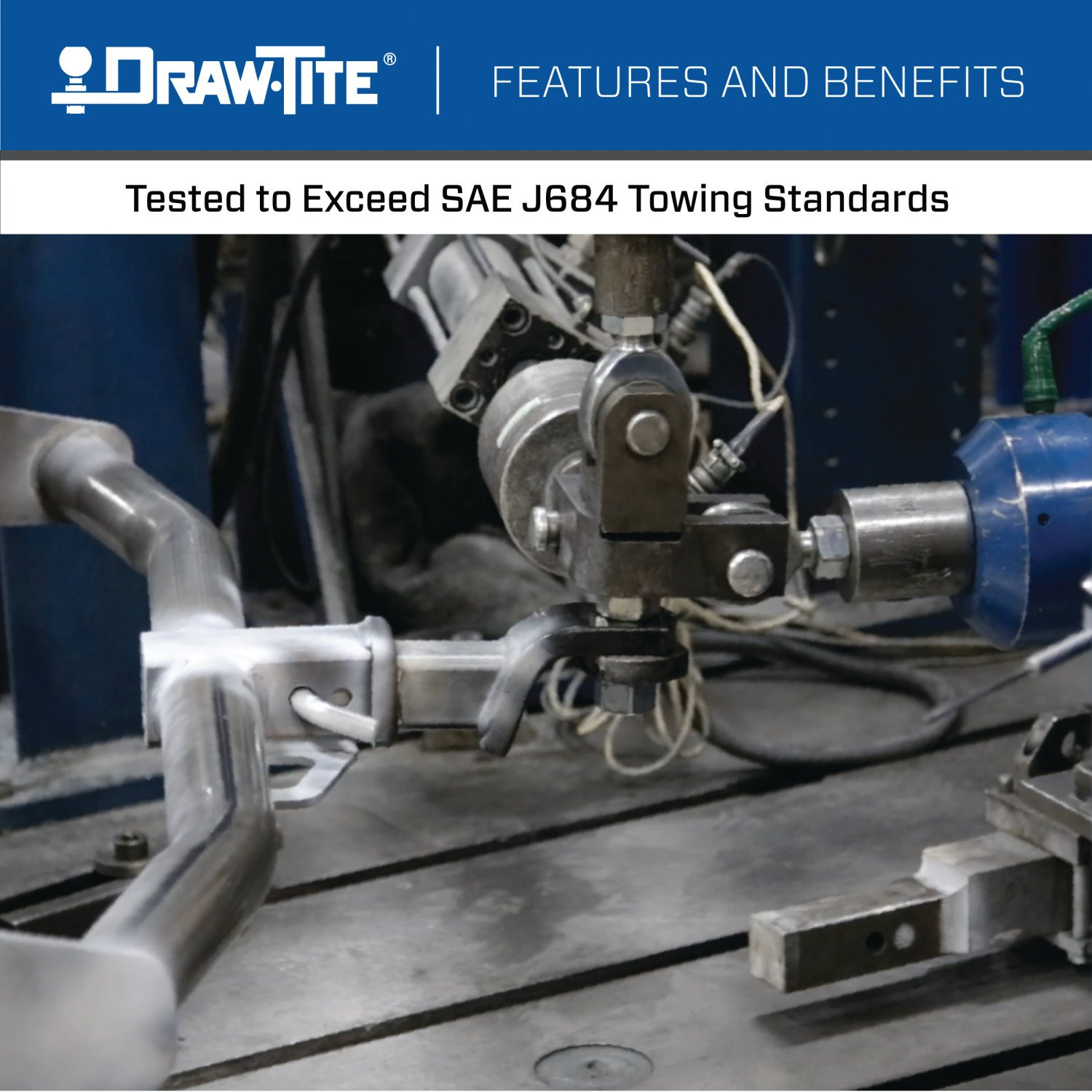

Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2003 | Mazda 3 | Hatchback, Except w/Grand Touring LED Taillights |
Yes, part number 24816 is designed for Mazda 3 models including Speed 3 from model years 2006, 2007, 2008, 2009, and 2015. The installation instructions include separate mounting slots for 4-door and 5-door models, as well as Speed 3 variants.
The maximum gross trailer weight is 2000 LB (908 kg) and the maximum tongue weight is 200 LB (91 kg). Do not exceed the lower of the towing vehicle manufacturer's rating or these specifications.
You will need a flat blade screwdriver, an 11/16" wrench, and a 1/2" drill bit. Fishwire is provided with the hitch.

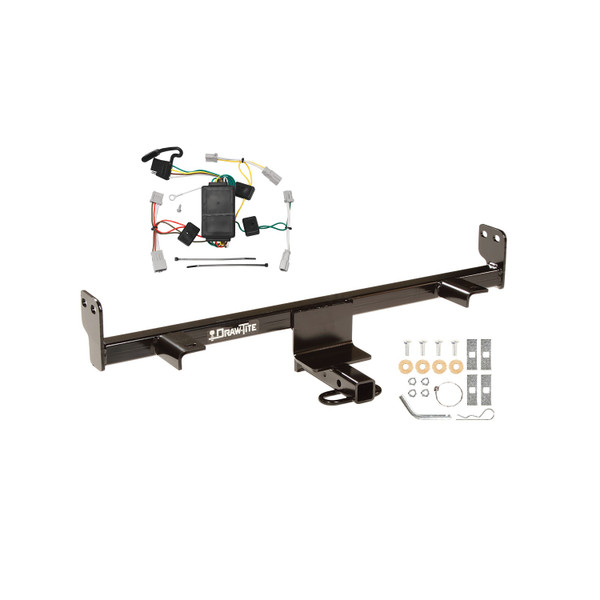

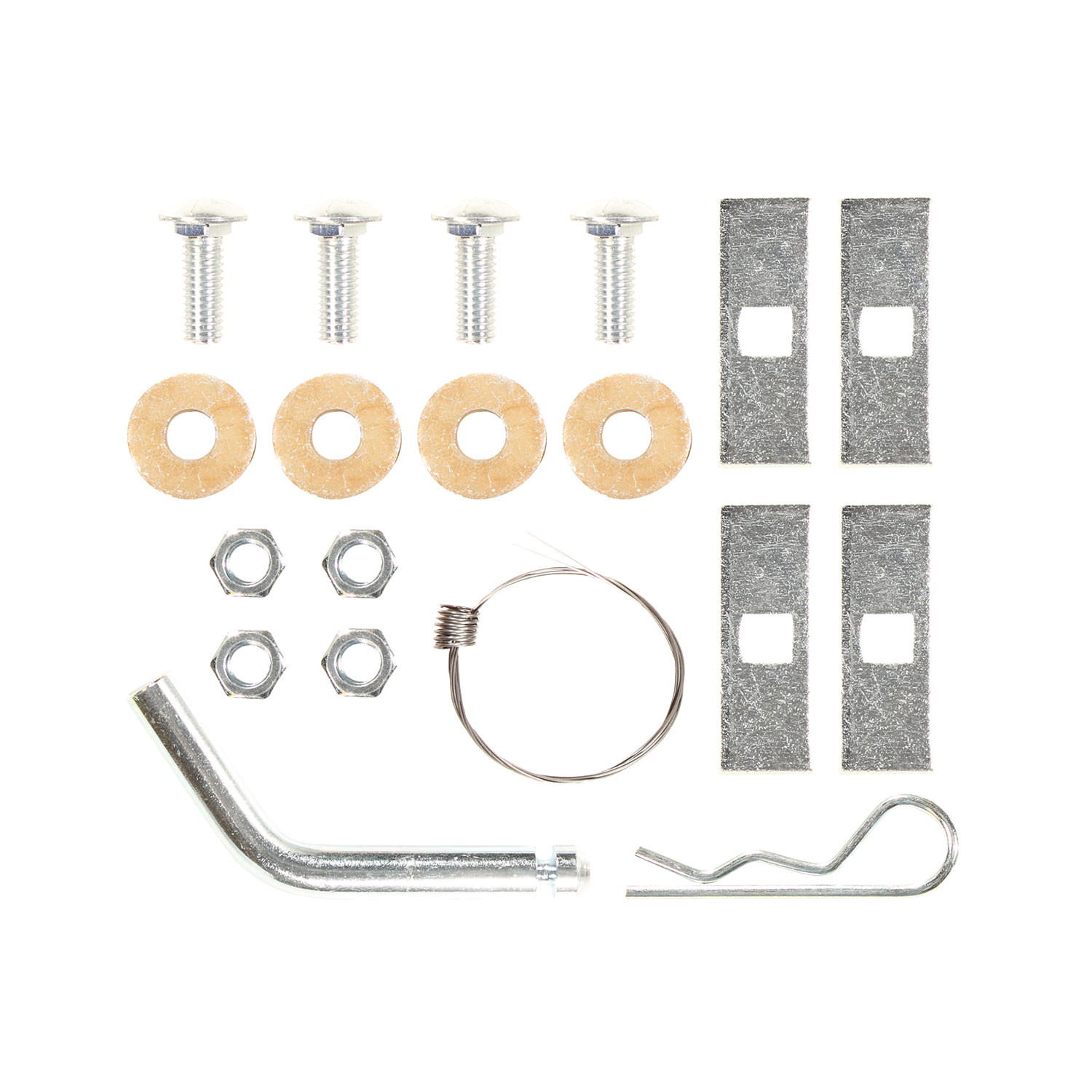

The hitch includes four 7/16"-14 x 1-1/4" Grade 5 carriage bolts, four 7/16" conical toothed washers, four 1/4" x 1" x 3" blocks, and four 7/16"-14 hex nuts. A separate fastener kit 24816F is available if additional fasteners are needed.
Yes. Step 1 requires you to use a 1/2" drill bit to enlarge four existing attachment holes. The manual does not specify whether these holes are factory-drilled or require initial drilling.
1. Use a 1/2" drill bit to enlarge the four existing attachment holes. 2. Remove and retain two plastic push rivets that attach lower fascia supports to the vehicle using a flat blade screwdriver. 3. Use fishwire to route carriage bolts and blocks through the bumper ends (Figure 1). 4. Position the hitch as shown in Figure 2, using the slot for 4-door models or the slot for 5-door and Speed 3 models. 5. Use fishwire to route carriage bolts and blocks through the bumper mount ends (Figure 2). 6. Tighten all fasteners. 7. Replace the plastic rivets removed in Step 2.
Tighten all 7/16" fasteners (carriage bolts and hex nuts) with a torque wrench to 50 Lb.-Ft. (68 N*M).
The wiring access locations are PC3 and PC4. However, the manual does not provide detailed wiring instructions or explain what these access points are used for.
Observe safety precautions when working beneath the vehicle and wear eye protection. Do not cut access or attachment holes with a torch. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. The manual recommends regular inspection as part of ongoing maintenance.
No. The drawbar kit 3592 is sold separately. When used, the drawbar must be used in the RISE position only.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fume entry. A damaged hitch or ball must be removed and replaced.
Hitch 24816 complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5 and SAE J684.
Yes. Part 24816 fits Mazda 3 including Speed 3 models from 2006, 2007, 2008, 2009, and 2015. Installation uses a separate mounting slot for 5-door and Speed 3 variants.
Yes. A 1/2" drill bit is required to enlarge four existing attachment holes.
Flat blade screwdriver, 11/16" wrench, 1/2" drill bit, and fishwire (provided).
All 7/16" fasteners must be tightened to 50 Lb.-Ft. (68 N*M) using a torque wrench.
Maximum gross trailer weight is 2000 LB (908 kg); maximum tongue weight is 200 LB (91 kg). Do not exceed the lower of the towing vehicle manufacturer's rating or these limits.
No. Drawbar kit 3592 is sold separately and must be used in the RISE position only.
Wear eye protection. Do not cut holes with a torch. Work safely beneath the vehicle. Plug all holes if the hitch is removed to prevent water and exhaust fume entry.

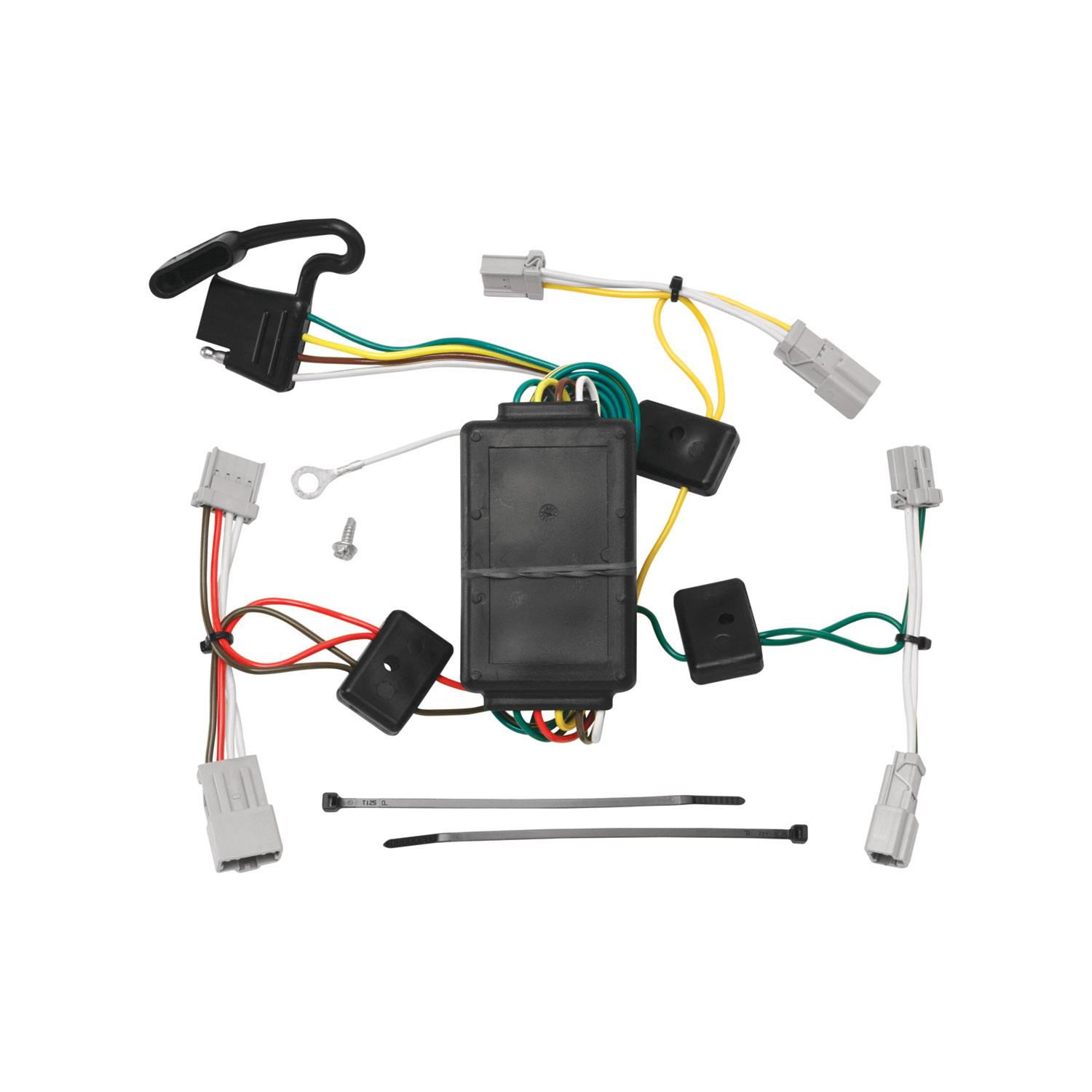

The T-Connector 118420-037 is designed for 07-08 Honda Fit, Honda Civic 4 Door, Mazda 3 (All Models), Honda Accord 4 Door Sedan, and Honda Accord Sedan. If your vehicle is not listed, it is not compatible with this product.
For 07-08 Honda Fit only, you must use the vehicle's blue 3-pin housing, not the green 3-pin housing. Using the wrong connector will prevent proper function.
You will need: Philips head screwdriver, trim panel remover, drill with 3/32" drill bit, and 1/4" socket.
Open the trunk or hatch and locate the vehicle wiring inside the rear cargo area. Partially remove the plastic threshold cover, side access panels, or carpet panels and cargo trays to access the connection points at the back of each taillight housing.
1. On the driver's side, attach both ends of the T-Connector containing the yellow, brown, and red wires to the driver's side taillight housing. 2. Route the T-Connector containing the green wire below the threshold cover to the passenger's side taillight housing. 3. Attach the green wire connector to the passenger's side taillight housing. Be careful not to damage the locking tabs and ensure connectors are fully inserted with locking tabs in place.
Be careful not to break the locking tabs when separating the original connectors. When attaching the T-Connector, ensure that connectors are fully inserted with locking tabs in place. Do not damage the locking tabs during insertion.
Yes. All connector surfaces should be clean and free of dirt before connecting the T-Connector. Clean the area to ensure proper electrical contact.
Drilling is required only for the ground wire connection. You must locate a suitable grounding point near the connector, such as an existing ground stud, or drill a 3/32" hole to secure the white wire using the eyelet and screw provided. Do not drill into the vehicle floor or bed. Do not drill into any exposed surfaces. Before drilling, verify what is behind the surface to avoid damage to the vehicle or personal injury.
Use a 3/32" drill bit to create the hole for the ground wire connection.
No. Do not drill into the vehicle floor or bed. Locate an existing ground stud or drill in an appropriate location that does not penetrate the floor or bed structure.
Yes. Clean dirt and rustproofing from the area where you will secure the white ground wire using the eyelet and screw provided. This ensures proper electrical contact.
Reinstall the plastic trim panels, threshold, storage covers, floor covering, and other items removed during installation. Be careful not to pinch or cut the wires when reinstalling these components.
All connections must be complete for the T-Connector to function properly. Test and verify the installation with a test light or by connecting a trailer once installed.
Do not exceed the lower of the towing manufacturer rating or: Maximum stop/turn light: 1 per side (2.1 amps); Maximum tail lights: 5 amps. Overloading the circuit can cause fires. Consult your vehicle's owner's manual and instruction sheet for additional information.
Store the 4-Flat connector in the trunk or hatch area when not in use.
Wear safety glasses during installation. Before drilling, verify what is behind any surface to avoid damage to the vehicle or personal injury. Do not drill into any exposed surfaces. Be careful not to pinch or cut wires when reinstalling trim panels and other components.
The T-Connector fits 07-08 Honda Fit, Honda Civic 4 Door, Mazda 3 (All Models), Honda Accord 4 Door Sedan, and Honda Accord Sedan.
Philips head screwdriver, trim panel remover, drill with 3/32" bit, and 1/4" socket.
Test and verify the installation with a test light or by connecting a trailer once installed. All connections must be complete for proper function.
Use the vehicle's blue 3-pin housing, not the green 3-pin housing.
