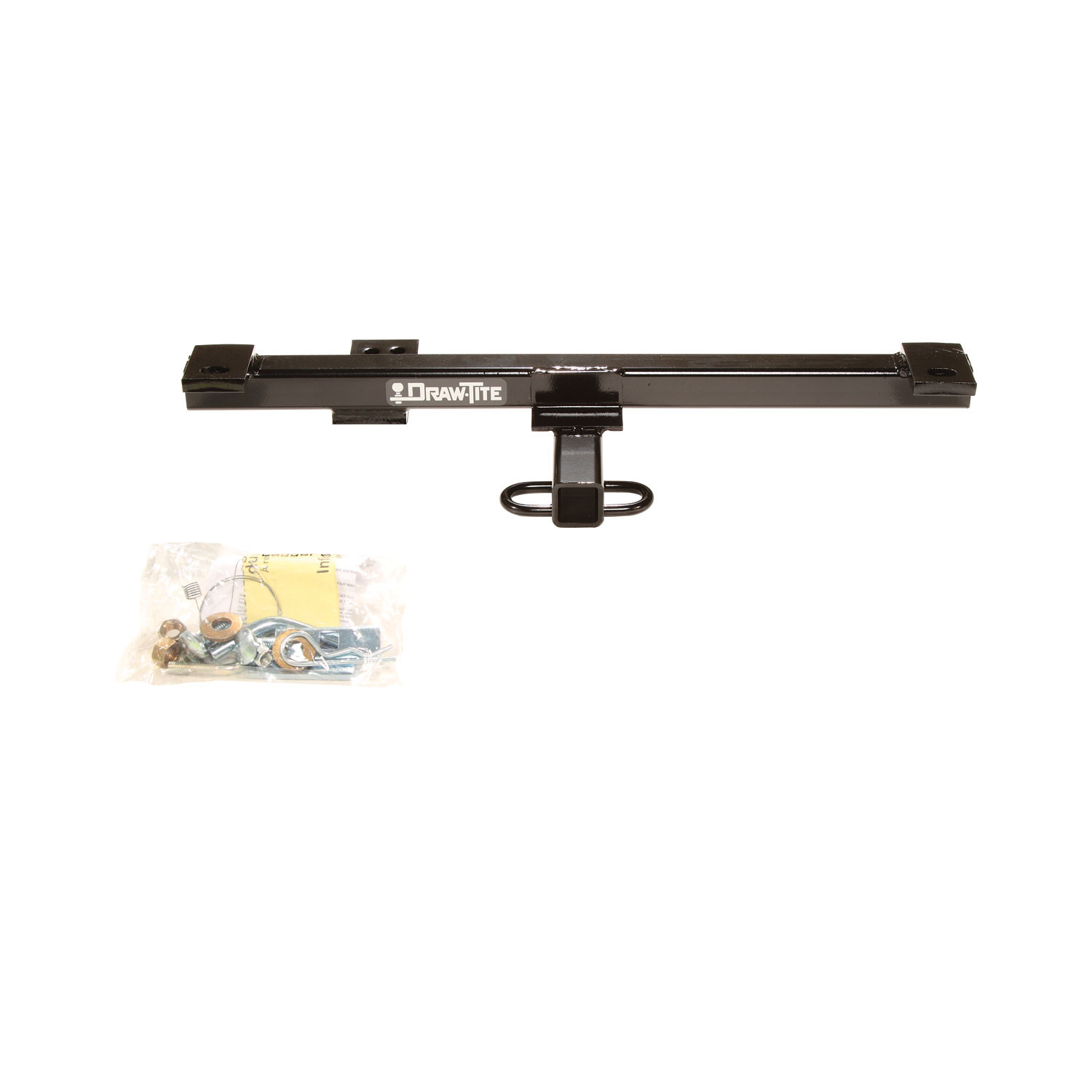

These dependable custom hitches are manufactured for 2006-2010 Mazda 5 and attach to your vehicle?s frame or bumper for a sleek, clean appearance. Each hitch also has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. DRAW-TITE Class 1 custom trailer hitches come complete with all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. So, whether you are headed out to the campground and need a place for the cooler, taking the bikes to hit the trails in the park, or you are tackling a DIY project (maybe some landscaping or a home repair), choose DRAW-TITE and travel with confidence knowing your setup is connected with the security only DRAW-TITE can provide. DRAW-TITE: North America?s Favorite Hitch.

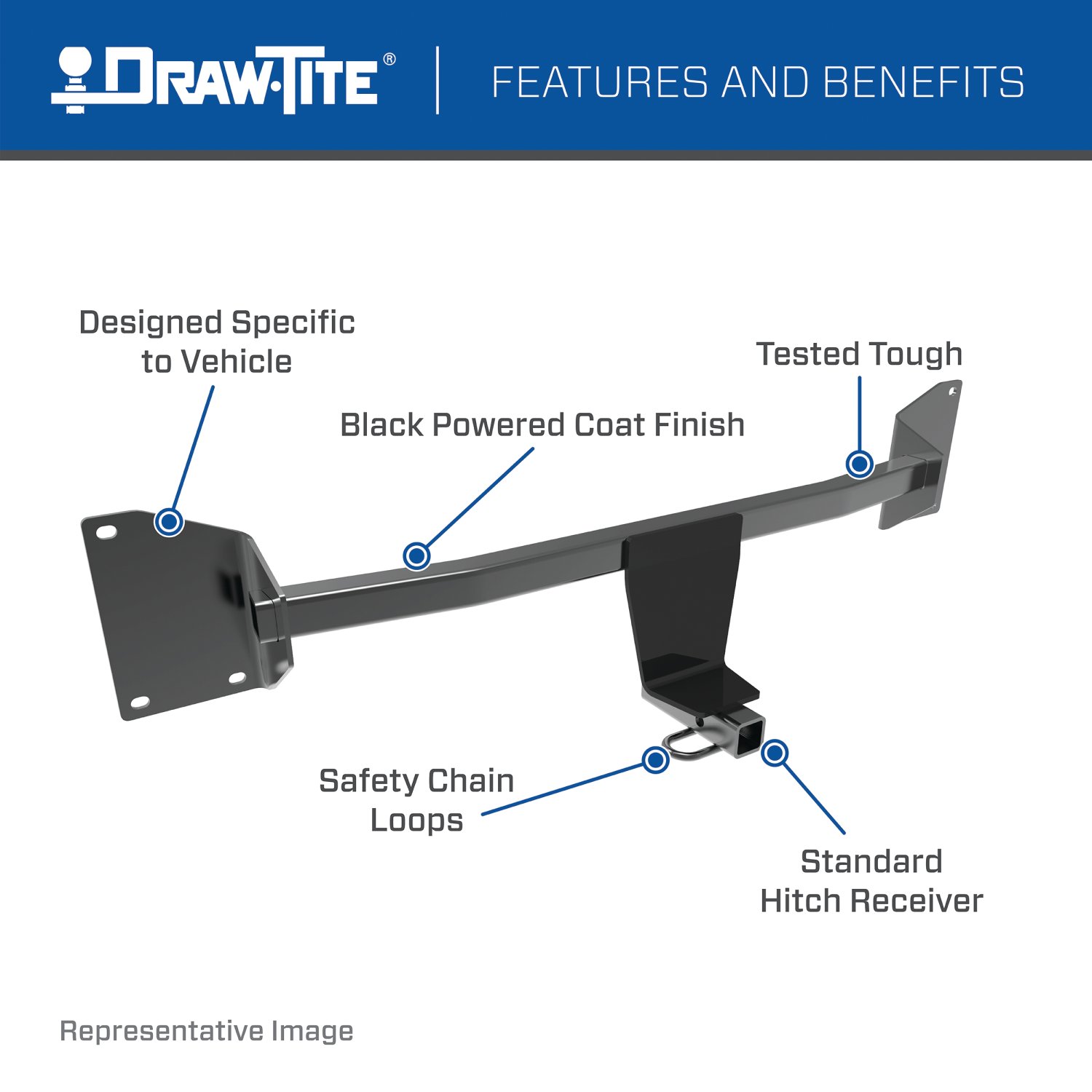

Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.

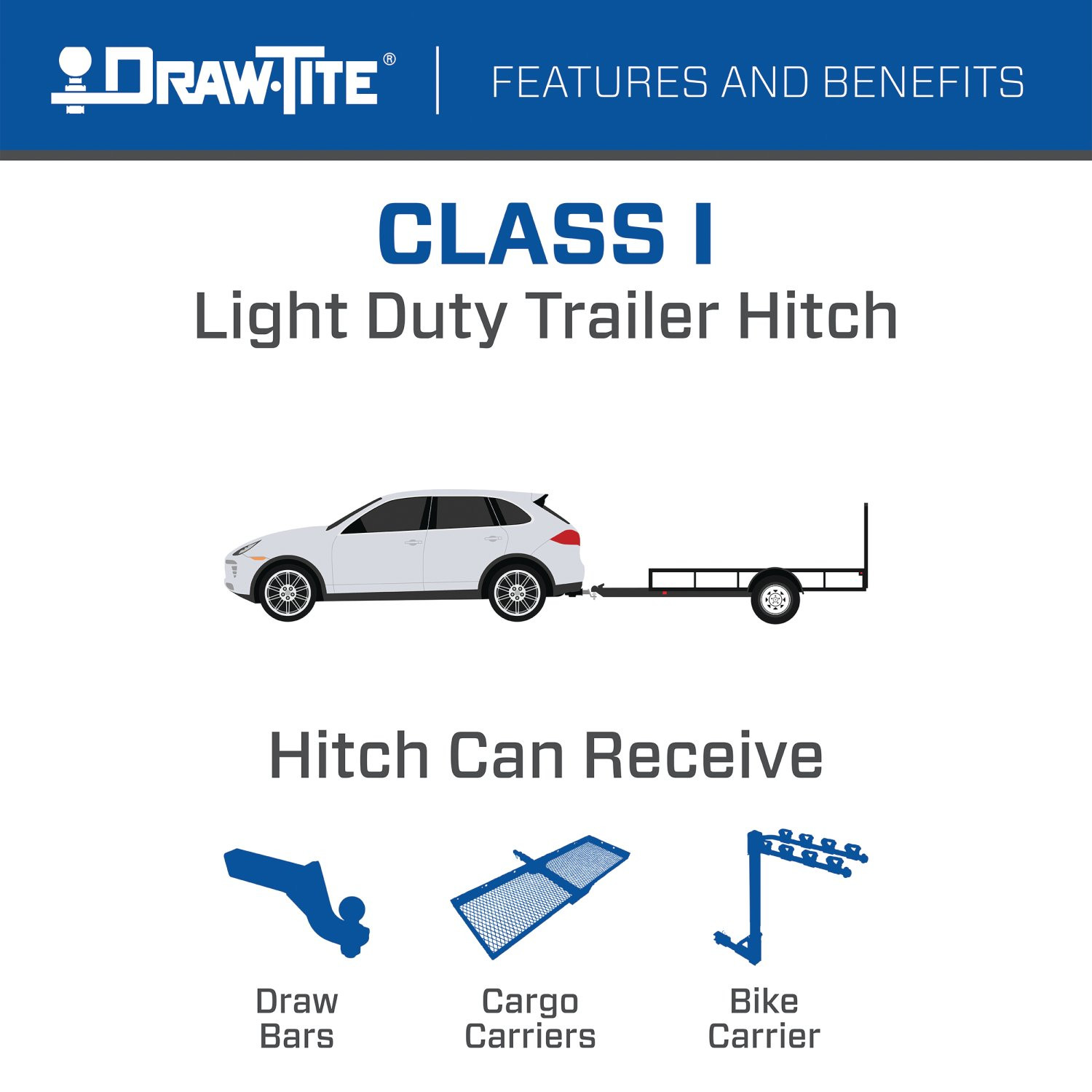

The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2000 - 2002 | Mazda 5 | — |
The 2006-2010 Mazda 5 Draw-tite Class 1 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB24773-118520) fits the following vehicles: 2000-2002 Mazda 5. Always verify your specific year, make, and model before ordering.
Yes, the 2006-2010 Mazda 5 Draw-tite Class 1 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB24773-118520) is designed to fit the 2000-2002 Mazda 5.
The 2006-2010 Mazda 5 Draw-tite Class 1 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB24773-118520) fits 2000-2002 Mazda 5 models. The 2002 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2006-2010 Mazda 5 Draw-tite Class 1 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB24773-118520) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, part number 24773 is designed for Mazda 5 vehicles from 2006 to 2015. The hitch assembly includes part numbers 77150 and 60841 as well.
The maximum gross trailer weight is 2000 LB (908 kg) and the maximum tongue weight is 200 LB (90.8 kg). Do not exceed the lower of your towing vehicle manufacturer's rating or these limits.
You will need wrenches in 11/16" and 3/4" sizes, a 1/2" drill bit, and a torque wrench. A drawbar kit (part number 3593) is sold separately and required for towing.
Yes, drilling is required. You must enlarge existing holes on the bottom surface of the vehicle bumper structure using a 1/2" drill bit. Do not use a torch to cut access or attachment holes.
1. Enlarge existing holes on the bumper structure with a 1/2" drill bit. 2. Use fishwire to pass carriage bolts and blocks through the bumper structure and drilled holes. 3. Raise the hitch into position and loosely install conical toothed washers and 1/2 hex nuts. 4. Install the 3/8 U-bolt through the vehicle tow hook and receiver tow hook attachment, with lock washers and 3/8 hex nuts. 5. Tighten all fasteners to the required torque specifications.
All 1/2-13 GR5 fasteners must be tightened to 75 Lb.-Ft. (102 N·M) using a torque wrench.
All 3/8-16 GR5 fasteners, including the U-bolt, must be tightened to 30 Lb.-Ft. (41 N·M) using a torque wrench.

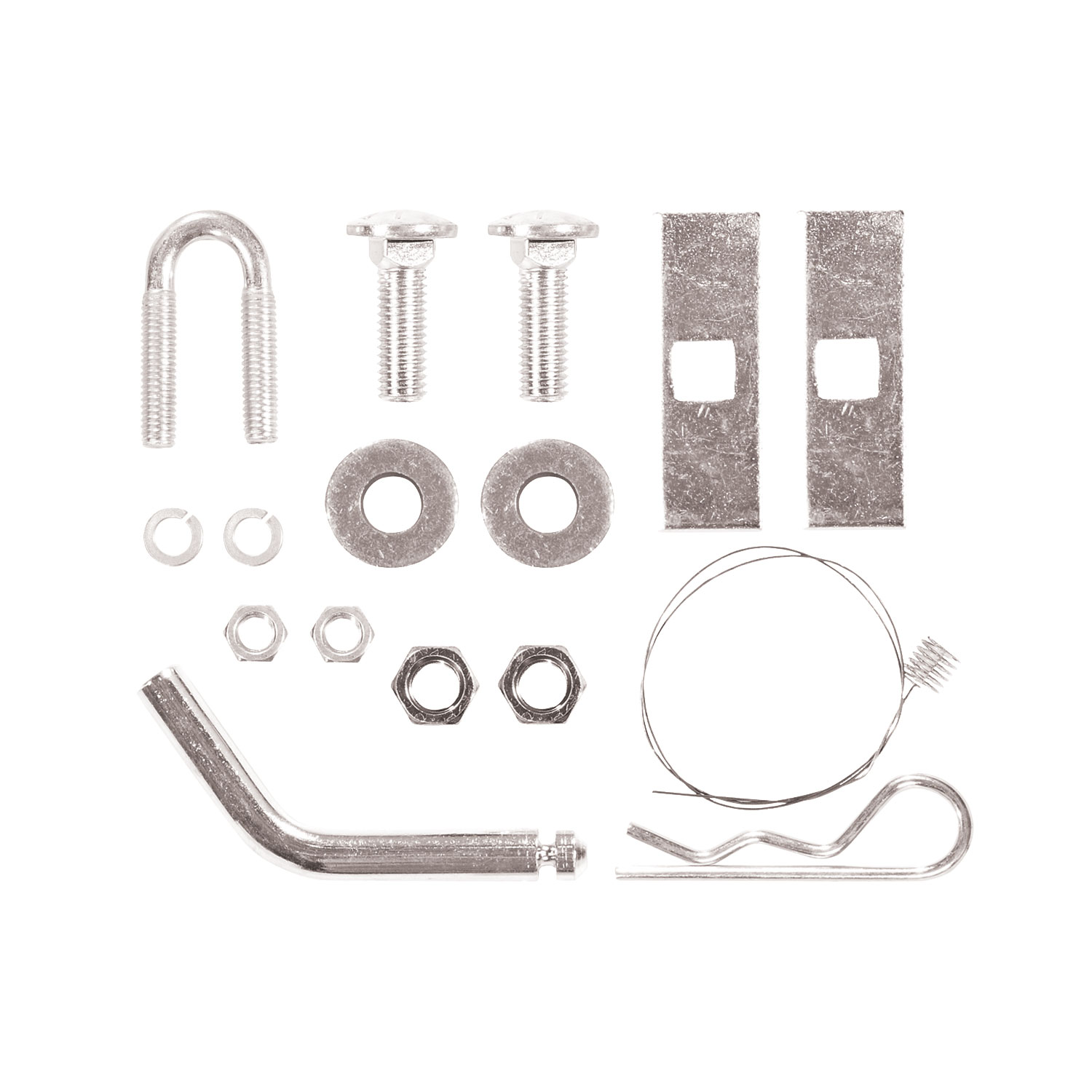

The hitch includes: (2) 1/2-13 X 1.50 carriage bolts, (1) 3/8-16 U-bolt, (2) 1/4 X 1.00 X 3.00 blocks, (2) conical toothed washers, (2) 1/2 hex nuts, (2) lock washers, and (2) 3/8 hex nuts. A separate fastener kit (part number 24773F) is available.
Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes. A damaged hitch or ball must be removed and replaced immediately.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. Perform this check regularly during use.
No, the drawbar kit (part number 3593) is sold separately. The drawbar must be used in the rise position only.
No, the fascia is sold separately.
The wiring access locations are PC3 and PC4.
Yes, it fits Mazda 5 models from 2006 to 2015.
You need 11/16" and 3/4" wrenches, a 1/2" drill bit, and a torque wrench.
Yes, you must enlarge existing holes in the bumper structure using a 1/2" drill bit. Do not use a torch.
Tighten 1/2-13 GR5 fasteners to 75 Lb.-Ft. (102 N·M) and 3/8-16 GR5 fasteners to 30 Lb.-Ft. (41 N·M) using a torque wrench.
Maximum gross trailer weight is 2000 LB (908 kg) and maximum tongue weight is 200 LB (90.8 kg). Do not exceed your vehicle manufacturer's rating.
No, the drawbar kit (part number 3593) is sold separately and must be used in the rise position only.
Wear eye protection, work safely beneath the vehicle, do not use a torch to cut holes, and plug all holes if the hitch is removed to prevent water and exhaust fumes from entering.
Yes, the T-Connector 118520-037 is designed for Mazda CX-9, Mazda 2, and Mazda 5 vehicles. The installation instructions include vehicle-specific steps for locating the taillight wiring harness on each model (h-1 for CX-9, h-2 for Mazda 2, h-3 for Mazda 5).
The T-Connector is a wiring interface that connects to the vehicle's taillight harness to enable trailer lighting control. It includes a converter box, multiple connector ends with different wire colours (yellow, brown, green), a 4-flat connector for the trailer plug, and power/ground wiring to the vehicle battery.
Required tools are: test-probe, trim panel puller, drill with 3/32" drill bit, 10 mm socket, ratchet, wire cutter, wire crimper, and Phillips head screwdriver.

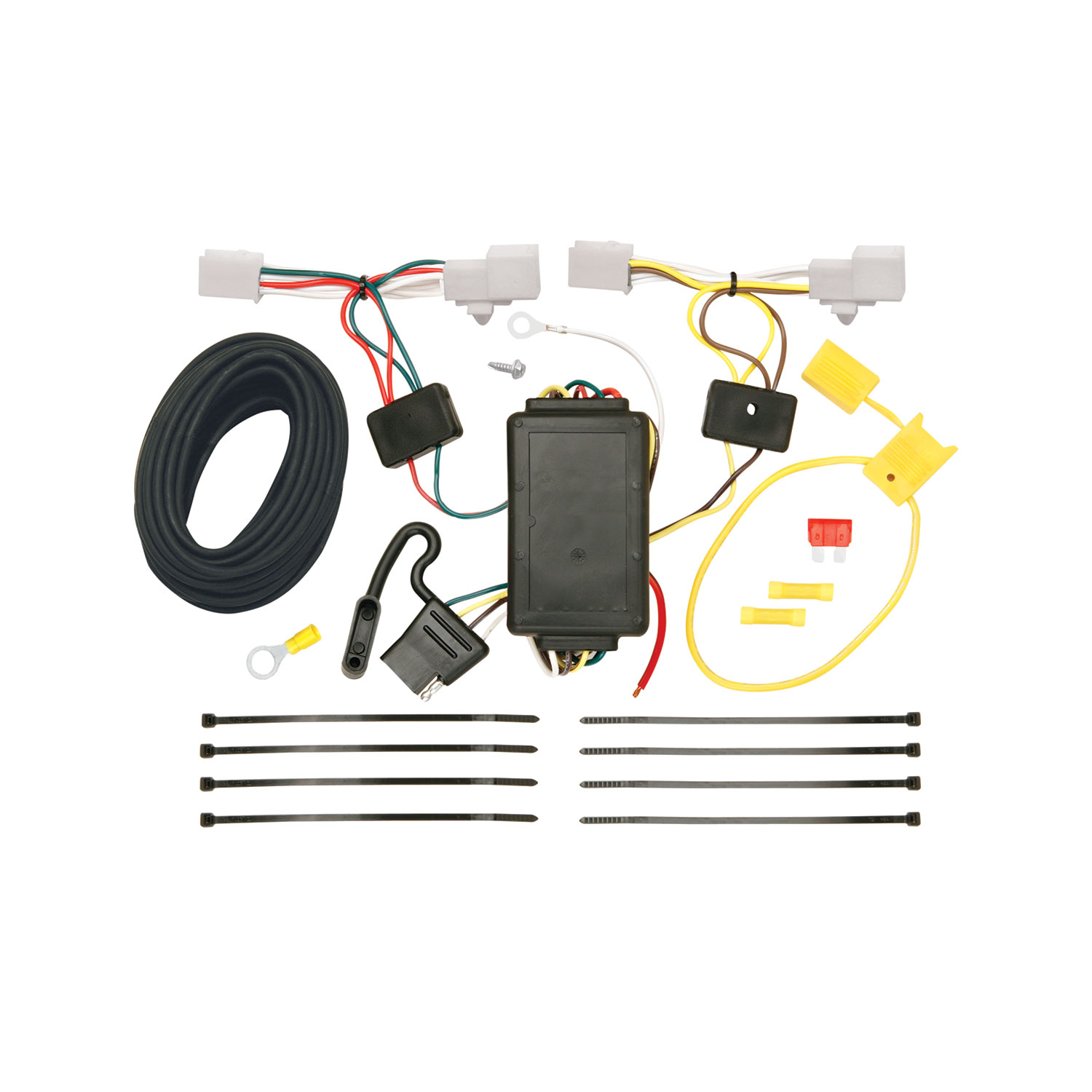

The T-Connector includes: the connector assembly with yellow, brown, and green wire ends; a black converter box; a 4-flat connector; a red 12 gauge power wire; a black 12 gauge wire; a white ground wire with eyelet and screw; a yellow fuse holder with 10 amp fuse; a yellow butt connector; cable ties; and double-sided tape for mounting the converter box.
Yes. You must disconnect the vehicle's negative (−) battery cable before connecting the power wiring. The negative cable is reconnected in Step 11 after the fuse holder and connections are complete.
Open the rear door and fold the rear seat forward. Remove the threshold, trunk floor panels, and trays. On both sides of the vehicle, remove cargo loops and Phillips head screws so the trim panels can be carefully pulled away. Set aside all removed items carefully to avoid damage.
On the driver's side, locate the vehicle's taillight wiring harness (location varies by model: h-1 for CX-9, h-2 for Mazda 2, h-3 for Mazda 5). Separate the connectors carefully without breaking the locking tabs. Verify that the mating surfaces match the T-Connector ends and are clean and free of dirt. Attach the T-Connector end containing yellow and brown wires first, ensuring connectors are fully inserted with locking tabs in place. Then route the T-Connector containing the green wire below the threshold cover to the passenger's side taillight housing and repeat the connection process.
Route the 4-flat connector through the driver's side trim panel into the storage compartment on the threshold and store it there when not in use. When in use, pull the 4-flat connector through the door.
On the driver's side, locate a flat surface in an out-of-the-way place and mount the T-Connector's black converter box using the double-sided tape provided.
Yes. A 3/32" hole must be drilled to secure the white ground wire. Before drilling, verify what is behind the surface to avoid damage to the vehicle or personal injury. Do not drill into the vehicle floor or bed, and do not drill any exposed surfaces. Clean dirt and rustproofing from the area before drilling.
A 3/32" drill bit is required to drill the hole for securing the white ground wire with the eyelet and screw provided.
Locate a suitable grounding point near the connector, such as the vehicle's frame or cross member. Do not drill into the vehicle floor or bed. Clean dirt and rustproofing from the area. Drill a 3/32" hole and secure the white wire using the eyelet and screw provided.
Locate the red 12 gauge power wire from the T-Connector box on the driver's side and attach the black 12 gauge wire provided. Route the black wire either through a grommet and along the exterior frame, or follow existing wiring along the thresholds into the engine compartment up to the battery, avoiding areas that may pinch or break the wire. Disconnect the vehicle's negative battery cable. Remove the fuse from the yellow fuse holder if not already removed. Cut the fuse holder wire and attach the ring terminal to the vehicle's positive battery cable. Connect the other end of the fuse holder to the black 12 gauge wire using the yellow butt connector provided.
A 10 amp fuse is installed in the yellow fuse holder provided with the T-Connector.
The T-Connector uses yellow and brown wires for the driver's side taillight connection, and a green wire for the passenger's side taillight connection. A red 12 gauge wire provides power from the converter box, a black 12 gauge wire connects to the vehicle battery positive terminal, and a white wire provides the ground connection.
Do not exceed the lower of the towing manufacturer rating or: maximum 1 stop/turn light per side (2.1 amps), and maximum tail lights (5.6 amps). Overloading the circuit can cause fires.
All connections must be complete for the T-Connector to function properly. Test and verify installation with a test light or trailer once installed. For the initial test, reset the vehicle electrical system by temporarily removing the key from the ignition.
Secure the remainder of the T-Connector harness with the cable ties provided to prevent damage or rattling. Be careful to avoid any areas that would pinch, cut, or melt the wire. Reinstall the plastic trim panels, threshold, storage covers, floor covering, and other items removed during installation, being careful not to pinch or cut the wires.
Wear safety glasses and use all safety precautions during installation. Before drilling, verify what is behind any surface to avoid damage to the vehicle and personal injury. Do not drill into the vehicle floor, bed, or exposed surfaces. Be careful not to pinch the harness in the door latch. If routing the black power wire through a grommet and along the exterior of the vehicle, avoid hot pipes, heat shields, the fuel tank, or any other points that may pinch or break the wire. Read and follow all warnings and cautions printed on the tow vehicle's battery.
You may either route the black wire through a grommet and along the exterior frame, or follow the existing wiring along the thresholds into the engine compartment up to the battery. Both routes must avoid areas that may pinch or break the wire. If using the exterior route, be careful to avoid hot pipes, heat shields, the fuel tank, or any other points that may pinch or break the wire.
Mazda CX-9, Mazda 2, and Mazda 5.
10 amp fuse.
Yes, disconnect the vehicle's negative battery cable before connecting the power wiring.
Maximum 1 stop/turn light per side (2.1 amps) and maximum tail lights (5.6 amps). Do not exceed the lower of the towing manufacturer rating or these limits.
Test-probe, trim panel puller, drill with 3/32" bit, 10 mm socket, ratchet, wire cutter, wire crimper, and Phillips head screwdriver.
