These dependable custom hitches are manufactured for 2006-2010 Hyundai Sonata and attach to your vehicle?s frame or bumper for a sleek, clean appearance. Each hitch also has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. DRAW-TITE Class 1 custom trailer hitches come complete with all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. So, whether you are headed out to the campground and need a place for the cooler, taking the bikes to hit the trails in the park, or you are tackling a DIY project (maybe some landscaping or a home repair), choose DRAW-TITE and travel with confidence knowing your setup is connected with the security only DRAW-TITE can provide. DRAW-TITE: North America?s Favorite Hitch.
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 1996 - 1999 | Hyundai Sonata | — |

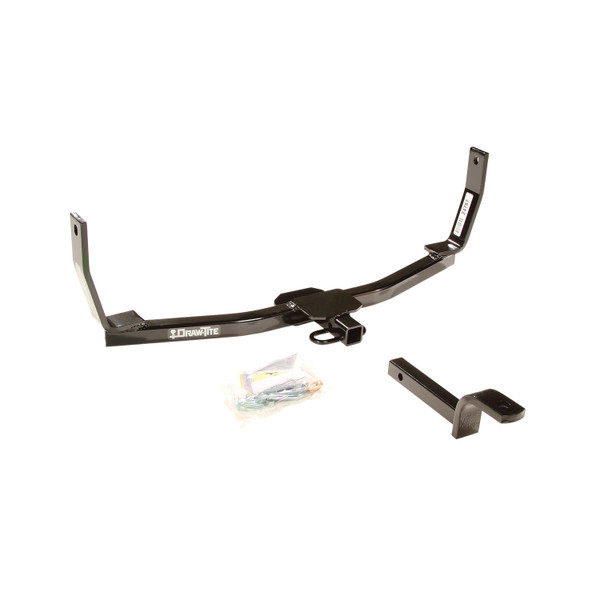

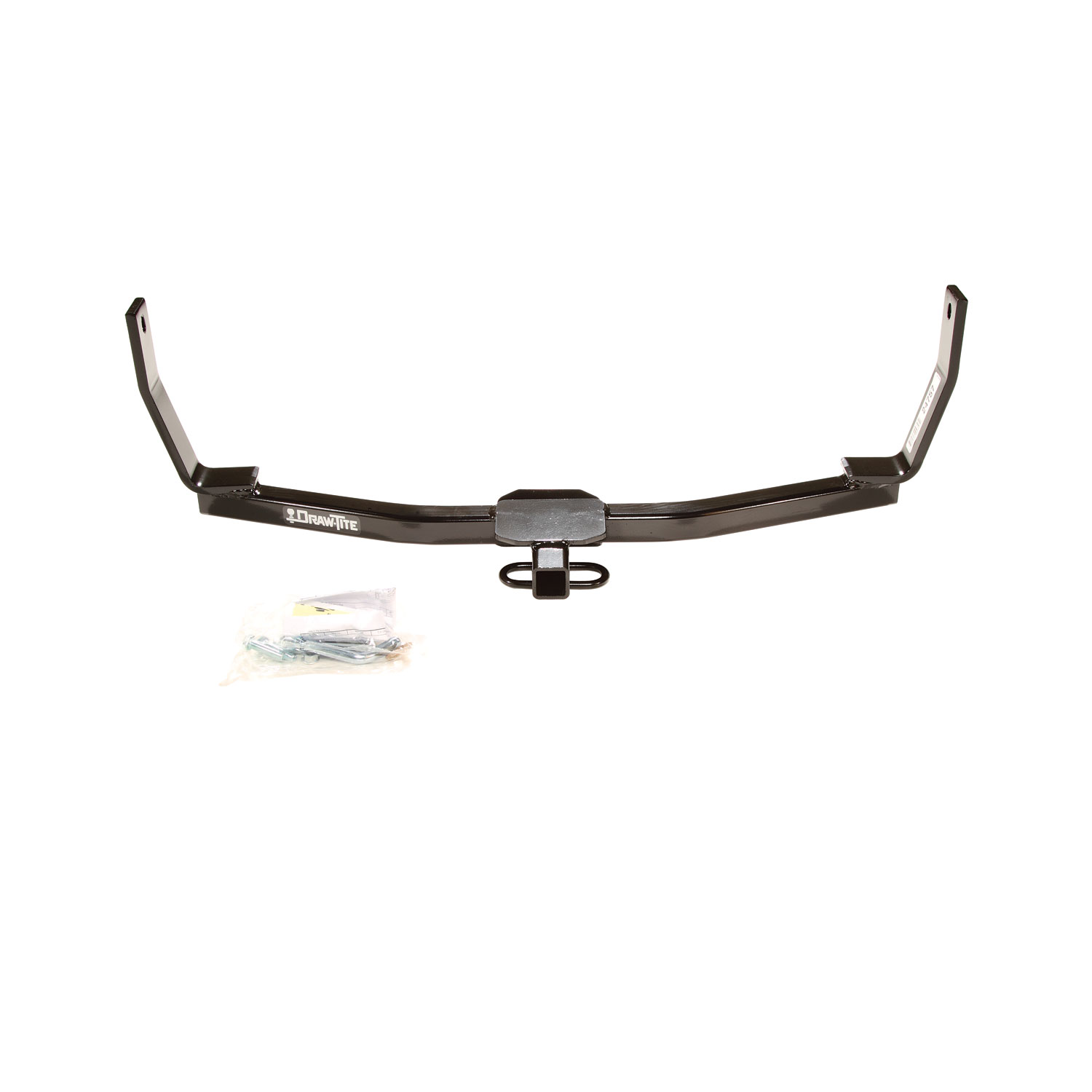

The 2010-2010 Hyundai Sonata Draw-tite Class 1 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB24757-118557) fits the following vehicles: 1996-1999 Hyundai Sonata. Always verify your specific year, make, and model before ordering.
The 2010-2010 Hyundai Sonata Draw-tite Class 1 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB24757-118557) fits 1996-1999 Hyundai Sonata models. The 1999 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 2010-2010 Hyundai Sonata Draw-tite Class 1 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB24757-118557) is designed to fit the 1996-1999 Hyundai Sonata.
The 2010-2010 Hyundai Sonata Draw-tite Class 1 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB24757-118557) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, part number 24757 is designed for the Hyundai Sonata. The hitch is compatible with the vehicle's factory tow hook and frame rails. However, the manual does not specify which model years are supported, so contact the manufacturer or your retailer to confirm your specific year is compatible.
Yes, the hitch is compatible with single exhaust vehicles. However, you will need to remove the appearance panel that covers the driver's side frame rail by removing seven fasteners before installation. The panel and fasteners must be returned to the vehicle owner after installation.
The maximum gross trailer weight is 2000 LB and the maximum tongue weight is 200 LB. Do not exceed the lower of the towing vehicle manufacturer's rating or these limits.
You will need wrenches in the following sizes: 10mm, 18mm, and 9/16 inch. A torque wrench is also required to tighten fasteners to the specified torque values. No drill bits are needed.
No, drilling is not required. The hitch uses the vehicle's existing tow hook and weld nuts in the frame rails.

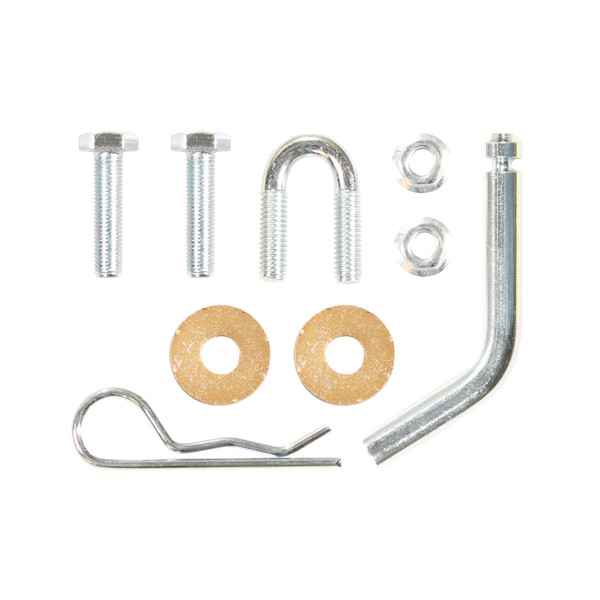

The hitch includes: one 3/8-16 U-bolt, two M10 x 1.25 x 40mm hex bolts, two 3/8-16 flanged locknuts, and two conical toothed washers. Additional fastener kits (24757F or 60816F) are available separately if needed.
Installation involves two main steps: (1) Lift the hitch into position and install the 3/8-16 U-bolt over the vehicle's tow hook and down through the holes in the vehicle's center bracket, then install the 3/8-16 flanged locknuts. (2) Install the M10 bolts and conical toothed washers through the frame straps into the existing weld nuts in the vehicle's frame rails, one per side. Tighten all fasteners to the specified torque values using a torque wrench.
All M10 CL8.8 fasteners must be tightened to 42 Lb.-Ft. using a torque wrench.
All 3/8 GR2 fasteners, including the flanged locknuts, must be tightened to 20 Lb.-Ft. using a torque wrench.
Only if your vehicle has a single exhaust system. On single exhaust vehicles, you must remove the appearance panel that covers the driver's side frame rail by removing seven fasteners. After installation, return the panel and fasteners to the vehicle owner.
Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
The drawbar must be used in the RISE position only. Do not use it in any other position.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. This is an ongoing maintenance requirement, not just a one-time post-installation check.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. The manual does not specify an exact interval, but regular inspection is recommended.
A damaged hitch or ball must be removed and replaced. Do not continue to use a damaged hitch.
The compatible drawbar kits are part number 3592 or part number 6803. These are sold separately and must be purchased in addition to the hitch.
The wiring access locations are PC3 and PC4.
Yes, the 24757 is designed for the Hyundai Sonata. Confirm your specific model year with the manufacturer.
You need wrenches (10mm, 18mm, 9/16 inch) and a torque wrench. No drilling is required.
M10 CL8.8 bolts: 42 Lb.-Ft. 3/8 GR2 flanged locknuts: 20 Lb.-Ft. Use a torque wrench for both.
Maximum gross trailer weight: 2000 LB. Maximum tongue weight: 200 LB. Do not exceed the lower of these limits or your vehicle manufacturer's rating.
The drawbar must be used in the RISE position only.
The manual confirms this T-Connector is designed for Hyundai Sonata, but does not specify which model years are compatible. Contact the manufacturer or your retailer with your vehicle's year and trim level to confirm fitment before purchasing.
You will need: trim panel remover, drill with 3/32" drill bit, Phillips head screwdriver, and test probe. Safety glasses are also required during installation.
Yes. You must disconnect the vehicle's negative (-) battery cable before connecting any wires to the positive (+) battery terminal. Reconnect the negative cable only after the fuse holder has been properly installed and the 10 amp fuse is in place.
The taillight wiring harness is located on both the driver and passenger sides of the vehicle. You access it by opening the trunk, temporarily removing the rear threshold plate, and partially removing the felt trunk liner behind the taillights.
On the driver's side, insert the T-Connector end with the yellow wire between the vehicle's taillight wiring connectors and lock it into place. Be careful not to damage the locking tabs and ensure connectors are fully inserted. Route the T-Connector end with the green wire to the passenger side behind the panels and along the threshold, then repeat the process on that side. Ensure all connector surfaces are clean and free of dirt before connecting.
Yes. You must drill a 3/32" hole to secure the white ground wire using the eyelet and screw provided. Before drilling, verify what is behind the surface to avoid damage to the vehicle or personal injury. Do not drill into any exposed surfaces.
The white wire is the ground wire. It must be secured to a suitable grounding point near the connector using the eyelet and screw provided. The area must be cleaned of dirt and rustproofing before drilling the 3/32" hole.
You have two options: (1) route the black wire through a grommet and along the exterior frame, or (2) follow the existing wiring along the thresholds into the engine compartment up to the battery. Whichever route you choose, avoid areas that may pinch or break the wire. If using the exterior route, avoid hot pipes, heat shields, fuel tank, or other points that may pinch or break the wire.
The T-Connector uses a 10 amp fuse. This fuse must be installed in the yellow fuse holder provided and placed in the fuse holder after the negative battery cable is reconnected.
After disconnecting the negative battery cable, remove the fuse from the yellow fuse holder if present. Cut the fuse holder wire, attach the ring terminal, and secure it to the vehicle's positive (+) battery cable. Connect the other end of the fuse holder to the black 12 gauge wire using the yellow butt connector provided. Reconnect the negative battery cable and install the 10 amp fuse into the fuse holder.
The T-Connector uses the following wire colors: yellow wire (driver side taillight connection), green wire (passenger side taillight connection), white wire (ground), black wire (12 gauge, connects to battery through fuse holder), and red wire (from T-Connector black box, connects to black wire via yellow butt connector).
Do not exceed the lower of two ratings: the towing manufacturer's rating (including the rating in your vehicle owner's manual) or the specific amperage rating stated on the T-Connector product. Overloading circuits can cause fires.
Always wear safety glasses during installation. Read and follow all warnings and cautions printed on the tow vehicle's battery before working with the battery. Verify what is behind any surface before drilling to avoid damage to the vehicle or personal injury. Do not drill into exposed surfaces. If routing wire through a grommet and along the exterior, avoid hot pipes, heat shields, fuel tank, or other points that may pinch or break the wire.
Yes. All connector surfaces must be clean and free of dirt before connecting the T-Connector to the vehicle's taillight wiring harness. This ensures a proper electrical connection.
The manual warns to be careful not to damage the locking tabs when separating and connecting the T-Connector. If the locking tabs are damaged during installation, the connectors may not lock securely. Do not proceed; contact the manufacturer or retailer for a replacement T-Connector.
The T-Connector is designed for Hyundai Sonata. Confirm your specific model year with the manufacturer before purchasing.
Trim panel remover, drill with 3/32" bit, Phillips head screwdriver, test probe, and safety glasses.
Yes. Disconnect the negative battery cable before connecting to the positive terminal. Reconnect only after the fuse holder and 10 amp fuse are installed.
10 amp fuse, installed in the yellow fuse holder provided.
Do not exceed the lower of the towing manufacturer's rating or the specific amperage rating on the product. Overloading can cause fires.
