This fits: 2009-2014 Ford Edge Excluding EcoBoost

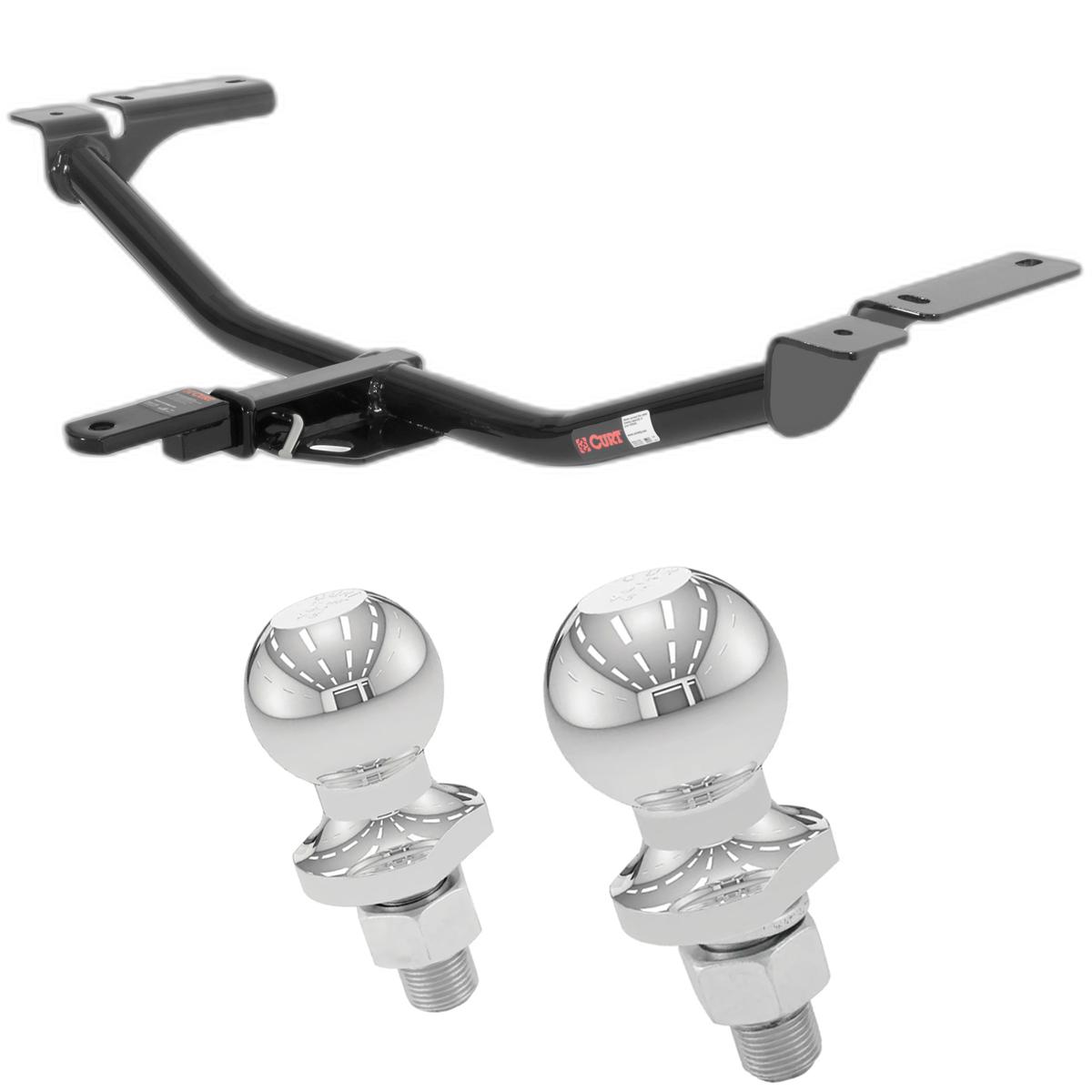

A CURT trailer hitch is the key to pursuing your passions, whether you're taking the family boat out for an afternoon on the water or packing up the mountain bikes for a day on the trails. This CURT class 2 hitch is perfect for towing a small trailer, such as a boat trailer, lightweight camper or utility trailer. It can also be used to mount a hitch cargo carrier or bike rack (never exceed the lowest-rated towing component). Like all CURT custom hitches, this class 2 trailer hitch is made for a vehicle-specific fit. It is engineered to seamlessly integrate with select years of the Ford Edge and Lincoln MKX (see application info to verify fitment). It is rated for 3,500 pounds gross trailer weight and 350 pounds tongue weight. It is also equipped with 1-1/4" x 1-1/4" hitch receiver to accept the included ball mount. The ball mount that comes with this hitch kit has a 3/4" trailer ball hole and can be positioned in the drop or rise orientation for level towing with your specific trailer (trailer ball not included). Like all CURT custom receiver hitches, this class 2 hitch is designed, manufactured, finished and tested with the utmost care. It is engineered for a precise fit, easy installation, maximum towing strength and an integrated look on the vehicle. It is also tested to SAE J684 protocols for safety. This class 2 trailer hitch is finished with our industry-leading dual-coat process for unparalleled rust, chip and UV resistance. It is descaled for a smooth surface, submersed in liquid A-coat for rust prevention inside and out, covered with a highly durable powder coat, and finally co-cured for a dependable shield against the elements. This class 2 hitch comes with a ball mount, hitch pin and mounting hardware for a complete installation.
Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
Not compatible for use with vertical hanging bicycles (bike racks that require the bicycles to be hung / mounted vertically)
Includes ball mount #45518, installation hardware, pin & clip
2009, 2010, 2011, 2012, 2013, 2014 Ford Edge Excluding EcoBoost Class 2 Trailer Hitch, 1-1/4" Ball Mount, Select Ford Edge, Lincoln MKX
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2009 - 2014 | Ford Edge | Excluding EcoBoost |
The 2009-2014 Ford Edge Excluding EcoBoost Class 2 Trailer Hitch, 1-1/4" Ball Mount (Part #CHD-120363-002) fits 2009-2014 Ford Edge models. The 2014 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 2009-2014 Ford Edge Excluding EcoBoost Class 2 Trailer Hitch, 1-1/4" Ball Mount (Part #CHD-120363-002) is designed to fit the 2009-2014 Ford Edge.
The 2009-2014 Ford Edge Excluding EcoBoost Class 2 Trailer Hitch, 1-1/4" Ball Mount (Part #CHD-120363-002) fits the following vehicles: 2009-2014 Ford Edge. Always verify your specific year, make, and model before ordering.
The 2009-2014 Ford Edge Excluding EcoBoost Class 2 Trailer Hitch, 1-1/4" Ball Mount (Part #CHD-120363-002) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, CURT part number 12036 is designed for 2007-Current Ford Edge and Lincoln MKX crossovers. The hitch is a weight-carrying model with a gross load capacity of 3,500 lbs trailer weight and 350 lbs tongue weight. It is designed for use with ball mount #D-18 / 45518, and Euro mount options #45551 (1-7/5" ball) and #45552 (2" ball) are available.
The CURT 12036 has a gross load capacity of 3,500 lbs trailer weight and 350 lbs tongue weight when used as a weight-carrying hitch. However, you must never exceed your vehicle manufacturer's recommended towing capacity, which may be lower than the hitch rating.
Required tools are: ratchet, torque wrench, 6" socket extension, 3/4" socket, 8mm socket, flat head screwdriver, power drill with 17/32" drill bit, and tin snips or aviation shears. Wire is also needed to hold the exhaust during installation. Using proper tools will greatly improve the quality of the install and reduce the time required.
The hitch includes: 4x carriage bolts 1/2-13 x 1 1/2" (part 1), 6x hex flange nuts HFN 1213 (part 2), 6x square hole spacers .250 x 1.25 x 3.00" CM-SP19 (part 3), 2x carriage bolts 1/2-13 x 1 3/4" (part 4), and 4x 1/2" fishwire (part 5).
The manual does not specify whether the battery must be disconnected. Contact CURT Technical Support at 800.798.0813 for clarification on this step.
Two people may be required to ease installation. The manual notes that if you are hesitant to undertake this task on your own, you should contact an authorized CURT installer for additional assistance.
Yes, drilling is required. You must drill rear holes through the frame rails using a 17/32" drill bit. The hitch is used as a template to mark the hole locations. A power drill is required.
Yes, heat shield trimming is required. After removing the heat shields from both sides of the vehicle, you must trim off a tab from both the driver and passenger side heat shields using tin snips or aviation shears. The heat shields are then reinstalled without the screws that attach them to the frame rails; they will be sandwiched between the vehicle frame rails and the hitch.
The exhaust must be lowered before installation. Remove the three rear rubber exhaust isolators (hangers) and use wire to hold the exhaust up high enough to prevent damage to the exhaust tube. After the hitch is installed and torqued, the exhaust is reinstalled by reattaching the isolators.
1. Lower the exhaust by removing three rubber exhaust isolators and securing with wire. 2. Remove heat shields from both sides (3 bolts and 1 plastic plug each; driver side also has a plastic clip). 3. Trim the tab off both heat shields and reinstall without frame rail screws. 4. Fishwire 1/2-13 x 1 1/2" carriage bolts with CM-SP19 spacers through bumper mounts to frame rail holes. 5. Raise hitch into position and secure with 1/2" flange nuts. 6. Using the hitch as a template, drill rear holes with 17/32" drill bit. 7. Fishwire 1/2-13 x 1 3/4" carriage bolts with spacers and secure with flange nuts. 8. Torque all 1/2" hardware to 110 lb-ft. 9. Reinstall exhaust.
Fishwire is a technique for threading fasteners through tight spaces. The 1/2" fishwire supplied with the hitch is used to guide the carriage bolts and spacers through the rear of the bumper mounts and into the holes in the frame rails. This allows you to position the bolts without having to access them from the front.
After trimming the tab off the heat shield, reinstall it without the screws that attach it to the frame rails. The heat shield will then be sandwiched between the vehicle frame rails and the hitch. The side plate of the hitch will straddle the seam between the frame rail and the bumper beam.
All 1/2" hardware (carriage bolts and hex flange nuts) must be torqued to 110 lb-ft. This includes both the front 1/2-13 x 1 1/2" bolts and the rear 1/2-13 x 1 3/4" bolts. A torque wrench is required to achieve the correct specification.
A 17/32" drill bit is required to drill the rear holes through the frame rails. The hitch is used as a template to mark the hole locations before drilling.
You must never exceed your vehicle manufacturer's recommended towing capacity. Although the CURT 12036 has a gross load capacity of 3,500 lbs trailer weight and 350 lbs tongue weight, your vehicle's manufacturer may specify a lower limit. Always follow the vehicle manufacturer's recommendation, which is the more restrictive limit.
Safety glasses should be worn at all times while installing this product. Additionally, CURT recommends the use of 18050 stabilizing straps for all non-trailer (wheel-less) loads. If you are hesitant to undertake the installation on your own, contact an authorized CURT installer for additional assistance.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound. This ongoing maintenance is important for safe operation and to maintain the warranty.
The manual states to periodically check the receiver hitch to ensure all fasteners are tight and all structural components are sound, but does not specify an exact interval. For specific maintenance recommendations, contact CURT Technical Support at 800.798.0813.
The CURT 12036 is designed for use with ball mount #D-18 / 45518. Euro mount options are also available: #45551 (1-7/5" ball) and #45552 (2" ball).
CURT Manufacturing Inc. warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective, CURT may repair or replace the product at their option when the product is returned, prepaid, with proof of purchase. Alteration to, misuse of, or improper installation of this product voids the warranty. CURT's liability is limited to repair or replacement of products found to be defective and specifically excludes liability for incidental or consequential loss or damage.
Yes, CURT part number 12036 is designed for 2007-Current Ford Edge and Lincoln MKX crossovers with a 3,500 lbs trailer weight and 350 lbs tongue weight capacity.
Yes, you must drill rear holes through the frame rails using a 17/32" drill bit. Heat shield trimming and exhaust lowering are also required.
Required tools: ratchet, torque wrench, 6" socket extension, 3/4" socket, 8mm socket, flat head screwdriver, power drill with 17/32" drill bit, and tin snips. Wire is also needed.
All 1/2" hardware must be torqued to 110 lb-ft using a torque wrench.
The hitch has a 3,500 lbs trailer weight and 350 lbs tongue weight capacity, but you must never exceed your vehicle manufacturer's recommended towing capacity.
Two people may be required to ease installation. If hesitant, contact an authorized CURT installer.
Periodically check that all fasteners are tight and all structural components are sound to maintain the warranty and ensure safe operation.
