Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
This fits: 2009-2015 Toyota Venza All, Including AWD

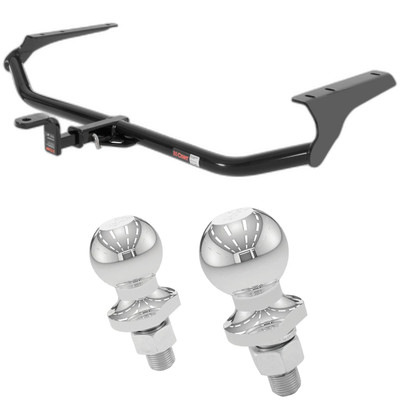

A CURT trailer hitch is the key to pursuing your passions, whether you're taking the family boat out for an afternoon on the water or packing up the mountain bikes for a day on the trails. This CURT class 2 hitch is perfect for towing a small trailer, such as a boat trailer, lightweight camper or utility trailer. It can also be used to mount a hitch cargo carrier or bike rack (never exceed the lowest-rated towing component). Like all CURT custom hitches, this class 2 trailer hitch is made for a vehicle-specific fit. It is engineered to seamlessly integrate with select years of the Toyota Venza (see application info to verify fitment). It is rated for 3,500 pounds gross trailer weight and 350 pounds tongue weight. It is also equipped with 1-1/4" x 1-1/4" hitch receiver to accept the included ball mount. The ball mount that comes with this hitch kit has a 3/4" trailer ball hole and can be positioned in the drop or rise orientation for level towing with your specific trailer (trailer ball not included). Like all CURT custom receiver hitches, this class 2 hitch is designed, manufactured, finished and tested with the utmost care. It is engineered for a precise fit, easy installation, maximum towing strength and an integrated look on the vehicle. It is also tested to SAE J684 protocols for safety. This class 2 trailer hitch is finished with our industry-leading dual-coat process for unparalleled rust, chip and UV resistance. It is descaled for a smooth surface, submersed in liquid A-coat for rust prevention inside and out, covered with a highly durable powder coat, and finally co-cured for a dependable shield against the elements. This class 2 hitch comes with a ball mount, hitch pin and mounting hardware for a complete installation.
Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
Not compatible for use with vertical hanging bicycles (bike racks that require the bicycles to be hung / mounted vertically)
Includes ball mount #45521, installation hardware, pin & clip
2009, 2010, 2011, 2012, 2013, 2014, 2015 Toyota Venza All, Including AWD Class 2 Trailer Hitch, 1-1/4" Ball Mount, Select Toyota Venza
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494The 2009-2015 Toyota Venza All, Including AWD Class 2 Trailer Hitch, 1-1/4" Ball Mount (Part #CHD-123413-001) fits 2009-2015 Toyota Venza models. The 2015 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 2009-2015 Toyota Venza All, Including AWD Class 2 Trailer Hitch, 1-1/4" Ball Mount (Part #CHD-123413-001) is designed to fit the 2009-2015 Toyota Venza.
The 2009-2015 Toyota Venza All, Including AWD Class 2 Trailer Hitch, 1-1/4" Ball Mount (Part #CHD-123413-001) fits the following vehicles: 2009-2015 Toyota Venza. Always verify your specific year, make, and model before ordering.
The 2009-2015 Toyota Venza All, Including AWD Class 2 Trailer Hitch, 1-1/4" Ball Mount (Part #CHD-123413-001) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, part number 12341 is designed for 2009-Current Toyota Venza Crossover models. The hitch is a weight-carrying style with a 3,500 lbs. trailer weight capacity and 350 lbs. tongue weight capacity.
Yes, the hitch is compatible with all-wheel drive models. However, all-wheel drive installation includes additional steps: you must remove the two sway bar brackets before installation and reinstall them using CM-SP50 spacer blocks and the existing nuts on the lower mounts during step 4.
The CURT 12341 is rated for a maximum trailer weight of 3,500 lbs. and a tongue weight of 350 lbs. You must never exceed your vehicle manufacturer's recommended towing capacity.
You will need: 12 mm, 14 mm, and 17 mm sockets; a 14 mm deep socket; a swivel extension; a 12-inch extension; a ratchet; and a torque wrench. Safety glasses should be worn at all times during installation.
No, drilling is not required. The hitch uses existing weld nuts in the vehicle frame and existing sway bar brackets (on all-wheel drive models), so no frame modifications are necessary.
Two people may be required to ease installation. The manual recommends reading all instructions thoroughly before beginning and notes that using proper tools will greatly improve installation quality and reduce time required.
1. If all-wheel drive, remove the two sway bar brackets and save the existing nuts. 2. Remove stickers covering the four weld nuts in the frame rail. 3. Lower the exhaust by removing the four hex flange bolts from the isolator hanger brackets and save them. 4. Raise the hitch and install three 10 mm bolts with conical toothed washers per side into the existing weld nuts. If all-wheel drive, reinstall sway bar brackets using CM-SP50 spacer blocks and existing nuts. 5. Torque all M10 hardware to 45 ft-lbs. 6. Raise the exhaust and secure isolator mounts using the bolts removed in step 3.
All M10 hardware must be torqued to 45 ft-lbs. This includes the six M10-1.25 x 35 hex bolts (three per side) that secure the hitch to the vehicle frame weld nuts.
The kit includes: six M10-1.25 x 35 hex bolts, six 3/8-inch conical toothed washers, and two CM-SP50 spacer blocks (for all-wheel drive models). The hitch uses existing weld nuts in the vehicle frame and existing sway bar brackets and nuts on all-wheel drive models.
Yes, the exhaust must be lowered during installation. In step 3, you remove the four hex flange bolts securing the isolator hanger brackets to the frame and save them. After the hitch is installed and torqued, you raise the exhaust back into position and secure the isolator mounts using the bolts you removed.
The hitch is rated for 3,500 lbs. trailer weight and 350 lbs. tongue weight. However, you must never exceed your vehicle manufacturer's recommended towing capacity, which may be lower than the hitch rating. Always check your vehicle's owner manual for the maximum towing capacity.
Yes, CURT recommends the use of 18050 stabilizing straps for all non-trailer (wheel-less) loads. All non-trailer loads applied to this product must be supported by auxiliary stabilizing straps. Failure to properly support non-trailer loads will void the product warranty. See the CURT catalog or visit www.curtmfg.com for further information.
Periodically check the receiver hitch to ensure all fasteners are tight and all structural components are sound. This ongoing inspection helps maintain the integrity and safety of the installation.
The CURT 12341 hitch is designed for use with ball mount number D-55001.
Yes, safety glasses should be worn at all times while installing this product.
Yes, the CURT 12341 is designed for 2009-Current Toyota Venza Crossover models, both two-wheel and all-wheel drive.
No, no drilling is required. The hitch uses existing weld nuts in the vehicle frame.
Torque all M10 hardware to 45 ft-lbs.
The hitch is rated for 3,500 lbs. trailer weight and 350 lbs. tongue weight, but you must not exceed your vehicle manufacturer's recommended towing capacity.
Yes, the exhaust must be lowered by removing four hex flange bolts from the isolator hanger brackets in step 3, then raised and resecured in step 6 after the hitch is installed.
Yes, all non-trailer loads must be supported by auxiliary stabilizing straps (CURT part 18050 recommended). Failure to do so voids the warranty.
You need 12 mm, 14 mm, and 17 mm sockets; a 14 mm deep socket; a swivel extension; a 12-inch extension; a ratchet; and a torque wrench.
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2009 - 2015 | Toyota Venza | All, Including AWD |
