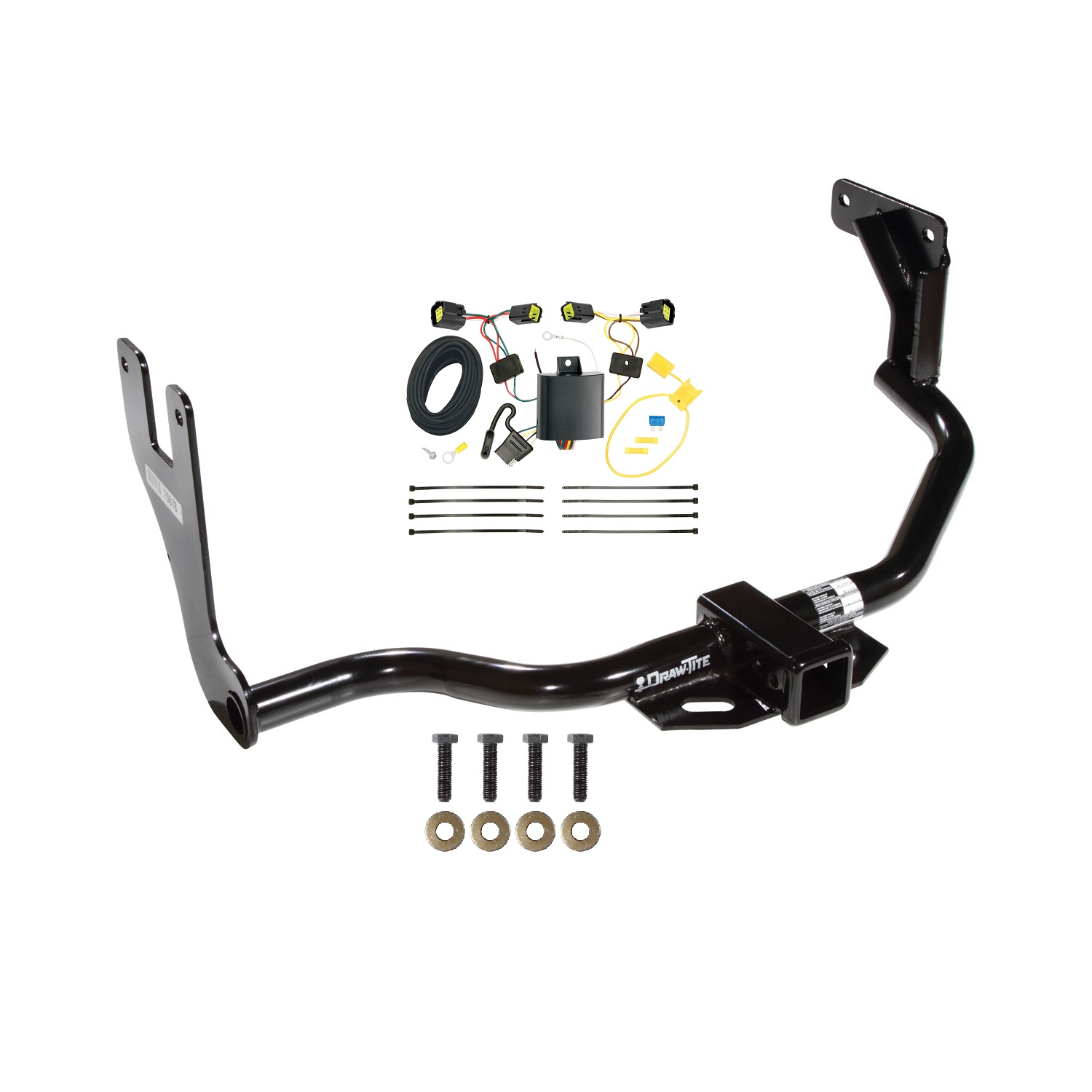

These durable custom hitches are manufactured for 2010-2013 Ford Transit Connect and attach to your vehicle?s frame or bumper for a sleek, clean appearance. Each hitch also has a 2 inch square receiver tube opening ? the most common and versatile on the market - allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. The options are endless! DRAW-TITE Class 3 Custom Trailer Hitches come complete with all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. So, whether you are headed out to the campground, the lake, or the bike trails, or you are tackling a project at home and need to haul the materials home, choose DRAW-TITE and travel with confidence knowing your setup is connected with the security only DRAW-TITE can provide. DRAW-TITE: North America?s Favorite Hitch

Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2010 - 2013 | Ford Transit Connect | — |
Yes. This hitch receiver (part 75678) is designed specifically for the Ford Transit Connect. The installation instructions are provided for this vehicle model.
The maximum gross trailer weight is 4,000 lb (1,816 kg) for weight distributing hitches or 3,500 lb (1,589 kg) for weight carrying ball mounts. The maximum tongue weight is 400 lb (182 kg) for weight distributing or 350 lb (159 kg) for weight carrying. Do not exceed the lower of the towing vehicle manufacturer's rating or these hitch type ratings.
No. The manual specifies "Drill Bits: none", indicating no drilling is required for installation.
You will need an 18 mm wrench and a torque wrench. No drill bits are required.

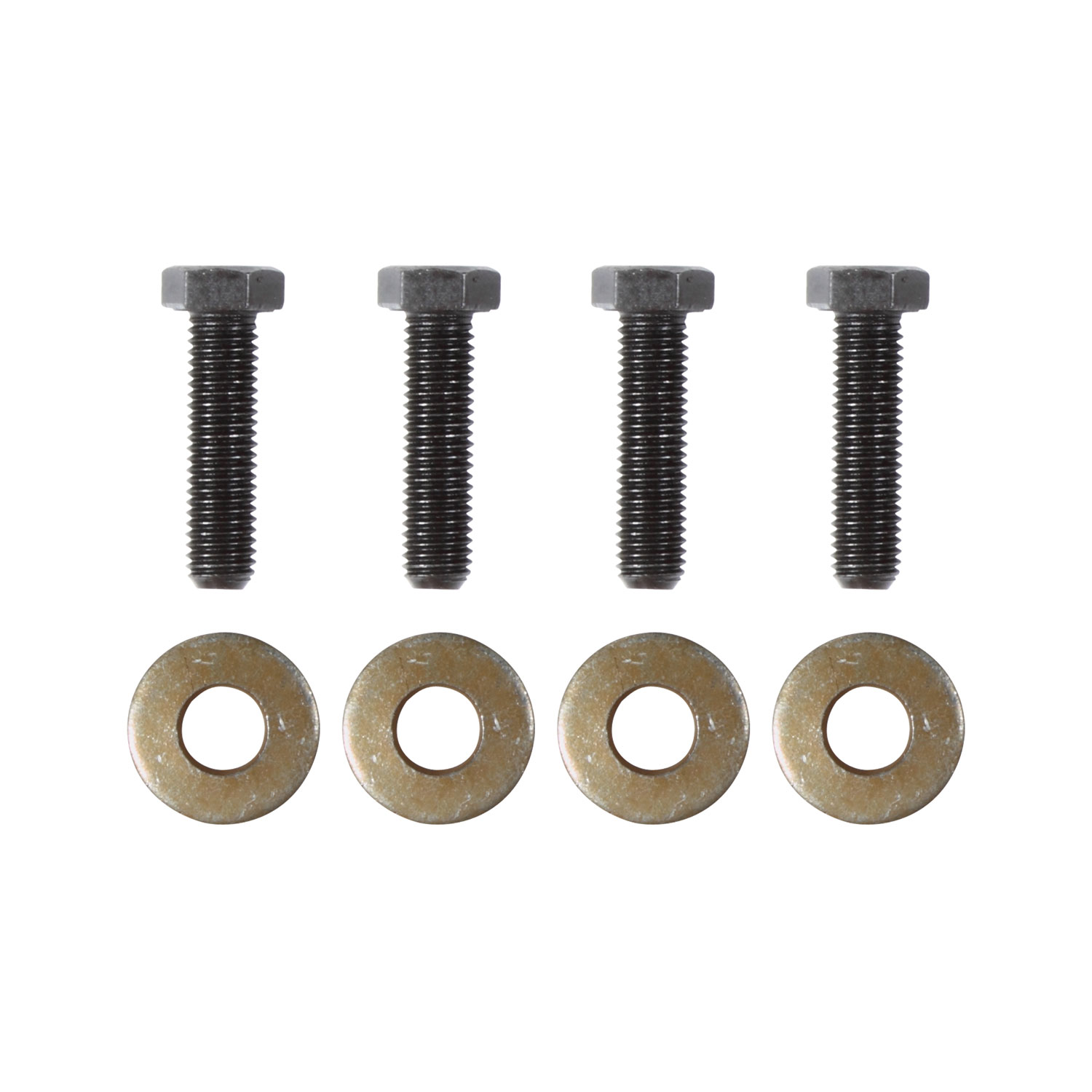

The fastener kit (part 75678F) includes: (4) bolts M12 x 1.75 x 45 mm long class 10.9, and (4) washers 1/2" conical toothed. These are the only fasteners needed for installation.
Yes. Step 1 of the installation instructions requires you to lower the spare tire. See your vehicle's owner's manual for the procedure.
The wire loom retainer is a clip attached to the inside of the right frame rail. During installation, you must pull it away from the frame rail. The right mounting bracket is then placed between the wire loom and the frame. The retainer will not be re-inserted after installation.
Place the right mounting bracket between the wire loom (previously pulled away) and the right frame rail, above the fuel fill lines. Lift the left mounting bracket into place, routing the wire cable through the large notch in the side bracket between the mounting holes. Both brackets should be positioned so the hitch receiver is level or above when pulled rearward and upward.
Install the fasteners loosely first (step 4). Then pull the hitch rearward and upward so the hitch receiver is level or above (step 5), and only then tighten all fasteners to the specified torque.
Tighten all M12 x 1.75 class 10.9 fasteners with a torque wrench to 92 Lb.-Ft. (125 n*m).
After raising the spare tire, check that it is secure. The spare tire may rub against the right mounting bracket of the hitch when lifting, so verify that the spare tire is properly seated and fastened.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. The manual does not specify an exact interval, but regular inspection is recommended as part of vehicle maintenance.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
A hitch or ball which has been damaged should be removed and replaced. Do not attempt to repair a damaged hitch or ball.
Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch.
This product complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5 and SAE J684.
The T-Connector is a wiring harness that integrates trailer lighting into your Ford Transit Connect's electrical system. It allows you to connect a trailer's lighting to your vehicle's taillight circuits without permanently modifying the vehicle's wiring. The system uses T-shaped connectors that plug into the vehicle's existing taillight harnesses on both the driver and passenger sides.
Yes, the T-Connector (part number 118585-037) is designed for Ford Transit Connect. However, the manual notes that due to variance in vehicle options, alternate installation methods may be required for your specific vehicle configuration.
You will need: 6mm hex wrench, Philips Head Screwdriver, Test-probe, and Wire Cutters. These are the only tools specified in the manual for installation.

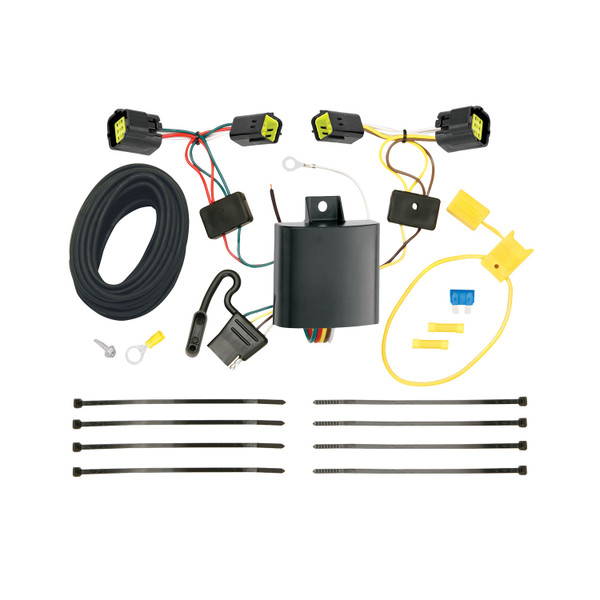

The kit includes: two T-Connector harnesses (one with yellow wire for driver side, one with green wire for passenger side), a yellow fuse holder with 15 amp fuse, yellow butt connectors, a black box (control module), double-sided tape, silver tape, cable ties, and a 4-Flat connector. A bracket or electrical box for mounting the 4-Flat connector is not included.
Yes. You must disconnect the vehicle's negative (−) battery cable before connecting the power wire to the positive (+) battery terminal. The negative cable should remain disconnected until step 12, after all other connections are complete and the 15 amp fuse is installed in the fuse holder.
Yes. When you separate the vehicle's taillight wiring harness connectors in step 2, all connector surfaces must be clean and free of dirt. This ensures proper electrical contact between the T-Connector and the vehicle's harness.
Open the rear door. Starting on the driver's side, use a 6mm hex wrench to remove two bolts. Carefully pry the taillight housing rearward away from the vehicle, being careful not to break the alignment tabs. Repeat on the passenger side. The taillights are reinstalled in step 16 after all wiring is complete.
On the driver's side, locate the vehicle's taillight wiring harness connector. Plug the T-Connector harness containing the yellow wire between the vehicle's mating connectors (step 3). On the passenger's side, repeat this process using the T-Connector harness containing the green wire (step 4). Be careful not to break the locking tabs when separating or connecting.
Starting on the driver's side, locate the black plug above the door hinge and temporarily remove it to expose hole C. Route the wires containing the green and red wire out through this hole, down through the opening behind the bumper, and across to the passenger side. Route back up through the opening behind the bumper and in through the hole into the passenger side pocket. Be careful to avoid hot pipes, heat shields, fuel tank, or any points that may pinch or break the wire.
After routing the green and red wires to the passenger side pocket (step 5), plug the green wire and red wire to the corresponding wires on the harness from step 4 (step 6). The connections must match the wire colours.
Route the 4-Flat connector through the driver's side trim panel into the side storage compartment and store it there when not in use (step 7). If jack storage is not accessible, route the harness with the 4-plugs from underneath the vehicle up through the opening behind the driver's side bumper into the hole and into the driver's side pocket. Mount the 4-Flat end in an accessible location with a bracket or electrical box (not included).
If the 4-Flat connector is routed through the driver's side pocket (alternative routing), plug the 4 wires to the corresponding wires on the harness from step 7 (step G in the notes). Ensure all four connections are complete.
Locate the existing ground stud on the vehicle. Loosen the bolt, place the screw eyelet (provided) on the stud, and re-tighten the bolt. Make sure all other ground connections are secure when removing and reattaching the ground stud.
Disconnect the vehicle's negative (−) battery cable. Remove the fuse from the yellow fuse holder (provided). Cut the fuse holder wire, attach the ring terminal, and secure it to the vehicle's positive (+) battery cable. Connect the other end of the fuse holder to the black 12 ga. wire using the yellow butt connector (provided). Route the black wire through a grommet and along the exterior frame, or follow existing wiring along the thresholds into the engine compartment up to the battery, avoiding areas that may pinch or break the wire. Connect the other end of the black 12 ga. wire to the black power wire on the T-Connector's black box using the yellow butt connector. Finally, reconnect the vehicle's negative (−) battery cable and install the 15 amp fuse into the fuse holder.
The T-Connector uses a 15 amp fuse. This fuse is installed in the yellow fuse holder that connects the black 12 ga. power wire to the vehicle's positive battery terminal.
The power wire connecting to the battery is black 12 ga. (12 gauge) wire. This wire is routed from the yellow fuse holder to the black power wire on the T-Connector's black box.
Mount the black box behind the taillight assembly on the driver's side. Clean a flat area using a mixture of rubbing alcohol and water, and mount the black box using the double-sided tape provided. Before mounting, make sure the taillight assembly can be reinstalled without interference.
In the area shown on both sides of the vehicle (see diagram J), clean the area using a mixture of rubbing alcohol and water. Using the silver tape provided, attach the green and red wires to the cleaned area and secure them so they won't get damaged.
Take the black plugs removed in step 5 (from above the door hinges), notch each of them to allow the wires to pass through, then reinstall the plugs and seal them accordingly.
Secure all loose wires with the cable ties provided. This should be done before reinstalling the taillight removed in step 1.
Test and verify the installation with a test light or trailer once installed. For the initial test, reset the vehicle's electrical system by temporarily removing the key from the ignition. All connections must be complete for the T-Connector to function properly.
Do not exceed the lower of the towing manufacturer's rating (including in your vehicle owner's manual) or the specific amperage ratings stated on the product. The manual does not specify the T-Connector's maximum amperage rating; refer to the product label or your vehicle's owner's manual.
Overloading circuits can cause fires. Do not exceed the stated product ratings or the lower of the towing manufacturer's rating (including in your vehicle owner's manual) or specific amperage ratings on the product. Always read your vehicle's owner's manual and instruction sheet for additional information.
Yes, the T-Connector (118585-037) is designed for Ford Transit Connect. Alternate installation methods may be required depending on your vehicle's options.
6mm hex wrench, Philips Head Screwdriver, Test-probe, and Wire Cutters.
Yes, disconnect the negative battery cable before connecting the power wire to the positive terminal. Reconnect it after the 15 amp fuse is installed.
No drilling is required. The installation uses existing holes (above door hinges) and openings behind the bumper. You will notch the black plugs to allow wires to pass through.
15 amp fuse. Install it in the yellow fuse holder after all connections are complete.
Test with a test light or trailer once installed. Reset the vehicle's electrical system by temporarily removing the key from the ignition. All connections must be complete for proper function.
Verify that all connections are complete and secure. Check that the 15 amp fuse is installed in the yellow fuse holder. Ensure the negative battery cable is reconnected. Test the installation with a test light or trailer. Reset the vehicle's electrical system by temporarily removing the key from the ignition. If the system still does not function, verify that all connector surfaces are clean and free of dirt, and that all wire connections match their corresponding colours (yellow on driver's side, green on passenger's side).
The black box may be mounted too far forward or in a position that interferes with the taillight assembly. The manual requires that you verify the taillight assembly can be reinstalled before mounting the black box. Remove the black box, reposition it further back or to the side, and ensure adequate clearance before remounting with the double-sided tape.
Stop installation and reroute the wires. The manual specifies that wires must be routed carefully to avoid hot pipes, heat shields, fuel tank, or any points that may pinch or break the wire. Use the cable ties provided to secure wires away from sharp edges and moving parts. Ensure the wires are not compressed between the bumper and frame, and that they have adequate slack to prevent tension.
