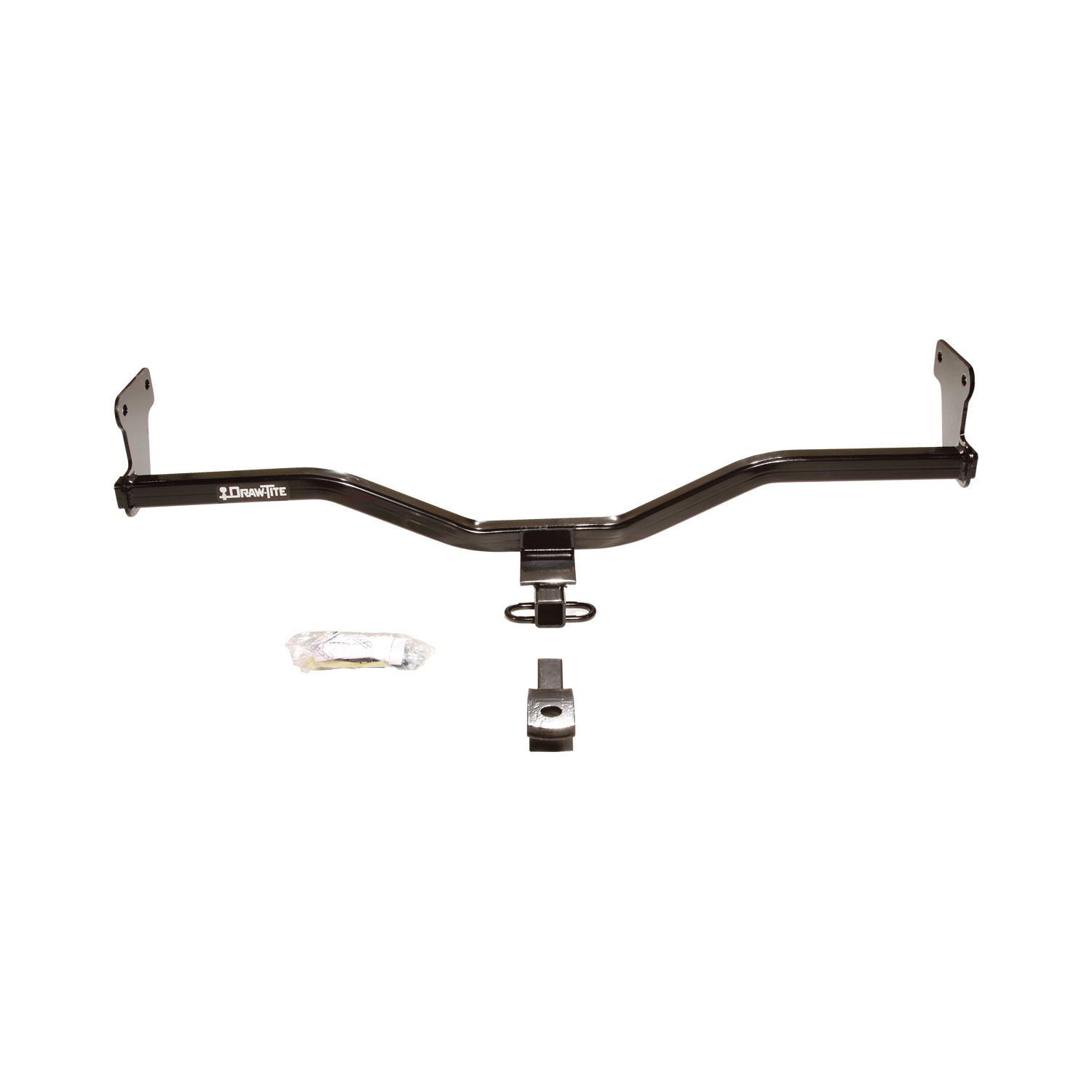

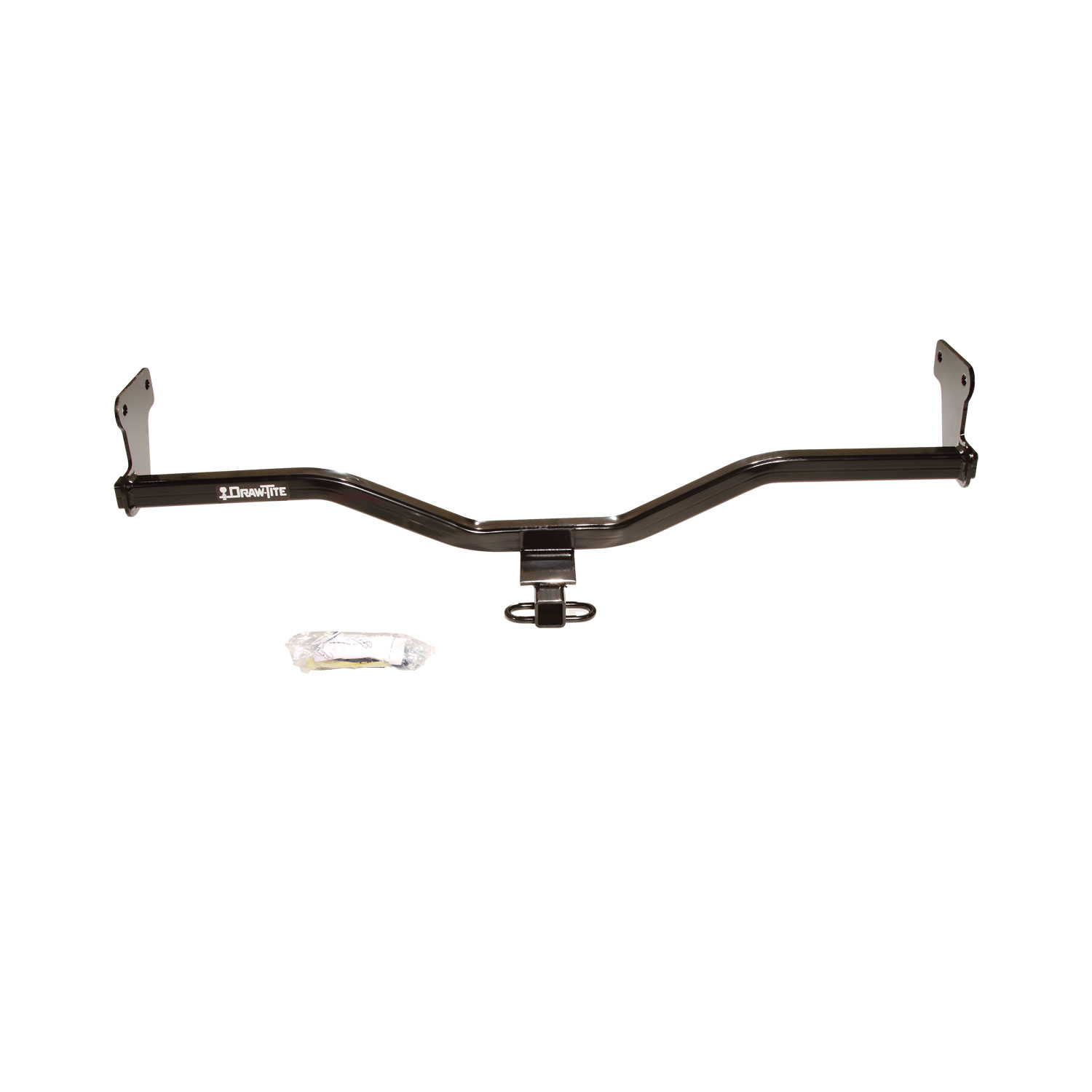

These dependable custom hitches are manufactured for 2010-2013 KIA Soul and attach to your vehicle?s frame or bumper for a sleek, clean appearance. Each hitch also has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. DRAW-TITE Class 1 custom trailer hitches come complete with all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. So, whether you are headed out to the campground and need a place for the cooler, taking the bikes to hit the trails in the park, or you are tackling a DIY project (maybe some landscaping or a home repair), choose DRAW-TITE and travel with confidence knowing your setup is connected with the security only DRAW-TITE can provide. DRAW-TITE: North America?s Favorite Hitch.
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2010 - 2012 | Kia Soul | Except w/LED Taillights |
Yes, part number 24839 fits Kia Soul model years 2009, 2012, 2013, and 2015. Confirm your vehicle year matches one of these before purchasing.
You will need a torque wrench, 17mm socket and ratchet wrench, and a Phillips screwdriver. No drill bits are required. The fastener kit 24839F is included.
No, drilling is not required. The manual lists 'Drill Bits: None'.
All M10 CL8.8 fasteners must be tightened to 42 Lb.-Ft. (57 N·M) using a torque wrench.
The maximum gross trailer weight is 2000 LB (908 kg) and the maximum tongue weight is 200 LB (90.8 kg). Do not exceed the lower of these limits or your vehicle manufacturer's rating.
Yes, the drawbar kit 3593 is sold separately and must be used in the RISE position only.
The fastener kit 24839F includes 4 hex bolts (M10 x 1.25 x 30mm CL8.8) and 4 conical toothed washers (3/8").
The manual specifies compatibility with 2009, 2012, 2013, and 2015 Kia Soul only. Compatibility with 2010 and 2011 model years is not confirmed in the manual. Contact the manufacturer or a fitment database to verify.
The manual does not specify whether the battery must be disconnected. Consult the vehicle manufacturer's service manual or a qualified installer for guidance on electrical safety during this installation.
1. Lower the exhaust by removing the rubber exhaust hanger. 2. Remove the inner wheel well and splash guards from both sides of the vehicle. 3. Remove the tow hook from the passenger's side frame rail and return it to the vehicle owner. 4. Raise the hitch into position and loosely install the M10 bolts and conical toothed washers. 5. Pull the hitch rearward and tighten all fasteners using a torque wrench to 42 Lb.-Ft. (57 N·M). 6. Reinstall the muffler hanger. 7. Reinstall the inner wheel well and splash guards.
Pulling the hitch rearward ensures proper alignment and seating of the hitch on the frame before final torque is applied. This step must be completed before tightening all fasteners with the torque wrench.
Return the tow hook to the vehicle owner. The manual specifies that it should be removed from the passenger's side frame rail and returned.
No, you only need to lower the exhaust by removing the rubber exhaust hanger. The exhaust does not need to be fully removed.
The manual requires removal of the inner wheel well and splash guards from both sides to provide access to the frame rail attachment points. They must be reinstalled after the hitch is secured.
A 17mm socket is required, used with a ratchet wrench.
The bolts are M10 x 1.25 x 30mm, grade CL8.8. There are 4 bolts included in the fastener kit 24839F.
The conical toothed washers are 3/8" in size. There are 4 washers included in the fastener kit 24839F.
Observe safety precautions when working beneath the vehicle and wear eye protection. Do not cut access or attachment holes with a torch. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. The manual emphasizes regular inspection to maintain safety and proper function.
The manual states to check the hitch frequently, making sure all fasteners and the ball are properly tightened. A specific interval is not provided; consult the vehicle or hitch manufacturer for recommended maintenance intervals.
A damaged hitch or ball must be removed and replaced. Do not continue to use a damaged component.
The hitch complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5 and SAE J684.
The manual does not specify whether professional installation is required or recommended. The tools and steps are provided for DIY installation, but consult a qualified installer if you are uncertain about any step.
The manual does not provide an estimated installation time. Installation duration will depend on your experience level and familiarity with the vehicle.
The manual does not specify whether a lift, jack, or other lifting equipment is required. Consult a qualified installer or the vehicle manufacturer's service manual for guidance on safely accessing the frame rail attachment points.
The manual does not specify whether a second person is required. Some steps, such as raising the hitch into position, may be easier with assistance.
The manual does not address spare tire location or potential interference. Consult the vehicle manufacturer or a fitment database to confirm clearance.
The manual does not specify compatibility with factory tow packages or other factory equipment. Consult the manufacturer or a fitment database to confirm compatibility with your specific vehicle configuration.
The manual does not specify whether different body styles or trim levels require different hitch models. Contact the manufacturer or a fitment database to confirm compatibility with your specific vehicle.
If the hitch is removed, all holes in the trunk pan or other body panels must be plugged to prevent entry of water and exhaust fumes. If water or fumes are entering after installation, inspect all attachment holes and ensure they are properly sealed.

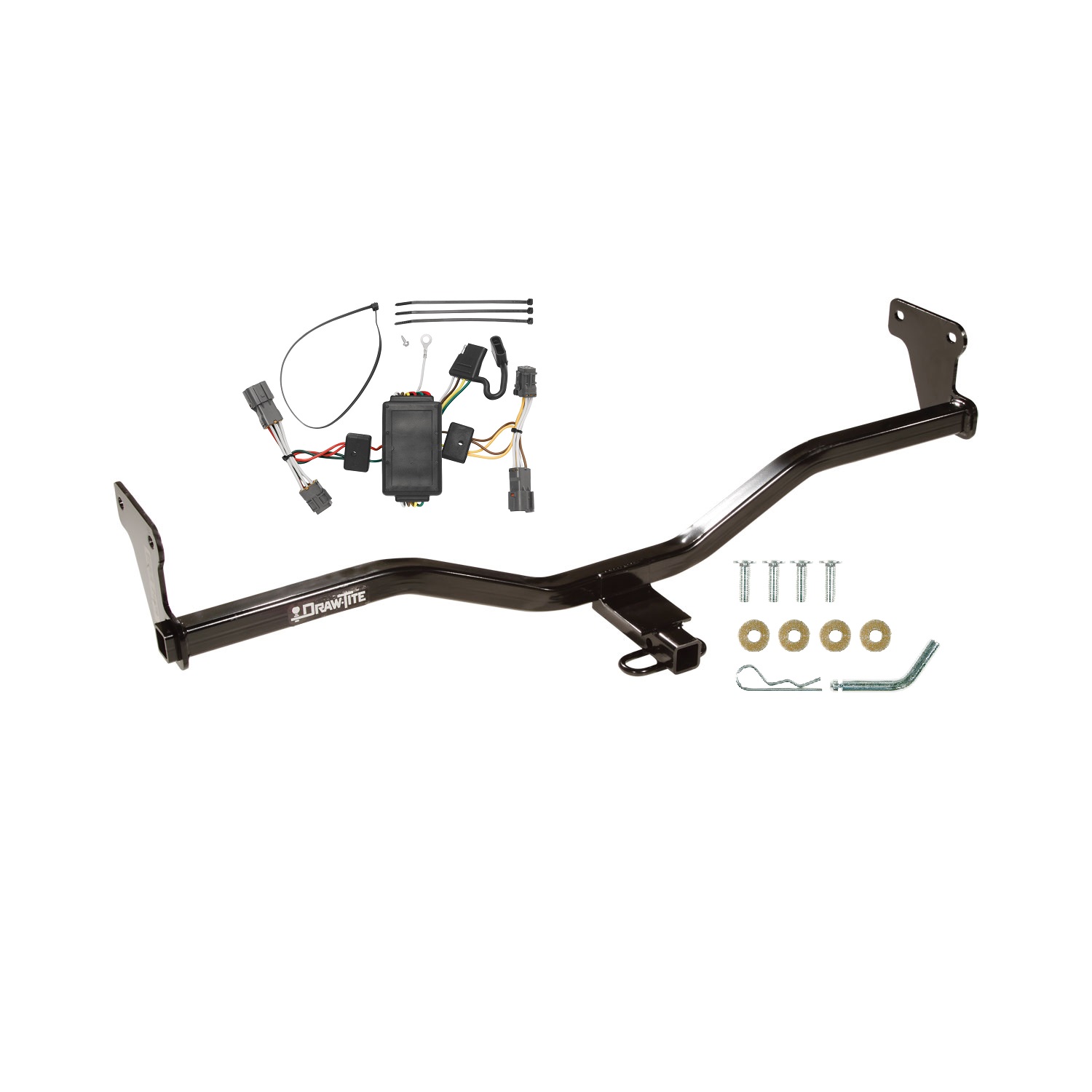

Yes, the T-Connector (part 118431-037) is designed for Kia Rondo and Kia Soul vehicles. The manual confirms installation on both models.
You will need a drill with a 3/32" drill bit and a Phillips head screwdriver. The T-Connector kit includes double-sided tape and cable ties. You will also need to provide a bracket or electrical box (not included) to mount the 4-Flat connector in an accessible location.
The manual does not specify whether battery disconnection is required before installation. Contact the manufacturer or consult your vehicle's owner's manual for guidance on electrical system safety before beginning work.
Open the rear lift gate. On both the driver and passenger sides, remove three screws. Carefully pull the taillight away from the vehicle, being careful not to damage the alignment pins. Locate the vehicle's taillight wiring harness on each side; it will have a connection point matching the ends of the T-Connector.
On the driver's side, insert the T-Connector end with the yellow wire between the vehicle wiring connectors and lock into place. Ensure the connectors are fully inserted with locking tabs in place.
On the passenger's side, insert the T-Connector end with the green wire between the vehicle wiring connectors and lock into place. Ensure the connectors are fully inserted with locking tabs in place.
Route the harness containing the green wire and the 4-Flat connector down the opening behind the taillight on the driver's side. Route the harness containing the green wire underneath the vehicle and up through the opening behind the passenger's side taillight.
Yes. You must drill a 3/32" hole to secure the white wire ground connection using the eyelet and screw provided. Locate a suitable grounding point near the connector, clean dirt and rustproofing from the area, then drill the hole. Do not drill into the vehicle floor, bed, or any exposed surfaces.
Before drilling, verify what is behind the surface to avoid damage to the vehicle and personal injury. Do not drill into the vehicle floor, bed, or any exposed surfaces. Clean dirt and rustproofing from the area before drilling the 3/32" hole.
On the driver's side, mount the T-Connector Black Box using the double-sided tape provided. Secure the remainder of the T-connector harness with the cable ties provided to prevent damage or rattling. Be careful to avoid areas that would cut or pinch the wire.
Mount the 4-Flat connector end in an accessible location with a bracket or electrical box (not included). The manual does not specify exact mounting locations; choose a position that is easy to access and safe from damage.
Reinstall the taillight housing assemblies, positioning the vehicle wiring harness between the housing and the vehicle body. This ensures the harness is protected and properly seated.
The T-Connector has a yellow wire on the driver's side end and a green wire on the passenger's side end. The white wire is the ground connection. The manual does not specify the function of each wire color; refer to your vehicle's owner's manual or the trailer wiring documentation for circuit details.
Do not exceed the lower of your towing manufacturer's rating or: Maximum stop/turn light: 1 per side (2.1 amps); Maximum tail lights: 5 amps. Overloading the circuit can cause fires. Consult your vehicle's owner's manual and the instruction sheet for additional information.
For the initial test, reset the vehicle electrical system by temporarily removing the key from the ignition. Test and verify the installation with a test light or trailer once installed. All connections must be complete for the T-Connector to function properly.
The manual instructs you to separate the connector carefully without breaking the locking tabs. If the tabs are damaged during removal, the connector may not lock securely. Contact the manufacturer or a qualified technician for replacement connector guidance.
Yes. All connector surfaces should be clean and free of dirt before inserting the T-Connector. This ensures proper electrical contact and function.
The T-Connector fits Kia Rondo and Kia Soul vehicles.
You need a drill with 3/32" bit, Phillips head screwdriver, and a bracket or electrical box (not included) for the 4-Flat connector. The kit includes double-sided tape, cable ties, eyelet, and screw.
Maximum stop/turn light: 1 per side (2.1 amps); Maximum tail lights: 5 amps. Do not exceed the lower of your towing manufacturer's rating or these limits.
Driver's side: yellow wire. Passenger's side: green wire. White wire is the ground connection.
