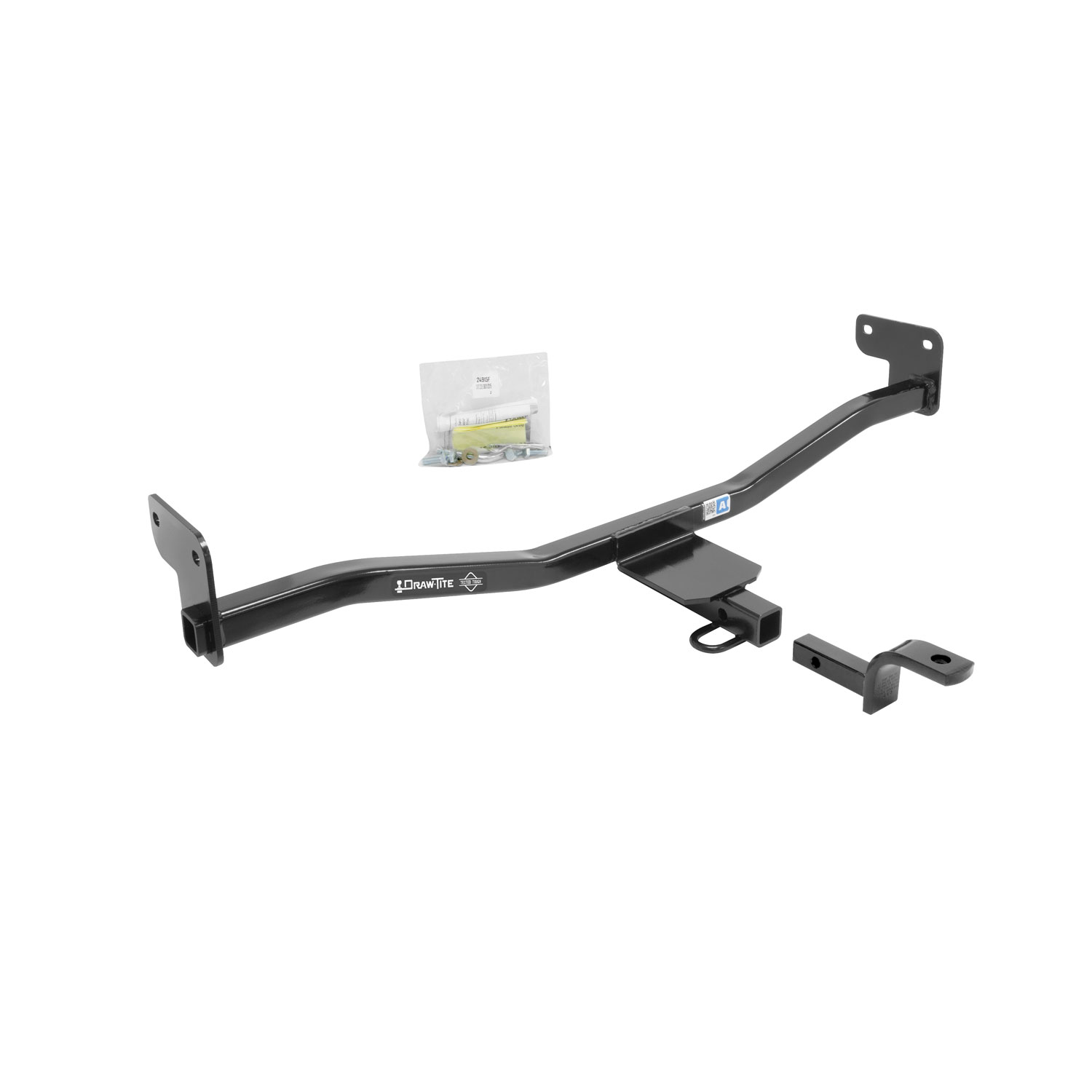

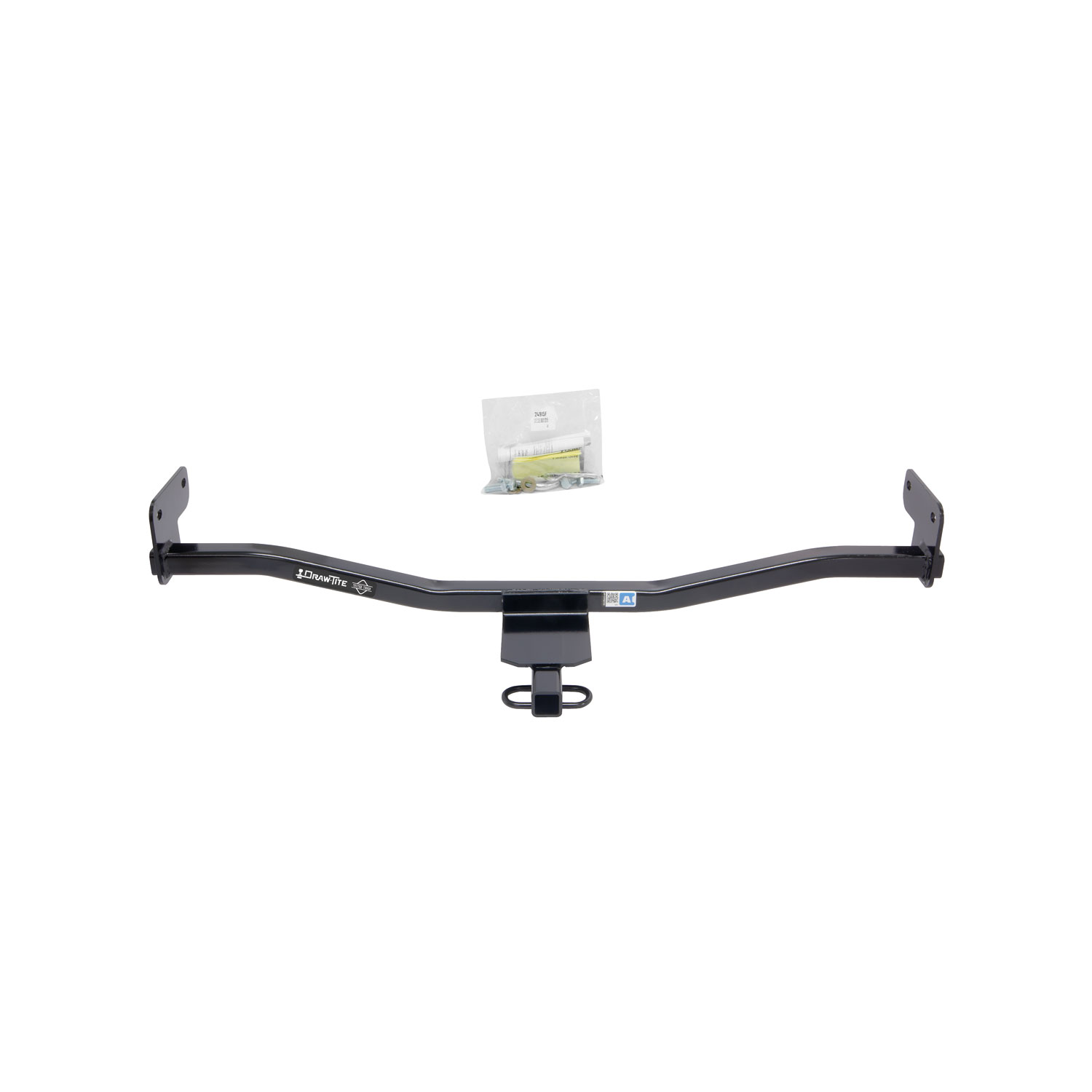

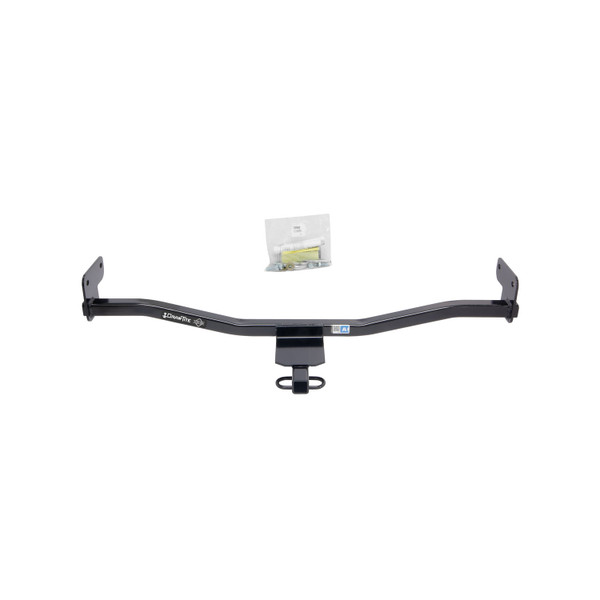

These dependable custom hitches are manufactured for 2014-2019 KIA Soul and attach to your vehicle?s frame or bumper for a sleek, clean appearance. Each hitch also has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. DRAW-TITE Class 1 custom trailer hitches come complete with all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. So, whether you are headed out to the campground and need a place for the cooler, taking the bikes to hit the trails in the park, or you are tackling a DIY project (maybe some landscaping or a home repair), choose DRAW-TITE and travel with confidence knowing your setup is connected with the security only DRAW-TITE can provide. DRAW-TITE: North America?s Favorite Hitch.
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494The 2014-2019 KIA Soul w/LED Taillights Draw-tite Class 1 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB24915-118637) fits 1992-1999 Kia Soul models. The 1999 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2014-2019 KIA Soul w/LED Taillights Draw-tite Class 1 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB24915-118637) fits the following vehicles: 1992-1999 Kia Soul. Always verify your specific year, make, and model before ordering.
Yes, the 2014-2019 KIA Soul w/LED Taillights Draw-tite Class 1 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB24915-118637) is designed to fit the 1992-1999 Kia Soul.
The 2014-2019 KIA Soul w/LED Taillights Draw-tite Class 1 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB24915-118637) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, part number 24915 is designed for Kia Soul models 2014 and 2015. The hitch has a maximum gross trailer weight rating of 2000 LB (908 kg) and maximum tongue weight of 200 LB (90.8 kg). Do not exceed your vehicle manufacturer's towing rating or these limits, whichever is lower.
The hitch has a maximum gross trailer weight of 2000 LB (908 kg) and maximum tongue weight of 200 LB (90.8 kg). You must not exceed the lower of your vehicle manufacturer's towing rating or these limits.
You will need a torque wrench, a 17mm socket and ratchet wrench, and a Phillips screwdriver. No drilling is required. The fastener kit 24915F is included with the hitch.
No. The drawbar kit 3593 is sold separately and must be purchased if you need a drawbar. The hitch body and fastener kit 24915F are included.

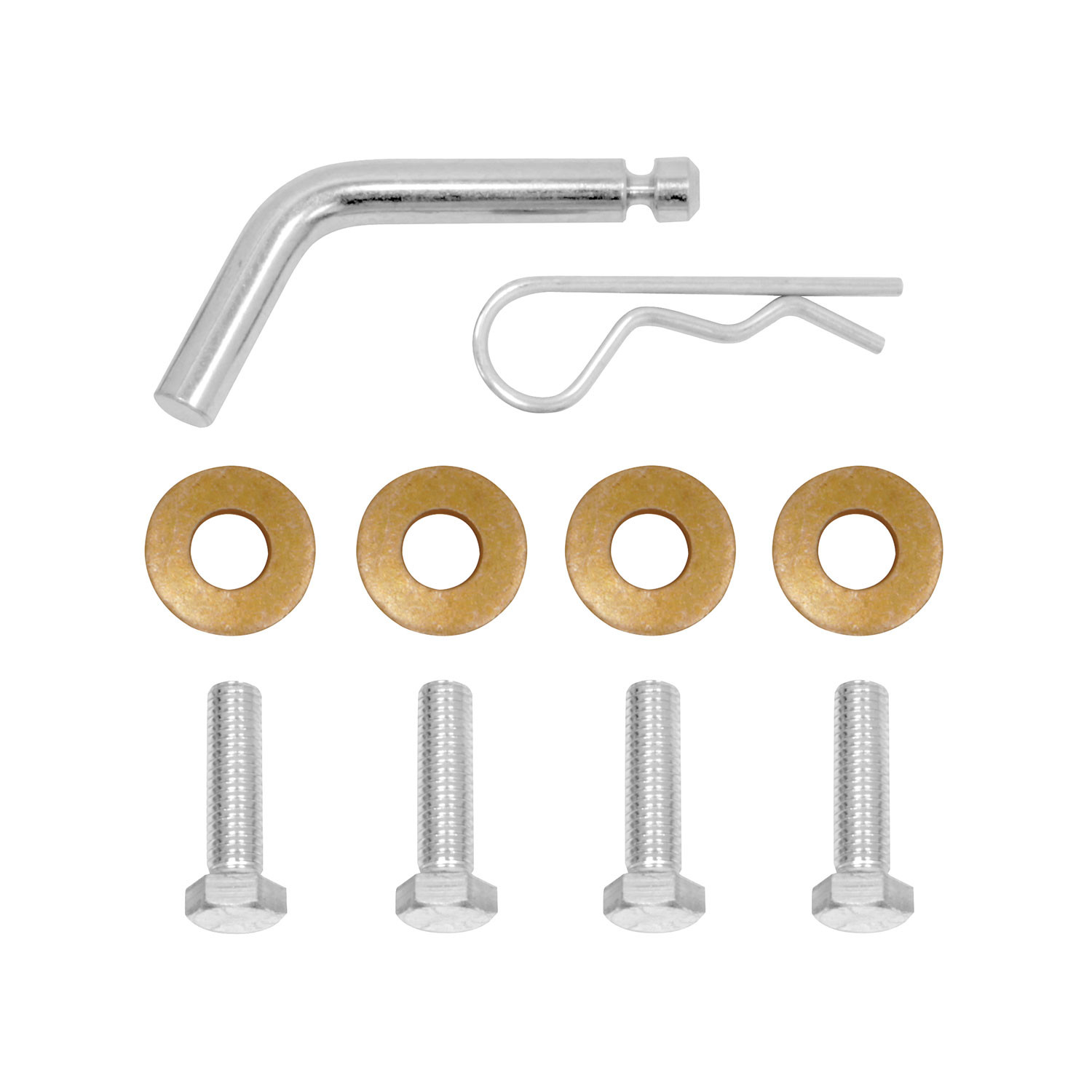

The fastener kit 24915F includes 4 hex bolts (M10 x 1.25 x 30mm CL8.8) and 4 conical toothed washers (3/8"). These are the only fasteners needed for installation. The hitch uses existing weldnuts on the vehicle frame.
Yes. You must remove the rubber exhaust hanger to lower the exhaust, remove the inner wheel well and splash guards from both sides of the vehicle, and remove the tow hook from the passenger's side frame rail (which should be returned to the vehicle owner). These parts are reinstalled after the hitch is secured.
1. Lower the exhaust by removing the rubber exhaust hanger. 2. Remove the inner wheel well and splash guards from both sides. 3. Remove the tow hook from the passenger's side frame rail. 4. Raise the hitch into position and loosely install the M10 bolts and conical toothed washers. 5. Pull the hitch rearward and tighten all fasteners with a torque wrench. 6. Reinstall the muffler hanger. 7. Reinstall the inner wheel well and splash guards.
All M10 CL8.8 fasteners must be tightened to 42 Lb.-Ft. (57 N·M) using a torque wrench. The fasteners should be installed loosely first, then the hitch pulled rearward before final tightening.
The hitch must be pulled rearward after the M10 bolts and conical toothed washers are loosely installed. This positions the hitch correctly before the fasteners are tightened to the specified torque of 42 Lb.-Ft. (57 N·M).
The drawbar must be used in the RISE position only. Do not use it in any other position.
If the hitch is removed, you must plug all holes in the trunk pan or other body panels to prevent the entry of water and exhaust fumes.
A hitch or ball which has been damaged should be removed and replaced immediately. Do not continue to use a damaged hitch or ball.
You should check the hitch frequently to ensure all fasteners and the ball are properly tightened. Regular inspection helps maintain safe towing operation.
No. The manual specifies that no drill bits are required. The hitch uses existing weldnuts on the vehicle frame for attachment.
Observe safety precautions when working beneath the vehicle and wear eye protection. Do not cut access or attachment holes with a torch. Ensure the vehicle is properly supported and stable before beginning work.
Yes, for 2014–2015 Kia Soul. Max towing: 2000 LB gross, 200 LB tongue weight. Do not exceed your vehicle manufacturer's rating.
Torque wrench, 17mm socket and ratchet, Phillips screwdriver. Fastener kit 24915F is included. Drawbar kit 3593 is sold separately. No drilling required.
42 Lb.-Ft. (57 N·M) for all M10 CL8.8 fasteners using a torque wrench.
Yes. Remove the rubber exhaust hanger, inner wheel well and splash guards (both sides), and the tow hook from the passenger's side frame rail. Reinstall them after the hitch is secured.
The drawbar must be used in the RISE position only.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. If the hitch is removed, plug all holes to prevent water and exhaust fume entry.

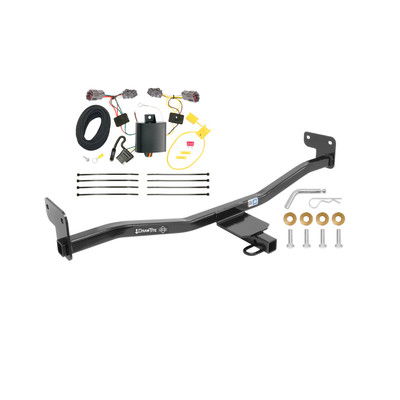

Yes, the T-One® T-Connector part number 118637-037 is designed for the Kia Soul. The installation involves connecting to the taillight wiring harness on both the driver and passenger sides of the vehicle.
You will need: a trim panel remover, a drill with a 3/32" drill bit, a Phillips head screwdriver, and a test probe. These tools are required to remove taillight housings, drill the ground wire hole, remove fasteners, and test the electrical connections.
Yes. You must disconnect the vehicle's negative (-) battery cable before connecting the power wires to the battery. The negative cable is reconnected in step 9 after the fuse holder is installed. Always read and follow all warnings printed on the vehicle's battery.
Yes. You must drill a 3/32" hole near the taillight connector to secure the white ground wire using the supplied eyelet and screw. Do not drill into the vehicle floor, bed, or any exposed surfaces. Always verify what is behind the surface before drilling to avoid damage to the vehicle or personal injury.
The T-Connector uses the following wires: yellow wire (driver-side taillight connector), green wire (passenger-side taillight connector and routing), white wire (ground connection to vehicle body), black 12 ga. wire (negative/ground from battery), and red wire (positive from battery). The yellow and green wires connect between the vehicle's taillight harness connectors. The white wire is grounded to the vehicle body. The black and red wires connect to the vehicle battery through a 10 amp fuse holder.
A 10 amp fuse is installed in the yellow fuse holder. The fuse is removed during step 8 when connecting the power wires to the battery, and then reinstalled in step 9 after the negative battery cable is reconnected.
1. Remove the three screws from each taillight housing and carefully pull the taillights away from the vehicle. 2. Locate the taillight wiring harness connectors on both sides. 3. On the driver's side, insert the T-Connector end with the yellow wire between the vehicle's taillight connectors and lock into place, ensuring the locking tabs are fully engaged. 4. On the passenger's side, repeat the process using the T-Connector end with the green wire. Ensure all connector surfaces are clean and free of dirt before connecting.
Route the harness containing the green wire and the 4-flat connector down the opening behind the taillight on the driver's side. Route the harness containing the green wire underneath the vehicle and up through the opening behind the passenger's side taillight. The black 12 ga. wire and red wire can either be routed through a grommet along the exterior frame, or follow existing wiring along the thresholds into the engine compartment up to the battery. Avoid areas that may pinch or break the wire.
Locate a suitable grounding point near the taillight connector. Clean dirt and rustproofing from the area. Drill a 3/32" hole and secure the white wire using the supplied eyelet and screw. Do not drill into the vehicle floor, bed, or any exposed surfaces.
1. Disconnect the vehicle's negative (-) battery cable. 2. Remove the fuse from the yellow fuse holder if not already removed. 3. Cut the fuse holder wire and attach the ring terminal to the vehicle's positive (+) battery cable. 4. Connect the other end of the fuse holder to the black 12 ga. wire using the supplied yellow butt connector. 5. Connect the black 12 ga. wire and red wire from the T-Connector black box using the supplied yellow butt connector. 6. Route these wires through a grommet along the exterior frame or follow existing wiring to the battery, avoiding hot pipes, heat shields, and the fuel tank.
Locate a flat surface in an out-of-the-way place inside the vehicle and mount the black box module to prevent damage or rattling. The exact location is at your discretion, but it should be secure and protected from impact.
Secure the remainder of the harness with the cable ties provided to prevent damage or rattling. Be careful to avoid any areas that would pinch, cut, or melt the wire. This includes routing away from hot surfaces and sharp edges.
Mount the 4-flat connector end in an accessible location using a bracket or electrical box (not included with the product). Choose a location that is easy to reach when connecting or disconnecting a trailer.
All connections must be complete before testing. Test and verify the installation using a test light or by connecting an actual trailer once installed. For the initial test, reset the vehicle's electrical system by temporarily removing the key from the ignition. This ensures all connections are functioning properly before towing.
The manual does not specify the amperage rating of the T-One® T-Connector. However, you must not exceed the lower of either the towing manufacturer's rating (as stated in your vehicle's owner's manual) or the specific amperage ratings stated on the product itself. Check the product label for the exact amperage specification.
Always wear safety glasses during installation. Read and follow all warnings and cautions printed on the vehicle's battery. Do not exceed the product's stated amperage ratings or the towing manufacturer's rating, as overloading circuits can cause fires. When routing wires, avoid hot pipes, heat shields, the fuel tank, and any areas that may pinch or break the wire. Verify what is behind any surface before drilling to avoid damage to the vehicle or personal injury.
You need to remove the taillight housing enough to access the wiring connectors. Remove the three screws from each taillight housing and carefully pull the taillights away from the vehicle, being careful not to damage the alignment pins. After connecting the T-Connector, reinstall the taillight housing assemblies, positioning the vehicle wiring harness between the housing and the vehicle body.
Yes, part 118637-037 is designed for the Kia Soul. Installation connects to the taillight wiring harness on both sides of the vehicle.
Yes, disconnect the negative (-) battery cable before connecting the power wires. Reconnect it after the fuse holder is installed in step 9.
A 10 amp fuse is installed in the yellow fuse holder. It is removed during battery connection and reinstalled after the negative cable is reconnected.
Test using a test light or by connecting a trailer. Reset the vehicle's electrical system by temporarily removing the ignition key. All connections must be complete before testing.
Do not exceed the lower of the towing manufacturer's rating (in your vehicle's owner's manual) or the specific amperage rating stated on the product. Check the product label for the exact specification.
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 1992 - 1999 | Kia Soul | w/LED Taillights |
