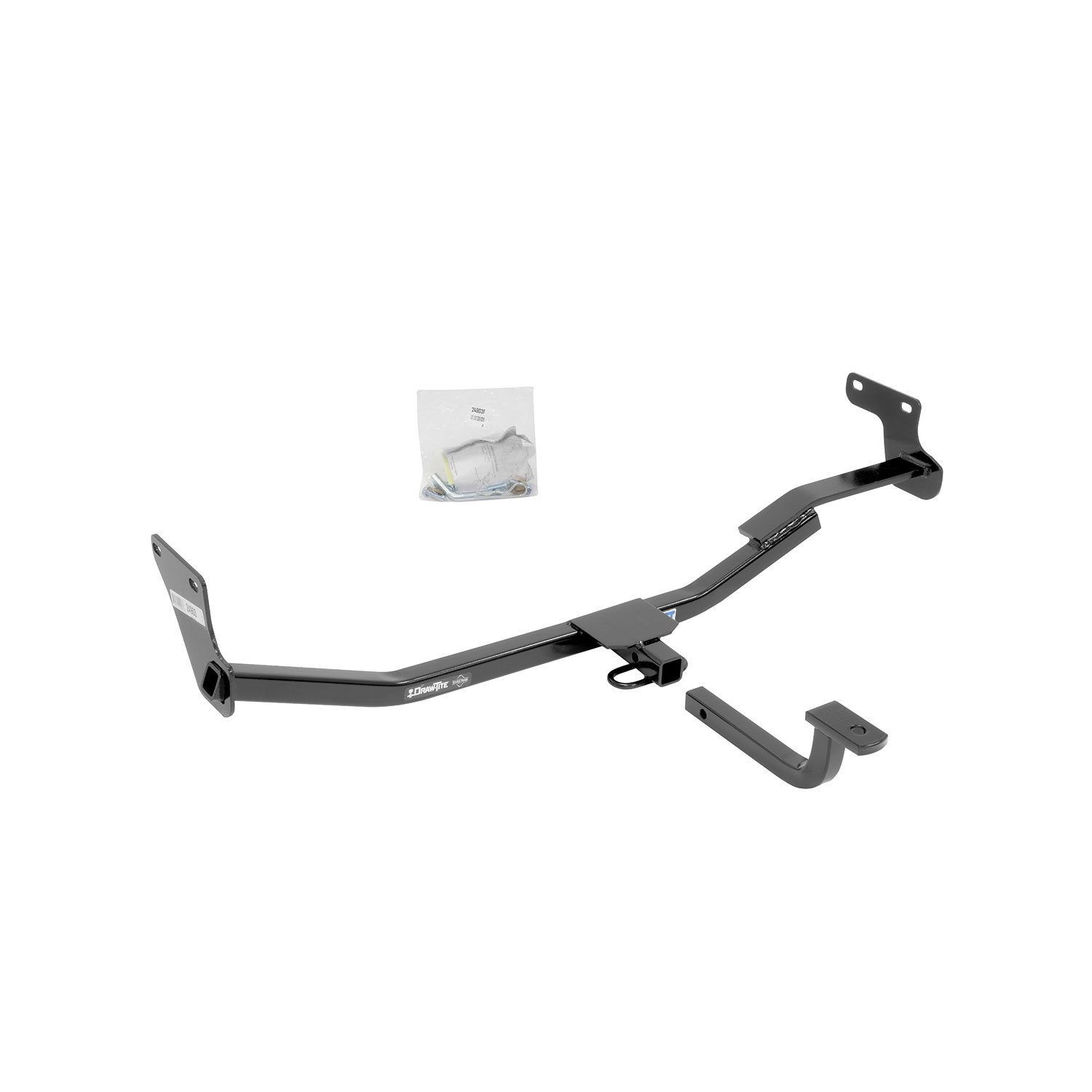

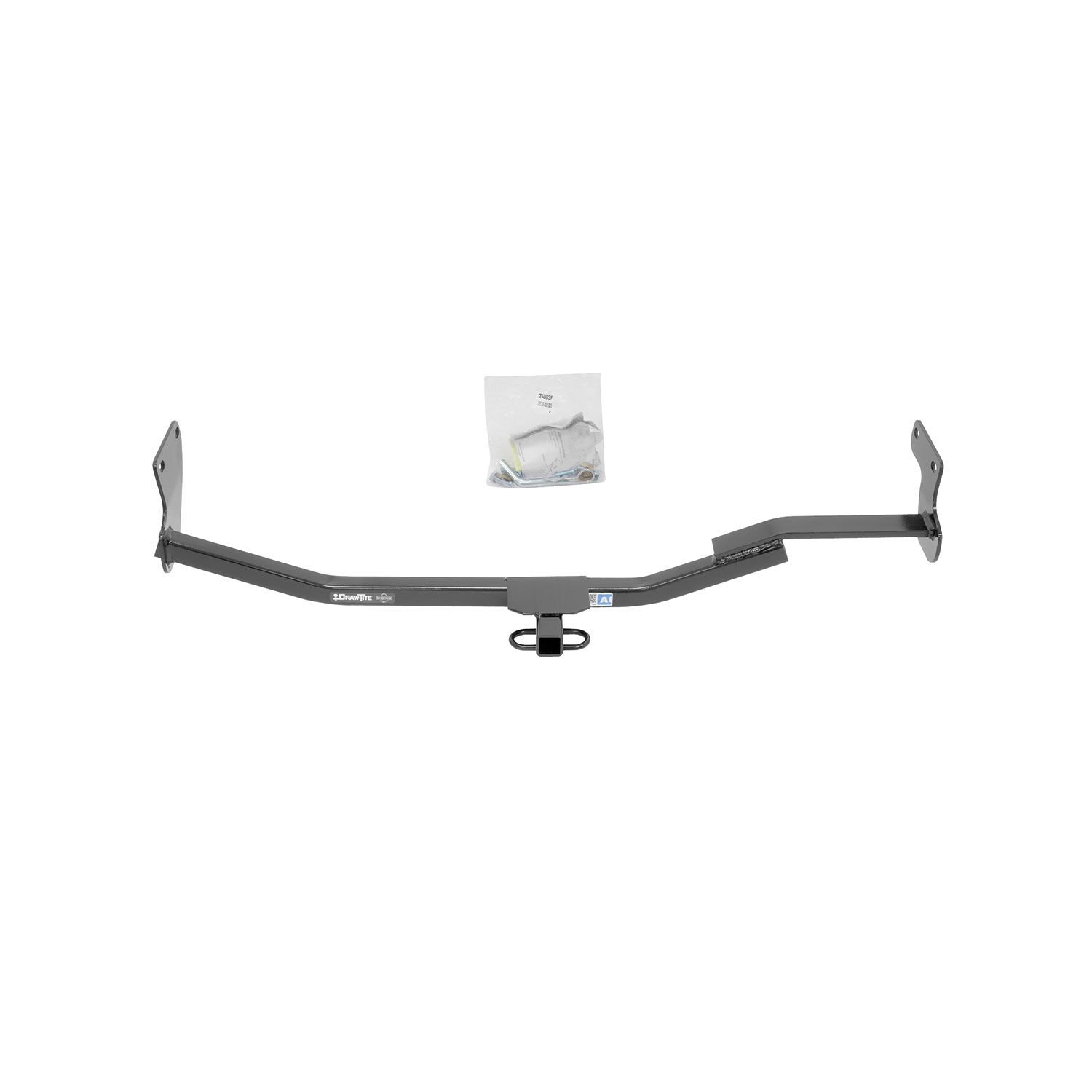

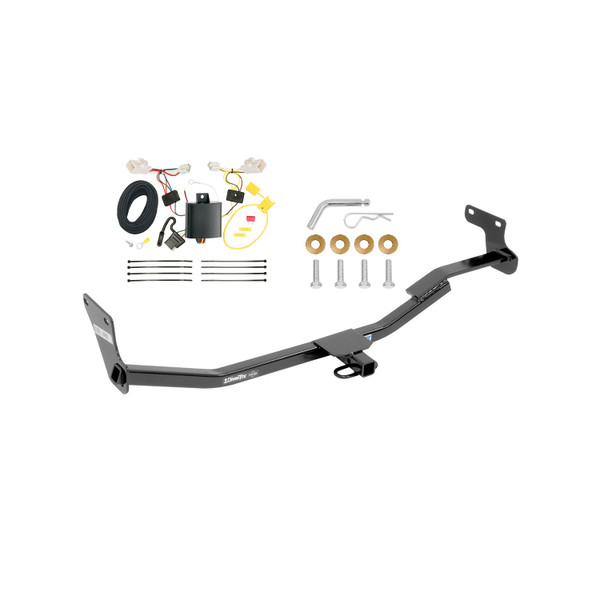

These dependable custom hitches are manufactured for 2014-2018 KIA Forte and attach to your vehicle?s frame or bumper for a sleek, clean appearance. Each hitch also has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. DRAW-TITE Class 1 custom trailer hitches come complete with all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. So, whether you are headed out to the campground and need a place for the cooler, taking the bikes to hit the trails in the park, or you are tackling a DIY project (maybe some landscaping or a home repair), choose DRAW-TITE and travel with confidence knowing your setup is connected with the security only DRAW-TITE can provide. DRAW-TITE: North America?s Favorite Hitch.
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2000 - 2003 | Kia Forte | Sedan |
Yes, the 2014-2018 KIA Forte Sedan Draw-tite Class 1 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB24903-118594) is designed to fit the 2000-2003 Kia Forte.
The 2014-2018 KIA Forte Sedan Draw-tite Class 1 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB24903-118594) fits 2000-2003 Kia Forte models. The 2003 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2014-2018 KIA Forte Sedan Draw-tite Class 1 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB24903-118594) fits the following vehicles: 2000-2003 Kia Forte. Always verify your specific year, make, and model before ordering.
The 2014-2018 KIA Forte Sedan Draw-tite Class 1 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB24903-118594) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, this hitch is designed for the Kia Forte. Part numbers 24903, 60335, and 77290 are the applicable components for this vehicle.
The maximum gross trailer weight is 2000 LB (908 kg) and the maximum tongue weight is 200 LB (90.8 kg). Do not exceed the lower of the towing vehicle manufacturer's rating or these limits.
A 17mm wrench is required. Lubricant or soapy water is also recommended to help with removal of the exhaust system rubber isolator.

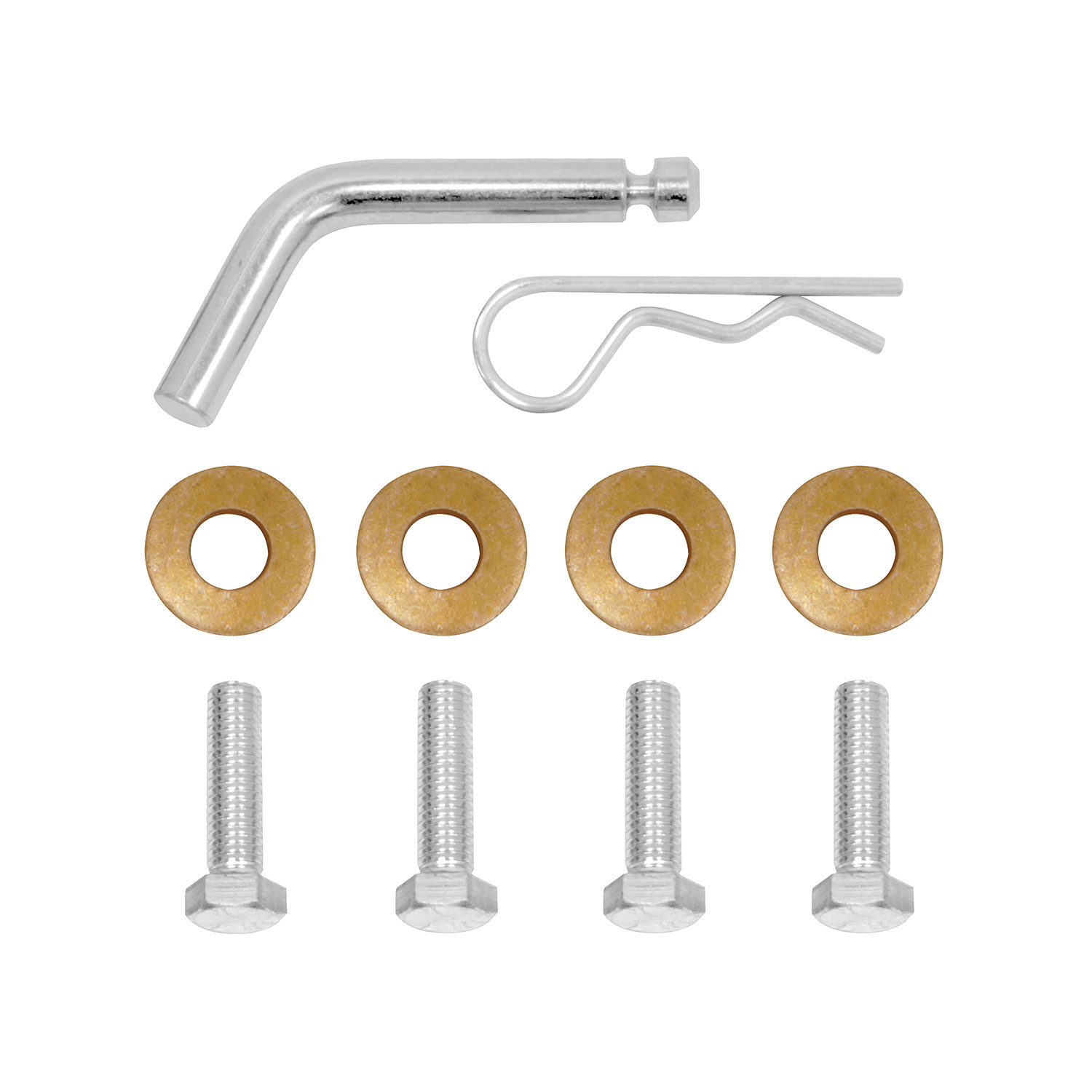

The hitch comes with 4 hex bolts M10 × 1.25 × 30mm CL8.8 and 4 conical washers 3/8". These fasteners are supplied in the Fastener Kit 24903F. Existing weld nuts on both sides of the frame rails are used for attachment.
No, you do not need to remove the exhaust system completely. Lower the exhaust system at the rear rubber isolator, leaving the rubber isolator in place on the vehicle. Spraying lubricant on the metal hanger rod and rubber isolator helps with this step.
1. Lower the exhaust system at the rear rubber isolator, leaving the isolator in place. 2. Lift the hitch into position, passenger side first, placing the crosstube over the tail pipe and rotating it to the outside of the frame rail. 3. Raise the driver's side of the hitch so it is on the outside of the frame rails and in front of the bulkhead. 4. Attach remaining fasteners as shown. 5. Push the hitch toward the rear of the vehicle. 6. Tighten all fasteners to the required torque specification. 7. Reattach the rubber muffler hanger.
Yes, it may be necessary to gently pull the fascia out of the way during both the passenger side and driver's side positioning steps to allow the hitch to rotate into position on the outside of the frame rails.
All M10 CL8.8 fasteners must be tightened to 42 Lb.-Ft. (57 N·M) using a torque wrench.
The drawbar must be used in the rise position only. The drawbar kit (part number 3594) is sold separately.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. Perform this check regularly during the first period of use and periodically thereafter.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
A hitch or ball which has been damaged should be removed and replaced. Do not attempt to repair a damaged hitch or ball.
Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch.
Yes, this hitch (part numbers 24903, 60335, 77290) is designed for the Kia Forte.
Maximum gross trailer weight is 2000 LB (908 kg) and maximum tongue weight is 200 LB (90.8 kg). Do not exceed the lower of your vehicle manufacturer's rating or these limits.
You need a 17mm wrench and a torque wrench. Lubricant or soapy water is recommended for the exhaust system work.
No. Lower the exhaust system at the rear rubber isolator only, leaving the isolator in place on the vehicle.
Tighten all M10 CL8.8 fasteners to 42 Lb.-Ft. (57 N·M) using a torque wrench.
The drawbar must be used in the rise position only. The drawbar kit (part 3594) is sold separately.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fume entry.
Yes, the T-Connector is designed for the Kia Forte. The manual provides installation instructions specific to this vehicle model.

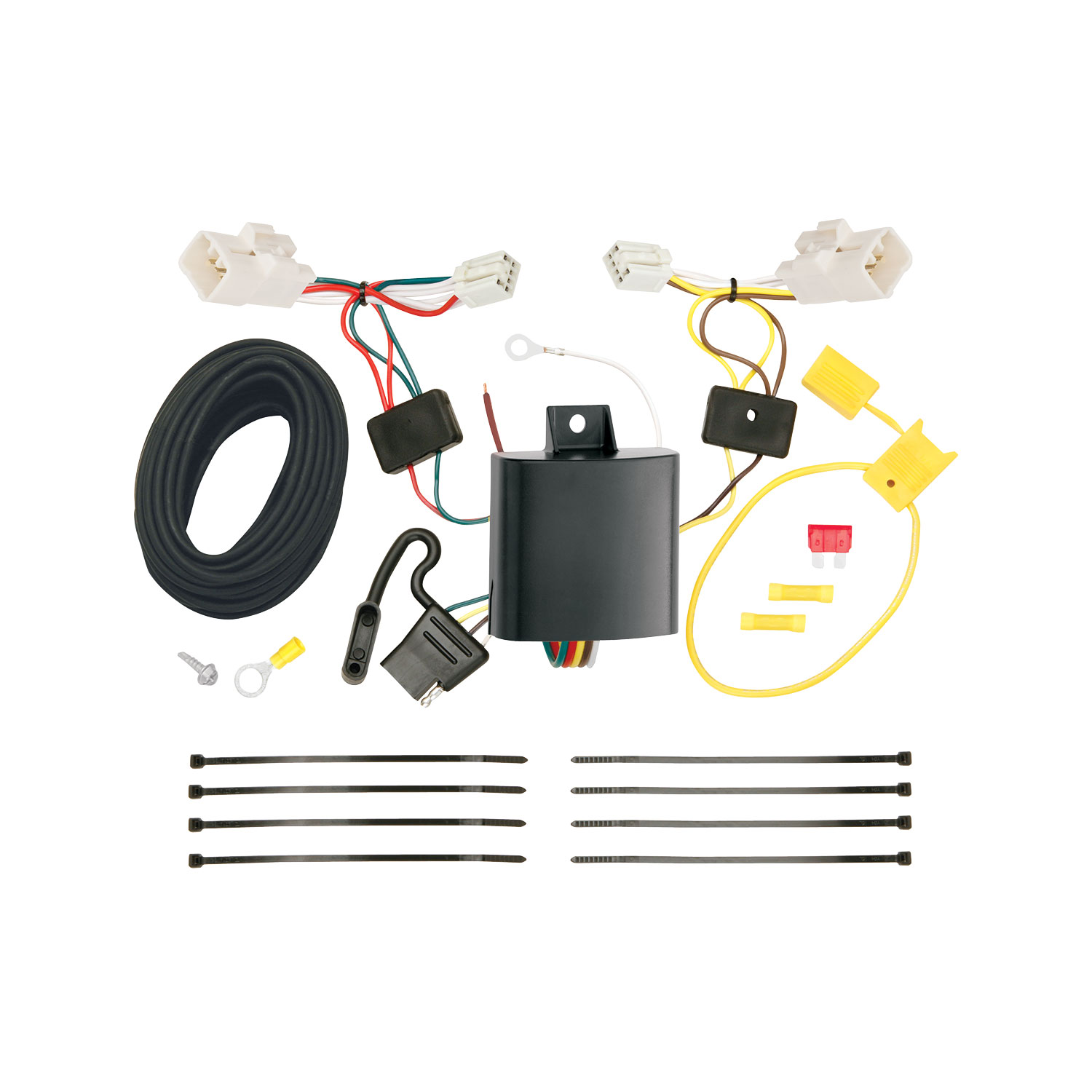

The T-Connector is a trailer wiring harness that connects to your vehicle's taillight wiring to provide power for trailer lights. It uses a T-shaped connector design that taps into the existing taillight wiring on both the driver and passenger sides of the vehicle.
You will need: a trim panel remover, a drill with a 3/32" drill bit, a Phillips head screwdriver, and a test probe. Safety glasses are also required during installation.
Yes. You must disconnect the vehicle's negative (−) battery cable before connecting the power wiring to the battery. The battery is reconnected in step 8 after the fuse holder is installed.
Open the trunk, temporarily remove the rear threshold plate, and partially remove the felt trunk liner behind the taillights. This provides access to the taillight wiring harness on both the driver and passenger sides.
Locate the taillight wiring harness on both sides of the vehicle. Separate the existing connector carefully without breaking the locking tabs. On the driver's side, insert the T-Connector end with the yellow wire between the vehicle wiring connectors and lock into place. Route the T-Connector end with the green wire to the passenger's side behind the panels and along the threshold, then repeat the connection. Ensure all connector surfaces are clean and connectors are fully inserted with locking tabs in place.
Yes. You must drill a 3/32" hole to secure the white ground wire. Locate a suitable grounding point near the connector, clean dirt and rustproofing from the area, drill the hole, and secure the white wire using the eyelet and screw provided. Before drilling, verify what is behind the surface to avoid damage to the vehicle or personal injury. Do not drill into any exposed surfaces.
The T-Connector uses four wire colours: yellow (driver-side taillight connection), green (passenger-side taillight connection), white (ground wire), black (12 gauge power wire from black box), and red (from black box). The yellow and green wires connect to the taillight harnesses. The white wire is grounded to the vehicle body. The black and red wires from the black box connect together using a yellow butt connector, then the black wire connects to the battery circuit via a fused connection.
From inside the vehicle, connect the black 12 gauge wire and red wire from the T-Connector black box using the supplied yellow butt connector. Then route the black wire either through a grommet and along the exterior frame, or follow the existing wiring along the thresholds into the engine compartment up to the battery. Avoid areas that may pinch or break the wire. If routing through a grommet and along the exterior, carefully avoid hot pipes, heat shields, the fuel tank, or any other points that may pinch or break the wire.
The T-Connector uses a 10 amp fuse. The fuse is installed in the yellow fuse holder provided. After disconnecting the negative battery cable, cut the fuse holder wire, attach the ring terminal to the vehicle's positive (+) battery cable, and connect the other end of the fuse holder to the black 12 gauge wire using the yellow butt connector provided. Install the 10 amp fuse into the fuse holder before reconnecting the battery.
Mount the T-Connector black box module on a flat surface in an out-of-the-way location to prevent damage or rattling. Secure the remainder of the T-Connector harness with the cable ties provided, being careful to avoid any areas that would pinch, cut, or melt the wire.
Replace the carpet and any other clips or panels that were removed during installation, being careful not to cut or pinch the wires. Store the 4-flat connector in the trunk area when not in use. Test and verify the installation with a test light or trailer. For the initial test, reset the vehicle electrical system by temporarily removing the key from the ignition.
Do not exceed the lower of your towing manufacturer's rating or the following limits: maximum stop/turn light is 1 per side (2.1 amps), and maximum tail lights is 5.6 amps. Overloading the circuit can cause fires. Consult your vehicle's owner's manual and the T-Connector instruction sheet for additional information.
Test and verify the installation with a test light or trailer once installed. For the initial test, reset the vehicle electrical system by temporarily removing the key from the ignition. All connections must be complete for the T-Connector to function properly.
Yes, the T-Connector (part 118594-037) is designed for the Kia Forte.
Trim panel remover, drill with 3/32" bit, Phillips head screwdriver, and test probe. Safety glasses are also required.
Yes, disconnect the negative battery cable before connecting the power wiring. Reconnect it after the fuse holder is installed in step 8.
Do not exceed 2.1 amps per stop/turn light (1 per side) or 5.6 amps for tail lights, or your towing manufacturer's lower rating. Overloading can cause fires.
Verify that all connections are complete. Test and verify the installation with a test light or trailer. For the initial test, reset the vehicle electrical system by temporarily removing the key from the ignition. Check that the 10 amp fuse is installed in the fuse holder, the negative battery cable is reconnected, and all connector locking tabs are fully engaged on both the driver and passenger side taillight connections.
