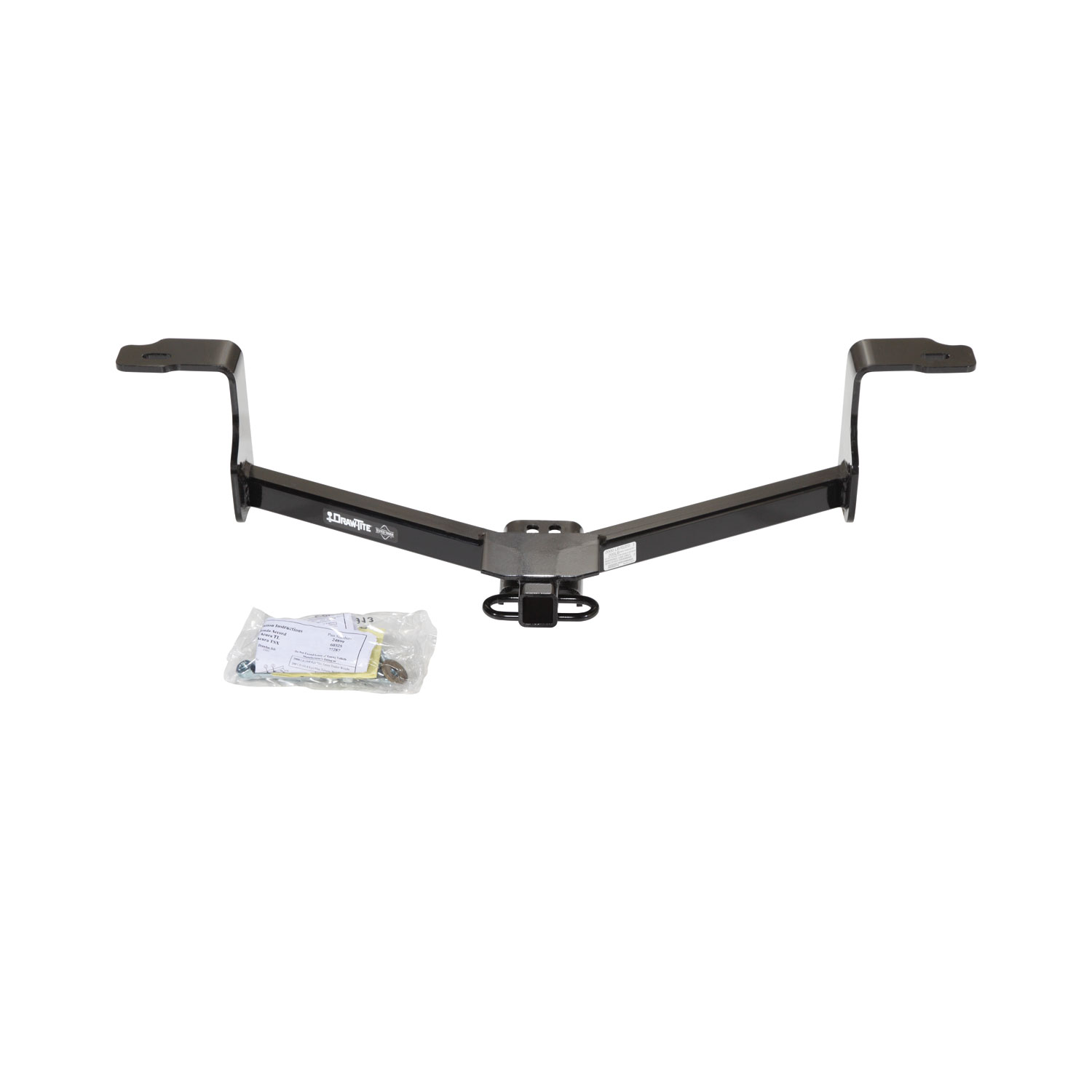

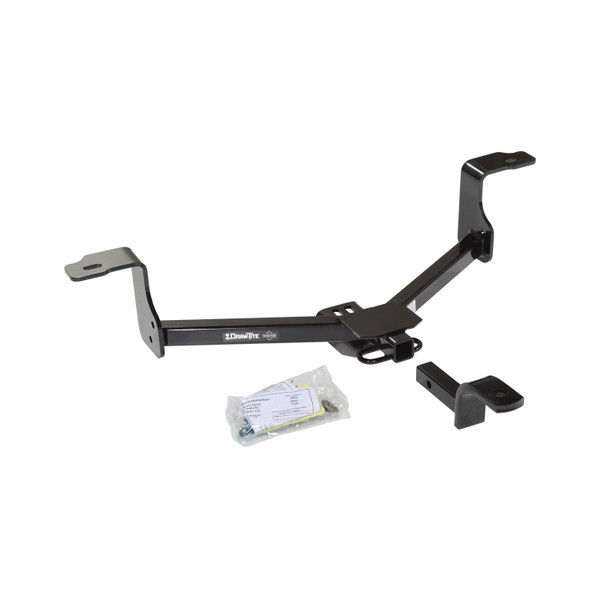

These dependable custom hitches are manufactured for 2009-2014 Acura TL, 2009-2014 Acura TSX, 2008-2017 Honda Accord and attach to your vehicle?s frame or bumper for a sleek, clean appearance. Each hitch also has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. DRAW-TITE Class 1 custom trailer hitches come complete with all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. So, whether you are headed out to the campground and need a place for the cooler, taking the bikes to hit the trails in the park, or you are tackling a DIY project (maybe some landscaping or a home repair), choose DRAW-TITE and travel with confidence knowing your setup is connected with the security only DRAW-TITE can provide. DRAW-TITE: North America?s Favorite Hitch.
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 1994 - 1996 | Acura TSX | Sedan |

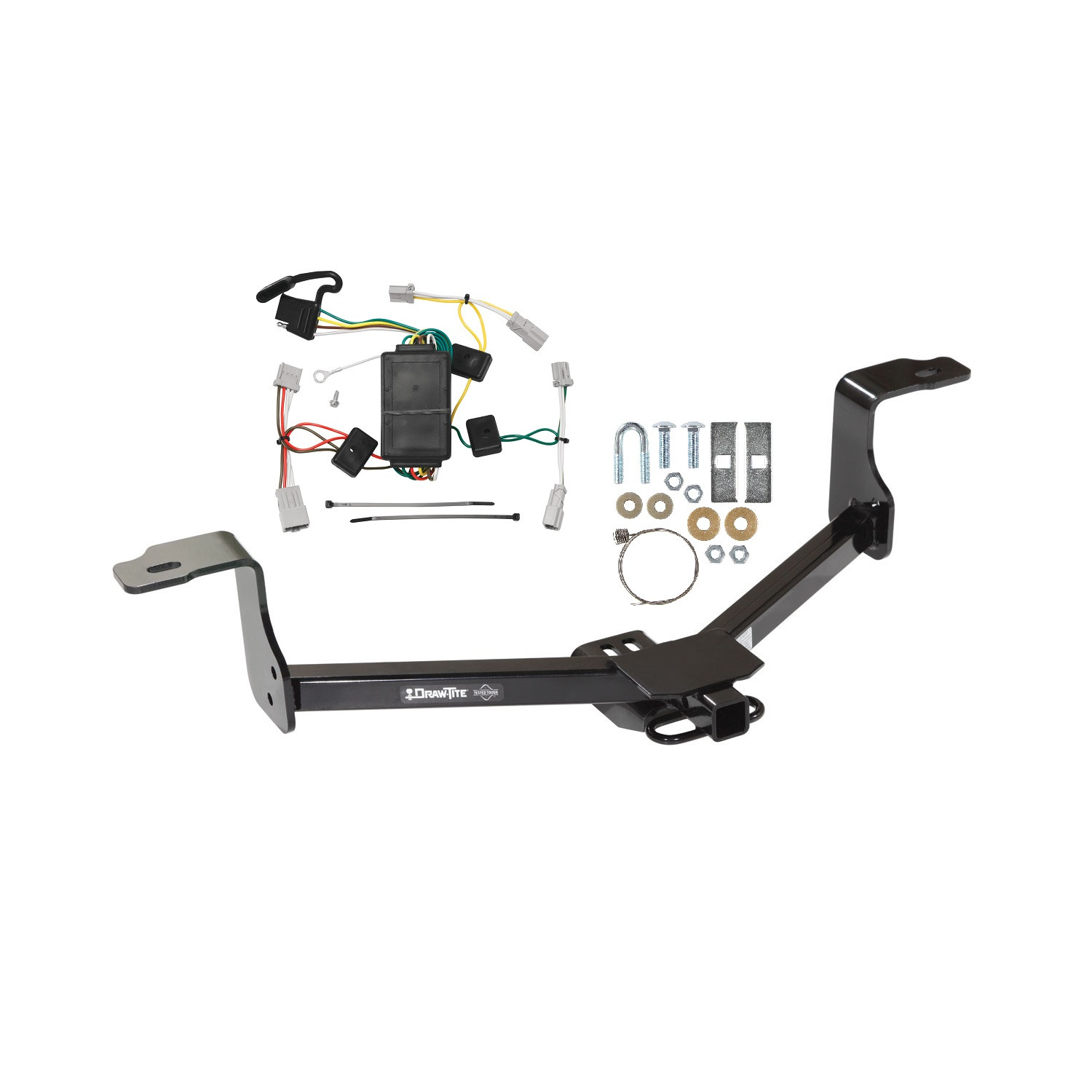

The 2009-2014 Acura TSX Sedan Draw-tite Class 1 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB24899-118420) fits the following vehicles: 1994-1996 Acura TSX. Always verify your specific year, make, and model before ordering.
Yes, the 2009-2014 Acura TSX Sedan Draw-tite Class 1 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB24899-118420) is designed to fit the 1994-1996 Acura TSX.
The 2009-2014 Acura TSX Sedan Draw-tite Class 1 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB24899-118420) fits 1994-1996 Acura TSX models. The 1996 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2009-2014 Acura TSX Sedan Draw-tite Class 1 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB24899-118420) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, part 24899 fits 2008–2012 Honda Accord and 2013 & Up Honda Accord. The hitch is also available for 2008 & Up Acura TL and 2008–2012 Acura TSX under the same part number. Confirm your vehicle year and model against the list on the manual cover.
Yes, part 24899 fits 2008 & Up Acura TL. The same hitch assembly is used for Honda Accord (2008–2012 and 2013 & Up) and Acura TSX (2008–2012).
Yes, part 24899 fits 2008–2012 Acura TSX. The same hitch is used for Honda Accord (2008–2012 and 2013 & Up) and Acura TL (2008 & Up).
The maximum gross trailer weight is 2000 LB (908 kg) and the maximum tongue weight is 200 LB (90.8 kg). However, you must not exceed the lower of this rating or your vehicle manufacturer's towing rating.
No. The drawbar must be used in the RISE position only. The drawbar kit (part 3593) is sold separately.
You will need metal shears, a lubricant or soapy water, a die grinder, and wrenches in 10mm and 11/16" sizes. A torque wrench is required to tighten fasteners to specification (30 Lb.-Ft. for 3/8 GR5 fasteners and 50 Lb.-Ft. for 7/16 GR5 fasteners).
The hitch includes: 2 carriage bolts 7/16-14 X 1.50 GR5, 1 U-bolt 3/8 GR5, 2 spacers, 2 conical washers 3/8, 2 conical washers 7/16, 2 hex nuts 3/8, 2 hex nuts 7/16, and 2 pull wires 7/16. An optional Fastener Kit (24899F) is available separately.
Yes. You must lower the exhaust by removing 2 rubber isolators on single exhaust systems or 4 rubber isolators on dual exhaust systems. Spraying lubricant or soapy water on the metal hanger rod and rubber isolator helps with removal. The exhaust is reattached after hitch installation.
Yes. You must remove the heat shield(s) and underbody panel (if present) before installation. Save the panel and fasteners for reinstallation. The heat shield is reattached after the hitch is in position, and the underbody panel is trimmed and reinstalled.
Possibly. Check whether the spacer and carriage bolt will fit through the existing access hole. If not, enlarge the hole just enough to allow the hardware through. The manual shows two methods: using a metal file or inserting a wrench and prying. Enlarge the hole minimally—only as much as needed.
Yes, if an underbody panel is present. You must trim it to allow the hitch bracket to fit. The manual provides estimated dimensions (12.75", 6.00", 6.00", 1.00" cut), but these are estimates and must be confirmed before trimming. Obtain vehicle owner approval before trimming. After trimming, slide the hitch bracket through the cut until it sits in the cut-out region.
No. Do not cut access or attachment holes with a torch. Use a die grinder, metal shears, or file instead.
Only if additional exhaust clearance is required after installation. If needed, bend the exhaust hanger bracket (which is welded to the vehicle frame) downward to provide more clearance.
Use the pull wires provided (one for each rail). Feed the spacers and carriage bolts into position using the pull wires. Keep the bolt and spacer separate (not engaged) while inserting them into the frame—this makes insertion much easier. Leave the pull wire attached until the fasteners are in position. See Figure 3 for the insertion technique.
Hang the U-bolt on the tow hook. The hitch can be raised into position with the U-bolt in one of two locations (forward or rear), as shown in Figure 1.
After hanging the U-bolt on the tow hook and raising the hitch into position, feed the pull wires through the hole in the side arm. The pull wires are then removed once the fasteners are secured.
Tighten all 3/8 GR5 fasteners with a torque wrench to 30 Lb.-Ft. (41 N·M).
Tighten all 7/16 GR5 fasteners with a torque wrench to 50 Lb.-Ft. (68 N·M).
Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes. A damaged hitch or ball must be removed and replaced immediately.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. Verify that the hitch is secure and that no fasteners have loosened during use.
Check the hitch frequently, making sure all fasteners and the ball are properly tightened. The manual does not specify an exact interval, but regular inspection is recommended to ensure safe operation.
A damaged hitch or ball must be removed and replaced. Do not attempt to repair a damaged hitch.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
Yes, part 24899 fits 2008–2012 Honda Accord.
2000 LB (908 kg) gross trailer weight, 200 LB (90.8 kg) tongue weight. Do not exceed your vehicle manufacturer's rating.
Metal shears, lubricant or soapy water, die grinder, 10mm and 11/16" wrenches, and a torque wrench.
Yes. Lower the exhaust by removing 2 rubber isolators (single exhaust) or 4 rubber isolators (dual exhaust). Reattach after installation.
You may need to enlarge the access hole to fit the spacer and carriage bolt. Use a file or wrench to enlarge minimally. Do not use a torch. Trim the underbody panel if present (estimated dimensions: 12.75", 6.00", 6.00", 1.00" cut), but confirm before cutting.
3/8 GR5 fasteners: 30 Lb.-Ft. (41 N·M). 7/16 GR5 fasteners: 50 Lb.-Ft. (68 N·M). Use a torque wrench.
Wear eye protection. Work safely beneath the vehicle. Do not cut holes with a torch. If removed, plug all holes to prevent water and exhaust fume entry. Replace any damaged hitch or ball.
Check frequently that all fasteners and the ball are properly tightened.

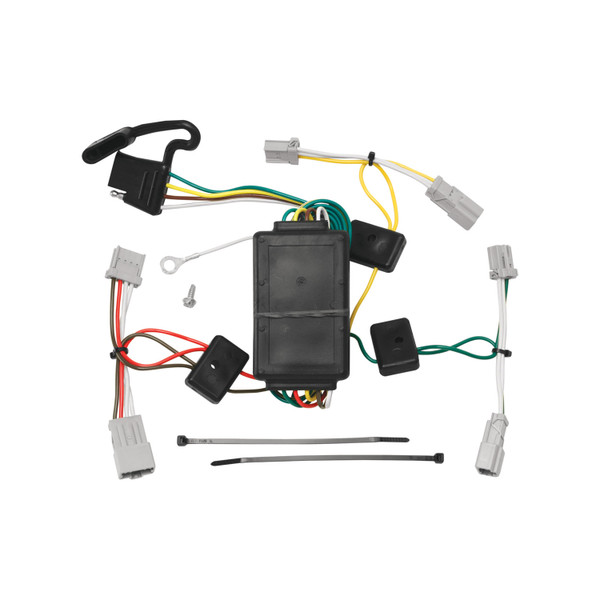

The T-Connector 118420-037 is designed for 07-08 Honda Fit, Honda Civic 4 Door, Mazda 3 (All Models), Honda Accord 4 Door Sedan, and Honda Accord Sedan. If your vehicle is not listed, it is not compatible with this product.
For 07-08 Honda Fit only, you must use the vehicle's blue 3-pin housing, not the green 3-pin housing. Using the wrong connector will prevent proper function.
You will need: Philips head screwdriver, trim panel remover, drill with 3/32" drill bit, and 1/4" socket.
Open the trunk or hatch and locate the vehicle wiring inside the rear cargo area. Partially remove the plastic threshold cover, side access panels, or carpet panels and cargo trays to access the connection points at the back of each taillight housing.
1. On the driver's side, attach both ends of the T-Connector containing the yellow, brown, and red wires to the driver's side taillight housing. 2. Route the T-Connector containing the green wire below the threshold cover to the passenger's side taillight housing. 3. Attach the green wire connector to the passenger's side taillight housing. Be careful not to damage the locking tabs and ensure connectors are fully inserted with locking tabs in place.
Be careful not to break the locking tabs when separating the original connectors. When attaching the T-Connector, ensure that connectors are fully inserted with locking tabs in place. Do not damage the locking tabs during insertion.
Yes. All connector surfaces should be clean and free of dirt before connecting the T-Connector. Clean the area to ensure proper electrical contact.
Drilling is required only for the ground wire connection. You must locate a suitable grounding point near the connector, such as an existing ground stud, or drill a 3/32" hole to secure the white wire using the eyelet and screw provided. Do not drill into the vehicle floor or bed. Do not drill into any exposed surfaces. Before drilling, verify what is behind the surface to avoid damage to the vehicle or personal injury.
Use a 3/32" drill bit to create the hole for the ground wire connection.
No. Do not drill into the vehicle floor or bed. Locate an existing ground stud or drill in an appropriate location that does not penetrate the floor or bed structure.
Yes. Clean dirt and rustproofing from the area where you will secure the white ground wire using the eyelet and screw provided. This ensures proper electrical contact.
Reinstall the plastic trim panels, threshold, storage covers, floor covering, and other items removed during installation. Be careful not to pinch or cut the wires when reinstalling these components.
All connections must be complete for the T-Connector to function properly. Test and verify the installation with a test light or by connecting a trailer once installed.
Do not exceed the lower of the towing manufacturer rating or: Maximum stop/turn light: 1 per side (2.1 amps); Maximum tail lights: 5 amps. Overloading the circuit can cause fires. Consult your vehicle's owner's manual and instruction sheet for additional information.
Store the 4-Flat connector in the trunk or hatch area when not in use.
Wear safety glasses during installation. Before drilling, verify what is behind any surface to avoid damage to the vehicle or personal injury. Do not drill into any exposed surfaces. Be careful not to pinch or cut wires when reinstalling trim panels and other components.
The T-Connector fits 07-08 Honda Fit, Honda Civic 4 Door, Mazda 3 (All Models), Honda Accord 4 Door Sedan, and Honda Accord Sedan.
Philips head screwdriver, trim panel remover, drill with 3/32" bit, and 1/4" socket.
Test and verify the installation with a test light or by connecting a trailer once installed. All connections must be complete for proper function.
Use the vehicle's blue 3-pin housing, not the green 3-pin housing.
