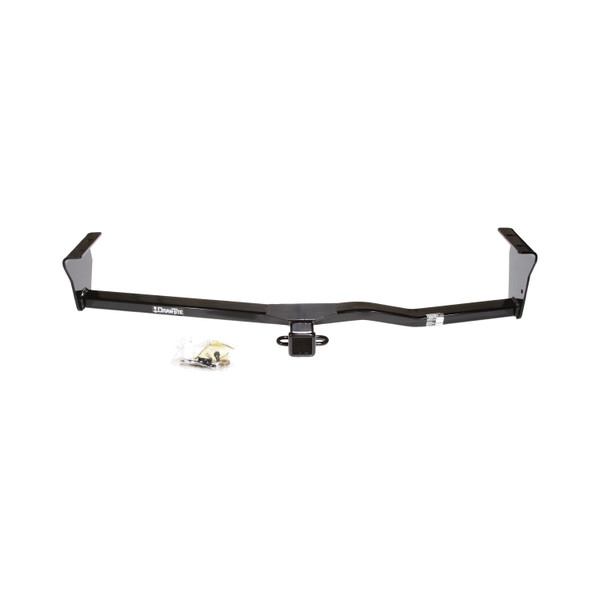

These durable custom hitches are manufactured for 2010-2012 Hyundai Santa Fe, 2011-2013 KIA Sorento and attach to your vehicle?s frame or bumper for a sleek, clean appearance. Each hitch also has a 2 inch square receiver tube opening ? the most common and versatile on the market - allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. The options are endless! DRAW-TITE Class 3 Custom Trailer Hitches come complete with all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. So, whether you are headed out to the campground, the lake, or the bike trails, or you are tackling a project at home and need to haul the materials home, choose DRAW-TITE and travel with confidence knowing your setup is connected with the security only DRAW-TITE can provide. DRAW-TITE: North America?s Favorite Hitch
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2011 - 2013 | Kia Sorento | EX, w/V6 Engine, w/Factory Tow Package |
The 2011-2013 KIA Sorento EX, w/V6 Engine, w/Factory Tow Package Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB75684-1-118269) fits 2011-2013 Kia Sorento models. The 2013 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 2011-2013 KIA Sorento EX, w/V6 Engine, w/Factory Tow Package Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB75684-1-118269) is designed to fit the 2011-2013 Kia Sorento.
The 2011-2013 KIA Sorento EX, w/V6 Engine, w/Factory Tow Package Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB75684-1-118269) fits the following vehicles: 2011-2013 Kia Sorento. Always verify your specific year, make, and model before ordering.
The 2011-2013 KIA Sorento EX, w/V6 Engine, w/Factory Tow Package Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB75684-1-118269) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes. This hitch (part numbers 87574, 75684, 44639) is designed for 2009 and 2010 Hyundai Santa Fe and Kia Sorento models. The wiring access location for Santa Fe is SUV3 or SUV4.
Yes. This hitch (part numbers 87574, 75684, 44639) is designed for 2009 and 2010 Kia Sorento and Hyundai Santa Fe models. The wiring access location for Sorento is SUV7.
The manual specifies this hitch is for 2009 and 2010 model years only. Fitment for other years is not documented in the manual. Contact the manufacturer or a fitment database to confirm compatibility with other model years.
The hitch has two capacity ratings depending on the type of ball mount used: Weight Carrying ball mount supports a maximum tongue weight of 350 lb (159 kg) and maximum gross trailer weight of 3,500 lb (1,589 kg). Weight Distributing ball mount supports a maximum tongue weight of 500 lb (227 kg) and maximum gross trailer weight of 5,000 lb (2,270 kg). Do not exceed the lower of your towing vehicle manufacturer's rating or these limits.
You need a 16mm wrench. No drill bits are required, as the hitch uses existing weldnuts in the vehicle frame.
The fastener kit (part number 75684F) includes 4 hex bolts (M10 x 1.25 x 30mm CL10.9) and 4 conical toothed washers (7/16"). These fasteners attach the hitch to the existing weldnuts in the vehicle frame.
Yes. You must raise the vehicle on ramps, hoist, or jack stands before beginning installation. This provides access to the frame weldnuts where the hitch fasteners attach.
1. Raise the vehicle on ramps, hoist, or jack stands. 2. Raise the hitch into position and install the fasteners into the existing weldnuts in the vehicle frame, as shown in the diagram. 3. Tighten all M10 x 1.25 CL10.9 fasteners with a torque wrench to 59 Lb.-Ft. (80 N·M). The fasteners attach on both sides of the frame rail.
No. This hitch uses existing weldnuts in the vehicle frame. No drilling is required.
All M10 x 1.25 CL10.9 fasteners must be tightened to 59 Lb.-Ft. (80 N·M) using a torque wrench.
Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes. A damaged hitch or ball must be removed and replaced immediately.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. Verify that the hitch is in the proper position as shown in the diagram.
Check the hitch frequently, making sure all fasteners and the ball are properly tightened. The manual does not specify an exact interval, but regular inspection is recommended to ensure safe operation.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
A hitch or ball which has been damaged should be removed and replaced. Do not continue to use a damaged hitch.
Yes, this hitch is designed for 2009–2010 Hyundai Santa Fe and Kia Sorento models.
You need a 16mm wrench. The fastener kit (75684F) includes 4 M10 x 1.25 x 30mm bolts and 4 conical toothed washers. No drilling is required.
Tighten all M10 x 1.25 CL10.9 fasteners to 59 Lb.-Ft. (80 N·M) using a torque wrench.
Wear eye protection, observe safety precautions when working beneath the vehicle, and do not cut holes with a torch. If removed, plug all holes to prevent water and exhaust fume entry.
Yes, the T-Connector is designed for the Kia Sorento. Your vehicle must have a factory tow-plug harness underneath the vehicle on the passenger's side frame rail near the rear tire. The manual does not specify which model years are compatible, so confirm with the manufacturer or your dealer if your vehicle has the factory tow-plug harness.
Yes, the T-Connector is designed for the Hyundai Veracruz. Your vehicle must have a factory tow-plug harness underneath the vehicle on the passenger's side frame near the rear tire. The manual does not specify which model years are compatible, so confirm with the manufacturer or your dealer if your vehicle has the factory tow-plug harness.
No. The T-Connector requires a factory tow-plug harness to function. It connects directly to the vehicle's existing tow-plug harness, which is located underneath the vehicle on the passenger's side frame rail near the rear tire. If your vehicle does not have this factory harness, the T-Connector cannot be installed.
Yes. On the Kia Sorento, you must lower the spare tire to gain access to the vehicle wiring. This is the first step in the installation process.
On the Hyundai Veracruz, the access hole is located inside the bumper support channel, above the passenger side exhaust. Route the T-Connector harness plugs through this hole to access the vehicle's tow-plug harness.
The required tools are: trim panel remover, wire cutters, 10 mm socket and ratchet or 10 mm wrench, Phillips head screwdriver, and test-probe.

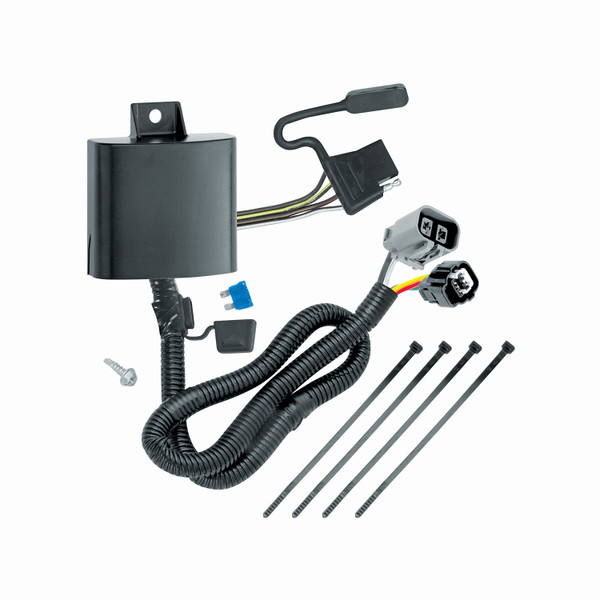

The package includes the T-Connector harness, a black box (control module), double-sided tape for mounting, and cable ties for securing loose wires. A bracket or electrical box for mounting the 4-Flat connector end is not included and must be sourced separately.
1. Locate the vehicle's tow-plug harness underneath the vehicle on the passenger's side frame rail near the rear tire. 2. Remove the protective cap carefully without breaking the locking tabs. 3. Ensure all connector surfaces are clean and free of dirt. 4. Insert the T-Connector harness into the vehicle's tow-plug harness and lock into place. 5. Verify that connectors are fully inserted with locking tabs in place. 6. Return the protective caps to the customer.
Route the T-Connector harness rearward to the back of the bumper fascia. Then route it along the inside of the bumper toward the center of the vehicle. Avoid routing near hot pipes, heat shields, the fuel tank, or any points that may pinch or break the wire.
Route the T-Connector harness along the inside of the bumper support channel toward the center of the vehicle. Mount the 4-Flat end in an accessible location with a bracket or electrical box (not included). Avoid routing near hot pipes, heat shields, the fuel tank, or any points that may pinch or break the wire.
Mount the T-Connector black box using the double-sided tape provided onto the bottom of the bumper support channel. Secure all loose wires with the cable ties provided.
On some Kia Sorento vehicles, the vehicle wiring harness is located behind a protective cover on the driver's side frame rail. Remove the plastic trim fasteners securing the protective cover to access the vehicle's wiring harness.
1. Ensure all connections are complete. 2. Reset the vehicle electrical system by temporarily removing the key from the ignition. 3. Test and verify the installation with a test light or by connecting a trailer once installed.
Do not exceed the lower of your vehicle's towing manufacturer rating or: Maximum stop/turn light: 2 per side (4.2 amps); Maximum tail lights: (7.5 amps). Overloading the circuit can cause fires. Refer to your vehicle's owner's manual and instruction sheet for additional information.
Wear safety glasses during installation. Route the wire carefully to avoid hot pipes, heat shields, the fuel tank, or any points that may pinch or break the wire. Remove protective caps carefully without breaking the locking tabs. Keep all connector surfaces clean and free of dirt. Read and follow all vehicle warnings and installation instructions before beginning.
All connector surfaces must be clean and free of dirt to ensure proper electrical connection and function of the T-Connector. Dirt or debris can prevent the connectors from seating fully and may cause electrical faults.
The T-Connector fits Kia Sorento and Hyundai Veracruz models equipped with a factory tow-plug harness. Confirm your vehicle has the factory harness before purchasing.
You need: trim panel remover, wire cutters, 10 mm socket and ratchet (or 10 mm wrench), Phillips head screwdriver, and test-probe.
Yes, you must lower the spare tire on a Kia Sorento to gain access to the vehicle wiring.
Maximum stop/turn light: 2 per side (4.2 amps); Maximum tail lights: (7.5 amps). Do not exceed the lower of your vehicle manufacturer's towing rating or these limits, as overloading can cause fires.
