2013-2016 Audi allroad All Class 1 Trailer Hitch, 1-1/4" Ball MountCURTOriginal price was $561.85. Current price is $524.53.In Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
CURT
Verify Fitment
Select your vehicle to confirm this part fits.
2013 - 2016 Audi allroad
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
This fits: 2013-2016 Audi allroad All

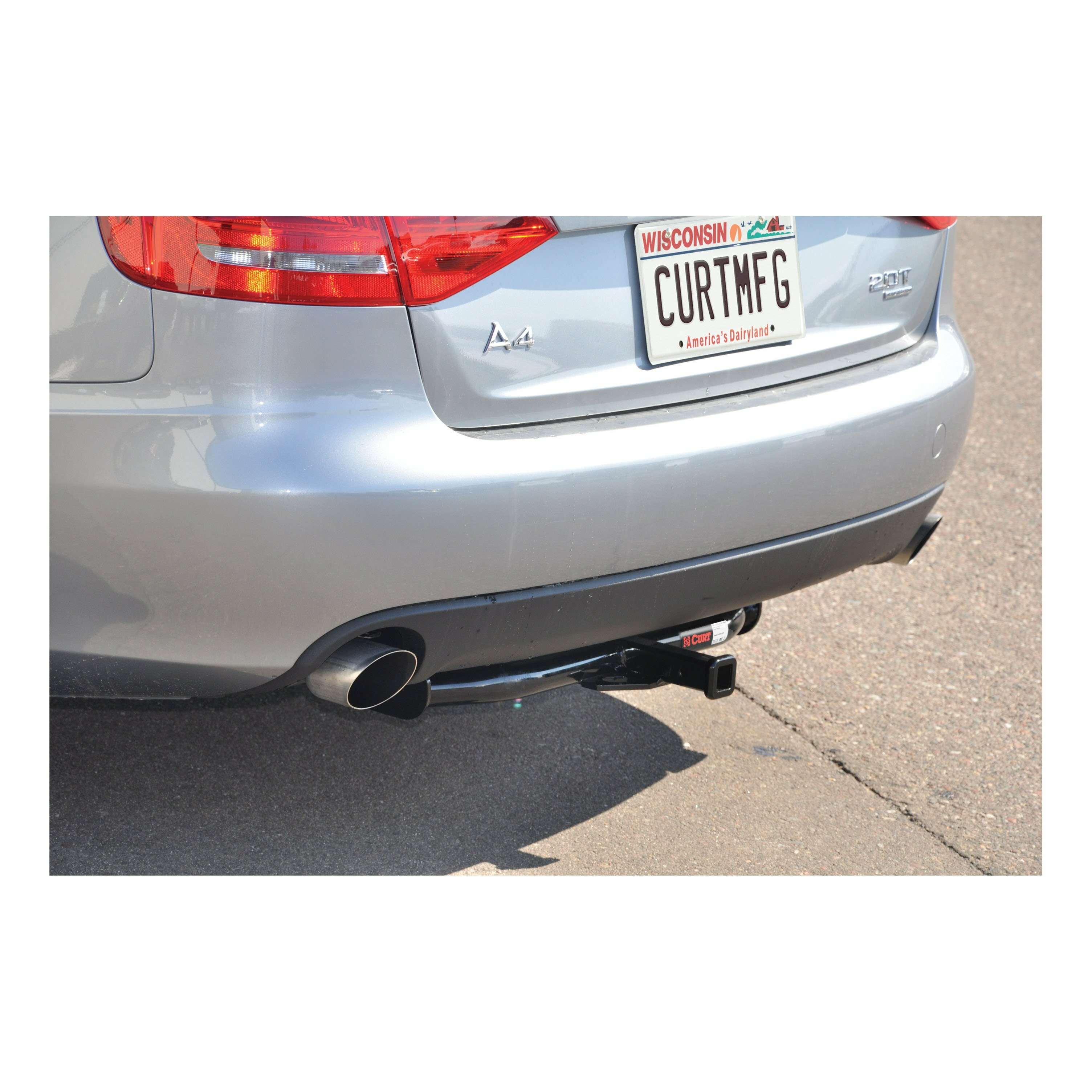

However you define adventure -- whether it's climbing onto the back of a mountain bike, hunting from the top of a tree stand or camping with the family a long way from nowhere -- CURT class 1 hitches provide a light-duty towing receiver to help you Bring It. Each is made to fit a specific vehicle, providing easier installation, a better fit and optimal towing capacity. Custom class 1 trailer hitches are available for a variety of smaller vehicle types, including the compact car, crossover, minivan and small SUV. This particular class 1 hitch is designed to be a custom hitch for certain years of the Audi A4 Quattro and Allroad (to verify vehicle compatibility, see the CURT application guide at curtmfg.com). Tested in accordance with SAE J684, it offers a weight carrying capacity of 2,000 lbs. GTW and 200 lbs. TW. It is equipped with 1-1/4" receiver tube opening to accept a ball mount shank or other hitch mount. This class 1 hitch also comes with all necessary mounting hardware. With its lightweight design and smaller receiver tube size, a class 1 hitch is especially useful for adding cargo space with a hitch-mounted bike rack or cargo carrier. They can also typically be used to tow small trailers such as a utility trailer, kayak trailer or teardrop camper (never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). Though CURT class 1 trailer hitches are only intended for light-duty towing, we apply the same principles of quality as we do to the rest of our rear mount hitches. Each class 1 hitch is made with hands-on engineering, high-strength steel and precise welding. We use a co-cured finish of liquid A-coat, inside and out, and durable black powder coat to provide a lasting defense against rust, chips and UV rays.
Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
Not compatible for use with vertical hanging bicycles (bike racks that require the bicycles to be hung / mounted vertically)
Includes installation hardware
2013, 2014, 2015, 2016 Audi allroad All Class 1 Trailer Hitch, 1-1/4" Receiver, Select Audi A4 Quattro, Allroad
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2013 - 2016 | Audi allroad | — |

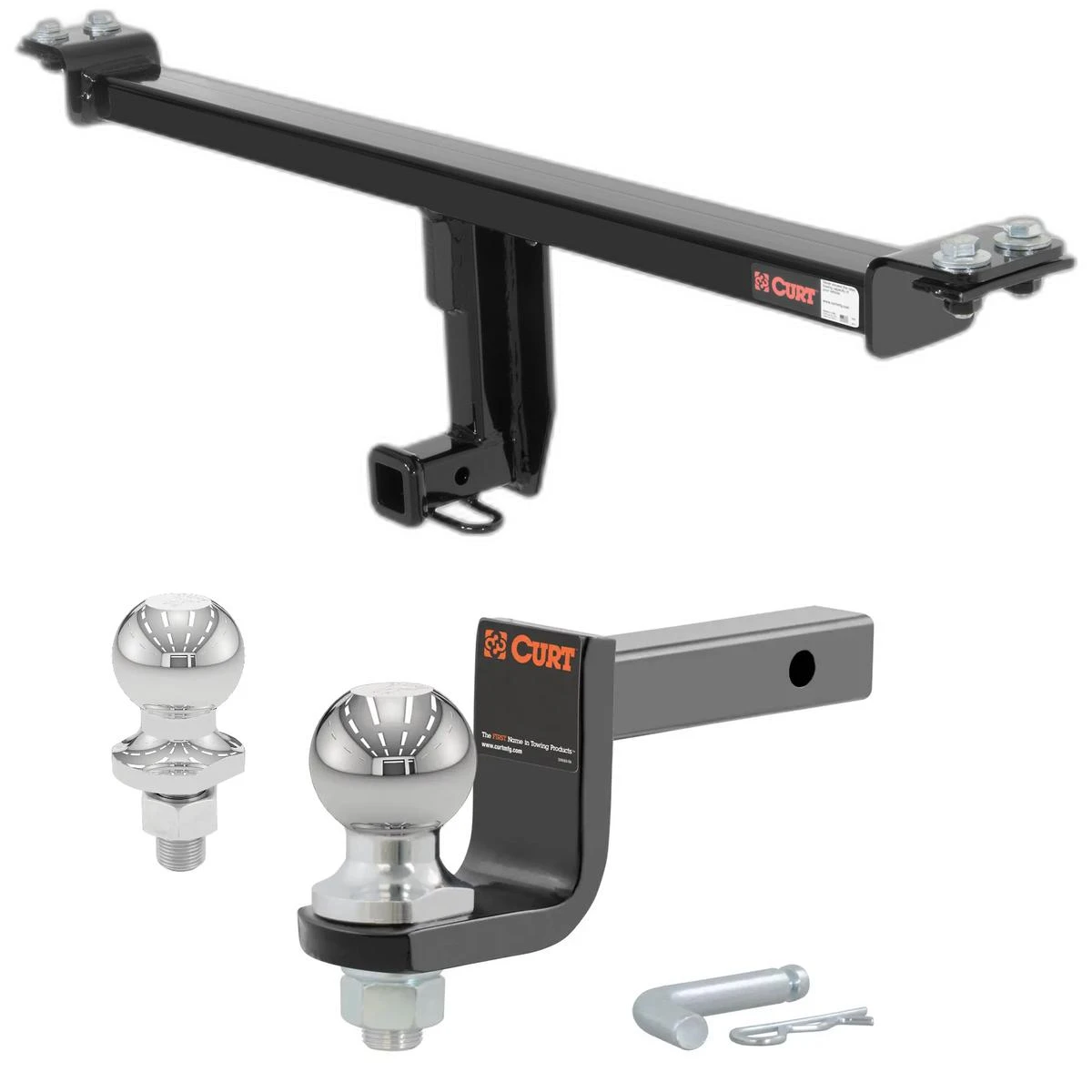

Yes, the 2013-2016 Audi allroad All Class 1 Trailer Hitch, 1-1/4" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-11195-001) is designed to fit the 2013-2016 Audi allroad.
The 2013-2016 Audi allroad All Class 1 Trailer Hitch, 1-1/4" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-11195-001) fits the following vehicles: 2013-2016 Audi allroad. Always verify your specific year, make, and model before ordering.
The 2013-2016 Audi allroad All Class 1 Trailer Hitch, 1-1/4" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-11195-001) fits 2013-2016 Audi allroad models. The 2016 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2013-2016 Audi allroad All Class 1 Trailer Hitch, 1-1/4" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-11195-001) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, Curt hitch 11195 is designed for Audi A4 Avant, Audi Allroad, and Audi A4 Sedan models. Confirm your vehicle matches one of these three body styles before purchasing.
The hitch has a gross load capacity of 2,000 lbs trailer weight and 200 lbs tongue weight when used as a weight-carrying hitch. However, you must not exceed your vehicle manufacturer's recommended towing capacity, which may be lower.
Hitch 11195 is designed for use with ballmount #55001 or #45501.
Yes, lowering the exhaust is required. Step 2 requires you to remove exhaust hanger nuts and bolts, then wrap wire around the exhaust to allow it to hang low without damage. The exhaust is reinstalled after the hitch is secured in step 18.
No drilling is required. The manual explicitly states 'NO DRILLING REQUIRED'. However, heat shield trimming is required: you will use a center punch to mark the access hole location, then cut out the area of the heat shield covering the access hole (see step 4 and heat shield trim detail).
Heat shield trimming is required. You will mark and cut out the heat shield covering the access hole (approximately 5.00 inches, as shown in the heat shield trim detail). The modification is permanent. No drilling or welding is required.
Required tools: ratchet, ratchet extension, 10mm socket, 13mm socket, 16mm socket, 3/4" socket, T30 Torx, T25 Torx, center punch, and torque wrench.
The kit includes: 2× 1/2" fishwire, 4× 1/2-13 UNC flange nuts (grade 8), 4× 0.250 x 1.00 x 3.00" square hole spacers, 4× 1/2-13 UNC 1-1/2" carriage bolts (grade 8), 2× 7/16" flat washers, 2× M10x1.5 110mm hex bolts (class 10.9), 2× 7/16" conical toothed washers, and 2× M10x1.5 hex nuts (class 10.9).
You must open the rear hatch/trunk and remove the middle lid covering the spare tire (step 7), but the manual does not explicitly state whether the spare tire itself must be removed. Contact Curt Technical Support at 1-877-287-8634 for clarification.
You must remove the middle lid covering the spare tire, the rear-most tie down latches from both side rails, and both side rails (steps 7-9). All trunk components are reinstalled after the hitch is secured (step 13).
Step 1 states: 'If present, remove plastic underbody panel which covers passenger side frame rail (on single exhaust models).' This removal is required only if your vehicle has a single exhaust system and the panel is present.
All M10 hardware must be torqued to 45 ft-lbs (step 17). This applies to the M10x1.5 110mm hex bolts used on the bumper bracket fasteners and the M10 hex nuts used on the rear-most hitch bolts.
All 1/2" hardware must be torqued to 110 ft-lbs (step 17). This applies to the 1/2-13 UNC carriage bolts and 1/2" flange nuts used to secure the hitch.
The manual references 'FISHWIRE TECHNIQUES' and 'REVERSE FISHWIRE TECHNIQUES' in steps 5-6 but does not provide detailed instructions in this document. Steps 5-6 require you to fishwire 1/2-13 X 1 1/2" carriage bolts and SP6 spacers through the access hole and out the forward-most hole in the frame (both sides), then reverse the process. Contact Curt Technical Support at 1-877-287-8634 for detailed fishwire technique guidance.
1. Fishwire 1/2-13 X 1 1/2" carriage bolts and SP6 spacers through the access hole and forward-most frame hole (both sides, steps 5-6). 2. Replace bumper bracket fasteners with M10x1.5 110mm hex bolts and 7/16" flat washers (step 11), then torque to 45 ft-lbs (step 12). 3. Raise hitch into position and secure the 4 forward-most bolts with 1/2" flange nuts (step 15). 4. Secure the rear-most bolts with 7/16" conical toothed washers and M10 hex nuts (step 16). 5. Torque all M10 hardware to 45 ft-lbs and all 1/2" hardware to 110 ft-lbs (step 17).
Non-trailer loads can be applied to this hitch only if they are supported by auxiliary stabilizing straps. Failure to properly support non-trailer loads will void the product warranty.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound. The manual does not specify a particular interval, but recommends regular inspection as part of vehicle maintenance.
The manual recommends periodically checking the receiver hitch to ensure that all fasteners are tight and that all structural components are sound. A specific interval is not provided; contact Curt Technical Support at 1-877-287-8634 for recommended maintenance intervals.
Yes, if your vehicle is an Audi A4 Avant, Audi Allroad, or Audi A4 Sedan. Confirm your exact model before purchasing.
Ratchet, ratchet extension, 10mm, 13mm, 16mm, and 3/4" sockets, T30 and T25 Torx, center punch, and torque wrench.
M10 hardware: 45 ft-lbs. 1/2" hardware: 110 ft-lbs. All fasteners must be torqued after the hitch is fully positioned.
2,000 lbs trailer weight and 200 lbs tongue weight. Do not exceed your vehicle manufacturer's recommended towing capacity.
Only if supported by auxiliary stabilizing straps. Failure to do so voids the warranty.
