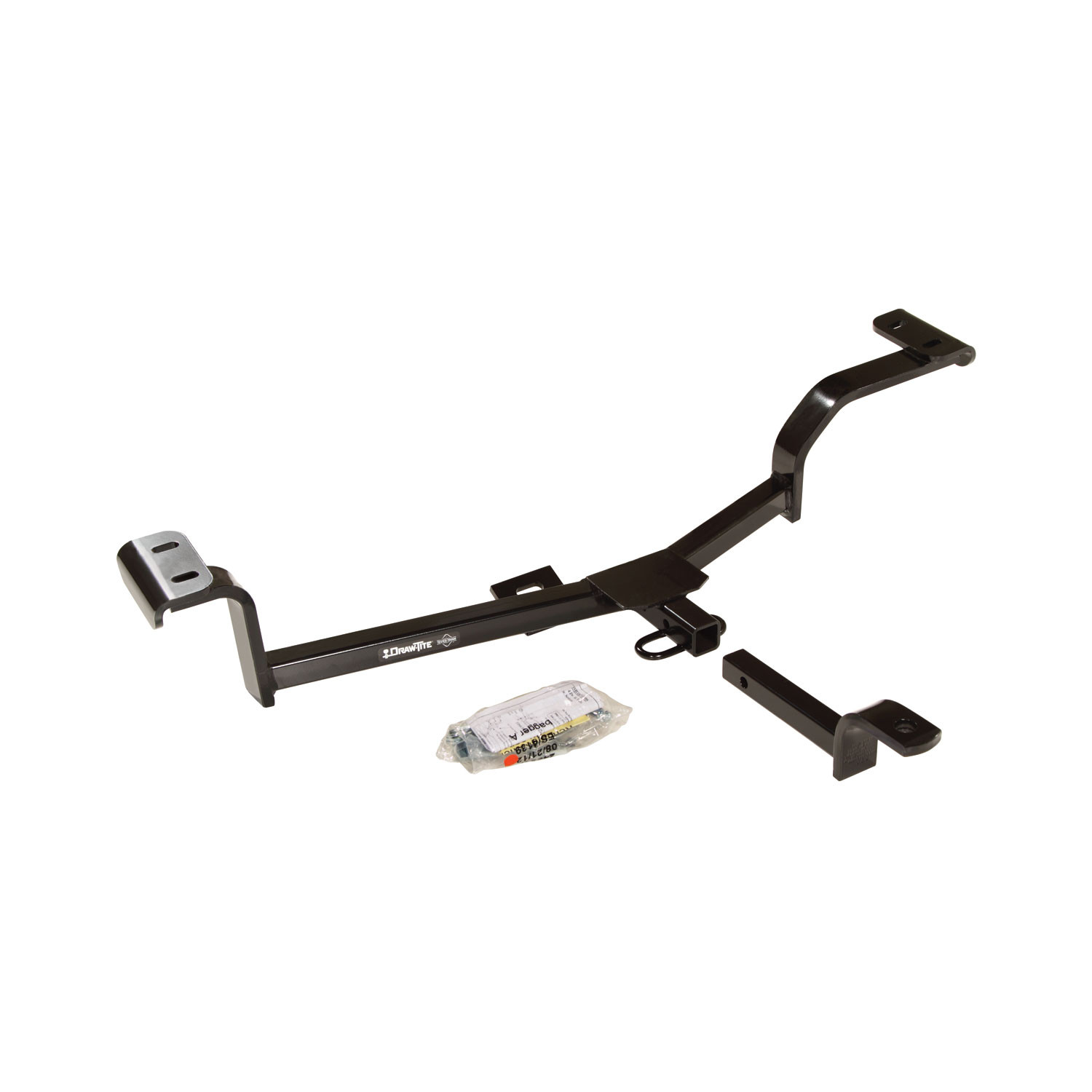

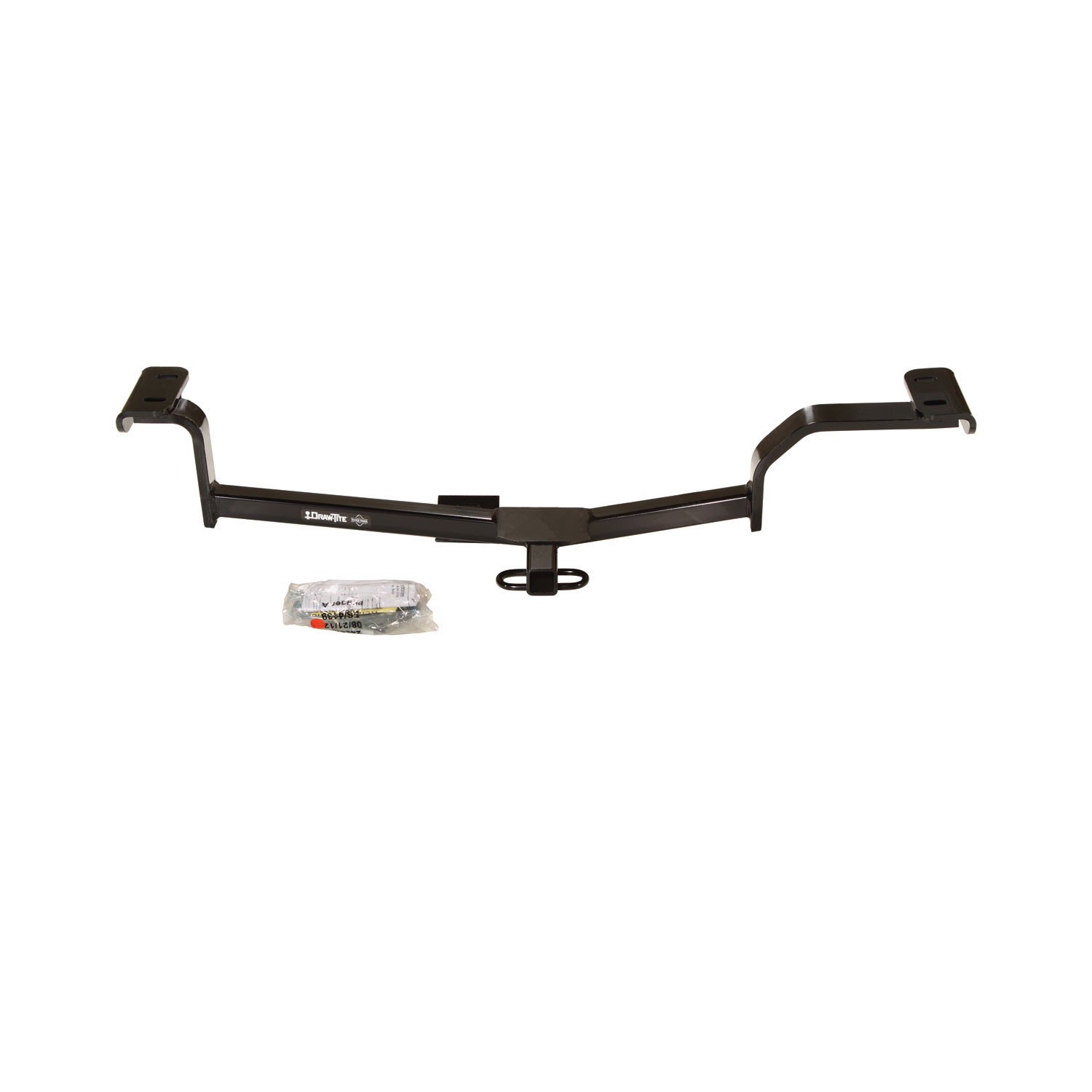

These dependable custom hitches are manufactured for 2012-2021 Hyundai Accent, 2012-2017 KIA Rio and attach to your vehicle?s frame or bumper for a sleek, clean appearance. Each hitch also has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. DRAW-TITE Class 1 custom trailer hitches come complete with all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. So, whether you are headed out to the campground and need a place for the cooler, taking the bikes to hit the trails in the park, or you are tackling a DIY project (maybe some landscaping or a home repair), choose DRAW-TITE and travel with confidence knowing your setup is connected with the security only DRAW-TITE can provide. DRAW-TITE: North America?s Favorite Hitch.
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 1988 - 2000 | Hyundai Accent | Hatchback |
The 2013-2017 Hyundai Accent Hatchback Draw-tite Class 1 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB24884-118771) fits the following vehicles: 1988-2000 Hyundai Accent. Always verify your specific year, make, and model before ordering.
Yes, the 2013-2017 Hyundai Accent Hatchback Draw-tite Class 1 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB24884-118771) is designed to fit the 1988-2000 Hyundai Accent.
The 2013-2017 Hyundai Accent Hatchback Draw-tite Class 1 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB24884-118771) fits 1988-2000 Hyundai Accent models. The 2000 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2013-2017 Hyundai Accent Hatchback Draw-tite Class 1 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB24884-118771) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, part number 24884 fits both 4-door and 5-door Hyundai Accent models. However, the installation procedure and spacer configuration differ between 4-door and 5-door versions. The 5-door model uses 1 spacer (item 7), while the 4-door model uses 2 spacers. Confirm your door count before beginning installation.
Yes, part number 24884 fits Kia Rio 4-door sedan models from 2014 to current. The Kia Rio configuration uses no spacers (item 7 is not used). You must remove the bottom appearance panel on the driver side before installation and return it to the owner after completion.
The maximum gross trailer weight is 2000 lb (908 kg) and the maximum tongue weight is 200 lb (90.8 kg). Do not exceed the lower of the towing vehicle manufacturer's rating or these limits.
You need an 11/16" wrench and a torque wrench. The torque wrench is essential because all 7/16-14 GR5 fasteners must be tightened to exactly 50 lb.-ft. (68 N·m).

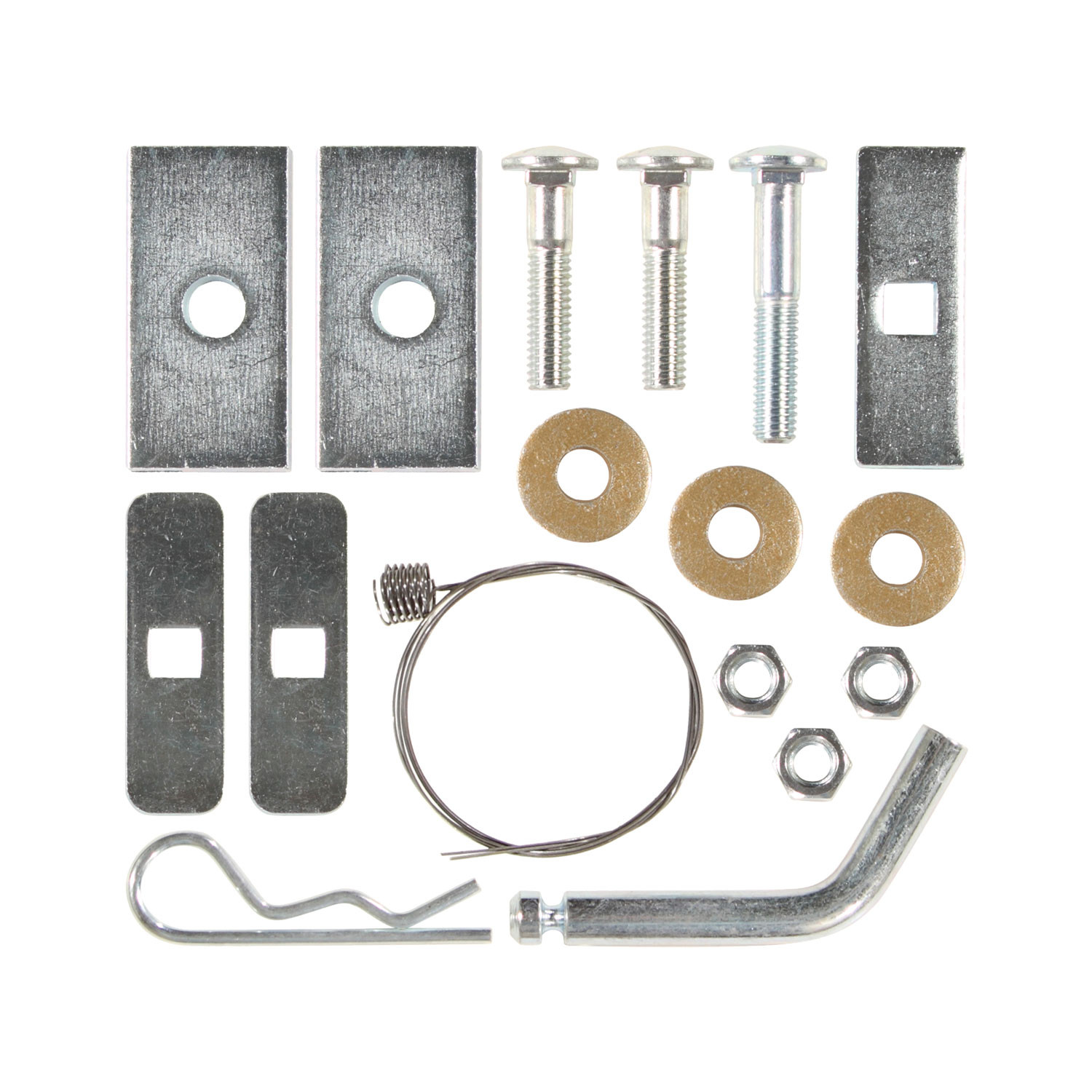

The hitch includes: 2 carriage bolts 7/16-14 × 2.00 GR5 (item 1); 2 carriage bolts 7/16-14 × 2.50 GR5 (item 5); 2 spacers .13 × .93 × 3.00 with round corners (item 2); 1 spacer .25 × 1.00 × 3.00 with square corners (item 6); 2 spacers .25 × 1.50 × 3.00 (item 3); 3 conical washers 7/16 (item 7); 3 hex nuts 7/16-14 (item 4); and 2 pullwires 7/16 (item 8). Note that item 7 (spacers) configuration varies by model: 5-door Accent uses 1 spacer, 4-door Accent uses 2 spacers, and Kia Rio uses no spacers.
Yes. Remove the rubber plugs from the frame rails if present. On 5-door models, return the plugs to the owner. On 4-door models, replace the plugs after hitch installation is complete.
Yes. For Kia Rio 2014 to current model, you must remove the bottom appearance panel on the driver side (see Figure 4). Return it to the owner after installation.
The pullwire method is used on 4-door Accent models (Figure 2). Insert items 1 and 2 (the carriage bolts) through the forward hole in the frame rail using the pullwires to guide them. Leave the pullwires attached. Later, feed the pullwires through the slot on the hitch bars and use them to help position the hitch before removing them and attaching items 3 and 4. The pullwires are temporary installation aids.
The reverse pullwire method is used on 5-door Accent models (Figure 3). Insert items 1 and 2 (the carriage bolts) through the hole in the frame rail using the pullwires. Leave the pullwires attached. Later, feed the pullwires through the slot on the hitch bars and use them to help position the hitch before removing them and attaching items 3 and 4.
The spacer configuration depends on your vehicle model. For 5-door Accent, use 1 spacer (item 7). For 4-door Accent, use 2 spacers. For Kia Rio, use no spacers. Place the spacer(s) in position on the hitch tie-down bracket as shown in Figure 1 before raising the hitch into position. The manual notes that you should kink the pullwire to keep the spacer independent of the bolt.
1. Insert item 5 (carriage bolt 7/16-14 × 2.50) through item 6 (spacer .25 × 1.00 × 3.00) and then through the tie-down hook. 2. Place item 7 (spacer configuration per your model) on the hitch tie-down bracket. 3. Raise the hitch into position carefully without pushing fasteners into frame rails. 4. Remove pullwires and attach items 3 and 4 (the remaining fasteners). 5. Use remaining fasteners to attach to the tie-down hook as shown in Figure 1.
All 7/16-14 GR5 fasteners must be tightened to 50 lb.-ft. (68 N·m) using a torque wrench. This applies to all bolts and nuts in the assembly.
The drawbar (sold separately, part number 3592) must be used in the rise position only. Do not use it in any other position.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch. If the hitch or ball becomes damaged, it must be removed and replaced immediately.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. The manual does not specify a retorque interval, but regular inspection is recommended.
This product complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5 and SAE J684.
Yes, it fits Hyundai Accent 4-door and 5-door models, and Kia Rio 4-door sedan (2014 to current). Spacer configuration varies by model.
11/16" wrench and a torque wrench (all fasteners must be tightened to 50 lb.-ft. / 68 N·m).
Maximum 2000 lb (908 kg) gross trailer weight and 200 lb (90.8 kg) tongue weight. Do not exceed the lower of the towing vehicle manufacturer's rating or these limits.
Yes: remove rubber plugs from frame rails (return on 5-door, replace after installation on 4-door). For Kia Rio, also remove the bottom appearance panel on the driver side and return it to the owner.
5-door Accent: 1 spacer. 4-door Accent: 2 spacers. Kia Rio: 0 spacers (none used).
Wear eye protection; do not cut holes with a torch; work safely beneath the vehicle; check fasteners and ball frequently for tightness; plug all holes if hitch is removed to prevent water and exhaust fume entry.
Retighten all fasteners to the required torque specification of 50 lb.-ft. (68 N·m) using a torque wrench. The manual recommends checking the hitch frequently to ensure all fasteners and the ball remain properly tightened.
A damaged hitch or ball must be removed and replaced immediately. Do not continue to use a damaged hitch, as it may fail during towing.
