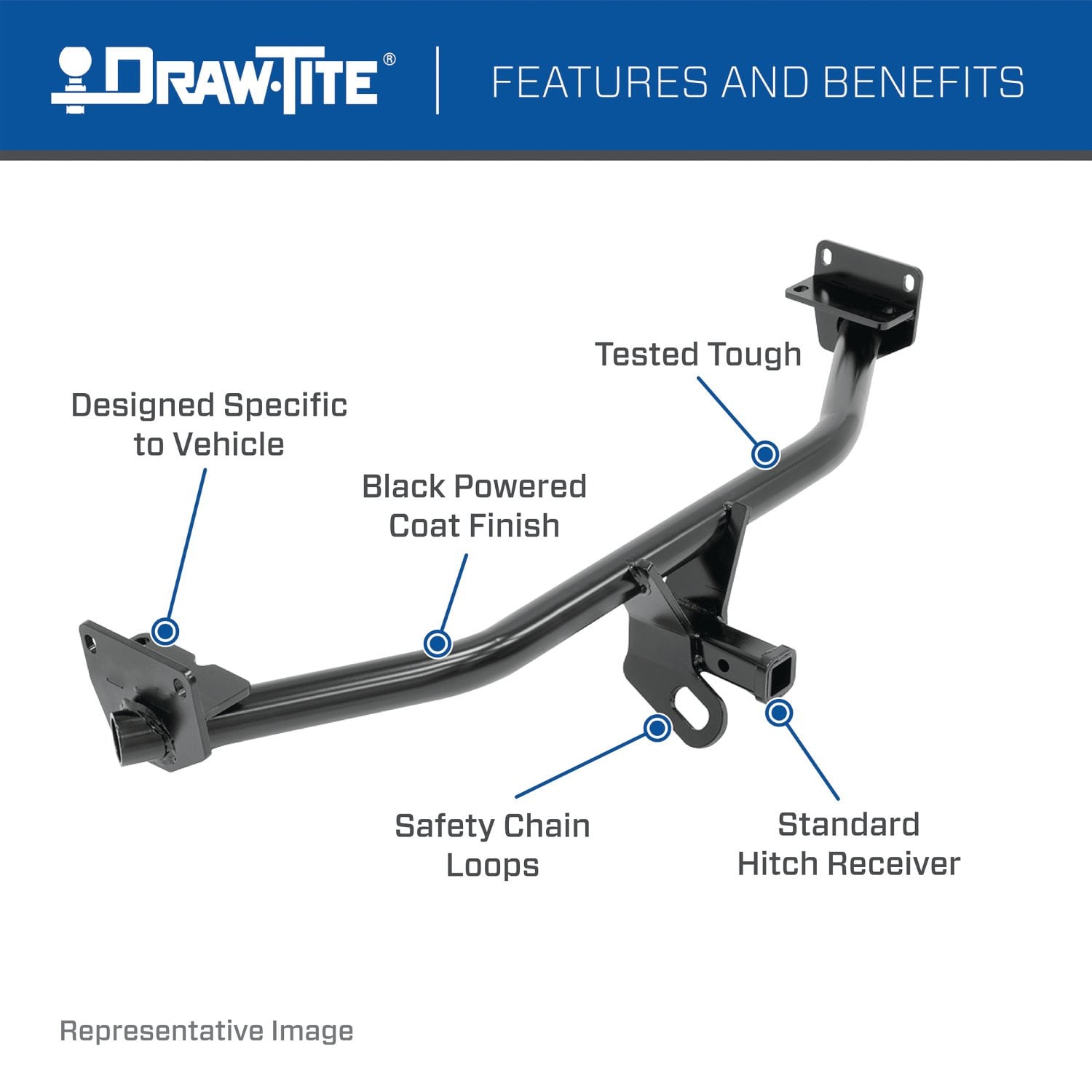

Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 1998 | Buick Regal | — |

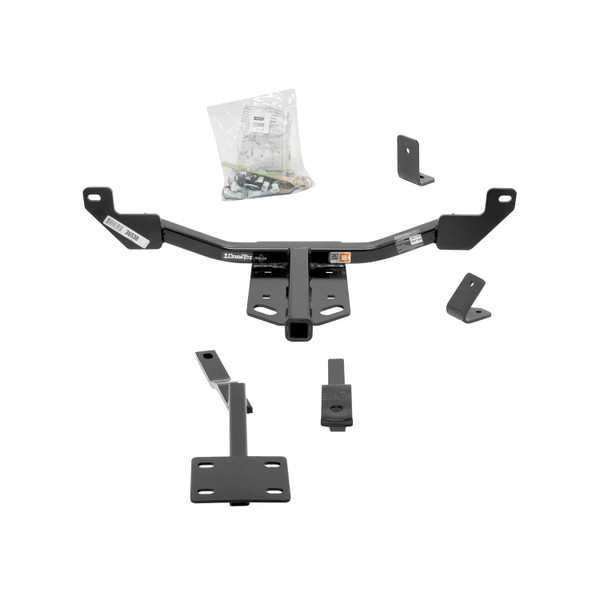

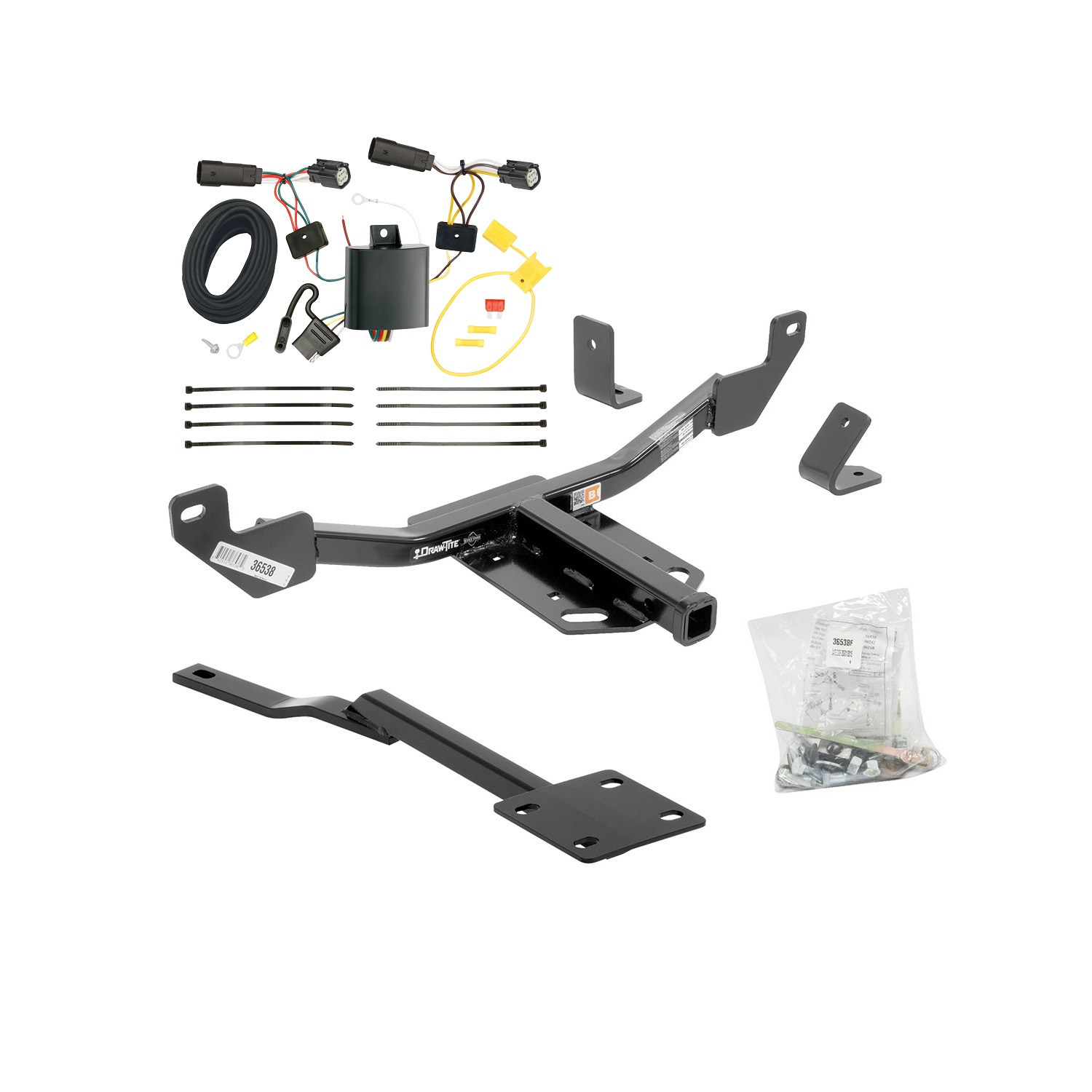

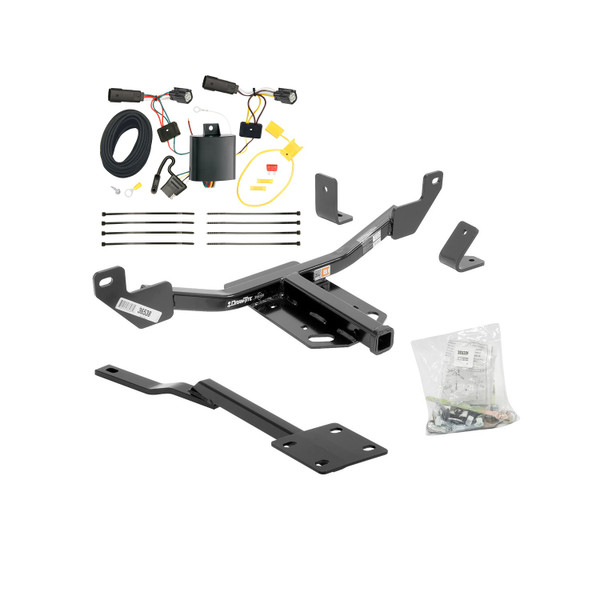

The 2014-2017 Buick Regal Draw-tite Class 2 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB36538-118639) fits 1998 Buick Regal models. The 1998 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 2014-2017 Buick Regal Draw-tite Class 2 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB36538-118639) is designed to fit the 1998 Buick Regal.
The 2014-2017 Buick Regal Draw-tite Class 2 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB36538-118639) fits the following vehicles: 1998 Buick Regal. Always verify your specific year, make, and model before ordering.
The 2014-2017 Buick Regal Draw-tite Class 2 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB36538-118639) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, part number 36538 is designed for the Chevrolet Impala. However, the Impala requires minor fascia trimming during installation. You must obtain the vehicle owner's permission before trimming. A tape measure is also required for Impala installation.
Yes, part number 36538 fits the Buick LaCrosse. However, you must use bracket "B" (not bracket "A") and you will need to enlarge the rearward hole on the vehicle suspension mount to accept a ½" bolt using a ½" drill bit. See Figure 3 in the manual for the location.
Yes. On the Cadillac XTS, you must enlarge the rearward hole on the vehicle suspension mount to accept a ½" bolt. Use a ½" drill bit to enlarge this hole. See Figure 3 in the manual for the location.
Use bracket "B" on the Buick LaCrosse. Bracket "A" is used on Chevrolet Malibu, Chevrolet Impala, Buick Regal, and Cadillac XTS. Bracket "B" is also used on all FWD models before mid-year 2013 with a wedge spacer.
No. The wedge spacer (item 11) is required only on FWD models before mid-year 2013. If your Malibu is mid-year 2013 or later, you do not need the spacer. Use bracket "A" without the spacer.
You will need wrenches in sizes 10mm, 13mm, 9/16", and 3/4". A tape measure is required only for Impala models. A ½" drill bit is required only for Buick LaCrosse and Cadillac XTS models to enlarge the suspension mount hole.

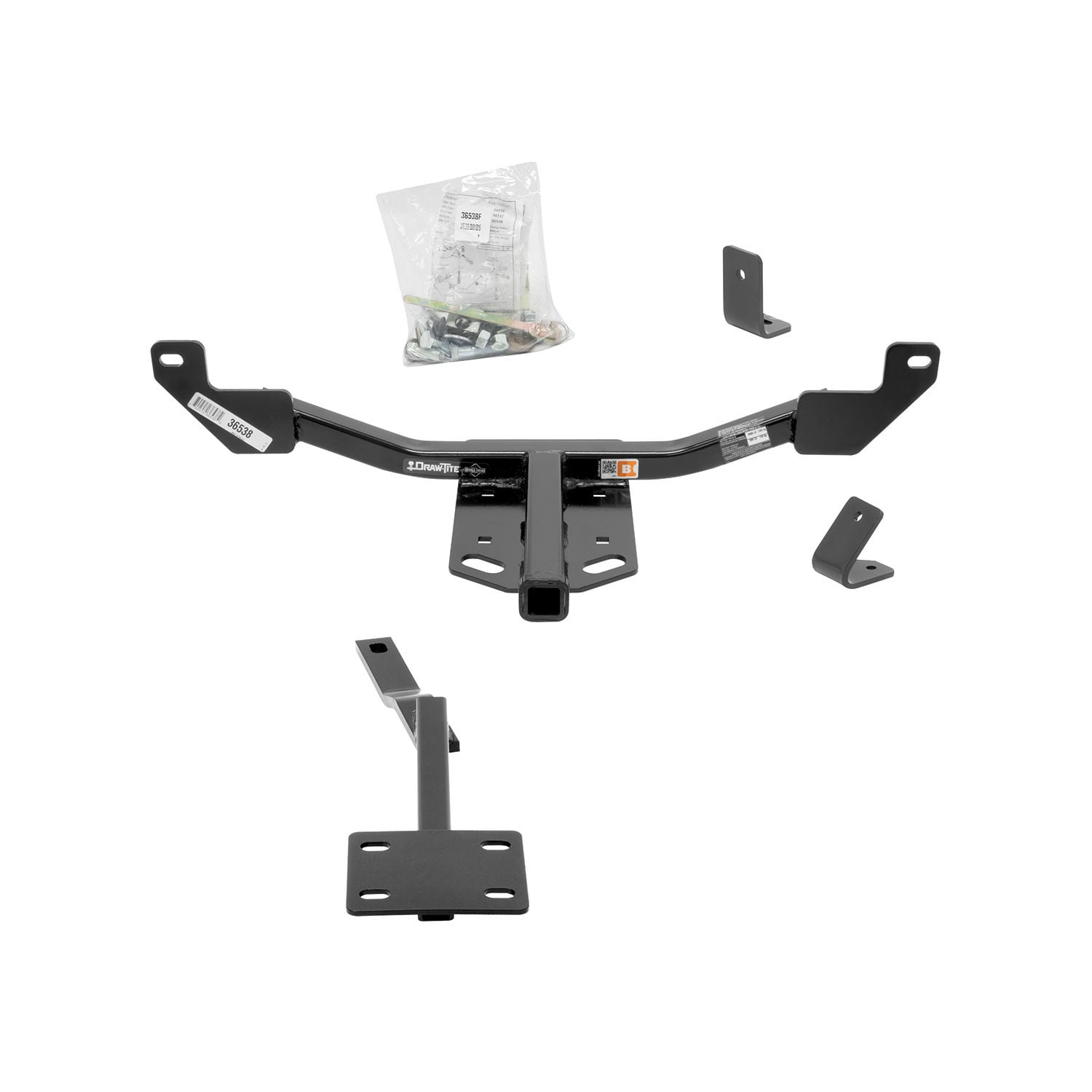

The hitch includes: 2× M8 × 1.25 × 55mm hex bolts (CL10.9), 5× ½-13 hex nuts, 4× ½" flat washers, 1× ½-13 × 1.50" hex bolt (GR5), 2× 3/8" conical washers, 1× ½-13 × 2.00" hex bolt (GR5), 2× M8 × 1.25 hex nuts, 1× ½-13 handle nut, 4× ½-13 × 1.50" carriage bolts (GR5), 7× ½" conical washers, 1× wedge spacer, and 2× 5/16" flat washers. The fastener kit 36538F is sold separately.
The manual does not specify whether the tailpipe must be removed. However, Step 1 requires you to remove and replace the existing inner tailpipe hanger 8mm bolt on both sides. Consult the vehicle service manual or a professional installer to determine if tailpipe removal is necessary for access.
1. Remove and replace the inner tailpipe hanger 8mm bolts on both sides. 2. Install the forward hitch bracket (A or B depending on model) and hand-tighten only. 3. Raise the rearward section of the hitch over the 8mm bolts and hand-tighten. 4. Install the ½" carriage bolts into the hitch support plate. 5. Raise the center section and hand-tighten. 6. Attach the forward end of the center section to the forward bracket and hand-tighten. 7. Torque all fasteners to specification. Do not fully tighten any fasteners until Step 7.
Hand-tighten all fasteners during Steps 1–6. Only in Step 7, after all sections are in place and aligned, should you use a torque wrench to tighten all fasteners to their final specifications. This allows the hitch sections to pivot and align properly before final tightening.
For Chevrolet Impala and Cadillac XTS models, use the forward holes on the support plate when installing the ½" carriage bolts in Step 4. For Chevrolet Malibu, Buick Regal, and Buick LaCrosse models, use the rearward holes.
The conical washers must be installed with the teeth side against the hitch. This orientation is critical for proper fastening and load distribution.
Drilling is required only for Buick LaCrosse and Cadillac XTS models. You must enlarge the rearward hole on the vehicle suspension mount to accept a ½" bolt using a ½" drill bit. No drilling is required for Chevrolet Malibu, Chevrolet Impala, or Buick Regal.
Minor fascia trimming is required only for the Chevrolet Impala. You must obtain the vehicle owner's permission before trimming. No trimming is required for Chevrolet Malibu, Buick LaCrosse, Buick Regal, or Cadillac XTS.
No. Do not cut access or attachment holes with a torch. Use appropriate drilling or cutting tools instead.
Tighten all M8 × 1.25 CL10.9 fasteners with a torque wrench to 25 Lb.-Ft. (34 N·M).
Tighten all ½-13 GR5 fasteners with a torque wrench to 75 Lb.-Ft. (102 N·M), except when installing into a handle-nut, which should be torqued to 50 Lb.-Ft. (68 N·M).
Tighten all ½-13 GR5 bolts into handle-nut fasteners with a torque wrench to 50 Lb.-Ft. (68 N·M). This is lower than the standard ½-13 GR5 torque of 75 Lb.-Ft.
The maximum gross trailer weight is 3500 lb (1589 kg). Do not exceed the lower of the towing vehicle manufacturer's rating or this hitch rating.
The maximum tongue weight is 300 lb (136 kg). Do not exceed this rating when towing.
Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes. A damaged hitch or ball must be removed and replaced immediately.
No. The authorized drawbar kit 36061 (sold separately) must be used in the RISE position only. Do not use it in any other position.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. Proper torque is needed to keep the hitch secure to the vehicle when towing. Verify that all fasteners have been torqued to their specified values before using the hitch.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. The manual does not specify an exact interval, but regular inspection before towing is recommended.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes. This protects the vehicle interior and prevents corrosion.
A hitch or ball which has been damaged should be removed and replaced immediately. Do not attempt to repair a damaged hitch or ball.
Yes, if you own a Chevrolet Malibu, Chevrolet Impala, Buick LaCrosse, Buick Regal, or Cadillac XTS. Bracket selection and drilling requirements vary by model.
Drilling is required only for Buick LaCrosse and Cadillac XTS (½" drill bit to enlarge suspension mount hole). Minor fascia trimming is required only for Chevrolet Impala. No drilling or trimming is required for Malibu or Regal.
Wrenches (10mm, 13mm, 9/16", 3/4"), tape measure (Impala only), and ½" drill bit (LaCrosse and XTS only). A torque wrench is required for final fastener tightening.
M8 × 1.25 CL10.9 fasteners: 25 Lb.-Ft. (34 N·M). ½-13 GR5 fasteners: 75 Lb.-Ft. (102 N·M). ½-13 GR5 bolts into handle-nut: 50 Lb.-Ft. (68 N·M). Use a torque wrench for all final tightening.
Maximum gross trailer weight: 3500 lb (1589 kg). Maximum tongue weight: 300 lb (136 kg). Do not exceed the lower of the hitch rating or your vehicle manufacturer's rating.
Wear eye protection when working beneath the vehicle. Do not cut holes with a torch. Check fasteners frequently before towing. If damaged, remove and replace the hitch immediately. Drawbar kit 36061 must be used in RISE position only.
Verify all fasteners are torqued to specification and the ball is properly tightened. Check the hitch frequently before and during towing to ensure all fasteners remain tight.
Check all fasteners with a torque wrench and re-tighten to specification: M8 × 1.25 CL10.9 to 25 Lb.-Ft. (34 N·M), ½-13 GR5 to 75 Lb.-Ft. (102 N·M), and ½-13 GR5 into handle-nut to 50 Lb.-Ft. (68 N·M). The manual recommends checking the hitch frequently to catch loose fasteners before they cause problems.
Yes, the T-One T-Connector (118639-037) is designed for the Buick Regal. This is the only vehicle application stated in the manual.

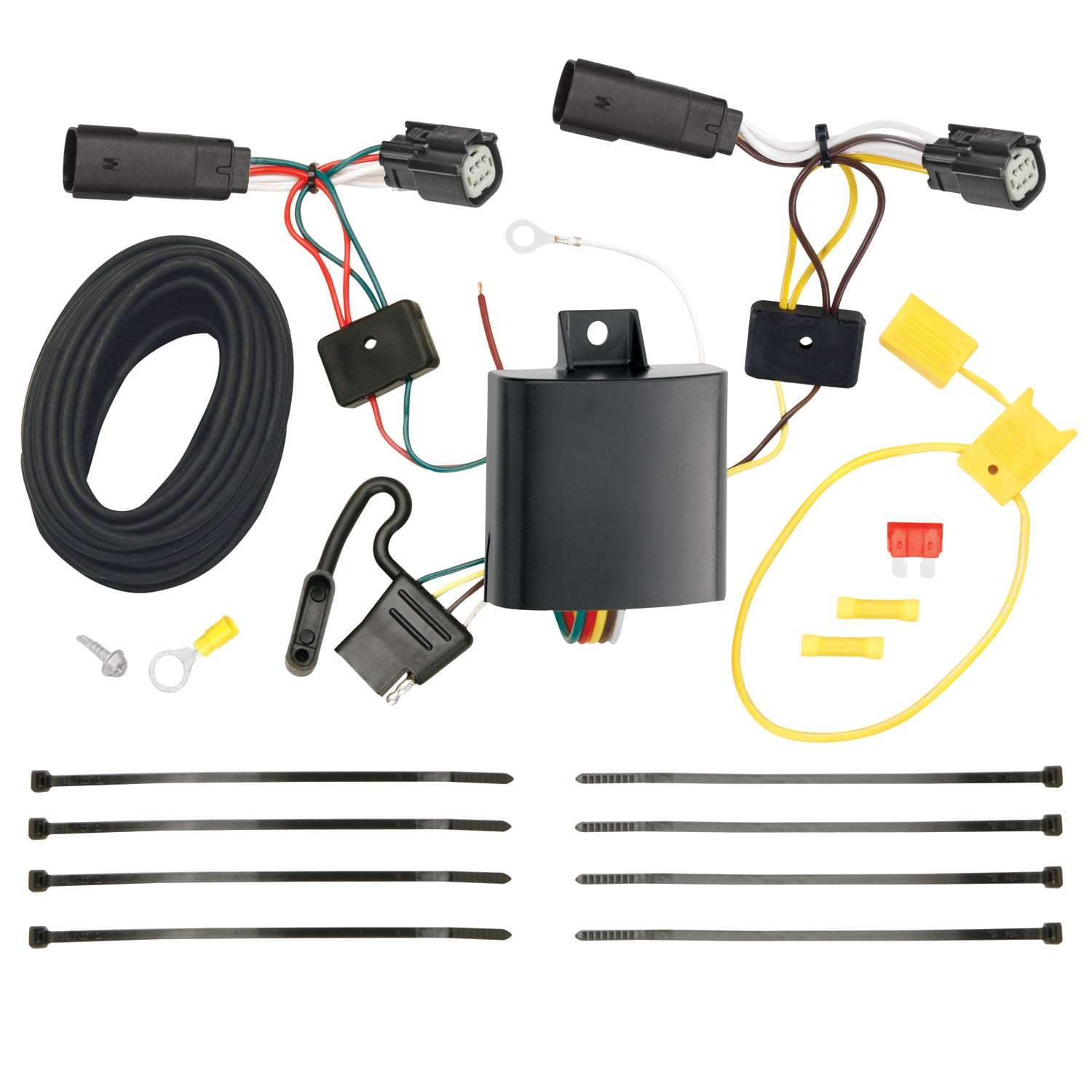

The kit includes: the T-One T-Connector harness with yellow, brown, green, and red wires; a 4-flat connector; a black converter box; a white grounding wire with eyelet and screw; a yellow fuse holder with 10 amp fuse; a yellow butt connector; cable ties; and double-sided tape for mounting the converter box.
Yes. You must disconnect the vehicle's negative (-) battery cable before beginning installation. The battery is reconnected in Step 10, after the fuse holder is installed.
Required tools are: trim panel remover, 10mm socket and ratchet (or 10mm wrench), drill with 3/32" bit, 1/4" socket, wire crimpers, wire cutters, Phillips head screwdriver, and test probe.
Open the tailgate. On the driver's side, inside the vehicle behind the taillights, remove the plastic cover and pull back the insulation liner to access the plastic wing nut holding the taillight in place. Unscrew the plastic wing nut and carefully pry the taillight housing assembly away from the vehicle, being careful not to break the alignment tabs. Carefully separate the vehicle's plugs. Repeat for the passenger's side.
On both driver's and passenger's sides, slit the grommet to allow the T-One T-Connector wiring to pass through. Route the T-One T-Connector ends containing the yellow and brown wires through the hole and into the tail lamp pocket, then reseat the grommet around the wires. Leave the 4-flat connector and black converter box in the cargo area during this step.
Insert the T-One T-Connector end with the yellow wire between the vehicle wiring connectors and lock into place. Ensure all connector surfaces are clean and free of dirt, do not damage the locking tabs, and verify that connectors are fully inserted with locking tabs in place.
Route the T-One T-Connector containing the green and red wires below the threshold cover to the passenger's side taillight housing. Repeat the same insertion and locking procedure used for the yellow wire connector in Step 3.
Route the 4-flat connector through the driver's side trim panel into the side storage compartment and store it there when not in use.
On the driver's side, locate a flat surface in an out-of-the-way place and mount the T-One T-Connector's black converter box using the double-sided tape provided.
Yes. You must drill a 3/32" hole to establish a grounding point for the white grounding wire. Before drilling, verify what is behind any surface to avoid damage to the vehicle or personal injury. Do not drill into any exposed surfaces.
Locate a suitable grounding point on the vehicle. Drill a 3/32" hole and secure the white wire using the eyelet and screw provided. Do not drill into any exposed surfaces.
On the driver's side, locate the red 12 gauge power wire from the T-One T-Connector box. Attach the black 12 gauge wire provided to this red wire.
You may either route the black wire through a grommet and along the exterior frame, or follow the existing wiring along the thresholds into the engine compartment up to the battery. In both cases, avoid areas that may pinch or break the wire. If routing through a grommet and along the exterior, carefully avoid hot pipes, heat shields, the fuel tank, or any other points that may pinch or break the wire.
Disconnect the vehicle's negative (-) battery cable. If not already removed, remove the fuse from the yellow fuse holder provided. Cut the fuse holder wire, attach the ring terminal, and secure it to the vehicle's positive (+) battery cable. Connect the other end of the fuse holder to the black 12 gauge wire using the yellow butt connector provided.
Install a 10 amp fuse into the fuse holder after reconnecting the vehicle's negative (-) battery cable.
Secure the remainder of the T-One T-Connector harness with the cable ties provided to prevent damage or rattling. Be careful to avoid any areas that would pinch, cut, or melt the wire.
Reinstall the plastic trim panels, threshold, storage covers, floor covering, and other items removed during installation. Be careful not to pinch or cut the wires.
All connections must be complete for the T-One T-Connector to function properly. Test and verify installation with a test light or trailer once installed. For the initial test, reset the vehicle electrical system by temporarily removing the key from the ignition.
Do not exceed the lower of the towing manufacturer rating (including in your vehicle owner's manual) or the specific amperage ratings stated on the product. Overloading circuits can cause fires. Refer to your vehicle's owner's manual and the product documentation for specific amperage ratings.
Always wear safety glasses and use all safety precautions during installation. Read and follow all warnings and instructions included with the product before beginning installation. Read and follow all warnings and cautions printed on the tow vehicle's battery.
Yes, the T-One T-Connector (118639-037) is designed for the Buick Regal.
You need: trim panel remover, 10mm socket/ratchet or wrench, drill with 3/32" bit, 1/4" socket, wire crimpers, wire cutters, Phillips screwdriver, and test probe.
The T-One T-Connector uses a 10 amp fuse, installed in the yellow fuse holder provided.
Do not exceed the lower of the towing manufacturer rating (in your vehicle owner's manual) or the specific amperage ratings stated on the product. Refer to your vehicle's documentation for exact limits.
Verify that all connections are complete and properly seated. Check that: (1) the yellow wire connector is fully inserted and locked into the driver's side taillight wiring; (2) the green and red wire connectors are fully inserted and locked into the passenger's side taillight wiring; (3) the black power wire is properly connected to the red power wire from the converter box; (4) the fuse holder is properly connected to the positive battery cable with the ring terminal; (5) the 10 amp fuse is installed in the fuse holder; (6) the white grounding wire is securely fastened to a suitable grounding point. Reset the vehicle electrical system by temporarily removing the ignition key, then test with a test light or trailer.
Ensure that all connector surfaces are clean and free of dirt before attempting to insert the connector. Do not force the connector; it should insert smoothly. Verify that you are not damaging the locking tabs during insertion. The connector must be fully inserted with the locking tabs in place to function properly. If the connector still will not lock, inspect both the vehicle's connector and the T-One connector for damage or debris.
