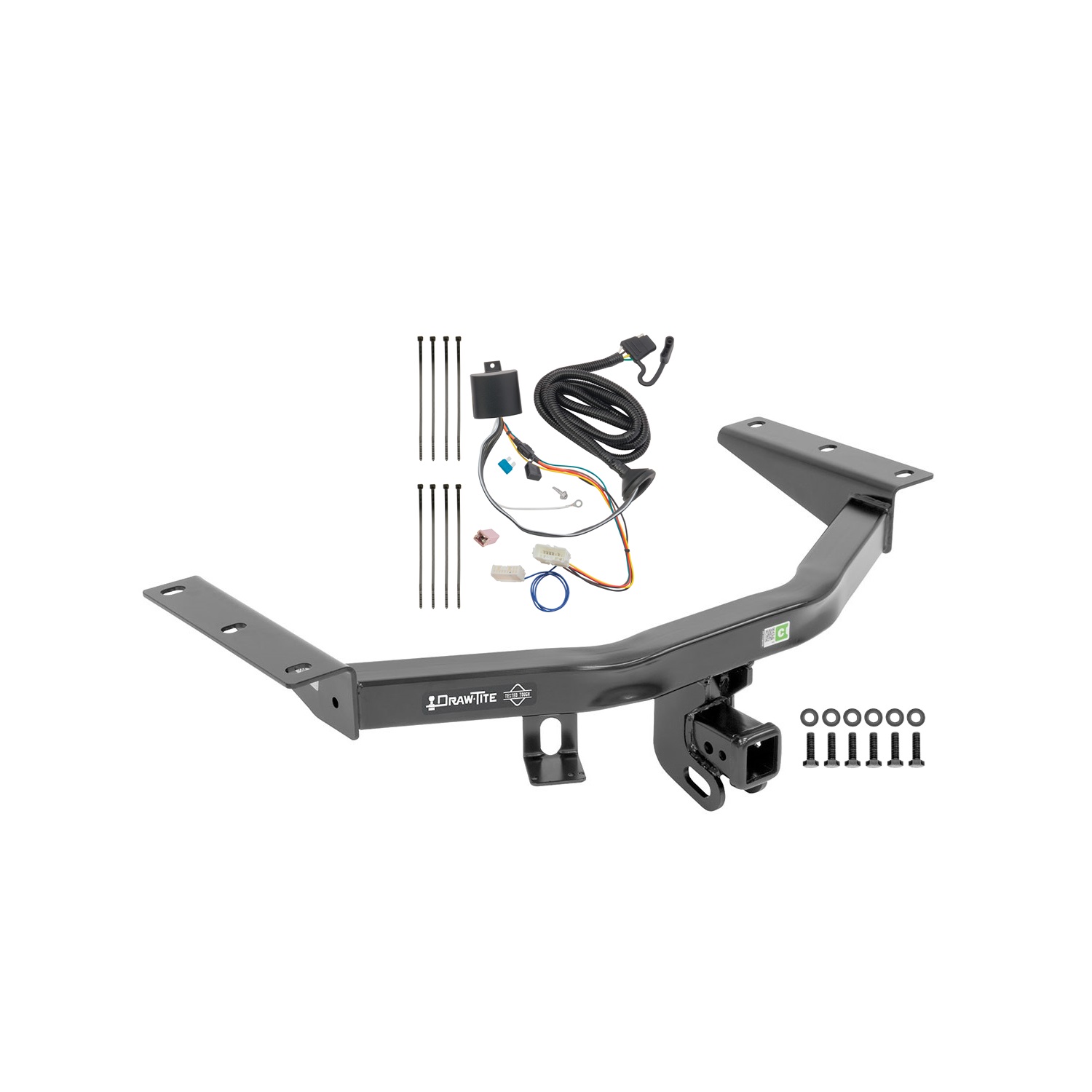

2016-2017 Honda Pilot Draw-tite Class 4 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness
Draw-tite
Free Shipping
click to zoom in
-
Install Instruction
PDF preview is not available on mobile.
Open Installation Instructions
2016-2017 Honda Pilot Draw-tite Class 4 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness
1,269
Write a Review
MSRP:
$321.25
$291.77
In-Stock
You save
$29.48
!
SKU:
DTB75225-118760
Condition:
New
hznfootnotes:
,BN,CH,TA,GP,TW,
Class:
Class 4
Gross Trailer Weight:
6,000 lbs.
Attachment Location:
Rear
Tongue Weight:
900 lbs.
Receiver Size:
2"
GTW:
6,000 lbs.
Drilling Required:
No
Install Time:
20
__bundleid:
47046,117411,46971,117278
QUICK SHIP
Hurry, Order now!
47 customers are viewing this product
Experts Available Now!
888-634-9494
Ask an Expert-
-
In-House Experts
We know our products
-
Added Value
Quality Products
-
Nationwide Delivery
Free Shipping!
2016-2017 Honda Pilot Draw-tite Class 4 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness
MSRP:
$321.25
$291.77
In-Stock
You save
$29.48
!
This kit fits: 2021-2022 Honda Pilot

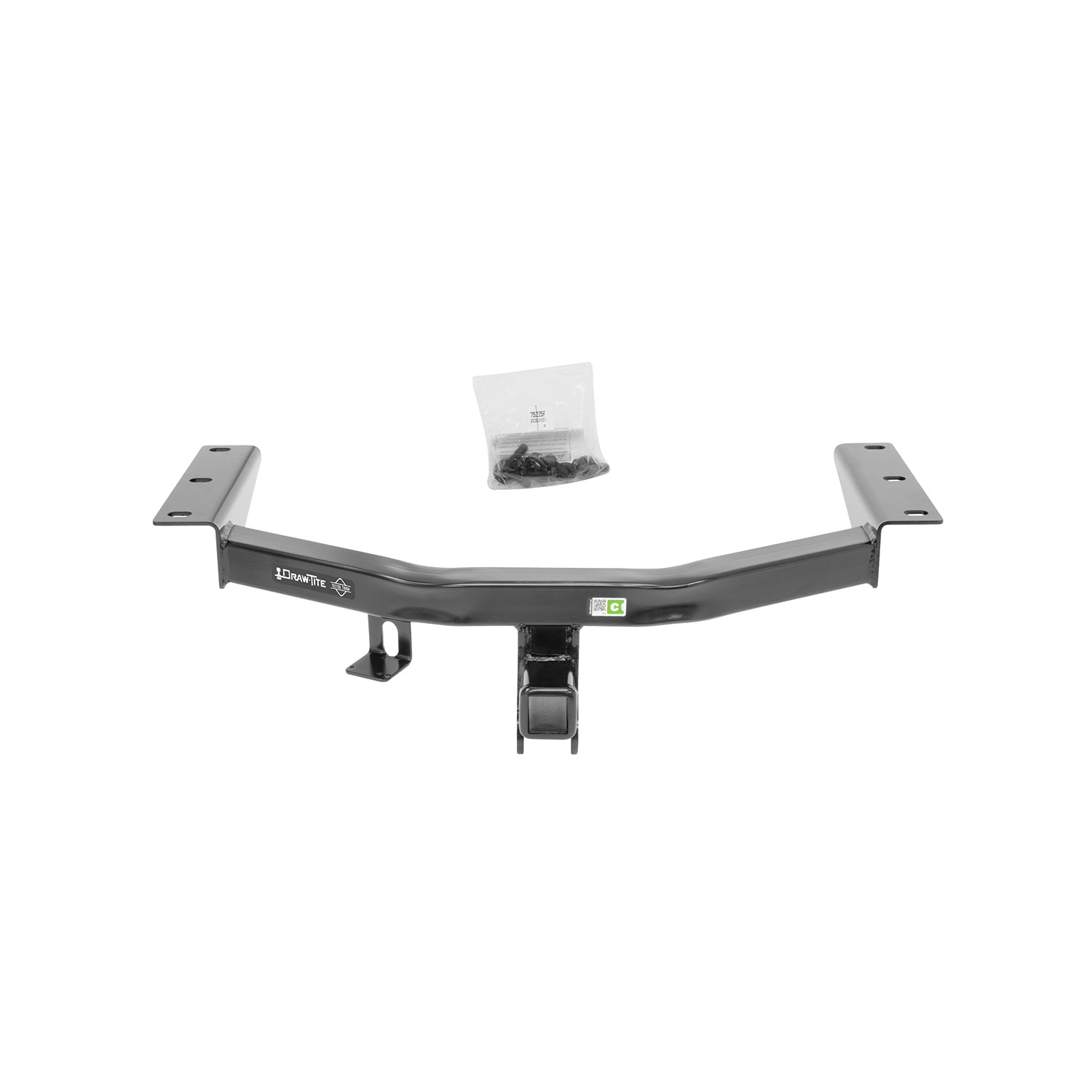

DRAW-TITE? Class 4 trailer hitches are the perfect mix of style and strength to get you and your equipment wherever you need to go. DRAW-TITE?s expert engineers and designers create each custom hitch with the utmost precision to ensure a superior fit for your specific make and model year vehicle. DRAW-TITE Class 4 receiver hitch is rated for up to 6,000 lbs. gross trailer weight (GTW) and up to 900 lbs. tongue weight (TW). They are also suitable for use with weight distribution up to 8,000 lbs. weight distribution (WD) and 900 lbs. weight distribution tongue weight (WDTW). DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. DRAW-TITE trailer hitches are inspected to ensure the highest quality and workmanship and are tested to exceed V-5 and SAE J684 standards.
These durable custom hitches are manufactured for 2014-2020 Acura MDX, 2016-2022 Honda Pilot and attach to your vehicle?s frame or bumper for a sleek, clean appearance. Each hitch also has a 2 inch square receiver tube opening ? the most common and versatile on the market - allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. The options are endless! DRAW-TITE Class 4 Custom Trailer Hitches come complete with all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. So, whether you are headed out to the campground, the lake, or the bike trails, or you are tackling a project at home and need to haul the materials home, choose DRAW-TITE and travel with confidence knowing your setup is connected with the security only DRAW-TITE can provide. DRAW-TITE: North America?s Favorite Hitch
- CUSTOM DESIGNS: DRAW-TITE Class 4 trailer hitches are custom built according to manufacturer specifications for make and model year to ensure a perfect fit and top towing performance. The sleek computer-aided designs are as attractive as they are functional.
- STRENGTH: Made of solid, all-welded steel for maximum strength and safety, each hitch is put through rigorous fatigue and stress testing to withstand road abuse (within specified capacities). Each is also protected by a two-part black powder coat finish to resist rust and corrosion.
- TESTED: DRAW-TITE hitches are inspected for quality and workmanship and are tested to meet and exceed V-5 and SAE J684 standards.
- CAPACITY: Rated for up to 6,000 lbs. GTW and up to 900 lbs. TW. Also suitable for use with Weight Distribution systems of up to 8,000 lbs. WD and 900 lbs. WDTW. The 2 inch square receiver can connect to a ball mount, bike rack, cargo carrier, and more!
- VERSATILE: This DRAW-TITE Class 4 hitch is designed to fit the following make and model year vehicle(s): 2014-2020 Acura MDX, 2016-2022 Honda Pilot.

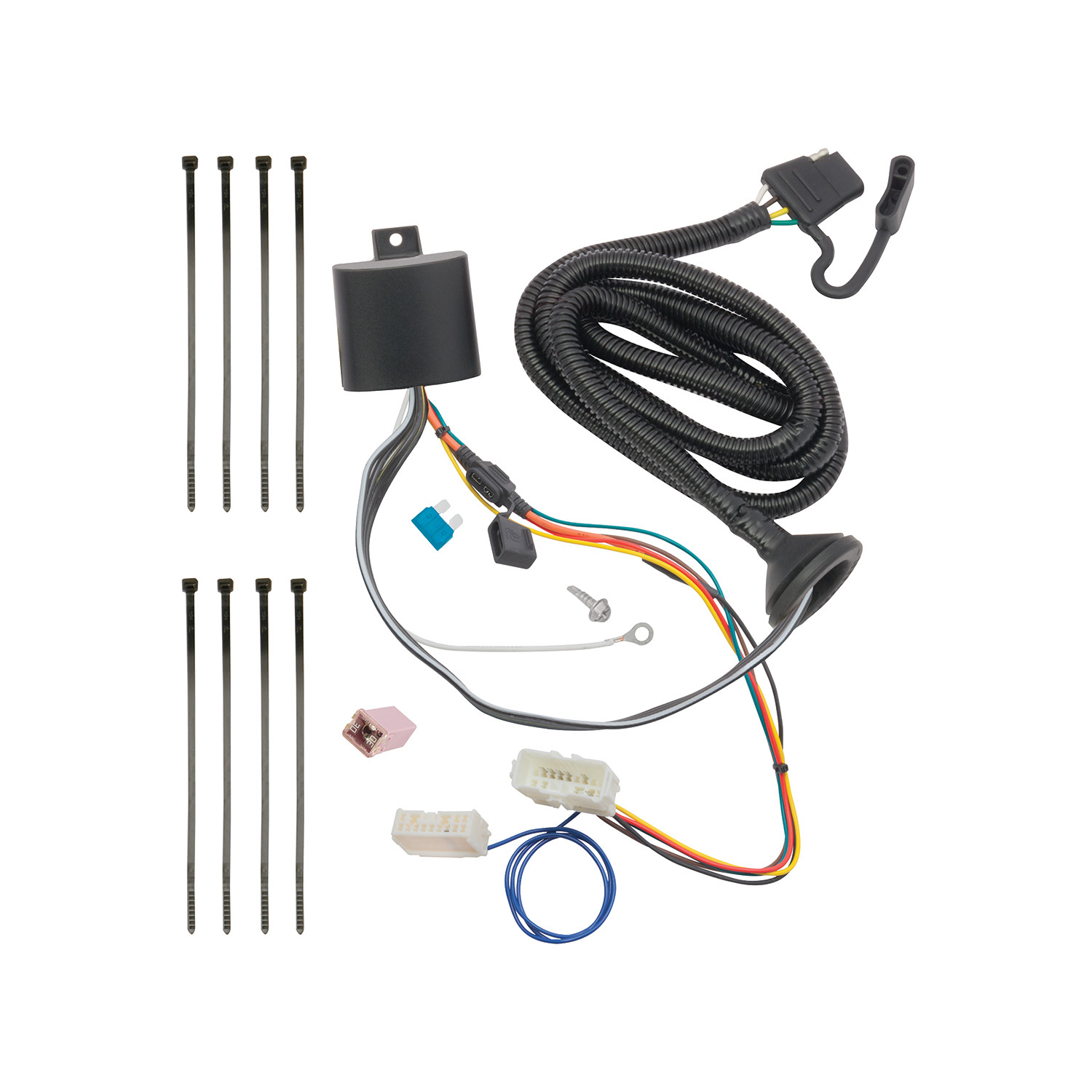

Connections are important, be it with your traveling companions or the truck and trailer in which you are riding. Thankfully, Tekonsha? has everything you need for the perfect connection, no matter your set up. For more than 55 years, Tekonsha has been the leader in T-One Connectors, utilizing advanced engineering and development to design products that allow you the freedom to travel with nearly any vehicle and trailer combination. Tekonsha?s dedication to creating the highest performing trailering electrical components with the broadest coverage ensures your connections are safe and secure. So what are you waiting for? Hit the road with the peace of mind only Tekonsha can provide. Life is a Journey. Stop Often.
- 16 Gauge Bonded Wire With 4-Way Flat Plug Play
- Stop/Turn Circuit Capacity Of 5 Amps
- Taillight Circuit Capacity Of 7.5 Amps
- Solid, Weatherproof, One-Piece Construction
- No Cutting, Splicing, Or Taping Of Vehicle Wires
- Includes Converter Where Needed
Installation Notes:
- Exterior mounted plug on some or all models. May require an aftermarket electrical mounting box or bracket. (Sold separately)
- T-One is equipped with circuit protected ModuLite® module.
- Hitch crosstube concealed behind bumper.
- Trunk access required for hitch installation.
- Receiver hitch may limit hands-free liftgate sensor range
Fitment Questions? Please call us 888-634-9494
Fits the following vehicles:
Vehicle Specific- 2016 - 2017 Honda Pilot
Ask a Question About This Product
Have a question? We're here to help!
Something went wrong. Please try again or contact us directly.
Frequently Asked Questions
What vehicles does the 2016-2017 Honda Pilot Draw-tite Class 4 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness fit?
The 2016-2017 Honda Pilot Draw-tite Class 4 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB75225-118760) fits the following vehicles: 2016-2017 Honda Pilot. Always verify your specific year, make, and model before ordering.
Does the 2016-2017 Honda Pilot Draw-tite Class 4 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness fit a 2017 Honda Pilot?
Yes, the 2016-2017 Honda Pilot Draw-tite Class 4 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB75225-118760) is designed to fit the 2016-2017 Honda Pilot.
I have a 2017 Honda Pilot. Will the 2016-2017 Honda Pilot Draw-tite Class 4 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness work?
The 2016-2017 Honda Pilot Draw-tite Class 4 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB75225-118760) fits 2016-2017 Honda Pilot models. The 2017 model year is the last year covered by this part number. For newer models, check for an updated version.
How hard is it to install the 2016-2017 Honda Pilot Draw-tite Class 4 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness?
The 2016-2017 Honda Pilot Draw-tite Class 4 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB75225-118760) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
