2016-2022 Chevrolet Spark All Class 1 Trailer Hitch, 1-1/4" Ball MountCURTOriginal price was $378.85. Current price is $285.92.In Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
CURT
Verify Fitment
Select your vehicle to confirm this part fits.
2016 - 2022 Chevrolet Spark
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

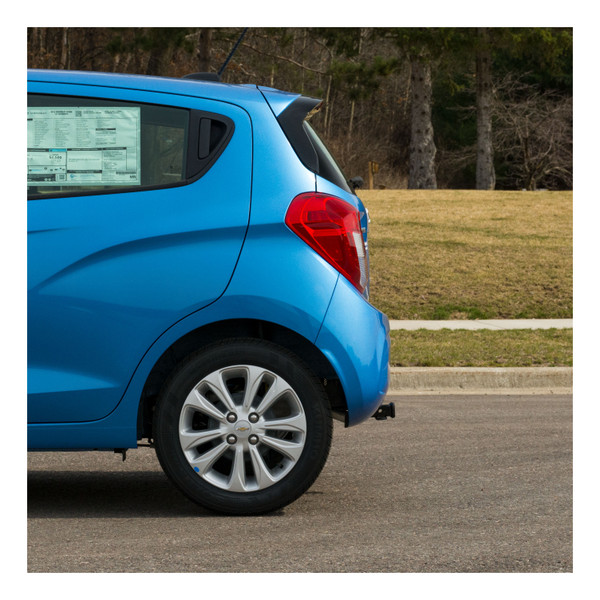

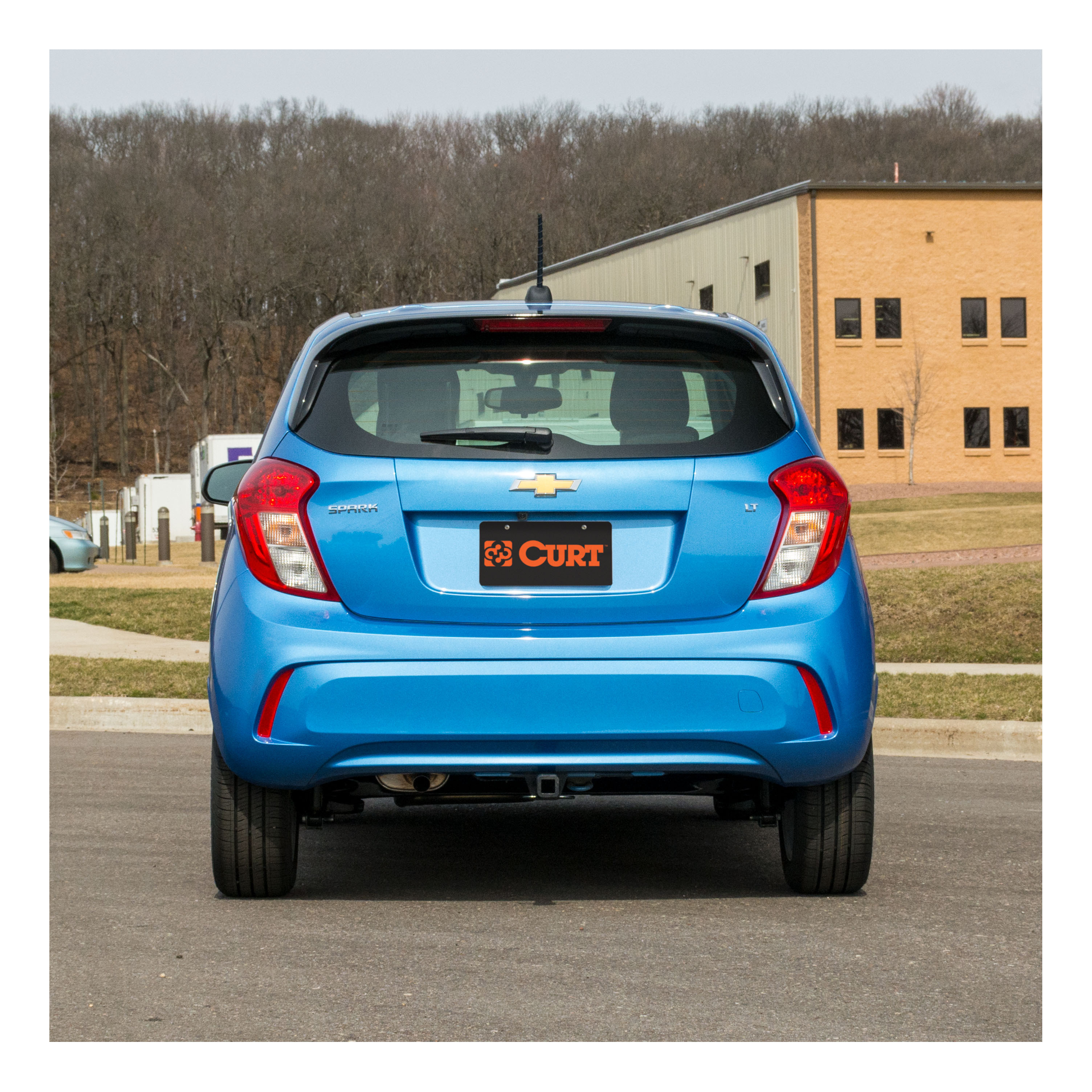

This fits: 2016-2022 Chevrolet Spark All
However you define adventure -- whether it's climbing onto the back of a mountain bike, hunting from the top of a tree stand or camping with the family a long way from nowhere -- CURT class 1 hitches provide a light-duty towing receiver to help you Bring It. Each is made to fit a specific vehicle, providing easier installation, a better fit and optimal towing capacity. Custom class 1 trailer hitches are available for a variety of smaller vehicle types, including the compact car, crossover, minivan and small SUV. This particular class 1 hitch is designed to be a custom hitch for certain years of the Chevy Spark (to verify vehicle compatibility, see the CURT application guide at curtmfg.com). Tested in accordance with SAE J684, it offers a weight carrying capacity of 2,000 lbs. GTW and 200 lbs. TW. It is equipped with 1-1/4" receiver tube opening to accept a ball mount shank or other hitch mount. This class 1 hitch also comes with all necessary mounting hardware. With its lightweight design and smaller receiver tube size, a class 1 hitch is especially useful for adding cargo space with a hitch-mounted bike rack or cargo carrier. They can also typically be used to tow small trailers such as a utility trailer, kayak trailer or teardrop camper (never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). Though CURT class 1 trailer hitches are only intended for light-duty towing, we apply the same principles of quality as we do to the rest of our rear mount hitches. Each class 1 hitch is made with hands-on engineering, high-strength steel and precise welding. We use a co-cured finish of liquid A-coat, inside and out, and durable black powder coat to provide a lasting defense against rust, chips and UV rays.
Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
Not compatible for use with vertical hanging bicycles (bike racks that require the bicycles to be hung / mounted vertically)
Includes installation hardware
2016, 2017, 2018, 2019, 2020, 2021, 2022 Chevrolet Spark All Class 1 Trailer Hitch, 1-1/4" Receiver, Select Chevrolet Spark
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2016 - 2022 | Chevrolet Spark | — |

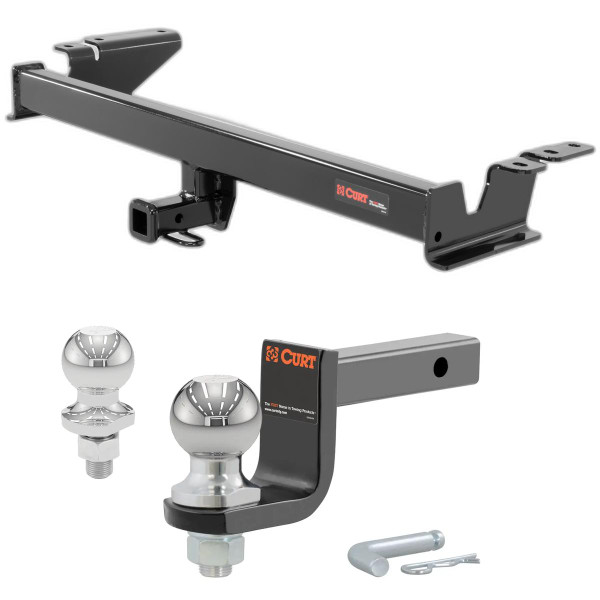

The 2016-2022 Chevrolet Spark All Class 1 Trailer Hitch, 1-1/4" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-11433-001) fits the following vehicles: 2016-2022 Chevrolet Spark. Always verify your specific year, make, and model before ordering.
The 2016-2022 Chevrolet Spark All Class 1 Trailer Hitch, 1-1/4" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-11433-001) fits 2016-2022 Chevrolet Spark models. The 2022 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 2016-2022 Chevrolet Spark All Class 1 Trailer Hitch, 1-1/4" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-11433-001) is designed to fit the 2016-2022 Chevrolet Spark.
The 2016-2022 Chevrolet Spark All Class 1 Trailer Hitch, 1-1/4" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-11433-001) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes. CURT part number 11433 is designed specifically for the 2016 Chevrolet Spark Hatchback. This is a weight-carrying hitch with a gross load capacity of 2000 lbs trailer weight and 200 lbs tongue weight.
The CURT 11433 is rated for a gross load capacity of 2000 lbs trailer weight and 200 lbs tongue weight when used as a weight-carrying hitch. However, you must never exceed your vehicle manufacturer's recommended towing capacity, which may be lower than the hitch rating.
The CURT 11433 is designed for use with ball mount #45521. Euro mount options are available: #45571 (1 7/8" ball) and #45572 (2" ball).
Yes. CURT recommends the use of 18050 stabilizing straps for all non-trailer (wheel-less) loads. Failure to properly support non-trailer loads with these straps will void the product warranty. For trailer loads, stabilizing straps are not required but are recommended for safety.
Required tools are: panel removal tool, 7mm socket, 13mm socket, 3/4" socket, ratchet, 9" socket extension, torque wrench, masking tape, rotary tool with 1.125" bit, Phillips head screwdriver, and safety glasses. Proper tools will greatly improve installation quality and reduce installation time.
Two people may be required to ease installation. If you are hesitant to undertake this task on your own, contact an authorized CURT installer for additional assistance. CURT technical support is available at 877-287-8634.
Professional installation time is 80 minutes. Novice (DIY) installation time is 40 minutes. Actual time may vary depending on your experience level and familiarity with the tools required.
Yes. You must trim the vehicle fascia on the driver's side. Mark a 4.75" × 2.0" rectangle with masking tape, positioned 0.75" away from the edge of the driver's side push button. Use a rotary tool to trim this marked area. This is a permanent modification to the vehicle fascia.
Yes. You must enlarge the rear-most hole on both the driver and passenger side frame rails to allow 1/2" carriage bolts, CM-SP6, and CM-SP12 spacers to pass into the frame rails. The manual references specific dimensions shown on page 1 for these enlarged access holes.
Fishwire is a technique for routing fasteners through tight spaces using the 1/2" × 30" fishwire included in the kit. In steps 5 and 6, you use the enlarged access holes to thread bolts and spacers into the frame rail holes. Step 5 uses standard fishwire; step 6 uses reverse fishwire (pulling from the opposite direction) to secure the rear-most fasteners.
In step 1, remove two push button fasteners and two hex bolts from the vehicle fascia using a 7mm socket. Save these for reinstallation. In step 2, remove one M8 bolt on the passenger side frame rail using a 13mm socket. In step 9, reinstall the push button fasteners and hex bolts removed in step 1. The M8 bolt location is replaced with a new M8-1.25 × 30mm hex bolt in step 8.
Torque all 1/2" hardware to 110 ft-lbs. Torque all M8 hardware to 22.9 ft-lbs. These specifications apply to the final tightening in step 10 after all hardware is loosely secured in step 8.
The kit includes: 3× CM-SP12 spacers (0.250" × 1.00" × 2.00"), 2× CM-SP6 spacers (0.250" × 1.00" × 3.00"), 3× 1/2"-13 UNC 1-1/4" bolts (part 10-10278), 2× 1/2"-13 UNC 1-1/2" bolts (part 10-10287), 1× M8×1.25×30mm hex bolt (part 10-10440), 1× 5/16" lock washer, 1× 5/16" flat washer, 5× 1/2"-13 hex flange nuts, and 5× 1/2" × 30" fishwire.
CM-SP12 spacers (0.250" × 2.00") are used with the forward-most bolts: two on the driver side and one on the passenger side (step 5). CM-SP6 spacers (0.250" × 3.00") are used with the rear-most bolts, one in each frame rail (step 6). These spacers are threaded onto the bolts using the fishwire technique through the enlarged access holes.
The M8 bolt secures the hitch to the existing weld nut on the passenger side frame rail. The original M8 bolt is removed in step 2, and a new M8-1.25 × 30mm hex bolt with a 5/16" lock washer and 5/16" flat washer is installed in step 8. This bolt is torqued to 22.9 ft-lbs in step 10.
After installation, verify that all fasteners are tight and all structural components are sound. Periodically check the receiver hitch to ensure all fasteners remain tight and all structural components remain in good condition. This ongoing inspection is important for safe towing operation.
Safety glasses must be worn at all times while installing this product. Before you begin installation, read all instructions thoroughly. If you are hesitant to undertake this task on your own, contact an authorized CURT installer. CURT technical support is available at 877-287-8634.
Yes, the CURT 11433 is designed specifically for the 2016 Chevrolet Spark Hatchback. It is rated for 2000 lbs trailer weight and 200 lbs tongue weight, but you must not exceed your vehicle manufacturer's recommended towing capacity.
Yes. You must trim the vehicle fascia (4.75" × 2.0" rectangle, 0.75" from the driver's side push button) using a rotary tool, and enlarge the rear-most holes on both frame rails to allow bolts and spacers to pass through.
You need a rotary tool (with 1.125" bit), torque wrench, 7mm and 13mm sockets, panel removal tool, masking tape, and safety glasses. A 9" socket extension and Phillips head screwdriver are also required.
Torque all 1/2" hardware to 110 ft-lbs and all M8 hardware to 22.9 ft-lbs. These are applied in the final step after all fasteners are loosely secured.
Professional installation takes 80 minutes; novice DIY installation takes 40 minutes. Two people may be required to ease the installation process.
Yes, CURT recommends 18050 stabilizing straps for all non-trailer loads. Failure to use them voids the warranty. For trailer loads, they are recommended for safety.
