Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
This fits: 2017-2021 Volvo S90 All
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Volvo S90 (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 5,000 lbs. GTW and 500 lbs. TW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.
Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
Not compatible for use with vertical hanging bicycles (bike racks that require the bicycles to be hung / mounted vertically)
Installation requires trimming of rear fascia

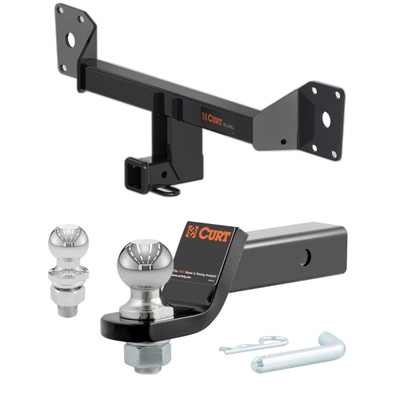

2017, 2018, 2019, 2020, 2021 Volvo S90 All Class 3 Trailer Hitch, 2" Receiver, Select Volvo S90
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Lifetime
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2017 - 2021 | Volvo S90 | — |
The 2017-2021 Volvo S90 All CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13305-001) fits the following vehicles: 2017-2021 Volvo S90. Always verify your specific year, make, and model before ordering.
The 2017-2021 Volvo S90 All CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13305-001) fits 2017-2021 Volvo S90 models. The 2021 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 2017-2021 Volvo S90 All CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13305-001) is designed to fit the 2017-2021 Volvo S90.
The 2017-2021 Volvo S90 All CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13305-001) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, CURT part 13305 is designed for 2017-Present Volvo S90 Sedan models. Confirm your vehicle matches this year range and body style before purchasing.
The manual specifies this hitch is for 2017-Present Volvo S90 Sedan only. Fitment for other Volvo models or years is not covered in this manual. Contact CURT technical support at 877-287-8634 or visit www.curtmfg.com to confirm compatibility with other vehicles.
Maximum 5,000 lbs trailer weight and 500 lbs tongue weight. Never exceed your vehicle manufacturer's recommended towing capacity.
The maximum tongue weight is 500 lbs. This is the downward force applied to the hitch ball. Do not exceed this limit or the vehicle manufacturer's recommended towing capacity.
No. All non-trailer (wheel-less) loads applied to this hitch must be supported by CURT 18050 stabilizing straps. Failure to properly support non-trailer loads will void the product warranty. See the CURT catalog or visit www.curtmfg.com for information on stabilizing straps.
Torque wrench, ratchet, sockets (8mm, 10mm, 15mm), 8-inch extension, T-25 Torx bit socket, pry bar, aviation shears, crescent wrench, and safety glasses.
Yes. A T-25 Torx bit socket is required to remove multiple fasteners during installation: 4 screws underneath the rear fascia, 5 screws along each rear wheel well, and 1 screw behind the wheel well cover.
Yes. Aviation shears are required to trim a 3.25" x 5.00" section of the rear fascia during installation (step 7). The manual notes that all trim dimensions are approximate and you should confirm fit prior to trimming.
Three socket sizes are required: 8mm (for taillight nuts), 10mm (for trunk liner guard bolts and plastic nuts), and 15mm (for bumper beam nuts). An 8-inch extension is also needed.
The manual does not specify whether battery disconnection is required. Contact CURT technical support at 877-287-8634 for guidance on this step.
Two people may be required to ease installation, though the manual does not state whether a second person is mandatory. If you are hesitant to undertake this task on your own, contact an authorized CURT installer.
Temporarily remove trunk contents and rear fascia to access the installation area. These items are reinstalled at the end of the installation process.
No drilling is required. The hitch uses existing vehicle studs for alignment.
Yes. You must trim a 3.25" x 5.00" section of the rear fascia using aviation shears. The manual notes that all dimensions are approximate and you should confirm fit prior to trimming.
Trim a 3.25" x 5.00" section using aviation shears as shown in the trim diagram. The manual states that all dimensions are approximate, so you should confirm fit prior to trimming to ensure proper clearance.
Yes. The trimmed rear fascia is reinstalled after hitch installation. The trim is permanent and cannot be reversed.
1. Remove 4 screws from underneath rear fascia (T-25). 2. Remove 5 screws along each rear wheel well (T-25). 3. Pull wheel well cover back and remove 1 screw (T-25), including plastic clip. 4. Remove 2 capped nuts and 2 bolts from trunk liner guard (crescent wrench and 10mm socket). 5. Remove 5 plastic nuts from trunk liner (10mm socket). 6. Remove plastic push pins and 3 taillight nuts on each side (8mm socket). 7. Remove and trim rear fascia (3.25" x 5.00" section with aviation shears). 8. Remove 3 nuts on each side of bumper beam (15mm socket). 9. Install hitch using existing studs, reinstall bumper loosely. 10. Torque all M10 hardware to 45 ft-lbs and reinstall components in reverse order.
Install the hitch on the rear of the vehicle frame using existing vehicle studs to align. The studs are located on both sides of the vehicle frame and guide proper hitch positioning.
No. During step 9, loosely secure the vehicle hardware after installing the hitch and reinstalling the bumper beam. Do not fully tighten fasteners until step 10, when you torque all M10 hardware to 45 ft-lbs.
Reinstall all removed components in reverse order of removal: rear fascia, trunk contents, taillight nuts and electrical harness, trunk liner and plastic nuts, trunk liner guard and bolts, wheel well cover and screw, wheel well screws, and rear fascia screws. All hardware should be set aside during removal for reinstallation.
All M10 hardware must be torqued to 45 ft-lbs.
The manual only specifies torque for M10 hardware (45 ft-lbs). Torque values for other fasteners such as the T-25 screws, 8mm, 10mm, and 15mm socket fasteners are not provided in this manual. Contact CURT technical support at 877-287-8634 for additional torque specifications.
Yes. During step 6, unclip the electrical harness from the taillights. During step 7, unclip the electrical harness from the rear fascia. Both harnesses are set aside during removal and reconnected during reinstallation.
A plastic push pin is a fastener on the trunk wall. During step 6, gently unclip 1 plastic push pin on each side of the trunk wall to expose the taillight nuts. These are set aside for reinstallation.
The trunk liner guard is a component inside the trunk along the trunk liner. To remove it, locate and remove 2 capped nuts using a crescent wrench and 2 bolts using a 10mm socket. Gently unclip the trunk liner guard and set it aside for reinstallation.
Safety glasses must be worn at all times while installing this product. If you are hesitant to undertake this task on your own, contact an authorized CURT installer for additional assistance.
Never exceed your vehicle manufacturer's recommended towing capacity. CURT 13305 is rated for a maximum of 5,000 lbs trailer weight and 500 lbs tongue weight, but your vehicle's manufacturer may specify a lower limit. Always follow the more restrictive limit.
Periodically check the receiver hitch to ensure all fasteners are tight and all structural components are sound. This ongoing maintenance is critical to safe operation.
The manual states to periodically check the receiver hitch to ensure all fasteners are tight and all structural components are sound, but does not specify an exact interval. Establish a regular maintenance schedule, such as before each towing trip or monthly if the hitch is in regular use.
The manual does not specify a retorque interval. Contact CURT technical support at 877-287-8634 or visit www.curtmfg.com for guidance on retorque schedules.
CURT Manufacturing warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective, CURT may repair or replace it at their option when returned prepaid with proof of purchase. Alteration to, misuse of, or improper installation voids the warranty. CURT's liability is limited to repair or replacement of defective products and excludes incidental or consequential loss or damage.
Yes. This product complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5 and SAE J684.
Call CURT technical support at 877-287-8634. You can also visit www.curtmfg.com for more information or www.hitchinfo.com for helpful towing tips. If you are hesitant to undertake installation on your own, contact an authorized CURT installer for additional assistance.
