Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
This fits: 2017 Lincoln MKZ 3.0L AWD
Whatever the next checkpoint is on your adventure -- whether it's getting your bike on the trail before sunrise or making it to the campground before dark -- CURT class 2 hitches let you Bring It with confidence. These receiver hitches are made to handle most light-duty towing applications and offer a custom fit for your vehicle. Typically used on full-size cars, crossovers, compact SUVs, minivans or even compact pickup trucks, a CURT class 2 trailer hitch complements the design of smaller vehicles. This particular class 2 hitch is made to be a custom hitch for certain years of the Ford Fusion and Lincoln MKZ (to verify vehicle compatibility, see application info). It offers a weight carrying capacity of 3,500 lbs. GTW and 350 lbs. TW. Class 2 trailer hitches can typically be used to tow a variety of lightweight trailers, such as a small utility trailer, small fishing boat trailer or popup camper (NOTE: Never exceed the lowest weight capacity of any towing component). They are also perfect for adding cargo space to your vehicle with a bike rack or cargo carrier. This class 2 hitch features a 1-1/4" receiver tube to accept a ball mount shank or other hitch-mounted accessory. For safety, it is tested in accordance with SAE J684. A custom trailer hitch design requires extra care, and as such, CURT class 2 hitches are engineered using real vehicles and hands-on research. We use high-strength steel, robotic welding and rigorous testing to produce hitches that are built to fit your lifestyle. To ensure that each hitch will be a reliable extension of your vehicle, we also finish our hitches in a co-curing of liquid A-coat and black powder coat, giving them long-lasting rust and wear resistance.
Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
Not compatible for use with vertical hanging bicycles (bike racks that require the bicycles to be hung / mounted vertically)
Installation requires removal of lower rear air deflector, temporary removal of heat shield and lowering of exhaust

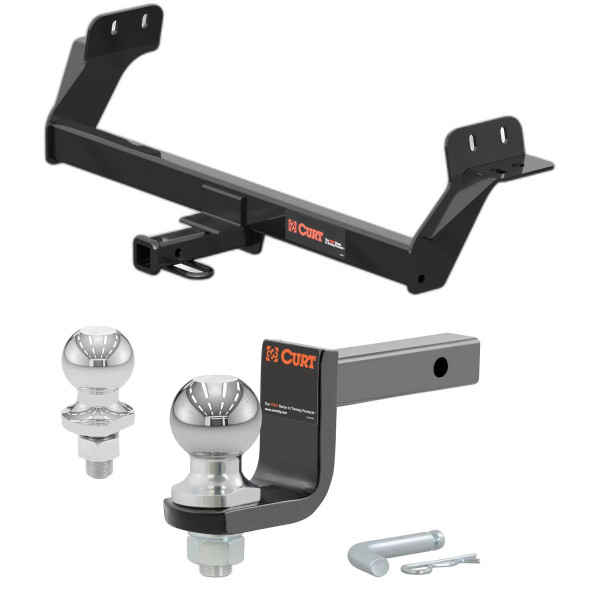

2017 Lincoln MKZ 3.0L AWD Class 2 Trailer Hitch, 1-1/4" Receiver, Select Ford Fusion, Lincoln MKZ
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2017 | Lincoln MKZ | 3.0L AWD |
The 2017 Lincoln MKZ 3.0L AWD Class 2 Trailer Hitch, 1-1/4" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-12164-002) fits the following vehicles: 2017 Lincoln MKZ. Always verify your specific year, make, and model before ordering.
Yes, the 2017 Lincoln MKZ 3.0L AWD Class 2 Trailer Hitch, 1-1/4" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-12164-002) is designed to fit the 2017 Lincoln MKZ.
The 2017 Lincoln MKZ 3.0L AWD Class 2 Trailer Hitch, 1-1/4" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-12164-002) fits 2017 Lincoln MKZ models. The 2017 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2017 Lincoln MKZ 3.0L AWD Class 2 Trailer Hitch, 1-1/4" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-12164-002) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, CURT part number 12164 is designed for 2017-Present Ford Fusion (Sport) and Lincoln MKZ 3.0T sedans.
Yes, CURT part number 12164 is designed for 2017-Present Lincoln MKZ 3.0T sedans.
The hitch has a maximum trailer weight capacity of 3500 lbs and a tongue weight capacity of 350 lbs when used as a weight-carrying hitch. You must never exceed your vehicle manufacturer's recommended towing capacity.
The hitch is designed for use with ball mount #45016. Euro mount options are available: #45561 (1 7/8" ball) or #45562 (2" ball).
Required tools are: 7mm socket, 10mm socket, 11/16" socket, 3/4" socket, ratchet, torque wrench, and pry bar. Safety glasses should be worn at all times during installation.
No, drilling is not required. The hitch uses existing frame rail access holes for fastener installation.
Yes. You must lower the muffler by removing 3 exhaust hangers (1 from each side and 1 in front of the muffler) and temporarily remove the heat shield by removing 9 formed nuts with a 10mm socket. The exhaust and heat shield are reinstalled after the hitch is secured and torqued.
Remove the lower rear air deflector by removing 3 formed nuts and 1 plastic nut with a 10mm socket, then remove 6 screw-with-washer fasteners in the bumper fascia with a 7mm socket. Return the fascia piece and hardware to the vehicle owner. Lower the muffler by removing 3 exhaust hangers and temporarily remove the heat shield by removing 9 formed nuts with a 10mm socket.
Fishwiring is a technique used to thread fasteners through frame rail access holes before the hitch is positioned. For CURT hitch 12164, you use 1/2" fishwire to thread the 1/2" bolts and spacer blocks through the access hole in both frame rails for the bottom frame hole, and 7/16" fishwire to thread the 7/16" bolts and spacer blocks through the same hole into the side mounting holes. Leave fishwires on all fasteners and the 7/16" bolts in the frame until the hitch is in position.
The hitch includes: 2 x 1/2-13 UNC Grade 8 bolts (1-1/2" long, part 10-10287), 2 x 1/2-13 UNC Grade 8 flange nuts (part 20-00062), 4 x 7/16-14 UNC Grade 8 bolts (1-1/4" long, part 10-10281), 4 x 7/16-14 UNC Grade 8 flange nuts (part 20-00103), 2 x .250 x 1.00 x 2.50" square hole spacers (part CM-SP10), 4 x .250 x 1.00 x 2.50" square hole spacers (part CM-SP11), 2 x 1/2" fishwire, and 4 x 7/16" fishwire.
Torque all 7/16" fasteners to 59 lb.-ft and all 1/2" fasteners to 110 lb.-ft.
Use a 3/4" socket for the 1/2" flange nuts and an 11/16" socket for the 7/16" flange nuts.
All non-trailer (wheel-less) loads applied to this hitch must be supported by 18050 stabilizing straps. Failure to properly support non-trailer loads will void the product warranty. For further information, see the CURT catalog or visit www.curtmfg.com.
Periodically check the receiver hitch to ensure all fasteners are tight and all structural components are sound.
Two people may be required to ease installation.
The installation is rated as Easy to Moderate difficulty.
Yes, CURT part number 12164 is designed for 2017-Present Ford Fusion (Sport) and Lincoln MKZ 3.0T sedans.
3500 lbs trailer weight and 350 lbs tongue weight. Never exceed your vehicle manufacturer's recommended towing capacity.
7mm and 10mm sockets, 11/16" and 3/4" sockets, ratchet, torque wrench, and pry bar. Safety glasses required.
No drilling required. The hitch uses existing frame rail access holes.
Yes. Lower the muffler by removing 3 exhaust hangers and temporarily remove the heat shield. Both are reinstalled after the hitch is torqued.
7/16" fasteners: 59 lb.-ft. 1/2" fasteners: 110 lb.-ft.
All non-trailer loads must be supported by 18050 stabilizing straps. Failure to do so voids the warranty.
