Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
This fits: 2018-2022 Toyota C-HR All

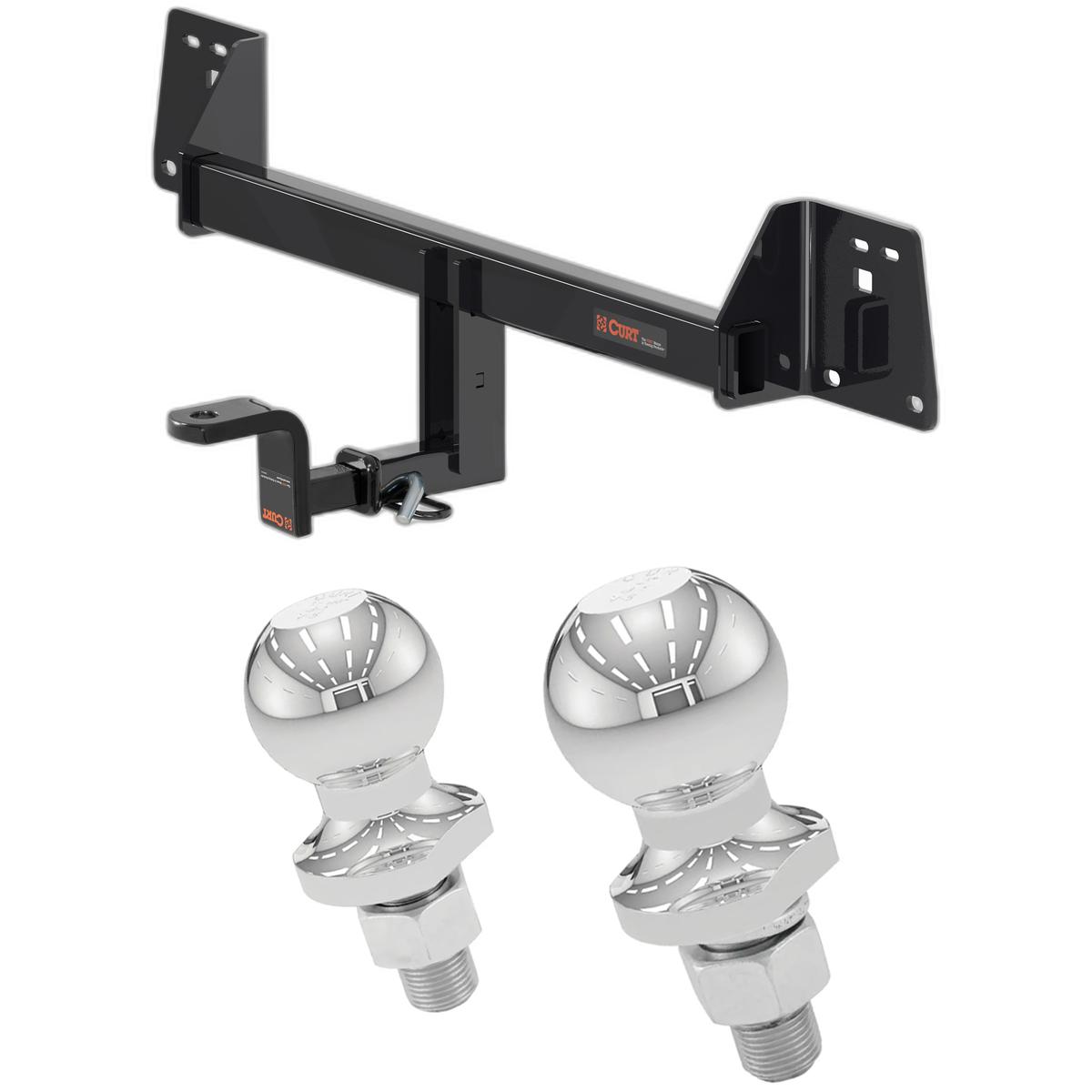

Connect to your lifestyle with a custom hitch receiver from CURT. All of our custom hitches are designed for a vehicle-specific fit, manufactured with pride, finished for industry-leading rust resistance and tested to rigorous SAE J684 standards for safety. This class 1 trailer hitch and ball mount combination is designed for a custom fit on select years of the Toyota Corolla and Toyota C-HR (see application info to verify fitment). The hitch integrates with the vehicle's frame and provides a useful and dependable 1-1/4" x 1-1/4" receiver. The receiver is perfect for attaching the included ball mount and towing a small trailer, or for adding cargo space with a hitch-mounted cargo carrier, bike rack or other accessory. This particular class 1 hitch is rated for 2,000 pounds gross trailer weight and 200 pounds tongue weight (never exceed the lowest-rated towing component). The ball mount included with this trailer hitch quickly and easily installs into the hitch receiver and has a 3/4" trailer ball hole (trailer ball not included). It can be mounted in the rise or drop position to promote level towing. Like all CURT custom hitches, this class 1 hitch is protected with our co-cured finishing process. It is descaled for a smooth surface, immersed in liquid A-coat for rust resistance inside and out, covered with a durable black powder coat and finally co-cured for an industry-leading rust, chip and UV-resistant shield. No matter where you're headed or which season of the year you’re towing in, this CURT hitch is equipped for long-lasting resilience to the elements. It features an open-back receiver for easy cleaning, and it comes with all the hardware necessary for the installation.
Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
Not compatible for use with vertical hanging bicycles (bike racks that require the bicycles to be hung / mounted vertically)
Includes ball mount #45521, installation hardware, pin & clip
2018, 2019, 2020, 2021, 2022 Toyota C-HR All Class 1 Trailer Hitch, 1-1/4" Ball Mount, Select Toyota Corolla, C-HR
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2018 - 2022 | Toyota C-HR | — |
The 2018-2022 Toyota C-HR All Class 1 Trailer Hitch, 1-1/4" Ball Mount (Part #CHD-115673-002) fits 2018-2022 Toyota C-HR models. The 2022 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2018-2022 Toyota C-HR All Class 1 Trailer Hitch, 1-1/4" Ball Mount (Part #CHD-115673-002) fits the following vehicles: 2018-2022 Toyota C-HR. Always verify your specific year, make, and model before ordering.
Yes, the 2018-2022 Toyota C-HR All Class 1 Trailer Hitch, 1-1/4" Ball Mount (Part #CHD-115673-002) is designed to fit the 2018-2022 Toyota C-HR.
The 2018-2022 Toyota C-HR All Class 1 Trailer Hitch, 1-1/4" Ball Mount (Part #CHD-115673-002) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
CURT part 11567 is designed for 2018-present Toyota C-HR and Toyota Corolla Hatchback models only. Verify your vehicle year and model match before purchasing.
The hitch supports a maximum of 2,000 lbs trailer weight and 200 lbs tongue weight. Never exceed your vehicle manufacturer's recommended towing capacity, which may be lower than the hitch rating.
The CURT 11567 Euro Mount is designed for use with ballmount part 45521. Two ball options are available: part 45571 (1 7/8" ball) or part 45572 (2" ball).
You will need: ratchet, 10mm socket, 12mm socket, 13mm socket, torque wrench, flat head screwdriver, hammer, and safety glasses. Using proper tools will greatly improve installation quality and reduce installation time.
No. The CURT 11567 requires no drilling. It uses existing holes and weldnuts on the vehicle's rear face of cabin.
You must remove: 2 underbody panels, the lower rear fascia, and the bumper beam assembly. The specific fasteners vary by model: C-HR requires removal of 14 push pin fasteners, 3 twist type fasteners, and 6 blue fascia clips. Corolla Hatchback requires removal of the center portion of the rear bumper fascia and 2 wire harness mounting clips.
Two people may be required to ease installation. If you are hesitant to undertake this task on your own, contact an authorized CURT installer for additional assistance.
All M8 fasteners (part 10-10268) must be torqued to 23 lb-ft. Eight fasteners are supplied and installed at the rear face of the vehicle cabin.
1. Remove underbody panels, fascia clips, and bumper beam (varies by C-HR or Corolla Hatchback). 2. Remove 8 bolts attaching bumper assembly using 12mm socket. 3. Flatten tabs on bumper beam with hammer. 4. Raise hitch and bumper beam into position and loosely install supplied fasteners with 13mm socket. 5. Torque all M8 fasteners to 23 lb-ft. 6. Reinstall lower bumper fascia in reverse order. 7. Reinstall underbody panels.
Fasteners should be loosely installed first with a 13mm socket in step 4, then torqued to final specification (23 lb-ft for M8 fasteners) in step 5 after the hitch and bumper beam assembly is raised into position.
Safety glasses must be worn at all times while installing this product.
All non-trailer (wheel-less) loads applied to this hitch must be supported by CURT part 18050 stabilizing straps. Failure to properly support non-trailer loads will void the product warranty. See the CURT catalog or visit www.curtmfg.com for further information.
Periodically check the receiver hitch to ensure all fasteners are tight and all structural components are sound. This should be done regularly throughout the life of the product.
The installation is rated as challenging. The manual recommends reading all instructions thoroughly before beginning and notes that using proper tools will greatly improve installation quality and reduce installation time.
The hitch includes 8 M8x1.25x25 CL10.9 YZ fasteners (part 10-10268) and the Euro Mount assembly. The hitch is designed for use with ballmount part 45521 and ball options 45571 (1 7/8") or 45572 (2"). The bumper beam assembly and original fasteners are returned to the vehicle owner.
Yes. This product complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5 and SAE J684.
CURT Manufacturing warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If defective, CURT may repair or replace the product at their option when returned prepaid with proof of purchase. Alteration, misuse, or improper installation voids the warranty. CURT's liability is limited to repair or replacement of defective products and excludes incidental or consequential loss or damage.
Yes, CURT 11567 is designed for 2018-present Toyota C-HR and Corolla Hatchback models. Maximum towing capacity is 2,000 lbs trailer weight and 200 lbs tongue weight.
You need: ratchet, 10mm/12mm/13mm sockets, torque wrench, flat head screwdriver, hammer, and safety glasses. No drilling is required.
Remove 2 underbody panels, lower rear fascia, and bumper beam. C-HR requires removing 14 push pins, 3 twist fasteners, and 6 fascia clips. Corolla Hatchback requires removing center bumper fascia portion and 2 wire harness clips.
All M8 fasteners must be torqued to 23 lb-ft. Install 8 fasteners loosely first, then torque to final specification after positioning the hitch.
Maximum 2,000 lbs trailer weight and 200 lbs tongue weight. Never exceed your vehicle manufacturer's recommended towing capacity. Non-trailer loads must use CURT part 18050 stabilizing straps.
Two people may be required to ease installation. If hesitant, contact an authorized CURT installer for assistance.
Periodically check that all fasteners are tight and all structural components are sound. Ensure non-trailer loads are supported by CURT part 18050 stabilizing straps.
