Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
This fits: 2019-2023 Ford Ranger All
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Ford Ranger (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 6,000 lbs. GTW and 900 lbs. TW. It is also compatible with a weight distribution hitch for level towing and a rating of 8,000 lbs. WD and 900 lbs. WDTW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.
Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
Not compatible for use with vertical hanging bicycles (bike racks that require the bicycles to be hung / mounted vertically)
Uses pre-existing vehicle hardware for installation

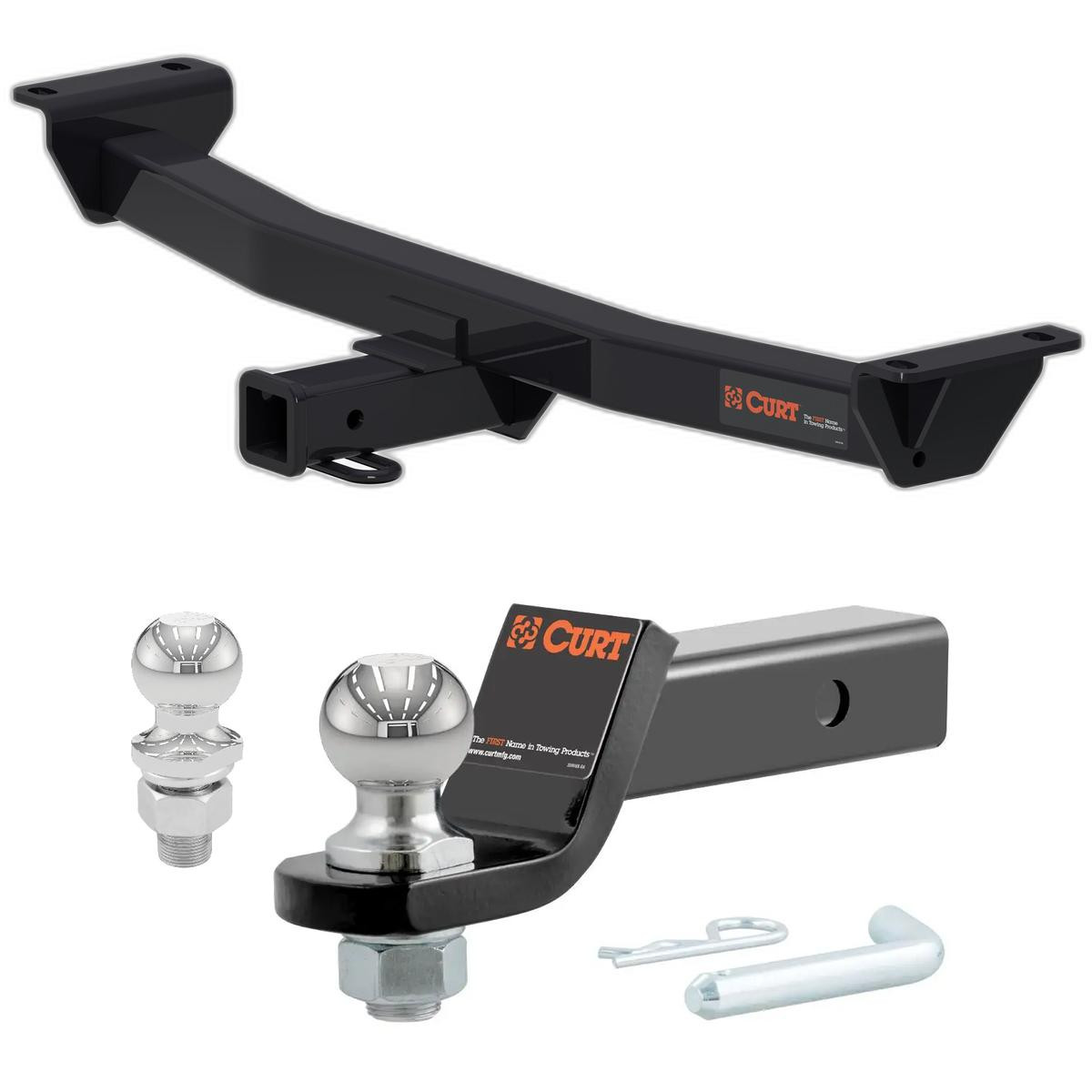

2019, 2020, 2021, 2022, 2023 Ford Ranger All Class 3 Trailer Hitch, 2" Receiver, Select Ford Ranger
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Lifetime
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2019 - 2023 | Ford Ranger | — |
Yes, the 2019-2023 Ford Ranger All CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13417-001) is designed to fit the 2019-2023 Ford Ranger.
The 2019-2023 Ford Ranger All CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13417-001) fits 2019-2023 Ford Ranger models. The 2023 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2019-2023 Ford Ranger All CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13417-001) fits the following vehicles: 2019-2023 Ford Ranger. Always verify your specific year, make, and model before ordering.
The 2019-2023 Ford Ranger All CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13417-001) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The CURT 13417 is designed for 2019-Present Ford Ranger trucks. Verify your vehicle year and model match before purchasing.
When used as a weight carrying hitch, the CURT 13417 supports 6,000 lbs trailer weight and 900 lbs tongue weight. When used as a weight distribution hitch, it supports 8,000 lbs trailer weight and 900 lbs tongue weight. However, you must never exceed your vehicle manufacturer's recommended towing capacity, which may be lower than the hitch rating.
The hitch weight is 40 lbs.
You will need a 21mm socket, ratchet, 6" extension, torque wrench, and C-clamp. No power tools are required.
Two people may be required to ease installation, though it is not explicitly stated as mandatory. Using proper tools will greatly improve the quality of the install and reduce the time required.
No. The CURT 13417 requires no drilling or trimming. It uses existing vehicle hardware.
1. Clamp the bumper assembly in position. 2. Remove the four M16 bolts (two on each side) from the vehicle frame rails. 3. Raise the hitch into position and use the existing hardware removed in step 2 to secure the hitch and assembly to the vehicle. 4. Torque the M16 hardware to 196 ft-lbs.
Torque the M16 hardware to 196 ft-lbs.
Yes. The installation uses the existing M16 bolts that you remove from the vehicle frame rails in step 1. These same bolts are used to secure the hitch to the vehicle in step 2.
The C-clamp is used to hold the bumper assembly in position during the initial stage of installation (step 1), before the hitch is raised and secured with the existing vehicle hardware.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound. This ongoing inspection helps maintain the integrity and safety of the installation.
Safety glasses should be worn at all times while installing this product. Before you begin installation, read all instructions thoroughly. If you are hesitant to undertake this task on your own, contact an authorized CURT installer for additional assistance.
Never exceed your vehicle manufacturer's recommended towing capacity. Although the CURT 13417 hitch is rated for 6,000 lbs (weight carrying) or 8,000 lbs (weight distribution) trailer weight, your Ford Ranger's manufacturer specifications may impose a lower limit. Always follow the vehicle manufacturer's guidance.
The CURT 13417 uses the existing M16 bolts from your Ford Ranger's frame rails. No additional bolts or fasteners are required for installation. The hitch assembly itself is the only new component being installed.
CURT Manufacturing warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective, CURT may repair or replace the product at their option when returned prepaid with proof of purchase. Alteration to, misuse of, or improper installation voids the warranty.
The CURT 13417 complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5 and SAE J684.
Call CURT technical support at 877-287-8634. If you are hesitant to undertake the installation on your own, you can also contact an authorized CURT installer for additional assistance.
