Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
This fits: 2020 Volkswagen Atlas Excluding Cross Sport
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Volkswagen Atlas (excluding Cross Sport; see application info to verify vehicle compatibility). It provides a weight carrying capacity of 6,000 lbs. GTW and 900 lbs. TW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.
Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
Not compatible for use with vertical hanging bicycles (bike racks that require the bicycles to be hung / mounted vertically)
Includes installation hardware

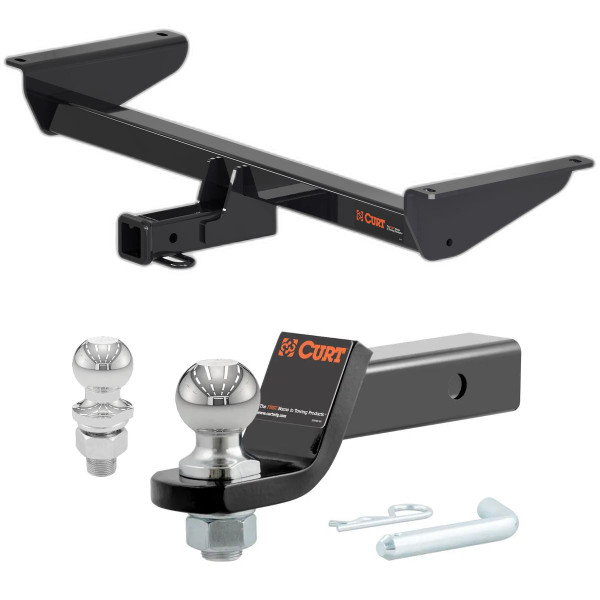

2020 Volkswagen Atlas Excluding Cross Sport Class 3 Hitch, 2" Receiver, Select Volkswagen Atlas (Excluding Cross Sport)
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Lifetime
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2020 | Volkswagen Atlas | Excluding Cross Sport |
The 2020 Volkswagen Atlas Excluding Cross Sport CURT Class 3 Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13366-002) fits the following vehicles: 2020 Volkswagen Atlas. Always verify your specific year, make, and model before ordering.
Yes, the 2020 Volkswagen Atlas Excluding Cross Sport CURT Class 3 Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13366-002) is designed to fit the 2020 Volkswagen Atlas.
The 2020 Volkswagen Atlas Excluding Cross Sport CURT Class 3 Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13366-002) fits 2020 Volkswagen Atlas models. The 2020 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2020 Volkswagen Atlas Excluding Cross Sport CURT Class 3 Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13366-002) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, CURT part number 13366 is designed for 2018-Present Volkswagen Atlas SUVs. Before purchasing, verify your vehicle year and model match this specification. If you have a different year or model, contact CURT technical support at 877-287-8634 to confirm fitment.
The CURT 13366 is rated for a maximum trailer weight of 6,000 lbs and a tongue weight of 900 lbs when used as a weight-carrying hitch. However, you must never exceed your vehicle manufacturer's recommended towing capacity, which may be lower than the hitch rating. Check your vehicle's owner manual for the maximum towing capacity your Atlas can safely handle.
The minimum tongue weight is 20 lbs. This is the lightest load that should be applied to the hitch tongue.
The minimum trailer weight is 40 lbs. This is the lightest trailer that should be towed with this hitch.
You will need: a ratchet, a 3/4" socket, a torque wrench, and safety glasses. Fishwire is also required as part of the installation process. Using proper tools will greatly improve the quality of the installation and reduce the time required.
The kit includes: 4 bolts (part 10-10287, 1/2-13 UNC, 1-1/2", Grade 8, yellow zinc), 4 square hole spacers (CM-SP6, .250 x 1.00 x 3.00"), 4 serrated flange nuts (part 20-00062, 1/2-13 UNC, Grade 8, yellow zinc), and 1/2" x 30" fishwire (qty 4). All fasteners are Grade 8 yellow zinc plated.
Two people may be required to ease installation. If you are hesitant to undertake this task on your own, contact an authorized CURT installer for additional assistance. You can also call CURT technical support at 877-287-8634 for help.
Safety glasses must be worn at all times while installing this product. Before you begin installation, read all instructions thoroughly. If you are hesitant to undertake this task on your own, contact an authorized CURT installer.
1. Use fishwire to thread 2 of the 1/2" carriage bolts and CM-SP6 spacers into the existing holes in each frame rail (both driver and passenger sides). Note: removal of underbody coating from the access hole may be required. 2. Raise the hitch into position and loosely secure it with the 1/2" hex flange nuts. 3. Torque all 1/2" fasteners to 110 lb-ft using a torque wrench.
Fishwire is a flexible wire tool used to thread the carriage bolts and spacers through the existing holes in the vehicle's frame rails. It is required because the holes are not directly accessible and the fishwire allows you to guide the bolts into position from the access holes on both sides of the frame. The kit includes 1/2" x 30" fishwire for this purpose.
Removal of underbody coating from the access hole may be required. This depends on your specific vehicle and how much coating is present around the access holes on both sides of the frame rails.
All 1/2" fasteners must be torqued to 110 lb-ft. This includes the 1/2-13 UNC carriage bolts and the 1/2-13 UNC hex flange nuts. Use a torque wrench to ensure proper tightness.
All non-trailer (wheel-less) loads applied to this hitch must be supported by CURT 18050 stabilizing straps. Non-trailer loads include cargo carriers, bike racks, or other equipment that does not have wheels. Do not apply such loads without the stabilizing straps. See the CURT catalog or visit www.curtmfg.com for further information about part 18050.
Never exceed your vehicle manufacturer's recommended towing capacity. Although the CURT 13366 is rated for 6,000 lbs trailer weight and 900 lbs tongue weight, your Volkswagen Atlas may have a lower maximum towing capacity. Always check your vehicle's owner manual and follow the manufacturer's towing limits, as exceeding them can damage your vehicle and create a safety hazard.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound. This ongoing inspection helps prevent loosening of bolts due to vibration and wear, and ensures the hitch remains safe for towing. Check the hitch before each towing trip.
CURT Manufacturing warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective, CURT may repair or replace it at their option when returned prepaid with proof of purchase. The warranty is voided by alteration, misuse, or improper installation. CURT's liability is limited to repair or replacement of defective products and excludes liability for incidental or consequential loss or damage.
The CURT 13366 complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5 and SAE J684.
Yes, the CURT 13366 is designed for 2018-Present Volkswagen Atlas SUVs. Verify your vehicle year matches before purchasing.
Maximum 6,000 lbs trailer weight and 900 lbs tongue weight. Never exceed your vehicle manufacturer's recommended towing capacity, which may be lower.
Ratchet, 3/4" socket, torque wrench, safety glasses, and fishwire (included). All fasteners must be torqued to 110 lb-ft.
No drilling is required. The hitch uses existing holes in the frame rails. Removal of underbody coating from access holes may be required.
Two people may be required to ease installation. If hesitant, contact an authorized CURT installer or call technical support at 877-287-8634.
All non-trailer loads (cargo carriers, bike racks, etc.) must be supported by CURT 18050 stabilizing straps. Do not use non-trailer loads without these straps.
Periodically check that all fasteners are tight and structural components are sound. Inspect before each towing trip.
