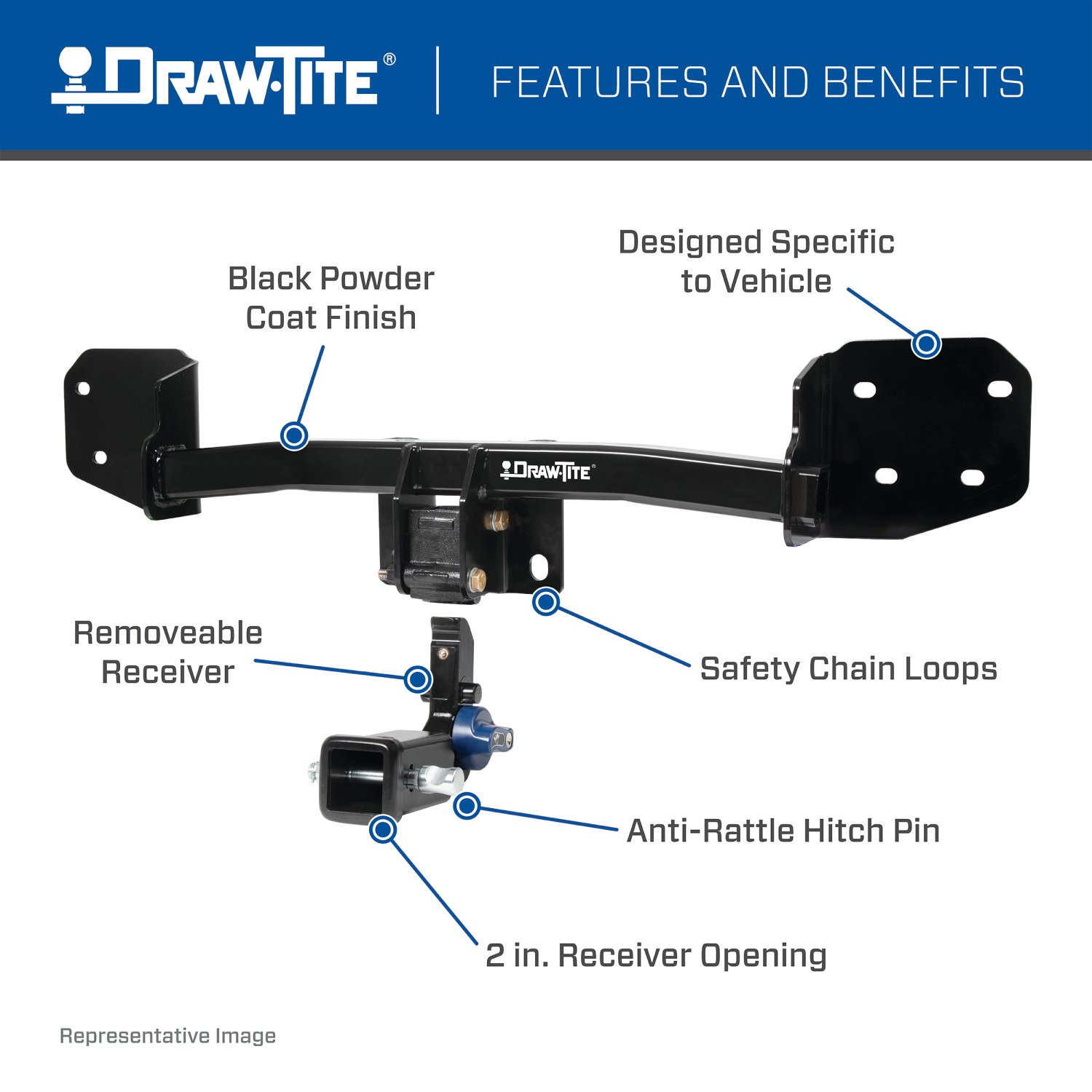

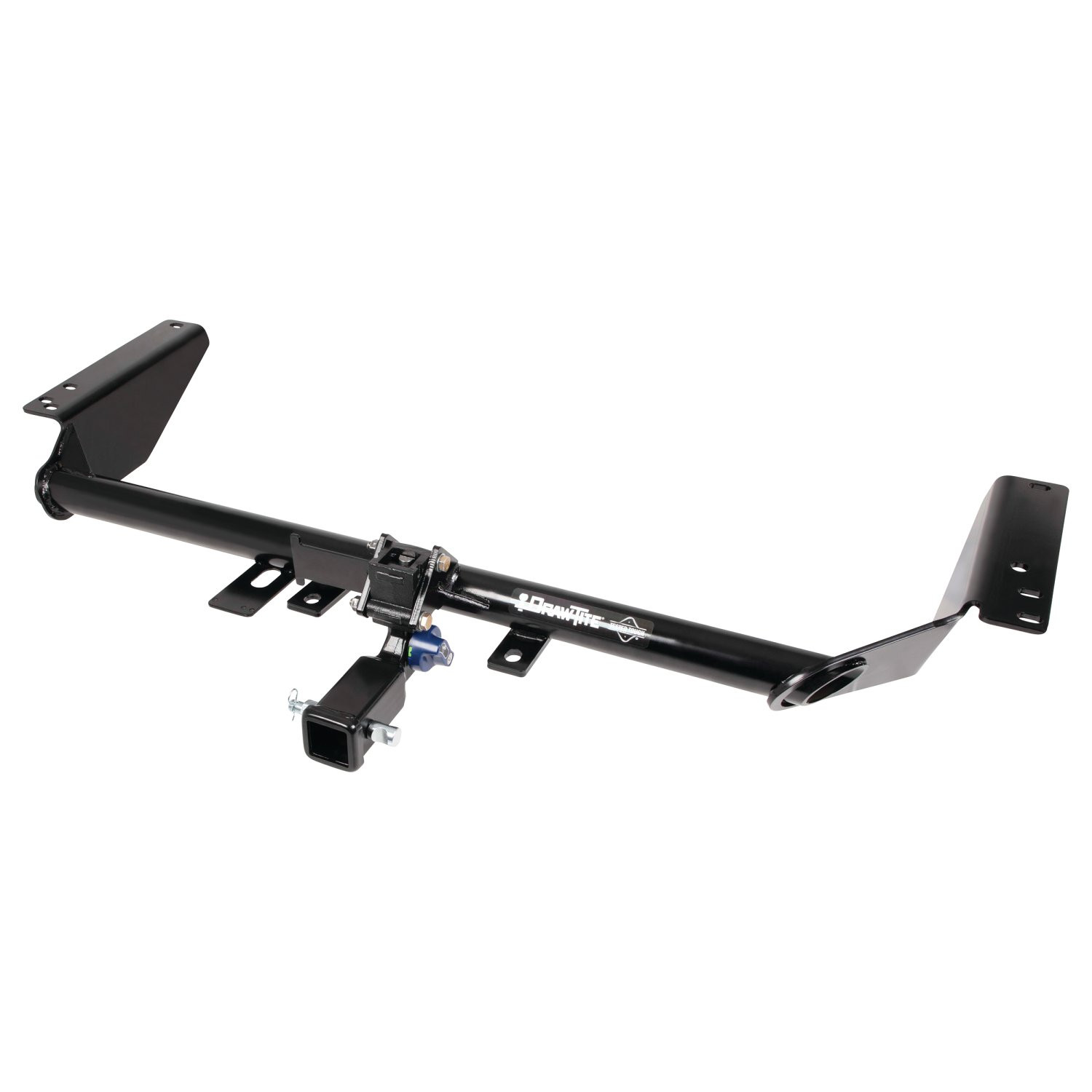

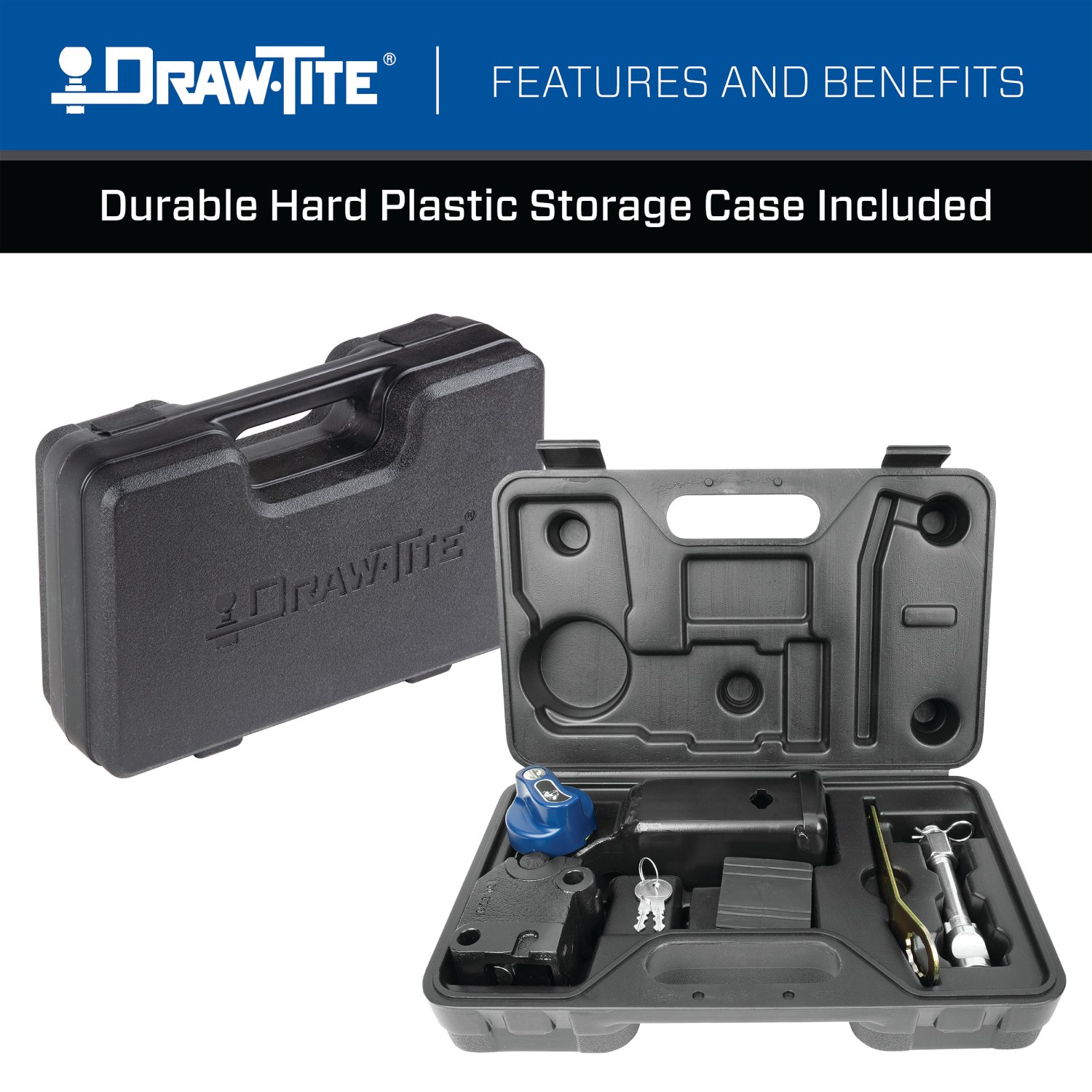

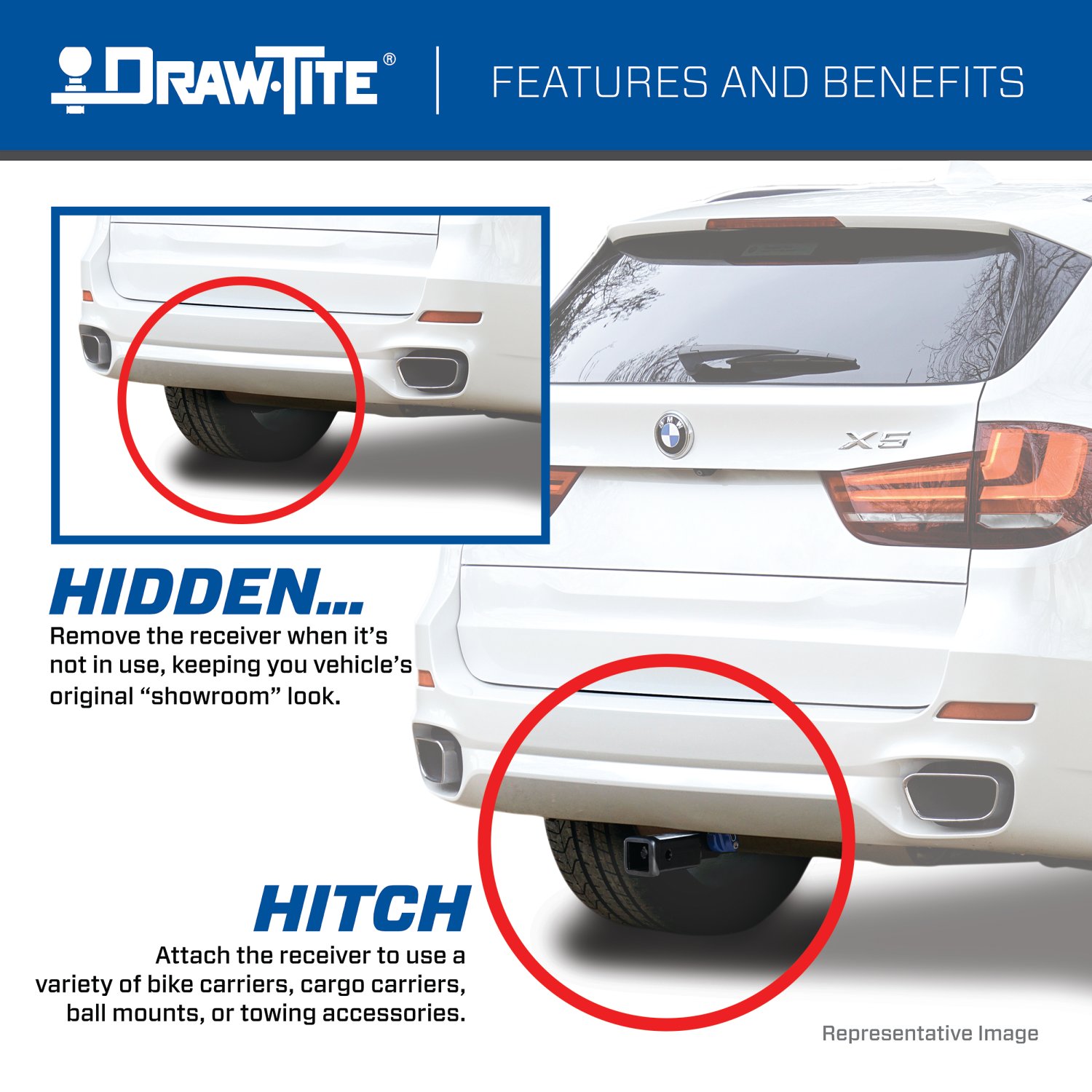

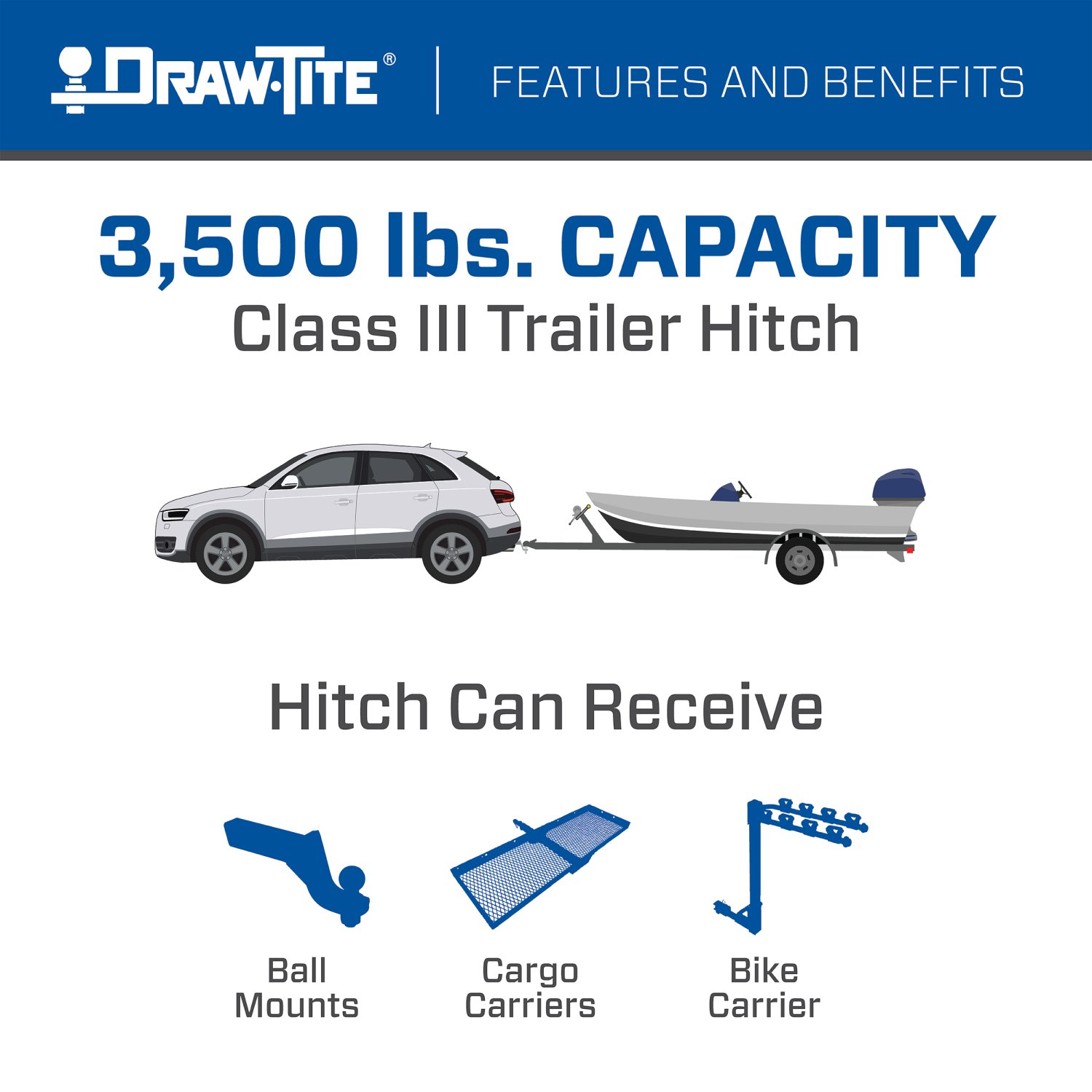

Made from welded steel with a black premium finish, the Hidden Hitch series of hitches are custom designed to ensure a superior fit for each make and model vehicle. Each Hidden Hitch is designed with a two-inch receiver opening to fit a number of different accessory attachments like bike racks, cargo carriers, and more! Draw-Tite Hidden Hitches are rated for 3,500 pounds gross trailer weight (GTW) and are best suited for use with accessories or light-duty towing. The integrated anti-theft lockable receiver ensures added safety when the hitch is in use, while the included anti-rattle hitch pin provides premium performance and security. When you are not using the Hidden Hitch, you can store the removeable receiver, anti-rattle pin, and weather covers in the hard sided carrying case that is included with your purchase.
These dependable, premium custom hitches are manufactured for 2017-2023 Chrysler Pacifica, 2020-2023 Chrysler Voyager, 2022-2023 Dodge Grand Caravan and attach to your vehicle?s frame behind the bumper for a luxuriously clean appearance. Hidden Hitch trailer hitches have a sleek black powder coat finish for superior rust and corrosion resistance and come complete with all the mounting hardware needed for installation. Plus, each hitch is tested to meet - and exceed - V-5 and SAE J684 standards and is backed by a nationwide lifetime limited warranty.
So, take that extra cooler out to the lake, hit the bike trails in the park, or hook up that utility trailer and tackle your honey-do home repairs. When you are done, remove the evidence (i.e., the removeable receiver), and go for a cruise. With the Hidden Hitch, you can do it all! Brought to you by Draw-Tite, North America?s Favorite Hitch.
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.

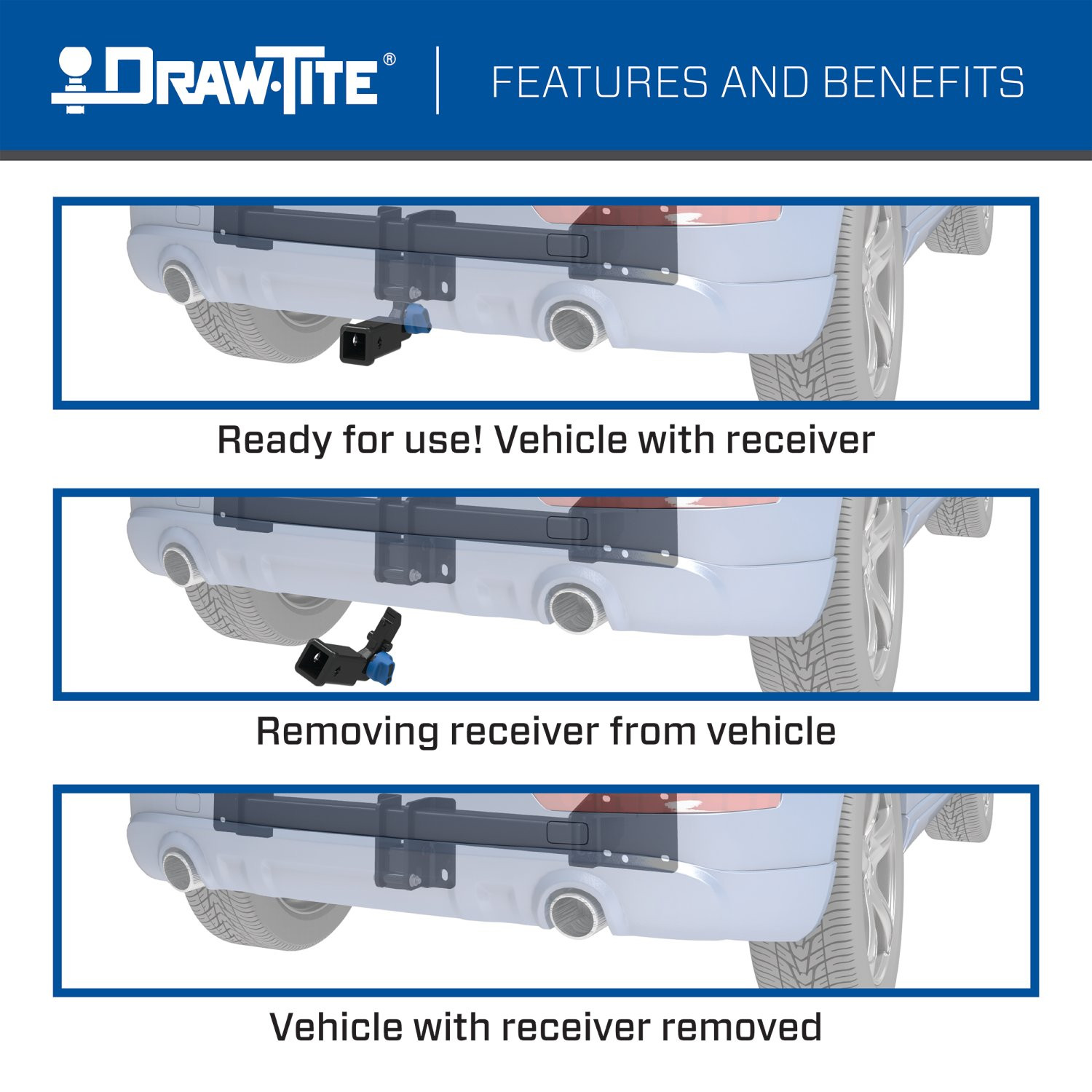

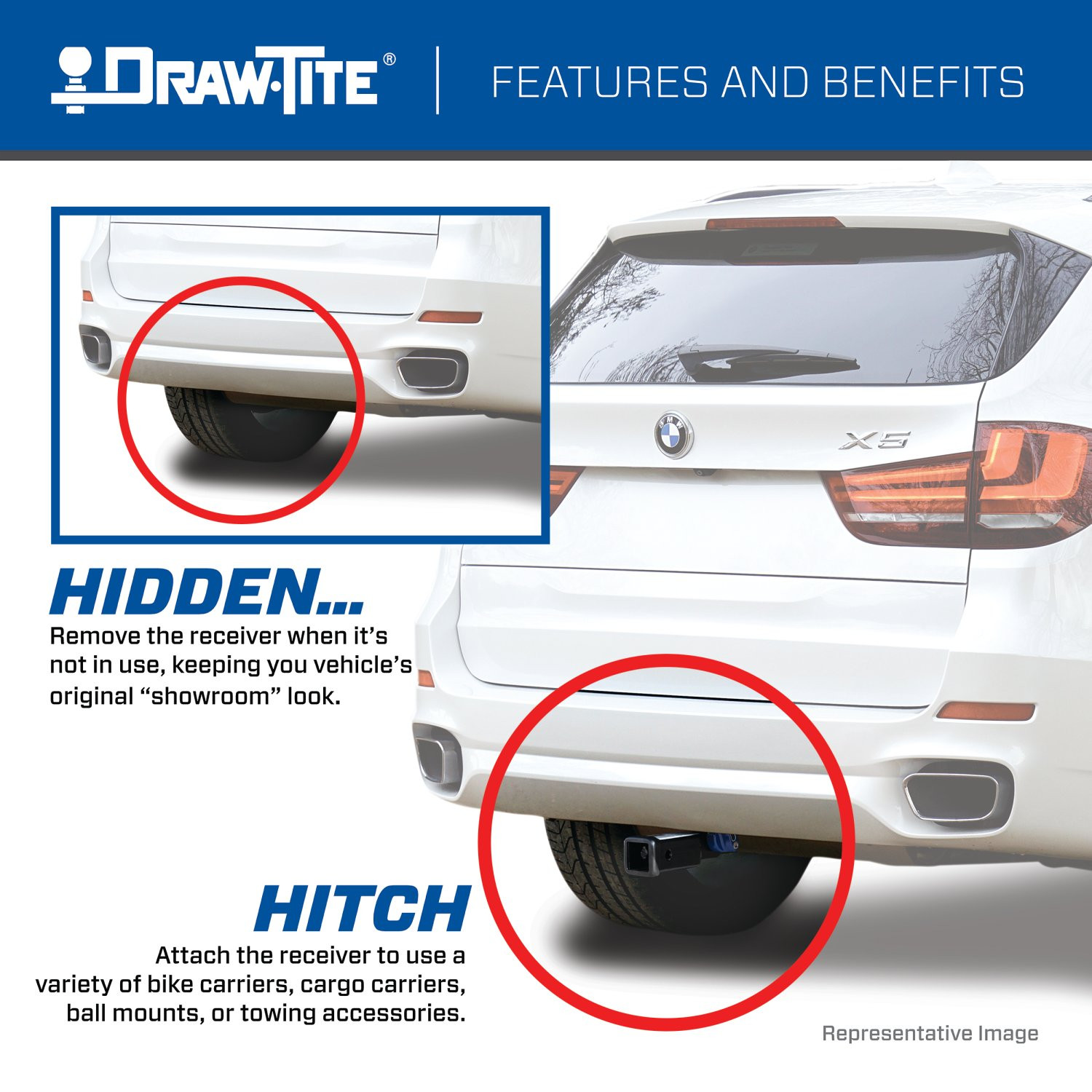

The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2021 - 2024 | Chrysler Pacifica | — |
Yes, the 2021-2024 Chrysler Pacifica Draw-Tite Hidden Hitch Completely Hidden Trailer Hitch 2 Inch Removable Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB76916-118835) is designed to fit the 2021-2024 Chrysler Pacifica.
The 2021-2024 Chrysler Pacifica Draw-Tite Hidden Hitch Completely Hidden Trailer Hitch 2 Inch Removable Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB76916-118835) fits 2021-2024 Chrysler Pacifica models. The 2024 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2021-2024 Chrysler Pacifica Draw-Tite Hidden Hitch Completely Hidden Trailer Hitch 2 Inch Removable Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB76916-118835) fits the following vehicles: 2021-2024 Chrysler Pacifica. Always verify your specific year, make, and model before ordering.
The 2021-2024 Chrysler Pacifica Draw-Tite Hidden Hitch Completely Hidden Trailer Hitch 2 Inch Removable Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB76916-118835) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, part 76916 fits 2017-current Chrysler Pacifica models. For 2020-2021 Chrysler Voyager, it also fits. Visit www.horizonglobal.com for the most up-to-date information regarding specific application years and trim levels.
Yes. Hybrid models require service kit 76046SK, sold separately. This must be purchased in addition to the hitch.
Required tools: torque wrench, ratchet, sockets (7/8", 8mm, 10mm, 19mm), 6" socket extension, flat-head screwdriver, safety glasses, exhaust removal pliers, and tin snips. A 6" socket extension is specifically listed for access.
Yes. The manual states average installation time is 110 minutes for professional installers. If you do not feel comfortable performing the installation on your own or need assistance, contact a professional installer.
Yes. Installation requires trimming the heat shield and underbody panel according to Figures 2 and 3. The key proximity antenna housing must be trimmed or discarded at the bumper support. Tin snips are required. DO NOT use a torch to cut access or attachment holes. For model years after 2020, do not trim the heat shield or underbody panel; return them to the vehicle owner.
All hitch fasteners must be torqued to 110 lb-ft (149 N·m). The receiver housing fasteners (M12 bolts) are torqued to 92 lb-ft (125 N·m).
Maximum Gross Trailer Weight: 3500 lb (1589 kg). Maximum Tongue Weight: 350 lb (159 kg). Do not exceed the lower of the towing vehicle manufacturer's rating or these hitch ratings.
Check that all fasteners are tight and the hitch is securely mounted. Verify that no wires or other items have been pinched between the hitch and vehicle frame. Check fasteners periodically during use. If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fume entry.

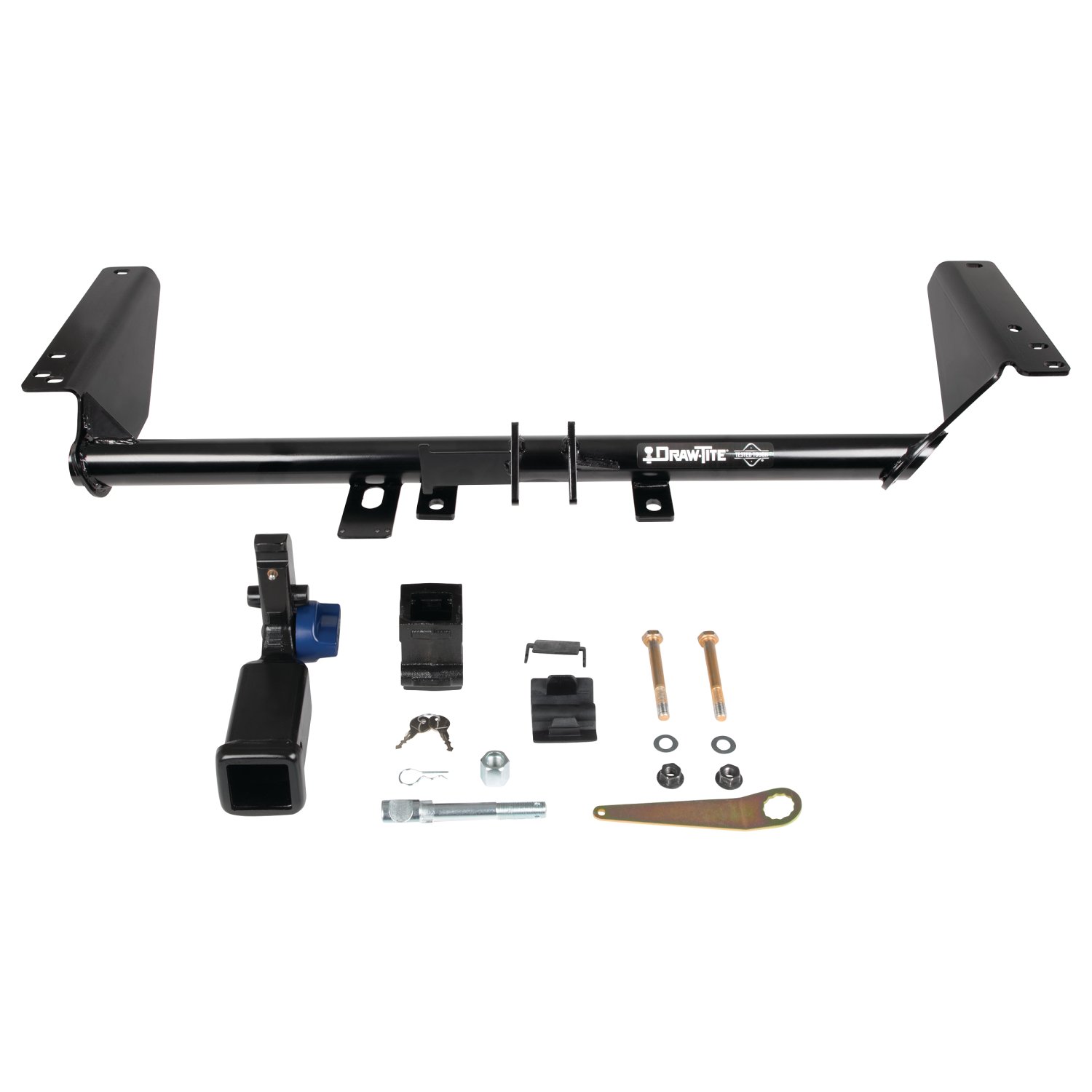

The kit includes: receiver assembly with receiver housing, weather covers, fastener kit 76916F (or 76916F2 for some versions) containing 6 carriage bolts ½"-13 x 1.75 Gr8, 6 conical washers 1/2", 2 blocks 1/4" x 1" x 3", 6 hex nuts ½"-13 Gr8, 4 blocks 1/4" x 1" x 2", 6 pull wires ½", 3 cable ties, 1 warning card, and 2 warning labels. The receiver itself is removable and can be stored separately.
No. DO NOT cut, weld, or modify this receiver. Doing so will void the warranty and compromise safety. Do not use a torch to cut access or attachment holes.
The ball mount must have a maximum length of 10.5" (distance from center of ball hole to center of pin hole) and a minimum rise of 0.75" (distance from top of shank to top of ball platform). Select a ball mount that meets these specifications for proper fitment and safety.
Two quick-link options are available (sold separately): #49131 (5/16"), Max GTW 3,500 lb, or #44133 (3/8"), Max GTW 3,500 lb. Both are rated for the maximum gross trailer weight of the hitch.
1. Use the key to unlock the blue knob. 2. Push in the blue knob and rotate it clockwise until you hear a click sound. 3. At this point, you can separate the receiver from the receiver housing. The receiver can then be stored separately when not in use.
Weather covers are installed on the top and bottom of the receiver housing to protect it from the elements. They are included with the hitch and must be installed before attaching the receiver housing to the hitch brackets.
The fishwire method is used to route carriage bolts and spacer blocks through the vehicle frame to the attachment holes. Pull wires are attached to the bolts and blocks, then guided through access holes in the frame. The rearward bolts use 2" long blocks, and the forward bolts use 3" long blocks. The pull wires are left attached until the hitch is raised into position and the bolts are secured with conical washers and hex nuts.
The conical washers must be installed with the teeth side facing toward the hitch. This orientation ensures proper clamping and load distribution when the hex nuts are torqued.
1. Remove underbody panel. 2. Lower exhaust system. 3. Remove heat shield. 4. Remove and relocate key proximity antenna. 5. Route rearward bolts using fishwire method with 2" blocks. 6. Route forward bolts using reverse fishwire method with 3" blocks. 7. Raise hitch into position, passenger side first over muffler. 8. Guide fishwire ends through attachment holes. 9. Install conical washers (teeth toward hitch) and hex nuts. 10. Torque all fasteners to 110 lb-ft (149 N·m). 11. Trim heat shield. 12. Reinstall exhaust hangers. 13. Trim underbody panel and reinstall.
The manual does not specify that the battery must be disconnected. However, you will need to disconnect the wiring to the key proximity antenna during installation and reconnect it after relocation.
The underbody panel must be removed. Depending on the model, this requires removing 9 M8 fasteners, 5 to 8 M10 nuts, and 1 to 2 plastic push-on fasteners (unscrew with a standard screwdriver while pulling down on the panel). The heat shield (2 M10 nuts) and key proximity antenna housing must also be removed. For model years after 2020, the heat shield may be connected to the underbody panel and removed in the same step.
Pry off the 2 rearmost rubber exhaust hangers using exhaust removal pliers or another suitable tool. Spraying the hangers with soapy water makes this easier. Be sure to support the exhaust system to prevent damage during removal and reinstallation.
The key proximity antenna must be removed from its housing and relocated. 1. Disconnect the wiring from the antenna. 2. Remove the antenna from the housing (retain the antenna). 3. Trim or discard the housing box at the bumper support. 4. After the hitch is installed, use the included zip ties to secure the antenna to the relocation bracket. 5. Reconnect the wiring.
Trim the heat shield according to Figure 2 in the manual. After trimming, reinstall the remaining portion of the heat shield. For model years after 2020, if the heat shield cannot be easily separated from the underbody panel due to a metal rivet, do not trim it and return it to the vehicle owner.
Trim the underbody panel according to Figure 3 in the manual. After trimming, reinstall the underbody panel. For model years after 2020, do not trim the underbody panel and return it to the vehicle owner.
1. Install weather covers to the top and bottom of the receiver housing. 2. Insert the receiver housing between the hitch brackets. 3. Align the housing with the holes in the brackets. 4. Insert 2 fastener assemblies (M12 bolt, flat washer, and prevailing torque nut) through the holes. 5. Torque each fastener to 92 lb-ft (125 N·m).
The kit includes 1 warning card and 2 warning labels. Keep the warning card in the vehicle glove compartment for future reference. Apply 1 label to the top of the receiver and 1 label to the vehicle door jamb.
Check the hitch frequently, making sure all fasteners and the ball are properly tightened. The manual emphasizes periodic checking to ensure the hitch remains securely mounted to the vehicle during towing.
If excess sway occurs: 1. Take your foot off the gas pedal. 2. Hold the steering wheel as steady as possible. 3. DO NOT apply your brakes. 4. DO NOT speed up. Maintain control and gradually reduce speed.
Load the trailer heavier in front. This helps maintain stability and control while towing. Do not exceed the maximum tongue weight of 350 lb (159 kg) or the maximum gross trailer weight of 3500 lb (1589 kg).
The 76916 hitch is covered by a Limited Lifetime Warranty from Horizon Global. The warranty covers material defects in materials and workmanship, excluding ordinary wear and tear. The warranty is valid only if the product is installed, maintained, and used in compliance with the manufacturer's instructions. To make a warranty claim, contact Horizon Global at 47912 Halyard Drive, Suite 100, Plymouth, MI 48170, or call 1-800-632-3290. You must provide the product and purchase receipt. Product replacement is the sole remedy under this warranty.
Step-by-step photo installation instructions are available by scanning the QR code on the manual or visiting http://qr.towingproducts.net/qrproducts/qr-product. You can also visit www.horizonglobal.com or www.draw-tite.com and search for part number 76900 for receiver installation and use instructions (76900N).
For technical assistance, contact Horizon Global at: Phone: 1-800-632-3290, Email: TechnicalSupport@horizonglobal.com, Website: www.horizonglobal.com
Pull wires are used to route the carriage bolts and spacer blocks through the vehicle frame. During steps 5 and 6, leave the pull wires attached to the bolts and blocks. When raising the hitch into position in step 7, guide the fishwire ends through the attachment holes, then remove the pull wires before installing the conical washers and hex nuts. Kink the pull wire to keep the spacer independent of the bolt during routing.
When raising the hitch into position, install the passenger side first over the muffler. This positioning helps guide the hitch into alignment with the frame attachment holes and ensures proper fitment without interference with the exhaust system.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes. This protects the vehicle interior and prevents corrosion.
A hitch or ball which has been damaged should be removed and replaced. Do not attempt to repair a damaged hitch. Contact a professional installer or the manufacturer for replacement.
Always wear safety glasses when installing the hitch. Observe safety precautions when working beneath a vehicle. Do not cut access or attachment holes with a torch. Support the exhaust system to prevent damage. Ensure no wires or other items are pinched between the hitch and vehicle frame. Wear eye protection at all times during installation.
The hitch uses 6 carriage bolts, each ½"-13 x 1.75 Grade 8. These bolts are routed through the vehicle frame using the fishwire method and secured with conical washers and hex nuts. All bolts must be torqued to 110 lb-ft (149 N·m).
The hitch uses 6 hex nuts, each ½"-13 Grade 8. These nuts are installed on the carriage bolts after the conical washers and must be torqued to 110 lb-ft (149 N·m).
Two types of spacer blocks are used: 2 blocks measuring 1/4" x 1" x 3" for the rearward attachment holes, and 4 blocks measuring 1/4" x 1" x 2" for the forward attachment holes. These blocks are routed through the frame using the fishwire method to properly space the hitch from the frame.
The hitch uses 6 conical washers, each 1/2" diameter. The teeth side must face toward the hitch to ensure proper clamping and load distribution when the hex nuts are torqued to 110 lb-ft (149 N·m).
The receiver housing is attached to the hitch brackets using 2 M12 bolts with flat washers and prevailing torque nuts. These fasteners must be torqued to 92 lb-ft (125 N·m).
Three cable ties are included to secure the key proximity antenna to the relocation bracket after the hitch is installed. The antenna is relocated from its original housing to a new position using these zip ties.
Check all fasteners with a torque wrench and re-torque to the specified values: 110 lb-ft (149 N·m) for main hitch fasteners and 92 lb-ft (125 N·m) for receiver housing fasteners. The manual recommends checking fasteners frequently to ensure they remain tight. Loose fasteners can result from vibration during towing and must be corrected immediately to maintain safety.
Stop the installation immediately. Remove the hitch and carefully extract any pinched wires or items. Inspect the wires for damage and repair or replace as necessary. Ensure the wiring is properly routed away from the hitch and frame before reinstalling the hitch. Pinched wires can cause electrical failures or fire hazards.
If the heat shield is connected to the underbody panel with a metal rivet and cannot be easily separated (typically on model years after 2020), do not attempt to trim it. Return both components to the vehicle owner in their original condition. Forcing separation could damage the components or compromise vehicle safety.
If the exhaust system becomes damaged during removal or lowering, it must be repaired or replaced before the vehicle is used. Do not reinstall the hitch until the exhaust system is in proper working condition. Damaged exhaust systems can cause performance issues, emissions problems, and safety hazards.
Yes, the T-Connector is designed for the Chrysler Pacifica. The manual provides complete installation instructions specific to this vehicle.
The T-Connector is a trailer wiring interface that connects your vehicle's taillight system to a trailer. It allows you to plug in a trailer's 4-flat connector to control the trailer's lights using your vehicle's lighting signals.
You will need: Trim Panel Remover, 10mm Socket & Ratchet or 10mm Wrench, 8mm Socket & Ratchet or 8mm Wrench, Torx T27 Socket & Ratchet or Torx T27 Wrench, Drill with 3/32" Drill Bit, 1/4" Socket, Wire Crimpers, Wire Cutters, Philips Head Screwdriver, and Test-probe.
Yes. You must disconnect the vehicle's Negative (-) battery cable before connecting the power wire to the battery's Positive (+) terminal. This is done in Step 9 before attaching the fuse holder to the positive battery cable. Reconnect the negative cable only after the fuse holder connection is complete and the 15 amp fuse is installed.
Yes. You must drill a 3/32" hole on the driver's side near the taillight connectors to secure the white ground wire with an eyelet and screw. Before drilling, verify what is behind the surface to avoid damage to the vehicle or personal injury. Do not drill into any exposed surfaces.

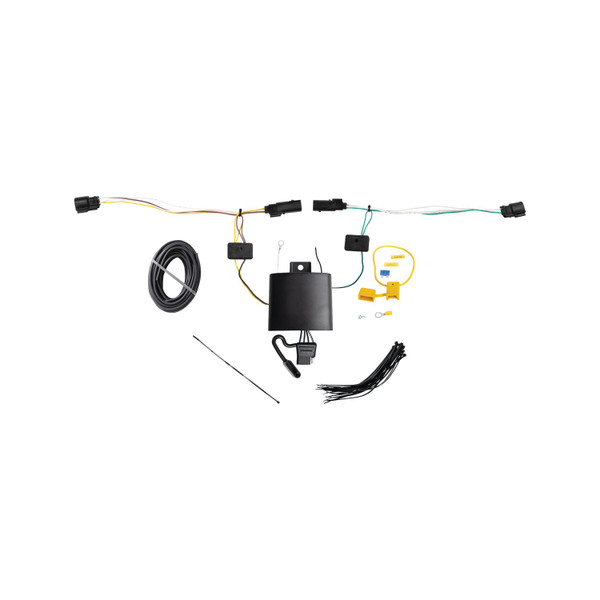

The T-Connector package includes: the T-Connector black box with yellow and green wire ends, a 4-Flat connector, double-sided tape for mounting, a yellow fuse holder with 15 amp fuse, a yellow butt connector, a white eyelet and screw for grounding, a black 12 ga. power wire, cable ties for securing the harness, and a ring terminal for battery connection.
Mount the T-Connector black box underneath the vehicle behind the rear bumper fascia on the driver's side using the double-sided tape provided. The unit must be in a protected area where it cannot be damaged by road debris or objects driven over. Mount it with the epoxy side pointed toward the ground to prevent water buildup. Ensure the trailer's wire harness has adequate length to reach this mounting point.
On the driver's side, fish the T-Connector end with yellow wires up between the bumper and vehicle body into the taillight pocket. Plug this yellow-wire end between the mating plugs on the driver's side taillight socket and vehicle wiring harness. On the passenger's side, route the T-Connector end with green wire and route the 4-Flat underneath the bumper, then up through the opening on the passenger side. Repeat the connection process on the passenger side. Mount the 4-Flat end in an accessible location with a bracket or electrical box (not included).
The T-Connector uses a 15 amp fuse. This fuse is installed in the yellow fuse holder that connects the power wire from the T-Connector box to the vehicle's positive battery cable.
Do not exceed the lower of your vehicle manufacturer's rating or these limits: Maximum stop/turn light: 2 per side (4.2 amps); Maximum tail lights: 7.5 amps. Overloading the circuit can cause fires. Consult your vehicle's owner's manual for additional information.
On the driver's side near the taillight connectors, locate a suitable grounding point. Drill a 3/32" hole and secure the white wire with an eyelet using the screw provided. Do not drill into any exposed surfaces. Before drilling, verify what is behind the surface to avoid damage to the vehicle or personal injury.
On the driver's side, locate the black 12 ga. power wire from the T-Connector box. Attach the black 12 ga. wire provided and route it along the exterior frame or follow existing wiring along the thresholds into the engine compartment up to the battery, avoiding areas that may pinch or break the wire. Disconnect the vehicle's Negative (-) battery cable. Remove the fuse from the yellow fuse holder if not already removed, cut the fuse holder wire, attach the ring terminal, and secure it to the vehicle's Positive (+) battery cable. Connect the other end of the fuse holder to the black 12 ga. wire using the yellow butt connector provided. Reconnect the Negative (-) battery cable and install the 15 amp fuse into the fuse holder.
Yes. You must open the rear tailgate and remove the taillights on both the driver and passenger side using a Torx T27 Socket & Ratchet or Torx T27 Wrench. After removing the screws, carefully pull the taillights away from the vehicle without damaging the alignment pins. Disconnect the vehicle wiring harness from both taillight sockets, being careful not to break the locking tabs. After installation is complete, reinstall the taillight assemblies carefully, ensuring you do not pinch or cut the wires.
Yes, you must partially remove the underbody trim panel underneath the vehicle by removing 8mm and 10mm bolts. This provides access to mount the T-Connector black box behind the rear bumper fascia on the driver's side.
Route the T-Connector end with green wire to the passenger's side and route the 4-Flat underneath the bumper. Route the T-Connector end with green wire up through the opening on the passenger side, being careful to avoid any hot pipes, heat shields, the fuel tank or any other points that may pinch or break the wire. Route the black power wire along the exterior frame or follow existing wiring along the thresholds into the engine compartment, avoiding areas that may pinch or break the wire. Secure the remainder of the T-Connector harness with the cable ties provided to prevent damage or rattling, being careful to avoid any areas that would pinch, cut or melt the wire.
All connections must be complete for the T-Connector to function properly. Test and verify the installation with a test light or trailer once installed. For the initial test, reset the vehicle electrical system by temporarily removing the key from the ignition.
Always wear safety glasses and use all safety precautions during installation. Before drilling any holes, verify what is behind the surface to avoid damage to the vehicle or personal injury. Do not drill into any exposed surfaces. When mounting under the vehicle, ensure the unit is in a protected area and cannot be damaged from road debris or objects driven over. Mount the module with the epoxy side pointed toward the ground to prevent water buildup. Read and follow all warnings and cautions printed on the tow vehicle's battery. Keep the installation instructions for future reference.
Yes. After disconnecting the vehicle wiring harness from the taillight sockets, all connector surfaces should be clean and free of dirt before making any connections.
Yes, the T-Connector (118835-037) is designed for the Chrysler Pacifica.
You need: Trim Panel Remover, 10mm and 8mm sockets/wrenches, Torx T27 socket/wrench, 3/32" drill bit, 1/4" socket, wire crimpers, wire cutters, Philips screwdriver, and test-probe.
Yes, you must disconnect the Negative (-) battery cable before connecting the power wire to the Positive (+) terminal. Reconnect it only after the fuse holder is installed with the 15 amp fuse.
The T-Connector uses a 15 amp fuse. Do not exceed 2 stop/turn lights per side (4.2 amps) or 7.5 amps for tail lights.
Yes, you must remove both driver and passenger side taillights using a Torx T27 socket/wrench, disconnect the wiring, and reinstall them after routing the T-Connector wires.
The T-Connector has yellow wires (driver's side taillight connection), green wires (passenger's side taillight connection), black 12 ga. power wire (battery positive), and white wire (ground).
Verify that all connections are complete. The manual states that all connections must be complete for the T-Connector to function properly. Test and verify the installation with a test light or trailer. For the initial test, reset the vehicle electrical system by temporarily removing the key from the ignition. Check that the 15 amp fuse is installed in the fuse holder, the yellow-wire end is properly plugged between the driver's side taillight socket and vehicle harness, the green-wire end is properly plugged between the passenger's side taillight socket and vehicle harness, the white ground wire is securely fastened with the eyelet and screw, and the black power wire is properly connected to the vehicle's Positive (+) battery cable through the fuse holder.
