2023-2023 KIA Sorento Tekonsha Custom 7-Way + Brake Controller Install KitTekonshaOut of Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
Tekonsha
Verify Fitment
Select your vehicle to confirm this part fits.
2021 - 2023 Kia Sorento
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Tekonsha is a leading manufacturer of electronic trailer brake controllers, pioneering the category in the 1970s. The lineup spans proportional units such as the Prodigy P3 and Prodigy iD, time-delayed controllers, the wireless Prodigy RF, plus vehicle-specific wiring harnesses, adapters and trailer brake components engineered for smooth, predictable stopping at any speed.
Tekonsha Engineering Company began in 1964 building RV steps and mirrors. Within a few years it had found its real calling, and by the 1970s Tekonsha was pioneering the manufacture of electronic trailer brake controllers, the product category that still defines the brand. More than half a century later it remains the reference name in trailer braking and is part of the Horizon Global group alongside Reese, Draw-Tite, Fulton, Bulldog and Wesbar.
A brake controller is the component that tells a trailer's electric brakes how hard to work and when, and getting that right is the difference between a controlled stop and a shove from behind. Tekonsha builds both major types. Proportional controllers use an internal accelerometer to sense how quickly the tow vehicle is slowing and apply trailer braking to match, so light braking stays light and hard braking is immediate. Time-delayed controllers ramp to a preset output over a fixed interval, a simpler and more economical approach that suits occasional towing.
The current brake controller range covers most of that ground. The Prodigy iD pairs with a phone through Tekonsha's EDGE technology for setup and monitoring, the P3 offers storable settings for multiple trailers and a trilingual colour LED display, the Prodigy P2 adds a dimmable display and boost mode for heavier loads, and the Voyager keeps operation simple and dependable. The Prodigy RF mounts to the trailer itself and controls wirelessly, which suits rental fleets and drivers who swap tow vehicles.
Installation is supported by vehicle-specific brake control harnesses that plug into a factory connector rather than requiring cut-and-splice wiring, along with mounting brackets and adapters. Matched controller bundles pair a unit with the correct harness. Products are tested to meet and often exceed published industry standards.
Experts available to answer your questions
Call 888-634-94941 Year
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2021 - 2023 | Kia Sorento | — |
Yes, the 2021-2023 KIA Sorento Tekonsha Custom 7-Way + Brake Controller Install Kit (Part #TBCW69390) is designed to fit the 2021-2023 Kia Sorento.
The 2021-2023 KIA Sorento Tekonsha Custom 7-Way + Brake Controller Install Kit (Part #TBCW69390) fits 2021-2023 Kia Sorento models. The 2023 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2021-2023 KIA Sorento Tekonsha Custom 7-Way + Brake Controller Install Kit (Part #TBCW69390) fits the following vehicles: 2021-2023 Kia Sorento. Always verify your specific year, make, and model before ordering.
The 2021-2023 KIA Sorento Tekonsha Custom 7-Way + Brake Controller Install Kit (Part #TBCW69390) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The BRAKE mate is a trailer brake control system that allows you to control trailer brakes from your vehicle. It connects to your vehicle's electrical system and includes a brake control unit that mounts under the dash, circuit breakers for power management, and a prewired connector that attaches to your trailer.
The manual does not specify which vehicle makes, models, or years are compatible with the BRAKE mate. Contact Cequent Towing Products technical service at (888) 521-0510 or consult a fitment database to confirm compatibility with your specific vehicle.
Yes. Step 4 of the installation instructions requires connecting the 4-pole flat connector to the vehicle's connector, which means your vehicle must already have a 4-pole flat connector. If your vehicle does not have one, the BRAKE mate cannot be installed using these instructions.
The kit includes: 1 prewired connector, 1 heavy duty flasher, 1 20 amp circuit breaker, 1 40 amp circuit breaker, 5 #10 G-ring connectors, 2 3/8" G-ring connectors, 5 Scotch locks, 8 self-tapping screws, and 6 wire tie straps.
The manual does not specify required tools. However, based on the installation steps, you will likely need a drill (to create a firewall hole if one does not exist), wire strippers, a screwdriver (for self-tapping screws), and possibly a crimper or pliers for ring connectors. Contact technical service at (888) 521-0510 for a complete tool list.
The manual does not specify whether the battery must be disconnected before installation. Contact Cequent Towing Products technical service at (888) 521-0510 for safety guidance before beginning work.
Mount the bracket for the round connector on the bumper if that is where you intend to install it. Some hitches have built-in brackets, so check your hitch first before mounting a separate bracket.
Mount the brake control unit under the dash onto something firm. The unit must be securely fastened to a solid surface.
Mount the 2 circuit breakers (20 amp and 40 amp) end to end on the firewall within reach of the BLUE/BLACK cable. Secure them with the self-tapping screws supplied in the kit.
You may need to drill a hole through the firewall to run the BLUE/BLACK 2-strand wire from the engine bay into the cab. Look for an existing spot first; if none is available, drill a hole and seal it with a rubber grommet or silicone to prevent water and debris from entering the cab.
Some hitch brackets may need to be cut to allow the various connectors to pass through. Check your specific hitch bracket during installation; if it blocks connector passage, you will need to cut it.
Yes. In step 9, you must cut the black wire to create two open ends. These ends are then fitted with ring connectors and attached to the 40 amp and 20 amp circuit breakers respectively.
WHITE = ground wire; BLUE/BLACK = 2-strand power and trailer brake wire (runs from rear connector to front of vehicle and through firewall); RED = power wire from brake control unit; BLUE = trailer brake wire from brake control unit; GREEN = wire from brake control unit to brake switch.
Connect the WHITE ground wire to the frame of the vehicle. This provides the ground connection for the system.
Run the BLUE/BLACK 2-strand wire along the frame rail to the front of the vehicle, avoiding the exhaust, axles, and brake cables. Secure it with the plastic tie straps supplied. Then run it up the firewall, avoiding the steering mechanism, and secure it with ties.
Split the BLUE/BLACK 2-strand wire down the middle. Connect the RED (power) wire of the brake control unit to the BLACK wire using a Scotch lock. Connect the BLUE (trailer brake) wire of the brake control unit to the BLUE wire using a Scotch lock. Connect the WHITE wire of the brake control unit to the ground on the vehicle body. Connect the GREEN wire of the brake control unit to the inactive side of the brake switch.
Run a heavy gauge wire from the battery or equivalent power source to the battery side of either circuit breaker. Attach a #10 G-ring connector to one end of the wire. Then split a wire off this main wire to the 20 amp breaker using a Scotch lock and attach a #10 G-ring connector to the end of this wire. Alternatively, you can run a jumper between the two breakers.
The circuit breakers protect the electrical system. The 40 amp breaker is connected to the auxiliary side of the wire going to the rear connector. The 20 amp breaker is connected to the auxiliary side of the wire going through the firewall to the brake control unit.
The heavy duty flasher is a replacement turn signal flasher. If your turn signals blink too fast after installation, replace your vehicle's original turn signal flasher with the one supplied in the kit.
After attaching the round connector with self-tapping screws, test the connector for: running lights, brake lights, turn signals, and hot wire (power). Note that the brake control output cannot be tested unless a trailer is connected to the connector.
If the turn signals are blinking too fast after installation, replace the turn signal flasher with the heavy duty flasher supplied in the BRAKE mate kit.
After drilling a hole through the firewall to run the BLUE/BLACK wire into the cab, seal the hole with a rubber grommet or silicone to prevent water and debris from entering the vehicle.
When running the BLUE/BLACK 2-strand wire along the frame rail and up the firewall, avoid the exhaust, axles, brake cables, and steering mechanism. These components can damage the wire or be damaged by it. Secure the wire with the supplied plastic tie straps.
Your vehicle must have a 4-pole flat connector. Contact Cequent Towing Products at (888) 521-0510 or check a fitment database to confirm compatibility with your specific make, model, and year.

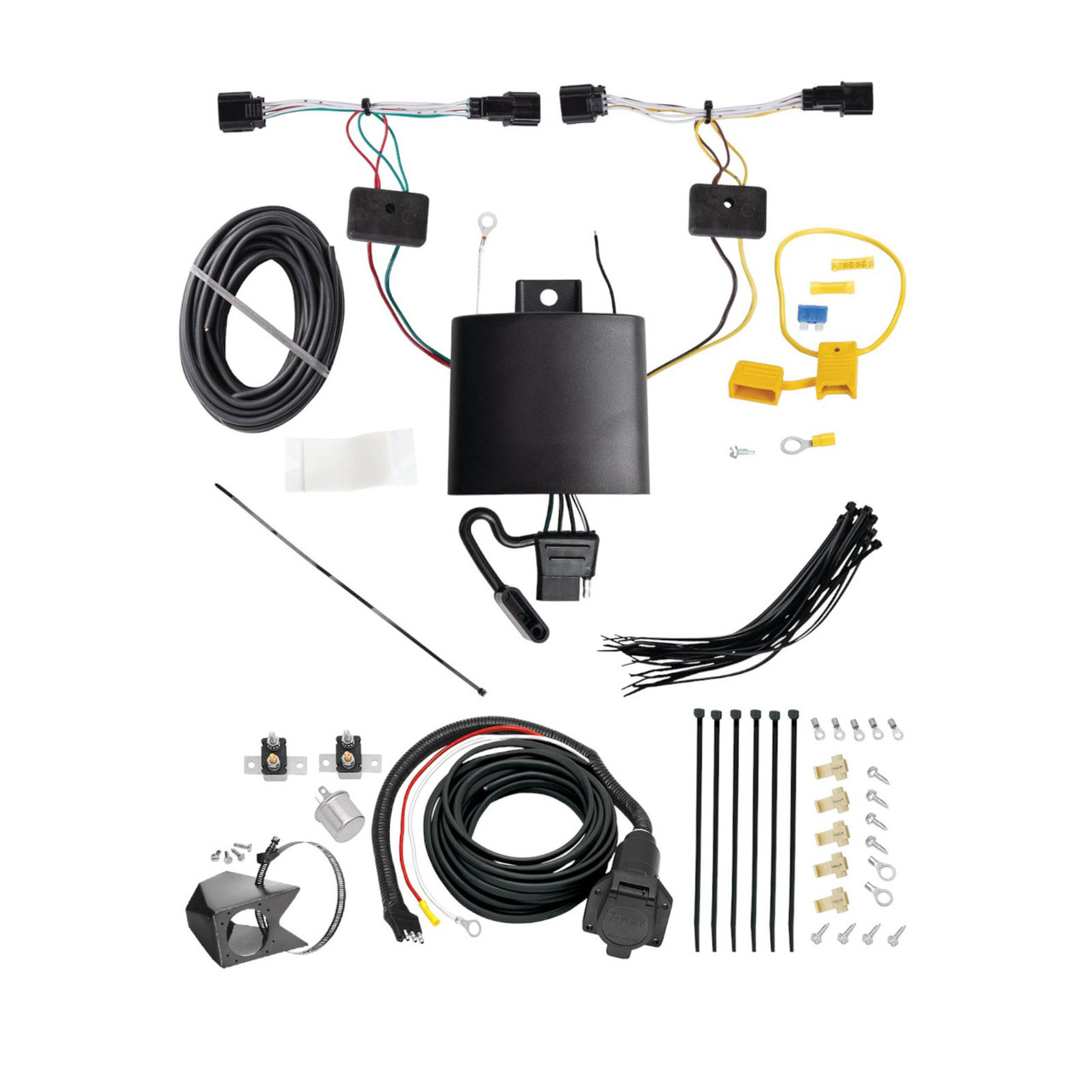

The kit includes a prewired connector, brake control unit, 20 amp and 40 amp circuit breakers, 5 #10 G-ring connectors, 2 3/8" G-ring connectors, 5 Scotch locks, 8 self-tapping screws, 6 wire tie straps, and a heavy duty flasher.
You may need to drill a hole through the firewall to run the brake wire into the cab if an existing hole is not available. The hole must be sealed with a rubber grommet or silicone.
Connect WHITE (ground) to frame, RED (power) to BLACK wire, BLUE (trailer brake) to BLUE wire, GREEN to brake switch, and run BLUE/BLACK from rear connector through firewall to brake control unit.
Test for running lights, brake lights, turn signals, and hot wire (power). Brake control output cannot be tested without a trailer connected. If turn signals blink too fast, replace the flasher with the one supplied.
Avoid routing the BLUE/BLACK wire near the exhaust, axles, brake cables, or steering mechanism. Secure all wires with the supplied plastic tie straps.
The T-One® Connector is a trailer wiring harness for the Kia Sorento. It provides electrical connections between the vehicle and a trailer by tapping into the vehicle's tail light circuits (driver's side yellow wire and passenger's side green wire) and adding a dedicated 12-gauge power wire connected to the vehicle's battery through a 15 amp fuse.
Yes, the T-One® Connector (part number 118838-037) is designed for the Kia Sorento. The manual provides specific installation instructions for this vehicle, including tail light removal, harness routing, and connector insertion points.
You will need: trim panel remover, 10 mm socket and ratchet or 10 mm wrench, drill with 3/32" drill bit, wire crimpers, wire cutters, Phillips head screwdriver, and a test probe. These tools are required to remove tail lights, access the frame rail, drill the ground hole, and test the installation.
The kit includes: double-sided tape for mounting the black box module, cable ties for securing the harness, an eyelet and screw for the white ground wire, a yellow fuse holder with a 15 amp fuse, two yellow butt connectors for wire connections, and a ring terminal for the positive battery connection.
Yes. Step 9 requires you to disconnect the vehicle's negative (−) battery cable before making any power connections. After routing the black 12-gauge power wire and connecting it to the fuse holder and black box, you reconnect the negative battery cable and install the 15 amp fuse.
Open the rear hatch and remove both the driver's and passenger's side tail lights using a 10 mm socket and ratchet. Set them aside carefully to avoid damaging the alignment pins.
The yellow wire is inserted on the driver's side. Insert the T-One® Connector end with the yellow wire between the vehicle's wiring connectors and lock it into place. Be careful not to damage the locking tabs and ensure the connectors are fully inserted with locking tabs engaged.
The green wire is inserted on the passenger's side. Insert the T-One® Connector end with the green wire between the vehicle's wiring connectors and lock it into place. Be careful not to damage the locking tabs and ensure the connectors are fully inserted with locking tabs engaged.
Mount the black box on the driver's side using the double-sided tape provided. The epoxy side of the module must point toward the ground to prevent water buildup. Secure the remainder of the harness with the cable ties provided, being careful to avoid areas that would cut or pinch the wire.
Yes, drilling is required to create a ground connection. You must locate a suitable grounding point near the connector, such as an existing ground stud, or drill a 3/32" hole to secure the white ground wire using the eyelet and screw provided. Do not drill into the vehicle floor or bed. Before drilling, verify what is behind any surface to avoid damage to the vehicle or personal injury.
Use a 3/32" drill bit to create the ground hole for the white wire eyelet. Before drilling, verify what is behind the surface to avoid damage to the vehicle or personal injury, and do not drill into the vehicle floor or bed.
After disconnecting the negative battery cable, cut the fuse holder wire and attach the ring terminal to the vehicle's positive (+) battery cable. Connect the other end of the fuse holder to the black 12-gauge wire using the yellow butt connector provided. Then route the black 12-gauge wire from the front of the vehicle rearward along the frame rail to the black box module's black power wire, connecting it with another yellow butt connector. Finally, reconnect the negative battery cable and install the 15 amp fuse into the fuse holder.
The T-One® Connector uses a 15 amp fuse. This fuse is installed in the yellow fuse holder provided in the kit and must be installed after all connections are complete and the negative battery cable is reconnected.
The T-One® Connector harness contains: a yellow wire (driver's side tail light circuit), a green wire (passenger's side tail light circuit), a white wire (ground), and a black 12-gauge wire (power from the battery). The kit also includes a yellow fuse holder and yellow butt connectors for wire connections.
Beginning from the front of the vehicle, route the black 12-gauge wire rearward along the frame rail. Avoid any hot pipes, heat shields, the fuel tank, or any other points that may pinch or break the wire. Connect the rear end to the black power wire on the T-One® black box using the yellow butt connector provided.
Route the harness containing the yellow wire underneath the vehicle and up through the opening between the vehicle bumper and body to the driver's side taillight pocket. Similarly, route the harness containing the green wire underneath the vehicle and up through the opening between the vehicle bumper and body to the passenger's side taillight pocket. If routing through a grommet and along the exterior, avoid hot pipes, heat shields, the fuel tank, or any other points that may pinch or break the wire.
Always wear safety glasses during installation. Before drilling, verify what is behind any surface to avoid damage to the vehicle or personal injury. Do not drill into exposed surfaces, the vehicle floor, or bed. When routing wires, avoid hot pipes, heat shields, the fuel tank, and any other points that may pinch or break the wire. Be careful not to damage the connector locking tabs when inserting connectors. Secure all loose wires to prevent damage or rattling. Do not exceed the towing manufacturing rating or product amperage ratings, as overloading circuits can cause fires.
After all connections are complete, test and verify the installation with a test light or trailer. For the initial test, reset the vehicle electrical system by temporarily removing the key from the ignition. All connections must be complete for the T-One® Connector to function properly. Refer to your vehicle's owner's manual and the instruction sheet for additional information.
Reinstall all plastic trim panels, threshold, storage covers, floor covering, and other items that were removed during installation, being careful not to pinch or cut the wires. Secure all loose wires and mount the trailer tow harness in an accessible location with a bracket or electrical box. Test and verify the installation with a test light or trailer before towing.
Do not exceed the lower of the towing manufacturing rating (including the rating in your vehicle owner's manual) or the specific amperage ratings stated on the product. The manual does not specify the exact amperage rating of the T-One® Connector itself; refer to the product label and your vehicle's owner's manual for this information.
Yes, the T-One® Connector (part 118838-037) is designed for the Kia Sorento and includes specific instructions for tail light removal, harness routing, and connector insertion.
Yes, disconnect the negative battery cable before making power connections. Reconnect it after routing the black 12-gauge power wire and installing the 15 amp fuse.
The T-One® Connector uses a 15 amp fuse, installed in the yellow fuse holder provided after all connections are complete.
Test with a test light or trailer after all connections are complete. Reset the vehicle electrical system by temporarily removing the ignition key. All connections must be complete for proper function.
Verify that all connections are complete and secure. Check that: (1) the yellow wire connector is fully inserted and locked on the driver's side, (2) the green wire connector is fully inserted and locked on the passenger's side, (3) the white ground wire is securely attached to a ground point, (4) the black 12-gauge power wire is connected to both the fuse holder and the black box using yellow butt connectors, (5) the 15 amp fuse is installed in the fuse holder, and (6) the negative battery cable is reconnected. Reset the vehicle electrical system by temporarily removing the ignition key. Test with a test light or trailer to verify function.
The black box module is mounted with the epoxy side pointing upward instead of toward the ground. The epoxy side must point toward the ground to prevent water buildup. Remount the black box using the double-sided tape provided, ensuring the epoxy side faces downward.
Ensure you are inserting the T-One® Connector ends fully between the vehicle's wiring connectors. The connectors must be fully inserted with the locking tabs engaged. Be careful not to damage the locking tabs during insertion. If the locking tabs are damaged, the connectors may not lock properly and the installation will not function correctly.
