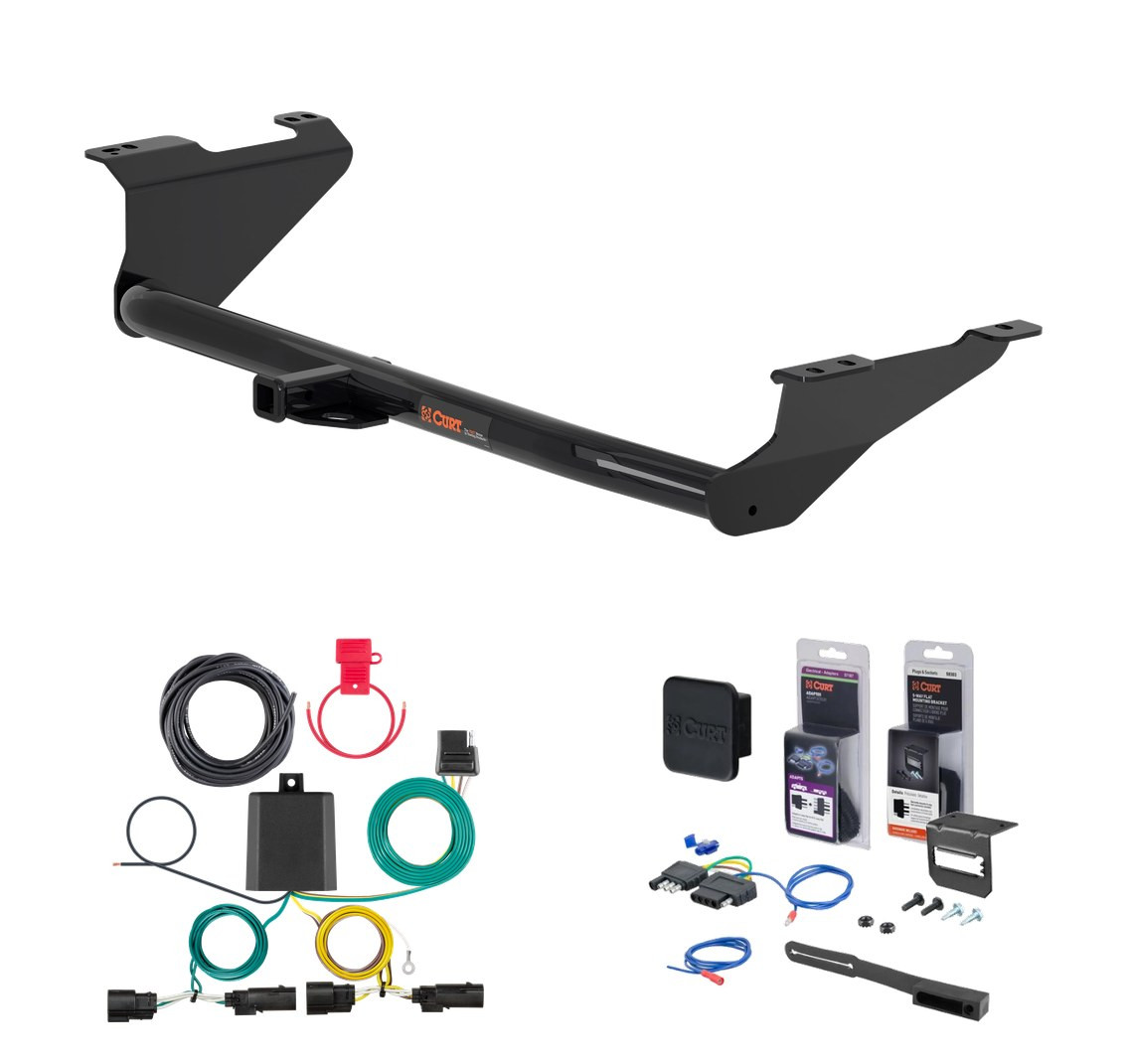

Complete CURT Class 2 1-1/4" trailer hitch and 5-flat wiring kit (with 4-way to 5-way adapter for surge brakes) engineered for the 2021 - 2026 Chrysler Pacifica. Vehicle-specific fit, plug-and-play installation, all hardware and instructions included.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!
Whatever the next checkpoint is on your adventure -- whether it's getting your bike on the trail before sunrise or making it to the campground before dark -- CURT class 2 hitches let you Bring It with confidence. These receiver hitches are made to handle most light-duty towing applications and offer a custom fit for your vehicle. Typically used on full-size cars, crossovers, compact SUVs, minivans or even compact pickup trucks, a CURT class 2 trailer hitch complements the design of smaller vehicles. This particular class 2 hitch is made to be a custom hitch for certain years of the Chrysler Pacifica (to verify vehicle compatibility, see application info). It offers a weight carrying capacity of 3,500 lbs. GTW and 350 lbs. TW. Class 2 trailer hitches can typically be used to tow a variety of lightweight trailers, such as a small utility trailer, small fishing boat trailer or popup camper (NOTE: Never exceed the lowest weight capacity of any towing component). They are also perfect for adding cargo space to your vehicle with a bike rack or cargo carrier. This class 2 hitch features a 1-1/4" receiver tube to accept a ball mount shank or other hitch-mounted accessory. For safety, it is tested in accordance with SAE J684. A custom trailer hitch design requires extra care, and as such, CURT class 2 hitches are engineered using real vehicles and hands-on research. We use high-strength steel, robotic welding and rigorous testing to produce hitches that are built to fit your lifestyle. To ensure that each hitch will be a reliable extension of your vehicle, we also finish our hitches in a co-curing of liquid A-coat and black powder coat, giving them long-lasting rust and wear resistance.
If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution. A custom wiring harness -- also called a T-connector -- is a simple, plug-and-play electrical device that plugs into your automotive electric system and provides a standard, universal trailer wiring connection. This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation. Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing. This particular plug-in harness provides a 4-way flat connector socket and is designed to be a custom wiring harness to fit certain years of the Chrysler Pacifica (to verify your vehicle compatibility, see application info). It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use. You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite. However, turning that picture into a reality takes more than just daydreaming. It takes a solid connection and the right amount of power. CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing hitch setup.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494One-Year Limited
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2021 - 2026 | Chrysler Pacifica | — |
Yes, CURT part number 12180 is designed for Chrysler Pacifica models from 2017 to present. It is a weight-carrying receiver hitch with a gross load capacity of 3,500 lbs trailer weight and 350 lbs tongue weight.
The CURT 12180 has a gross load capacity of 3,500 lbs trailer weight and 350 lbs tongue weight when used as a weight-carrying hitch. You must never exceed your vehicle manufacturer's recommended towing capacity.
The CURT 12180 is designed for use with ball mount #45521. Euro mount options are also available: #45571 (1 7/8" ball) or #45572 (2" ball).
Required tools are: ratchet, torque wrench, 6" socket extension, 8mm socket, 10mm socket, 3/4" socket, universal joint socket, screwdriver, masking tape, aviation shears, die grinder, and safety glasses.
Yes, the underbody panel must be removed. You will locate and remove 5 screws with an 8mm socket, 7 nuts with a 10mm socket, 2 bolts with a 10mm socket, and 2 plastic screws with a screwdriver. If no underbody panel is present, skip this step and proceed to lowering the exhaust.
Yes, trimming is required. You must trim the underbody panel to a 0.5" x 10" slot using aviation shears. You must also trim the heat shield to a 5" x 13" section using aviation shears. On hybrid models only, you must enlarge holes on the driver side frame rail using a die grinder.
Yes, the exhaust must be lowered by removing 2 rubber isolators before installation. The manual references a Rubber Isolator Removal Diagram for this procedure.
Yes, the heat shield must be temporarily removed. You will remove 2 plastic nuts with a 10mm socket, remove the heat shield, mark and trim a 5" x 13" section with aviation shears, then reinstall with 1 nut using a 10mm socket. If no underbody panel is present, remove 4 plastic nuts instead, trim the panel, and reinstall with 3 plastic nuts.
Yes. On hybrid models only, you must temporarily remove the emissions canister on the driver side frame rail using a 10mm socket to remove 2 bolts, then reinstall using provided M6 hardware. You must also enlarge holes on the driver side frame rail using a die grinder as shown in the Hole Enlargement Diagram.
All 1/2" hardware must be torqued to 110 ft-lbs. This is the final torque value applied after the hitch is raised into position and all fasteners are loosely fastened.
The kit includes: 5 bolts (1/2-13 UNC, 1-1/2", grade 8, part 10-10287), 5 square hole spacers 0.250 x 1.00 x 2.50" (CM-SP10), 5 washers 1/2" (30-00149), 5 pieces of 1/2" fishwire, 1 tap bolt (10-10513), 1 hex bolt 1/4-20 x 1.00 (10-10424), 1 hex nut (20-00192), and 5 hex nuts 1/2-13 UNC grade 8 (20-00171).
Fishwire is used to thread carriage bolts and spacers through the frame rail access holes before the hitch is raised into position. The fishwires help align the bolts with the hitch holes, making installation easier. After alignment, the fishwires are removed and replaced with hex nuts.
Two people may be required to ease installation. The manual notes that using proper tools will greatly improve the quality of the install and reduce the time required.
Safety glasses must be worn at all times while installing this product.
All non-trailer (wheel-less) loads applied to this product must be supported by 18050 stabilizing straps. Failure to properly support non-trailer loads will void the product warranty. See the CURT catalog or visit www.curtmfg.com for further information.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound. This is a critical ongoing maintenance requirement.
If an electrical ground is present on the driver side frame rail, it must be relocated using the provided 1/4" hardware. Ensure the area is free of rust, dirt, and paint before reinstalling.
Raise the hitch into position starting with the passenger side. Run the fishwires through the holes on the hitch to help align bolts with hitch holes. Remove the fishwires and loosely fasten the hex nuts before final torquing.
Reinstall the underbody panel as the final step, after torquing all 1/2" hardware to 110 ft-lbs. Follow steps 1 and 2 in reverse order to reinstall.
Yes, the CURT 12180 is designed for Chrysler Pacifica models 2017-present with a 3,500 lbs trailer weight and 350 lbs tongue weight capacity.
You need: ratchet, torque wrench, 6" socket extension, 8mm/10mm/3/4" sockets, universal joint socket, screwdriver, masking tape, aviation shears, die grinder, and safety glasses.
Yes. You must trim the underbody panel (0.5" x 10" slot) and heat shield (5" x 13" section) with aviation shears. On hybrid models, you must enlarge frame rail holes using a die grinder.
All 1/2" hardware must be torqued to 110 ft-lbs as the final step after the hitch is positioned and fasteners are loosely fastened.
The CURT 12180 has a 3,500 lbs trailer weight and 350 lbs tongue weight capacity. Never exceed your vehicle manufacturer's recommended towing capacity.
Yes. You must lower the exhaust by removing 2 rubber isolators and temporarily remove the heat shield (which is then trimmed and reinstalled).
The Curt 56492 is a wiring converter for SUVs and vans that converts the vehicle's taillight signals to a 4-flat trailer connector. It allows you to connect a trailer to your vehicle's electrical system for towing.
The Curt 56492 is designed for SUVs and vans with wiring locations S1 (behind driver side taillight) and S2 (behind passenger side taillight). Compatibility may vary by specific vehicle model and year. Check with the manufacturer or a fitment database to confirm your vehicle is supported.
No. The converter system is designed only for 12-volt negative ground systems. It cannot be used on positive ground vehicles.
Required tools are: ratchet, fishwire (or equivalent such as stiff wire, cut wire hanger, rope or string), socket extension, wire crimper, Torx bit T-27, wire cutter, and panel trim removal tool.

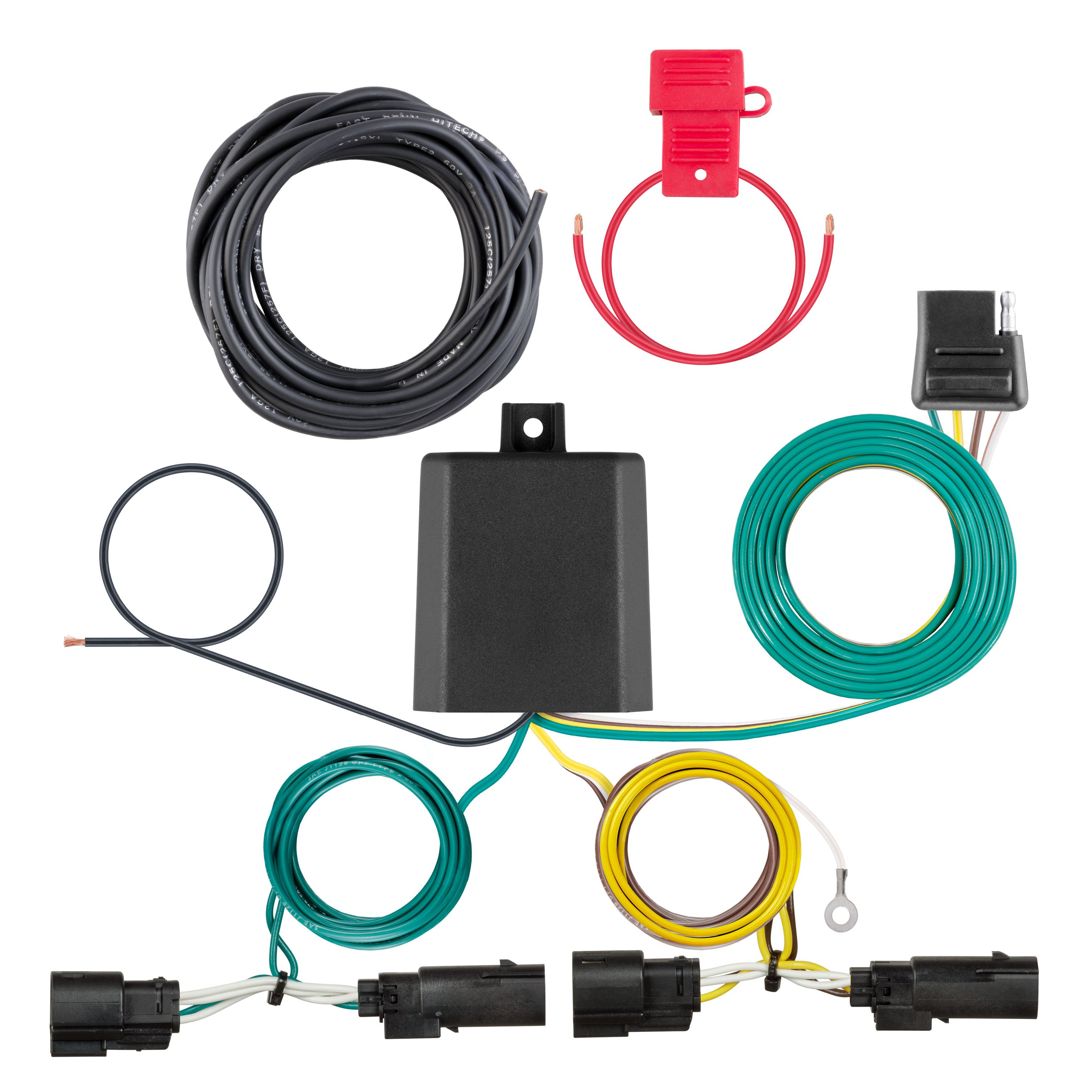

The kit includes: custom wiring harness with green and yellow wire ends, black converter box, white ground wire with ring terminal, provided screw for grounding, double-sided tape, cable ties, 4-flat dust cover, and a fuse holder with 10-amp fuse. The 12-gauge power wire and butt connectors are shown in the powered converter lead diagram.
Yes. You must disconnect the negative battery terminal in the engine compartment on the driver side before beginning installation. Fasten this wire down and away from the battery while completing the installation. Reconnect it only after all other steps are complete and the fuse is installed.
Open the vehicle's rear hatch. Locate and remove two taillight fasteners on each side. Pull each taillight straight rearward. Separate the connectors from the taillight housing carefully, taking care not to damage the locking tabs. Set the taillights aside.
Fishwiring is a technique to push or pull an electrical wire through a blind hole. Insert the fishwire (stiff wire, cut wire hanger, rope or string) through the blind hole until it protrudes on the other side. Use tape to secure the harness to the fishwire and pull it back through. If the wire gets hung up, push back down, wiggle it around or twist it to loosen it. This technique routes the custom wiring harness behind the rear bumper and out through the opening below the taillight.
On the passenger side, use fishwire to route the custom wiring harness with the green wire up behind the rear bumper and out through the opening below the taillight. Insert the harness end with the green wire between the separated connectors, ensuring the connectors are fully inserted with locking tabs in place. Repeat on the driver side using the harness end with the yellow wire.
Mount the black converter box on the driver side on a flat, clean surface that is out of the path of spray and debris from the rear wheels and road. Use the provided double-sided tape and cable ties to secure it. Failure to mount the box in a protected area can cause loss of warranty, product failure, overheating and potential fire.
Locate a suitable grounding point near the converter on the driver side, such as an existing screw with nut in the vehicle frame. The area must be free of rust, dirt and paint. If no suitable point exists, drill a 3/32" pilot hole. Secure the white ground wire using the ring terminal and the provided screw. Before drilling, check for miscellaneous items hidden behind or under any surface to avoid damage and personal injury.
Route the black 12-gauge power wire from the vehicle battery to the converter, taking care to avoid any pinch points and hot or rotating components. When passing the power wire through sheet metal, use an existing grommet, add a grommet, or use silicone to protect the wire from sharp edges. Secure the power wire to the vehicle chassis using the provided cable ties. Refer to the Powered Converter Lead Instruction Sheet on page 5 for detailed routing guidance.
Install the 10-amp fuse in the fuse holder only after all other installation steps are complete. The battery connection must be fuse-protected with a 10-amp maximum. Do not exceed this rating, as exceeding the product rating can cause loss of warranty, overheating and potential fire.
Drilling may be required only if a suitable grounding point does not already exist on the vehicle frame. If needed, drill a 3/32" pilot hole for the ground wire screw. Before drilling, check for miscellaneous items hidden behind or under any surface to avoid damage and personal injury.
Signal circuits: 3.0 amps per side. Tail/Running circuits: 6.0 amps total. The battery connection must be fuse-protected with a 10-amp maximum. Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower.
Green wire: Right turn signal. Yellow wire: Left turn signal. Red wire: Brake signal. Brown wire: Taillight/running light. White wire: Ground. Black wire: 12-volt positive power from battery.
The 4-flat connector is the trailer connector that connects to the converter. When in use, route it to the center of the vehicle and out of the trunk. When not in use, roll it up and store it in a convenient, out-of-the-way location inside the trunk. Install the provided 4-flat dust cover to help prevent corrosion.
The maximum fuse rating is 10 amps. The battery connection must be fuse-protected with a 10-amp maximum. Exceeding this rating can cause loss of warranty, overheating and potential fire.
Route the 12-gauge power wire to avoid any pinch points and hot or rotating components. When passing the wire through sheet metal, use an existing grommet, add a grommet, or use silicone to protect the wire from sharp edges. Secure the wire to the vehicle chassis using the provided cable ties. Before drilling any holes, check for miscellaneous items hidden behind or under any surface to avoid damage and personal injury.
After connecting the 12-volt power wire to the harness, verify that the harness is functioning by attaching the battery and testing with a test light, 4-flat tester, or a functioning trailer. Reinstall all items removed during installation and reconnect the negative battery terminal if it was disconnected.
Periodic inspection of all wires and connections should be performed to ensure there is no visible damage or loose connections. Install the provided 4-flat dust cover to help prevent corrosion when the connector is not in use.
The Curt 56492 is designed for SUVs and vans with wiring locations behind the driver and passenger side taillights. Confirm your specific vehicle model and year are supported before purchasing.
You will need: ratchet, fishwire (or stiff wire), socket extension, wire crimper, Torx bit T-27, wire cutter, and panel trim removal tool.
Yes, you must disconnect the negative battery terminal before installation and reconnect it only after all other steps are complete and the 10-amp fuse is installed.
The maximum fuse rating is 10 amps. Exceeding this rating can cause loss of warranty, overheating and potential fire.
Green = right turn, Yellow = left turn, Red = brake, Brown = taillight, White = ground, Black = 12V power.
No. The converter is designed only for 12-volt negative ground systems.
